- Size:7 inch
- Resolution:1920×1080
- Panel Interface:MIPI (4 data lanes)
- Contrast Ratio:1000:1
- Display Color:16.7M 70% NTSC
- Viewing Angle L/R/U/D:85/85/85/85
- Brightness:350cd/m²(Typ.)

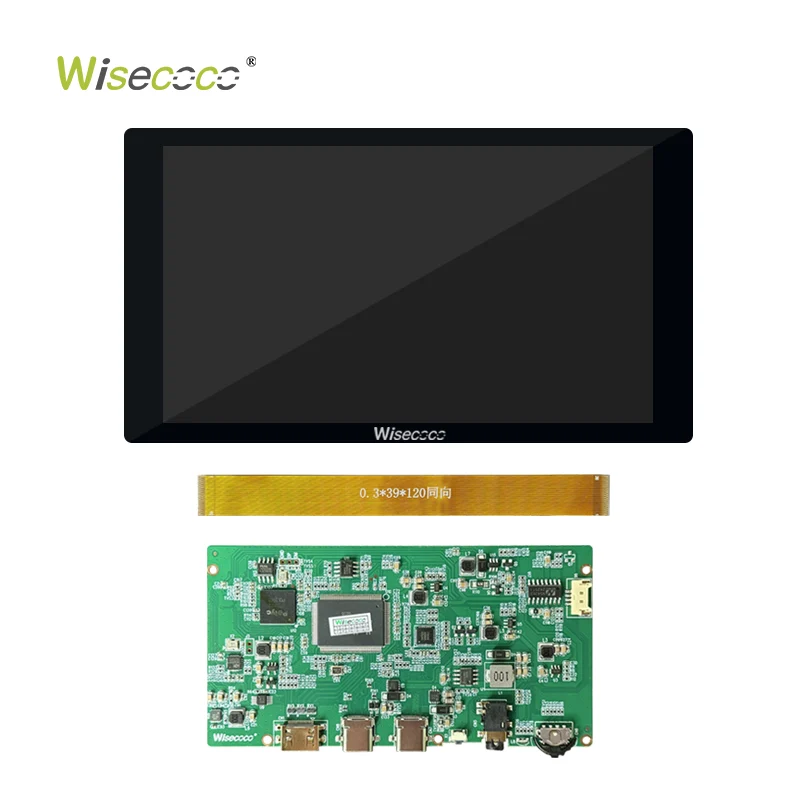

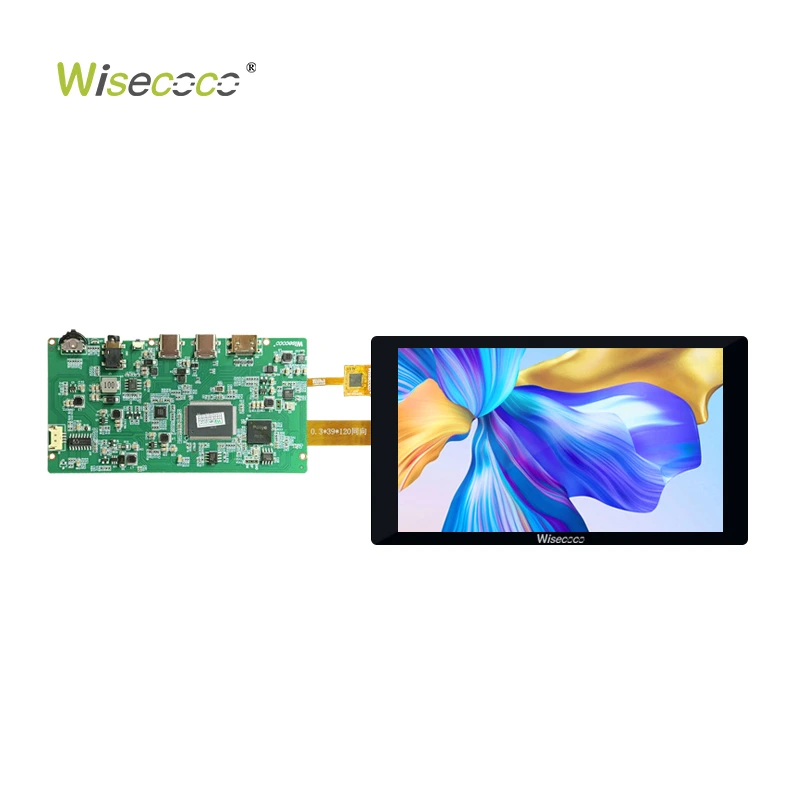

7 Inch 1920×1080 Tft IPS LCD Display Panel Capacitive Touch Screen Lcd Module for Handheld Device
$95.00

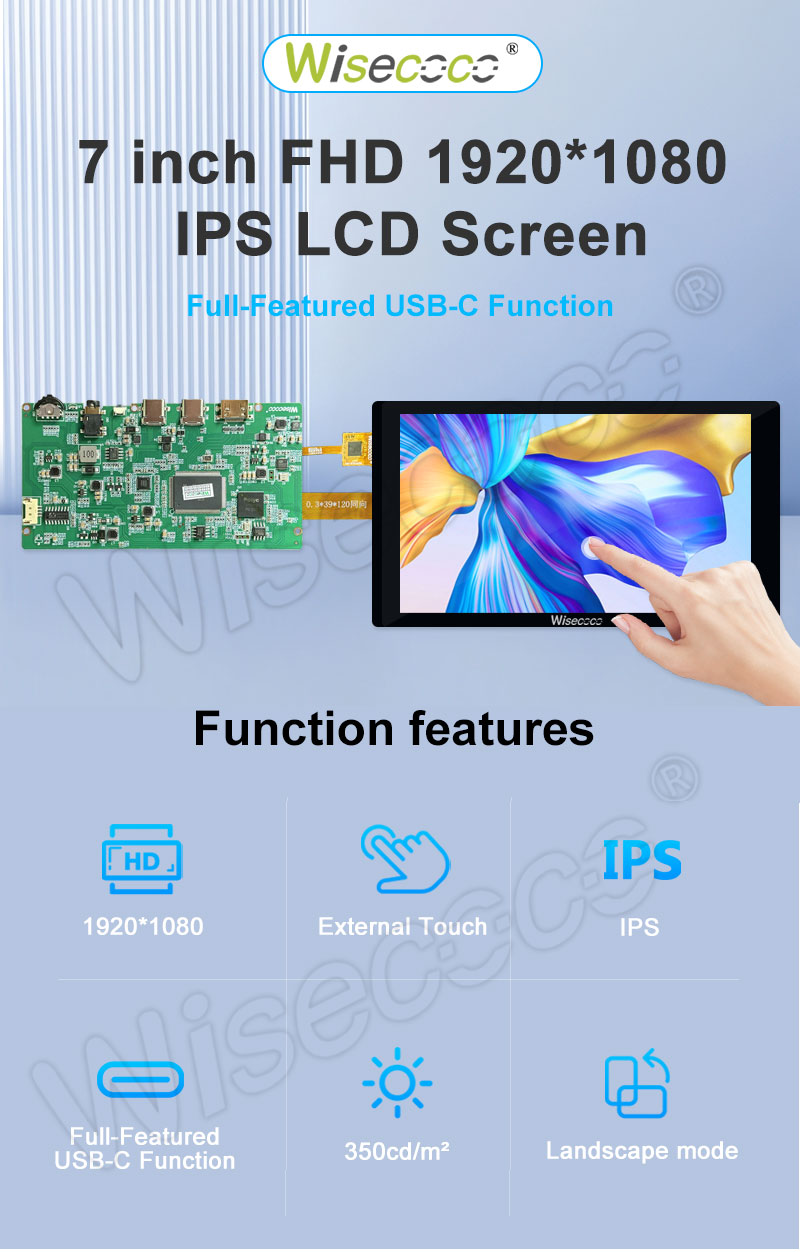

7 Inch FHD IPS TFT LCD Touch Display — 1920×1080 | 350 cd/m² | Full-Featured USB-C
7 Inch FHD IPS TFT LCD Display is an ADS-mode panel featuring 1920×1080 resolution, 350 cd/m² brightness, and an 85/85/85/85 symmetric viewing angle. The display supports an external touch layer and connects via full-featured USB-C, with a 1300:1 contrast ratio and hard-coated surface treatment.
|
Diagonal Size
|
7 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1920*1080 FHD
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
149.76*84.2mm
|

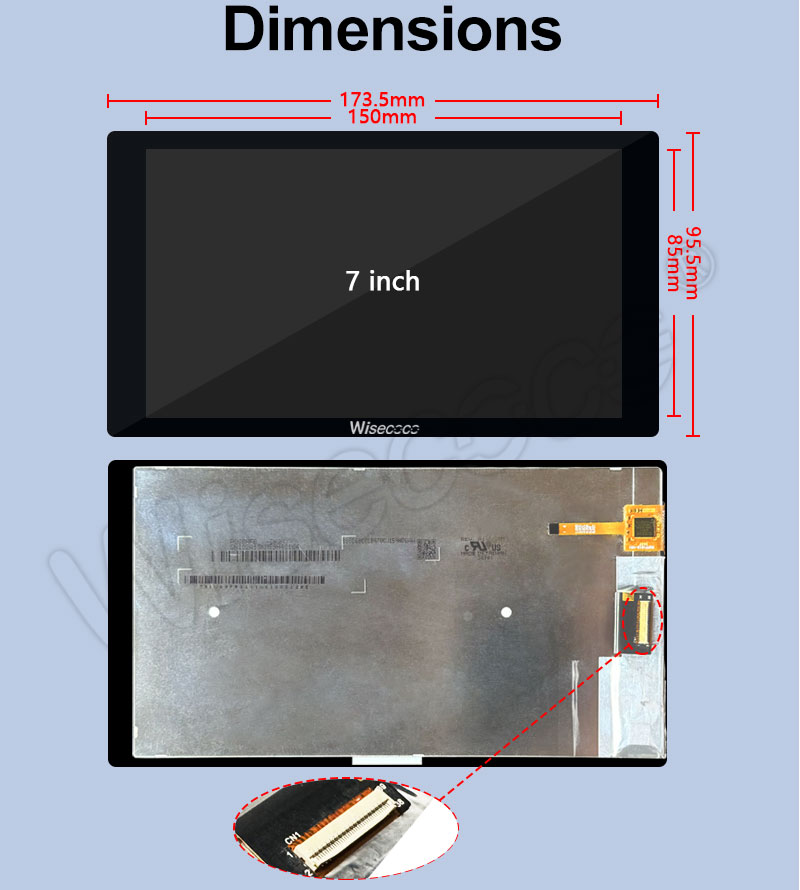

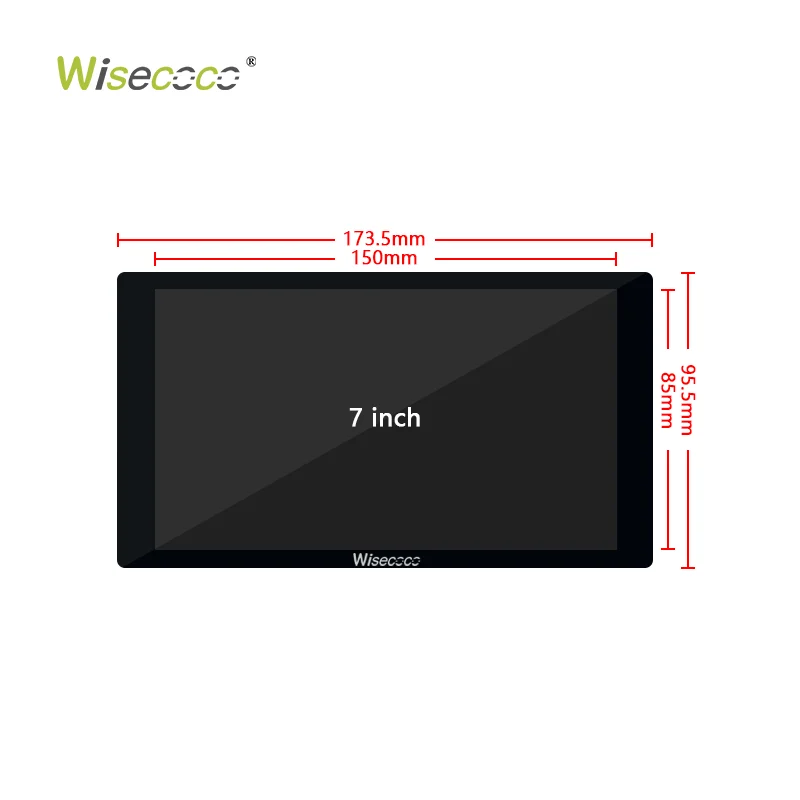

Outline Dim.
|
182.35*92.35mm
|
|
Bezel Area
|
–
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
1300:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 72% (CIE1931)
|
Light Source
|
9S7P WLED , 15K hours , With LED Driver
|
|
Weight
|
–
|
Designed For
|
Laptop,and so on.
|
|
Fresh Rate
|
60Hz
|
Touch Panel
|
Available
|
|

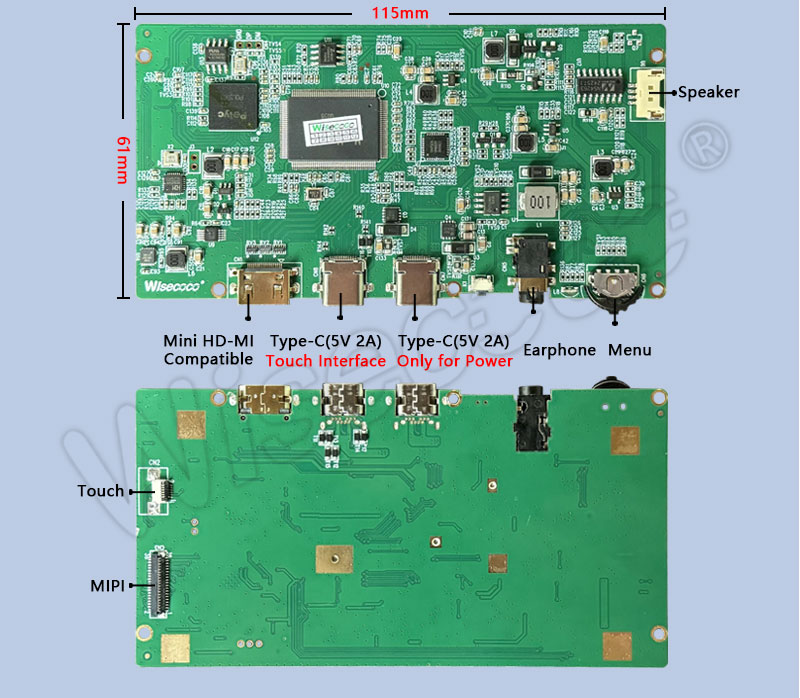

Interface Type
|
Full-featrued Usb-c Function
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
||
Features:
- 1920×1080 FHD Panel — Delivers sharp, detailed visuals in a compact 7″ landscape format.
- 85/85/85/85 Symmetric Viewing Angle — Maintains consistent color and contrast from virtually any position.
- 1300:1 Contrast Ratio — Provides strong dynamic range for crisp, well-defined imagery.

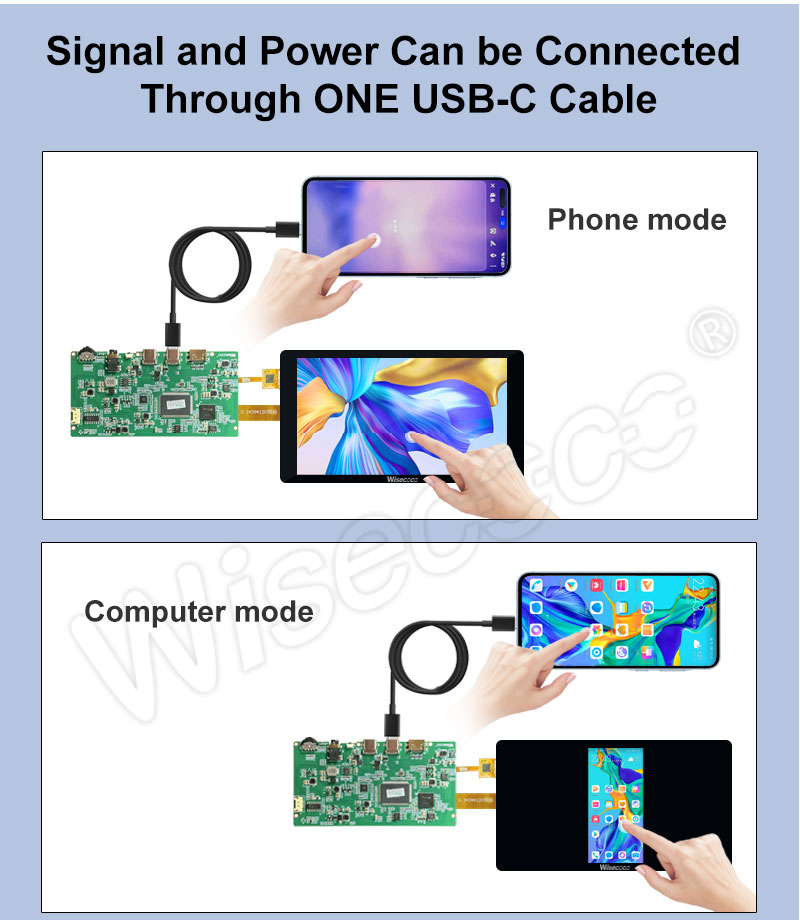

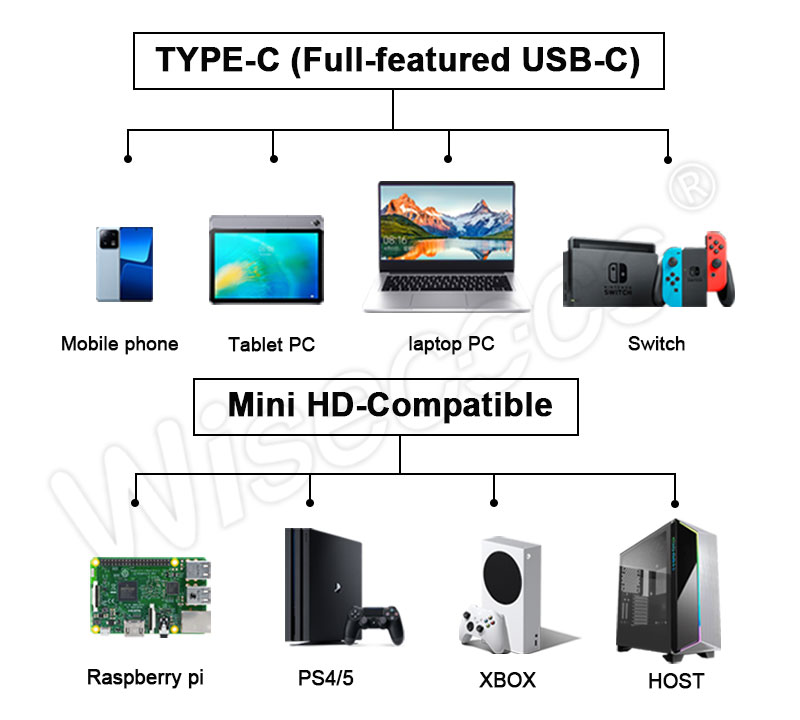

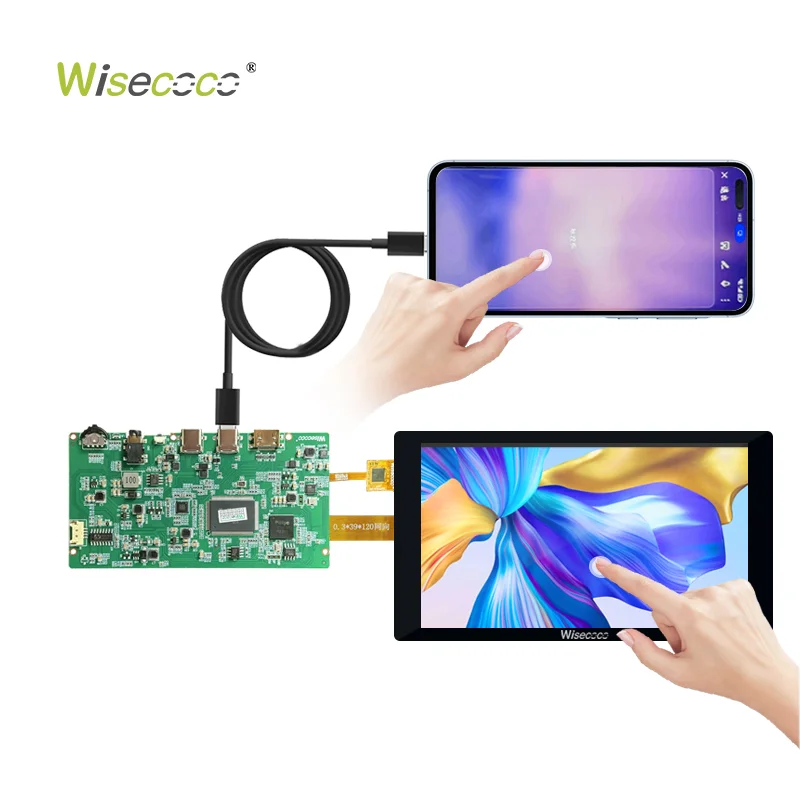

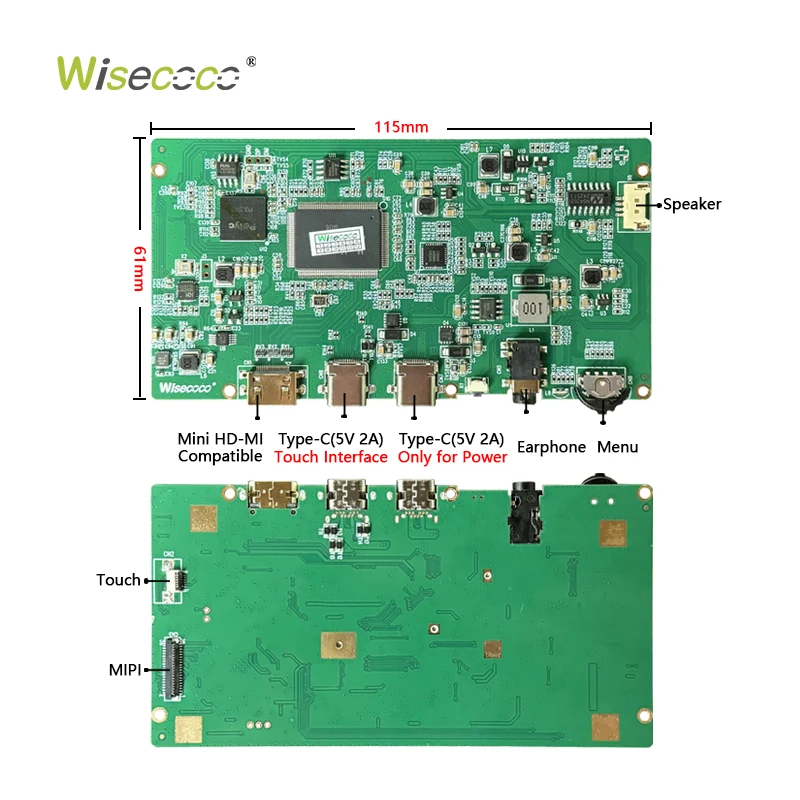

- Full-Featured USB-C — Single-cable video, touch, and power for simplified connections.

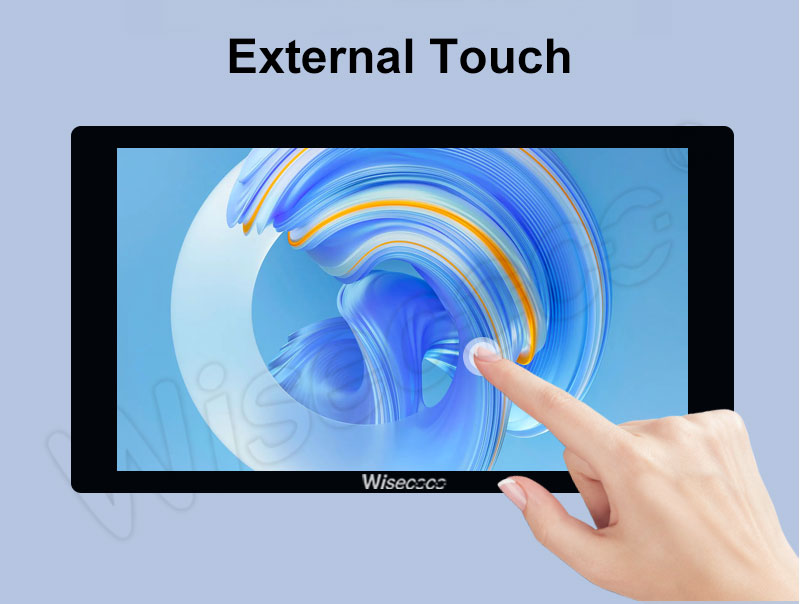

- External Touch Panel Available — Configurable for touch or non-touch integration.
- 350 cd/m² Brightness — Clear, bright visuals for indoor and portable use.
Ideal for: Portable monitors for laptops · Compact touch panels · Embedded landscape displays · Consumer electronics accessories
Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
