- Size:8.4 inch
- Resolution:1600×2560
- Panel Interface:MIPI
- Active Area:113.04(W) × 180.864(H) mm

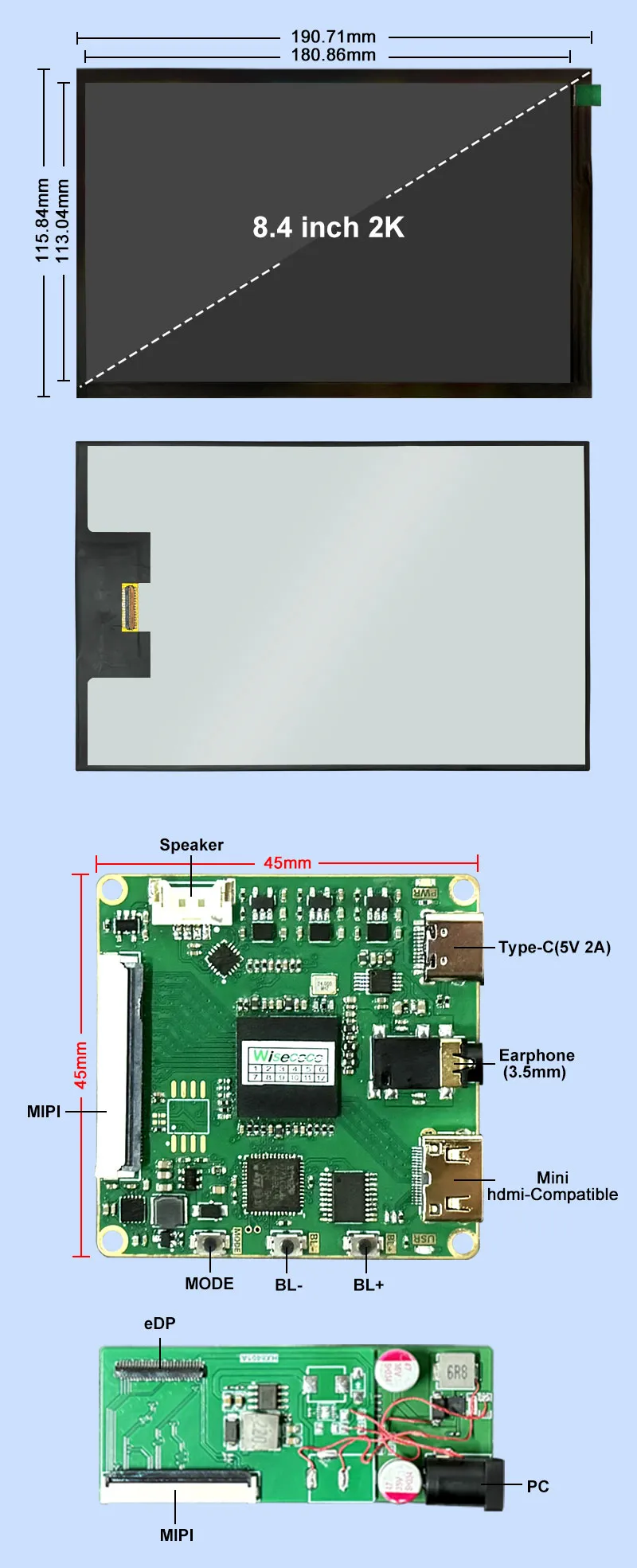

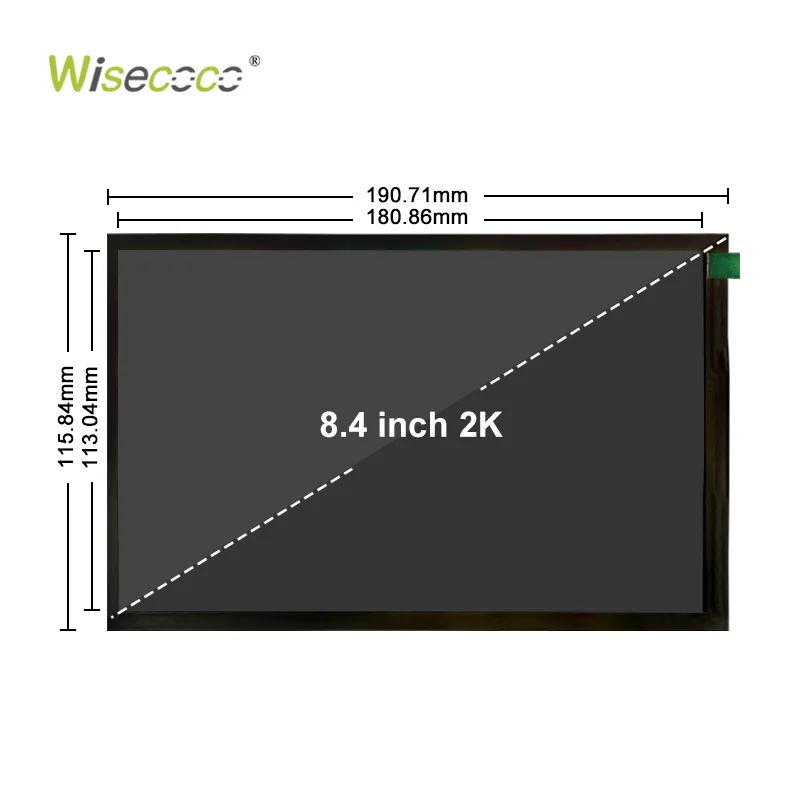

- Outline Dimension:115.84(W) × 190.71(H) × 2.05(T) mm
- Viewing Angle :80/80/80/80
- Brightness:2000 cd/m²
- Operation / Storage Temp:-10~50°C / -20~60°C

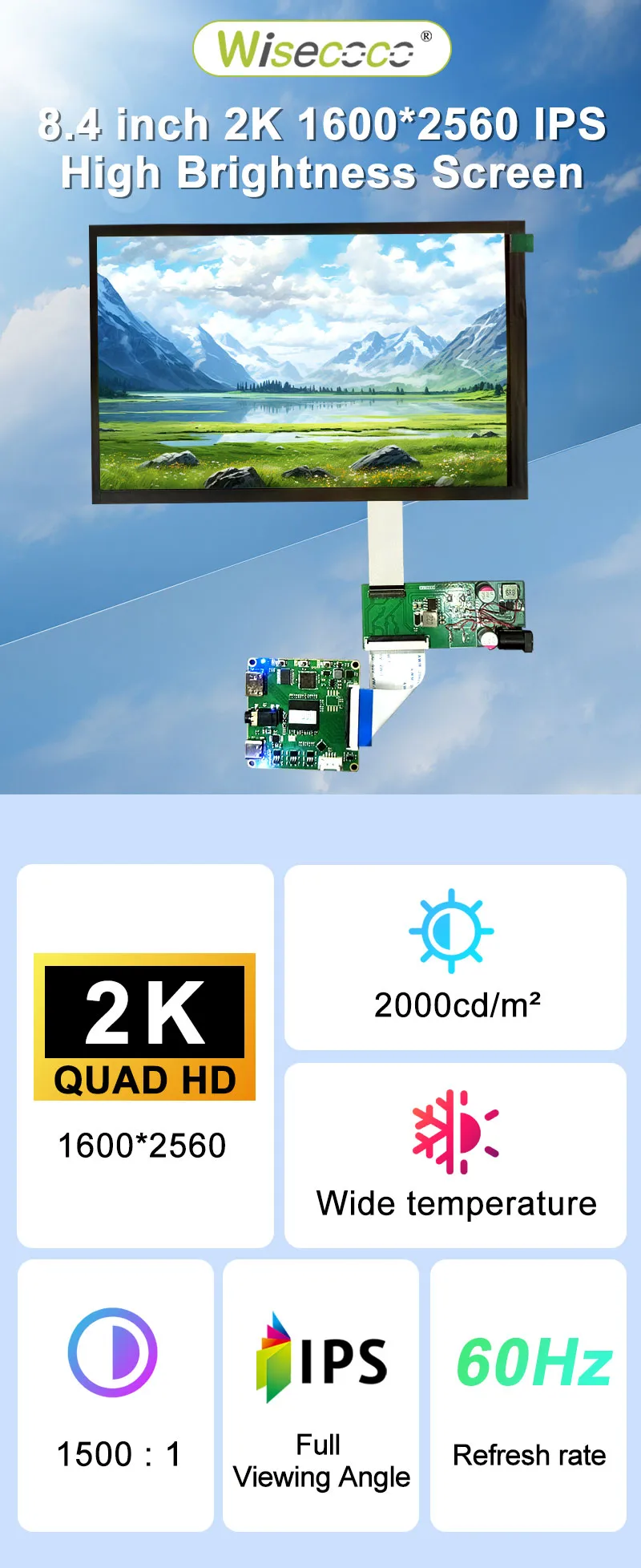

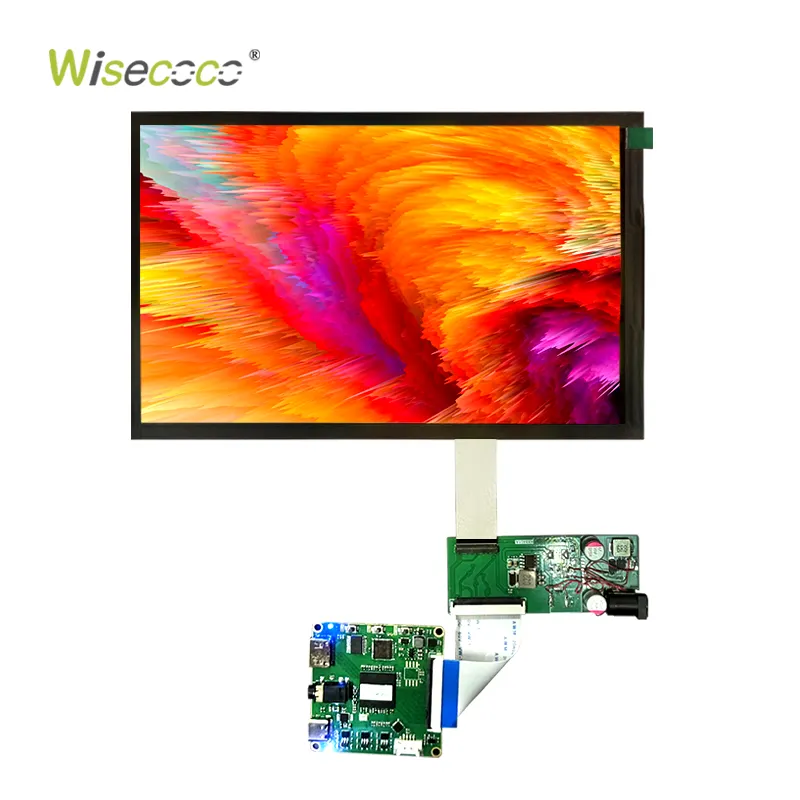

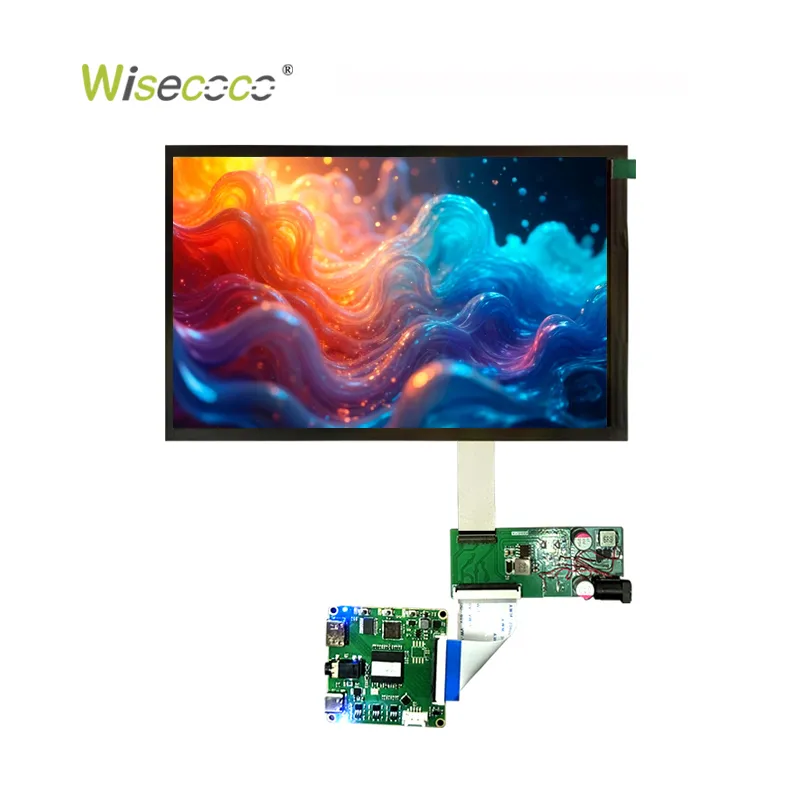

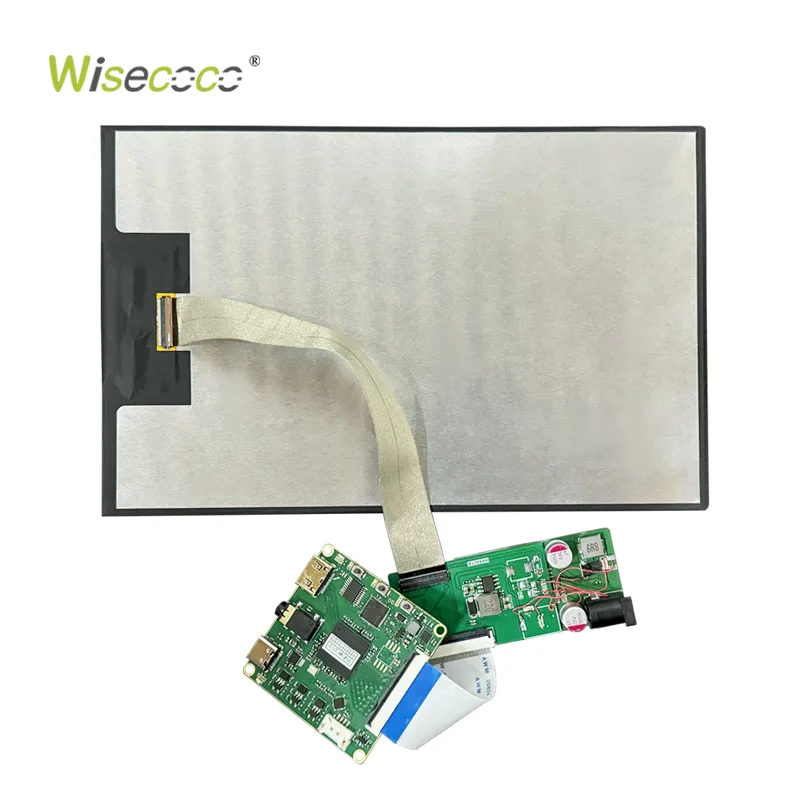

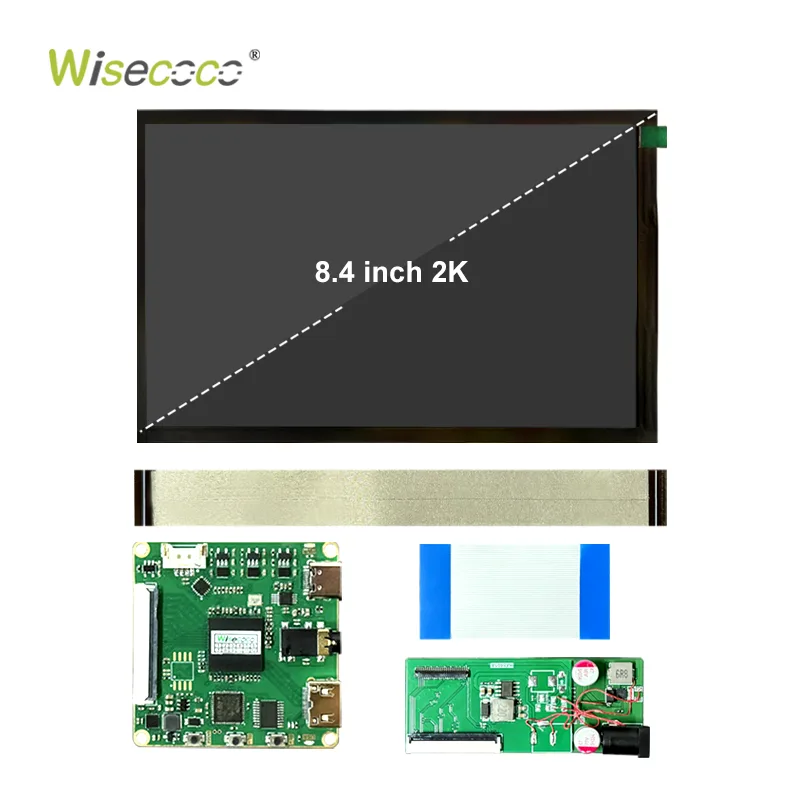

8.4 Inch IPS TFT LCD Display 1600×2560 2000nits High Brightness Screen with MIPI Interface
$158.00
8.4″ 2K IPS High Brightness Display — 1600×2560 Quad HD | 2000cd/m² | 60Hz
8.4-inch 2K IPS display delivering sharp 1600×2560 Quad HD resolution with exceptionally high 2000cd/m² brightness for outdoor and high-ambient-light applications. Featuring full IPS viewing angle, a smooth 60Hz refresh rate, an ultra-high 1500:1 contrast ratio, and wide temperature tolerance, this display is built for demanding visibility-critical projects.
|
Diagonal Size
|
8.4 Inch
|
|
LCD Type
|
TFT / Transmissive / Normally Black
|
|
Pixel Format
|
1600(RGB) ×2560
|
|
Interface
|
8 Lanes 2Port MIPI Interface
|
|
Active Area
|
113.04× 180.864 mm
|
|
Outline Dimensio（LCM）
|
115.84(W) × 190.71(H) × 2.05(T) mm
|
|
Luminance
|
2000 cd/m² (Typ.)
|
|
Backlight
|
White LED 32 (8Serial 4Paralle&80MA)）
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
|
Contrast Ratio
|
1500:1
|
|
Fresh Rate
|
60Hz
|
|
Environment
|
Operating Temp.: -10~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
Features:
- 1600×2560 2K Quad HD Resolution — Sharp, high-density IPS panel delivering crisp detail for icons, video, and graphical interfaces.
- 2000cd/m² Ultra-High Brightness — Exceptional outdoor-readable brightness, ensuring visibility even in direct sunlight.
- IPS Full Viewing Angle — Genuine IPS panel technology ensures consistent color and brightness from virtually any angle, without color shift or contrast loss.
- 1500:1 Contrast Ratio — Enhanced dynamic range for clear, well-defined imagery.
- 60Hz Refresh Rate — Smooth, fluid visuals with seamless transitions for a responsive viewing experience.
- Wide Operating Temperature Range — Reliable performance across extreme hot and cold environments, suited for industrial and outdoor use.
Ideal for: Outdoor equipment displays · Industrial control panels · High-brightness handheld devices · Automotive & marine displays · Maker & prototyping projects
Wisecoco offers One-step customized display module solutions.
