- Size:7 inch
- Resolution:1920×1200

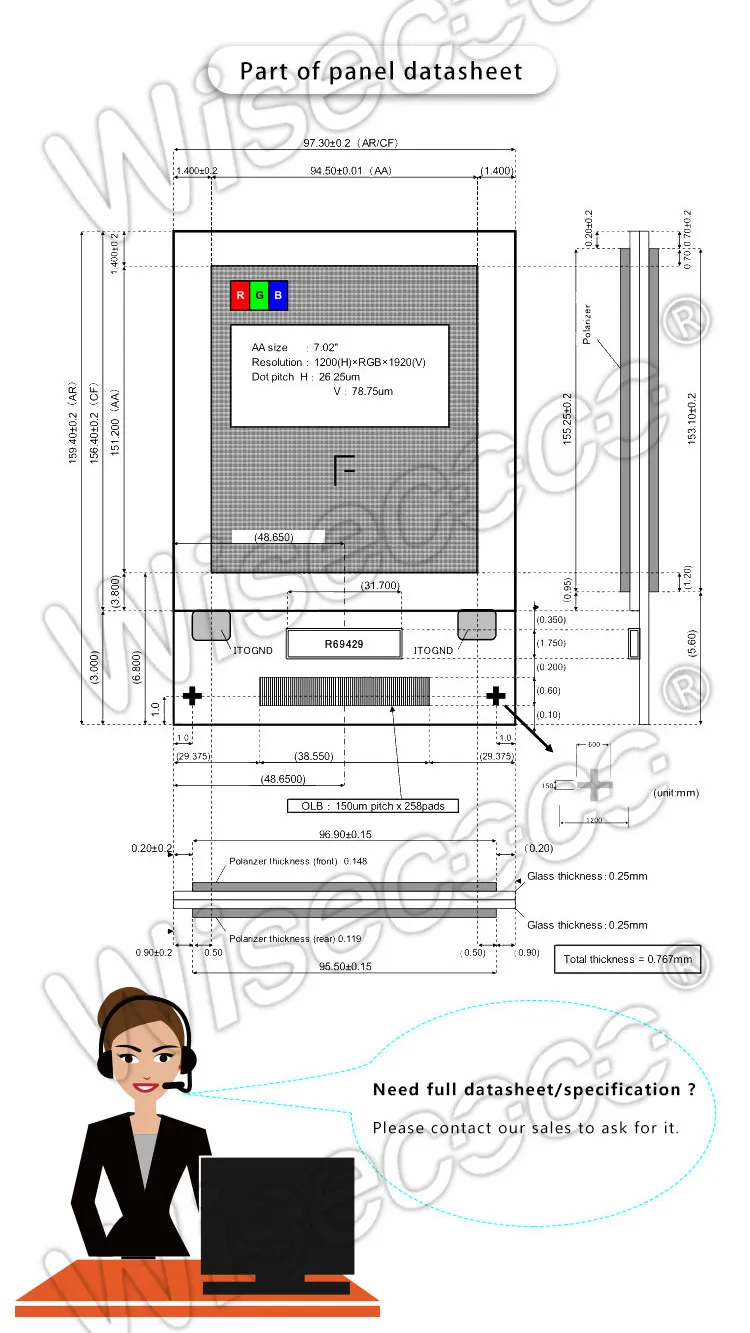

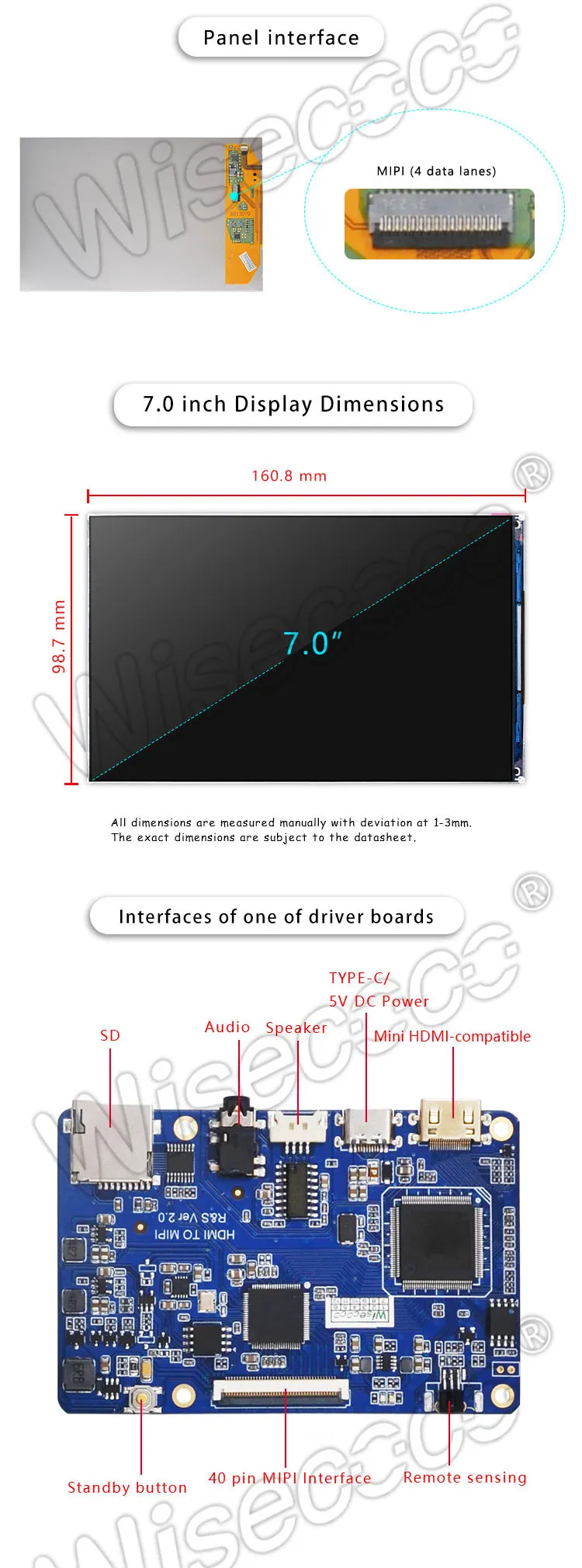

- Outline Dimension:160.8 × 98.7 (H×V) mm
- Active Area:151.2 × 94.5 (H×V) mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness: 500 cd/m² (Typ.)
- Interface: MIPI (4 data lanes)

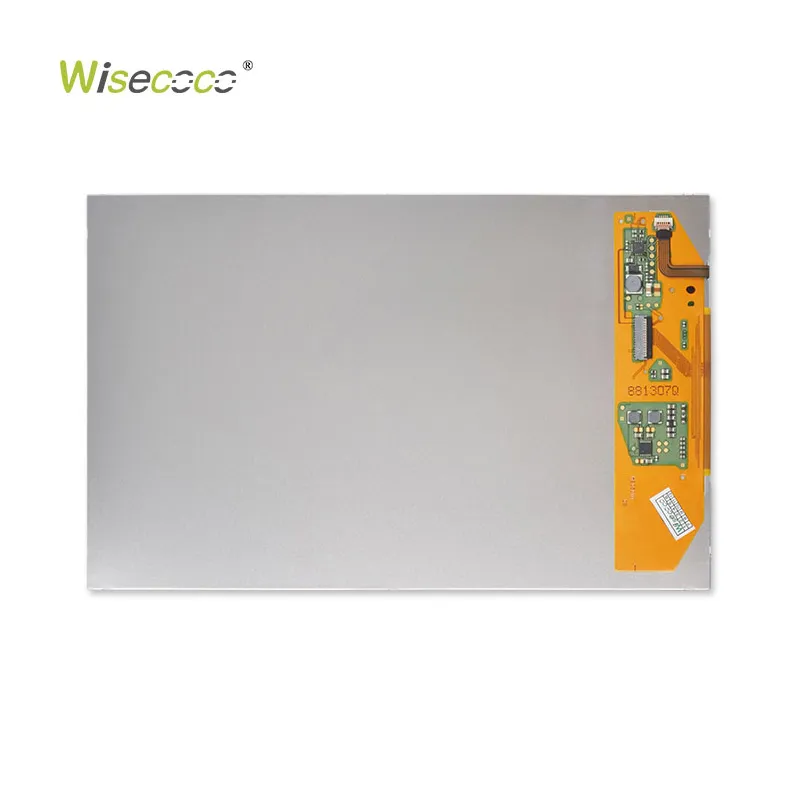

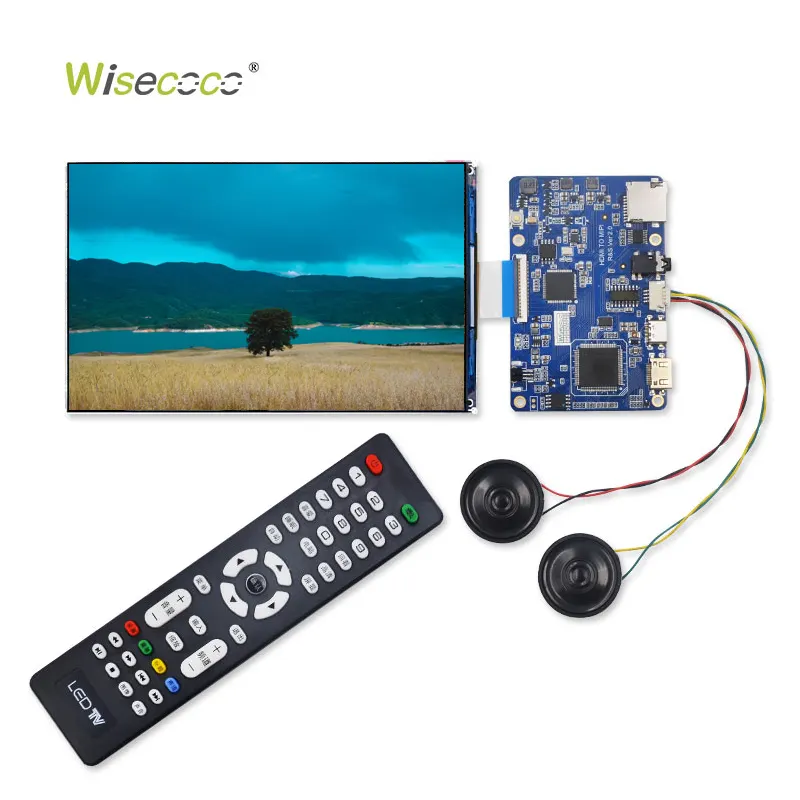

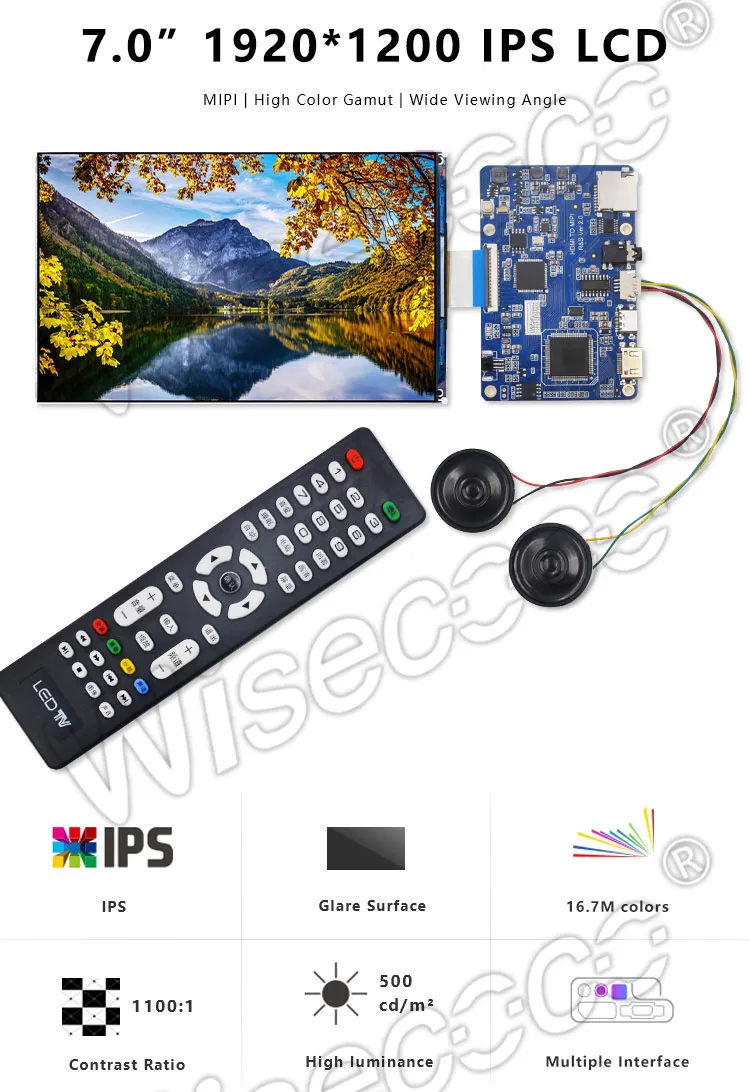

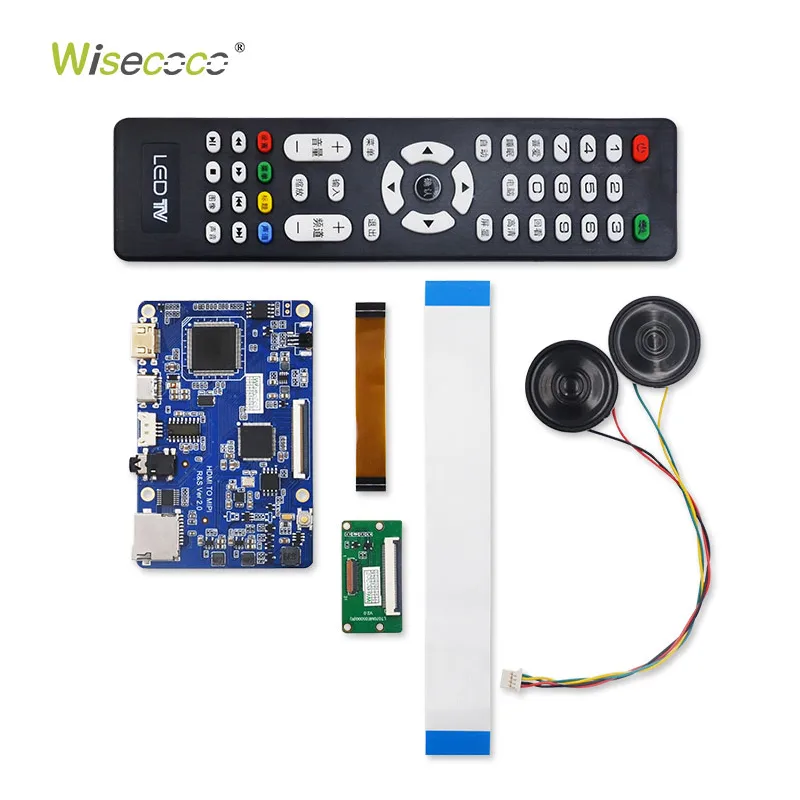

7 Inch Tft Lcd Module MIPI 40 Pin 1920×1200 IPS LCD Display With Driver Board
$69.00
7″ IPS TFT LCD Module — 1920×1200 | 500 cd/m² | 1100:1 Contrast

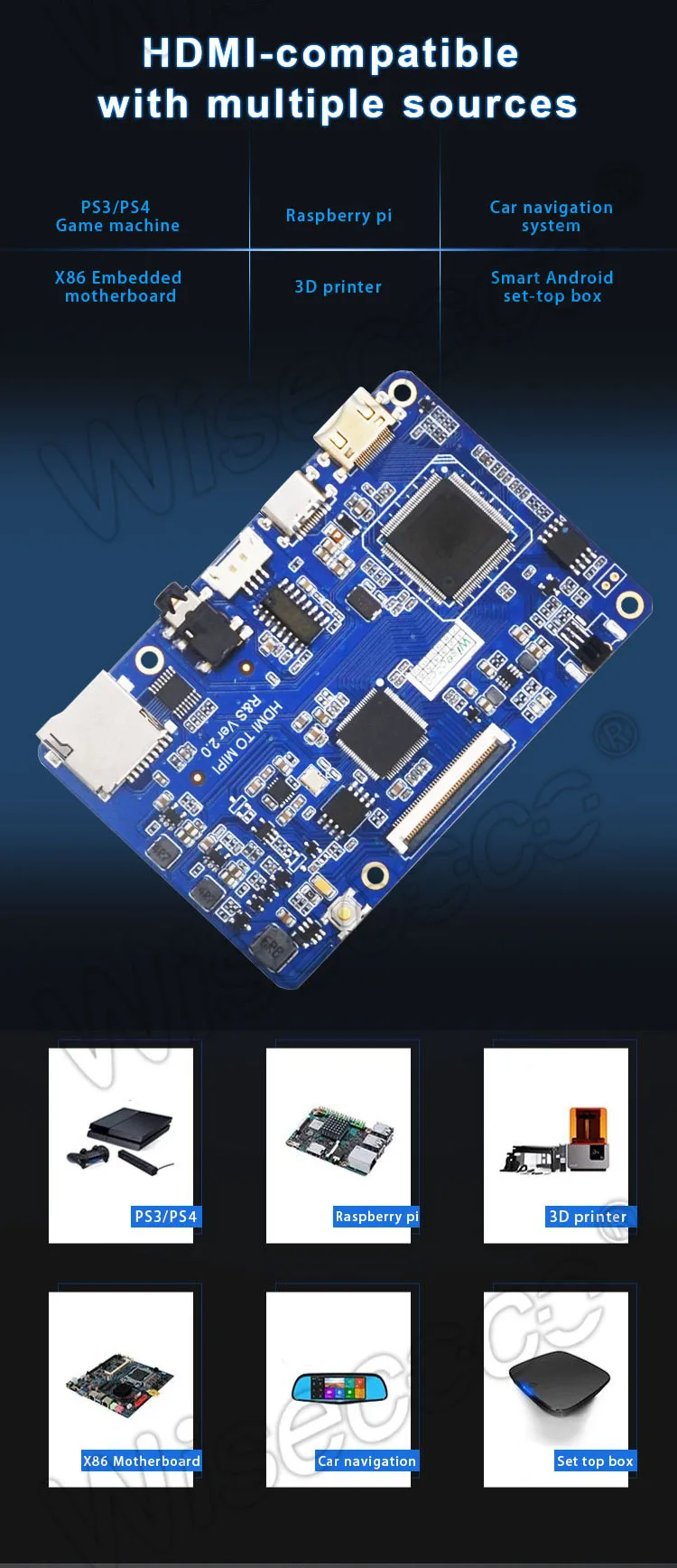

7 Inch IPS TFT LCD Module is a WUXGA-resolution panel featuring 1920×1200 resolution, 500 cd/m² brightness, and full 80/80/80/80 viewing angle. The display pairs with an HDMI-to-MIPI 40-pin driver board and offers optional touch, making it well suited for PAD and tablet applications.
|
General Features
|
|||
|
Screen Size
|
7 inch
|
Screen Type
|
LCM, LTPS TFT-LCD
|
|
Pixel Number
|
1920(RGB)*1200 (WUXGA)
|
Arrangement
|
RGB Vertical Stripe
|
|
Active Area
|
151.2*94.5 (H*V) mm
|
Outline Dim.
|
160.8*98.7(H*V) mm
|
|
Bezel Area
|
–
|
Contrast Ratio
|
1100 : 1 (Typ.) (TM)
|
|
Luminance
|
500 Cd/m² (Typ.)
|
Response Time
|
–
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Work Mode
|
IPS, Normally Black, Transmissive
|
|
Good View at
|
Symmetry
|
Treatment
|
–
|
|
Color Depth
|
16.7M 72% NTSC
|
Backlight
|
WLED
|
|
Weight
|
TBD
|
Used for
|
PAD & Tablet
|
|
Frame Rate
|
–
|
Touch Screen
|
Optional
|
|
Interface Type
|

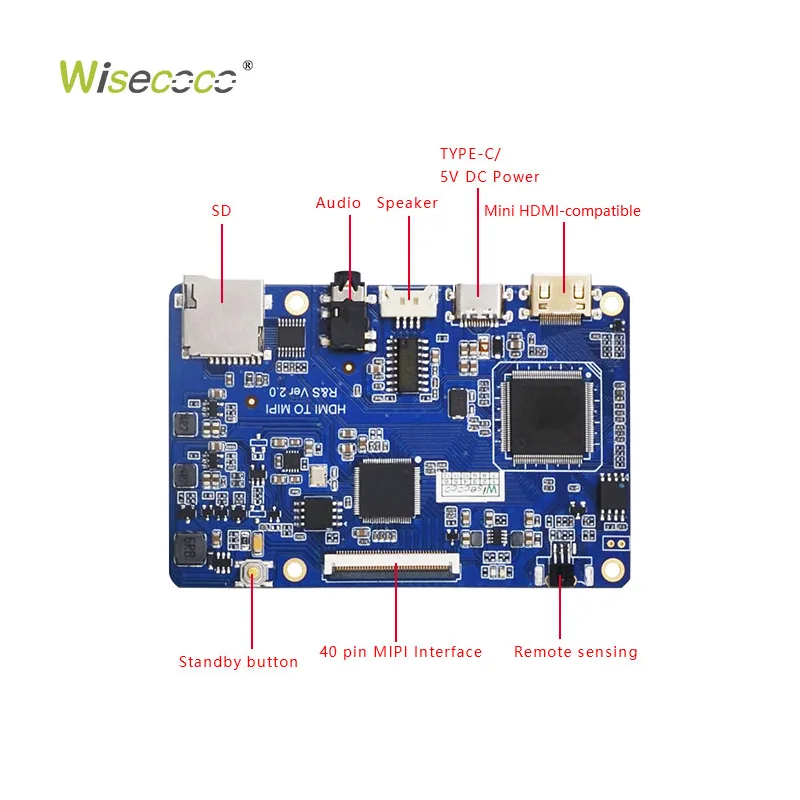

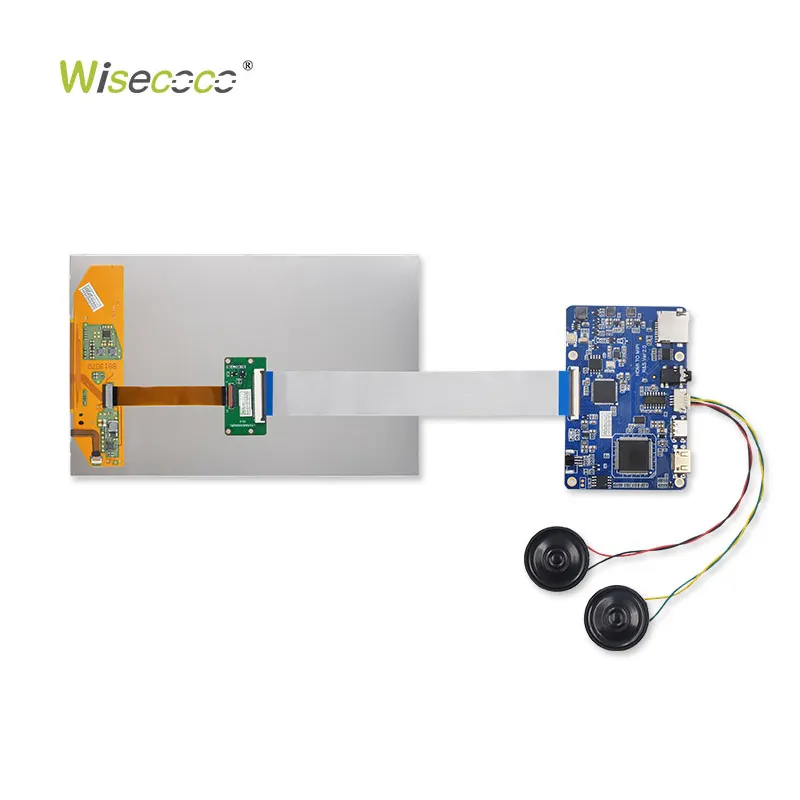

MIPI (4 data lanes), H-D-M-I to MIPI 40 pin board
|
||
|
Power Supply
|
–
|
||
|
Environment
|
Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C
|
||
Features:
- 1920×1200 WUXGA IPS Panel — High-resolution, sharp visuals in portrait orientation.
- 80/80/80/80 Full Viewing Angle — Maintains consistent color and contrast from virtually any position.
- 1100:1 Contrast Ratio — Provides strong dynamic range for crisp, well-defined imagery.
- 500 cd/m² Brightness — Bright, clear display for indoor and handheld use.
- Wide Operating Temperature (-10~60°C) — Reliable performance across varied environments.
Ideal for: Tablets & PAD devices · Handheld consumer electronics · Portable embedded systems · HDMI-based host integrations
