- Size:7 inch
- Resolution:1920×1200

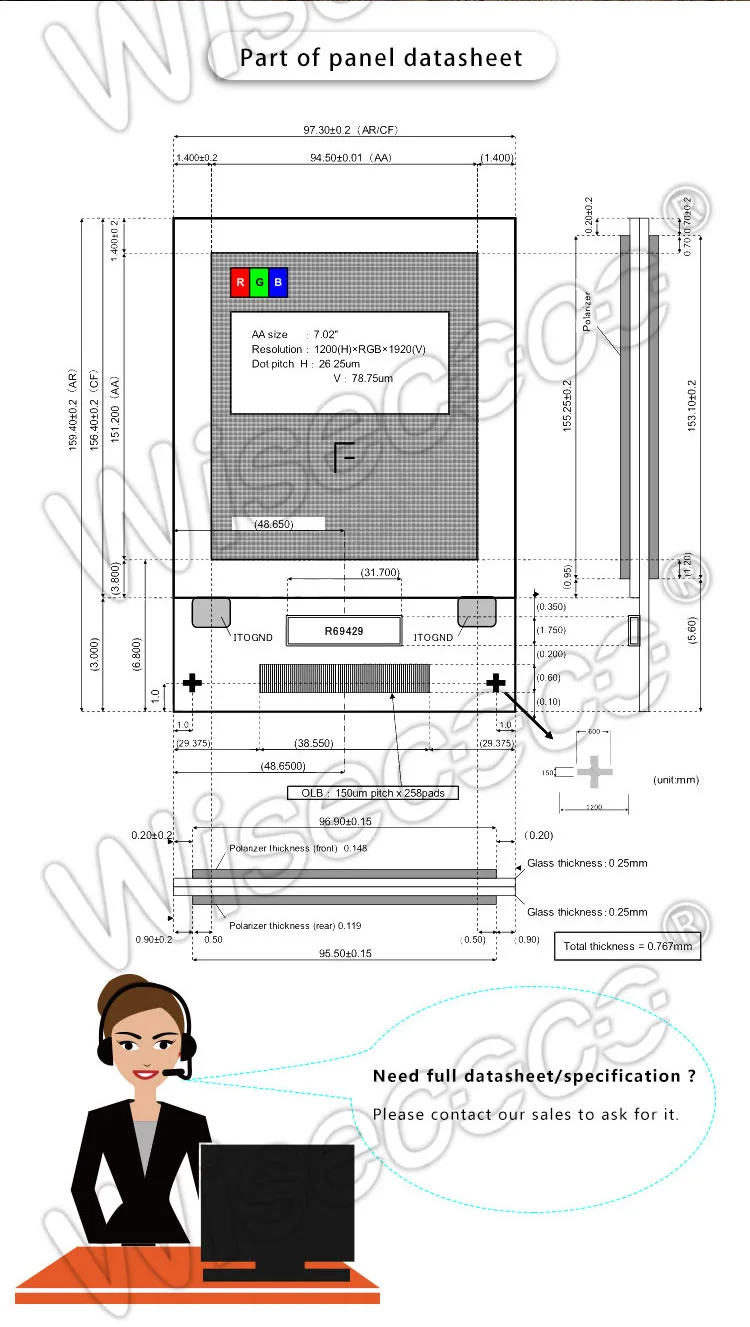

- Outline Dimension:164×100.7×4.44(HxV) mm
- Active Area:151.2×94.5 (HxV) mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness: 500 cd/m² (Typ.)
- Interface: MIPI (4 data lanes)
- Touch Screen: Optional

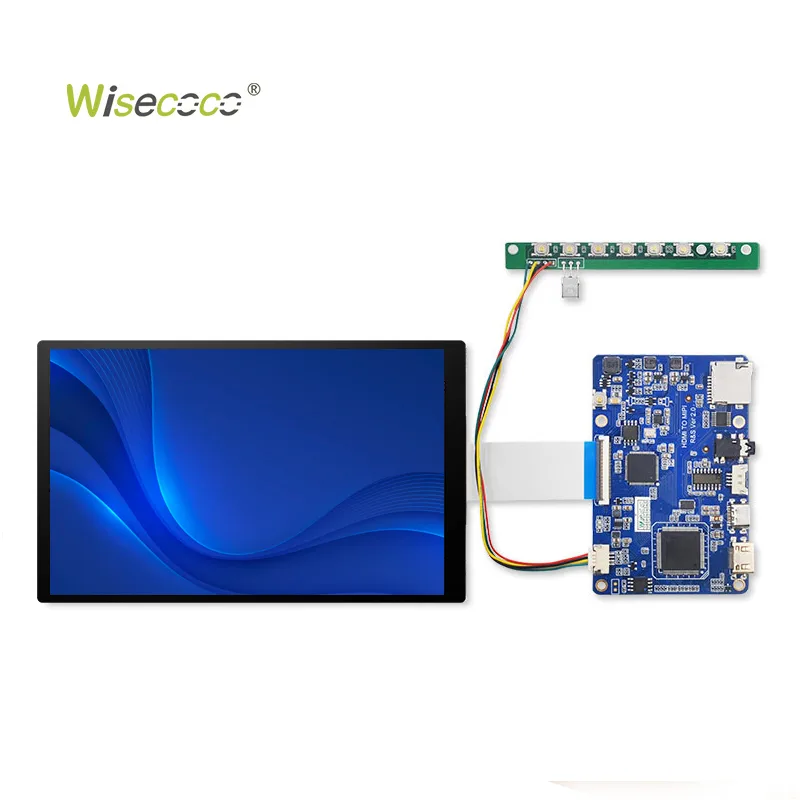

7 Inch TFT Lcd Touch Screen MIPI Interface IPS 1920*1200 Resolution Wide Viewing Angle LCD Display
$89.00
|
Screen Size
|
7 inch
|
Screen Type
|
LCM, LTPS TFT-LCD
|
|
Pixel Number
|
1920(RGB)*1200 (WUXGA)
|
Arrangement
|
RGB Vertical Stripe
|
|
Active Area
|
151.2*94.5 (H*V) mm
|

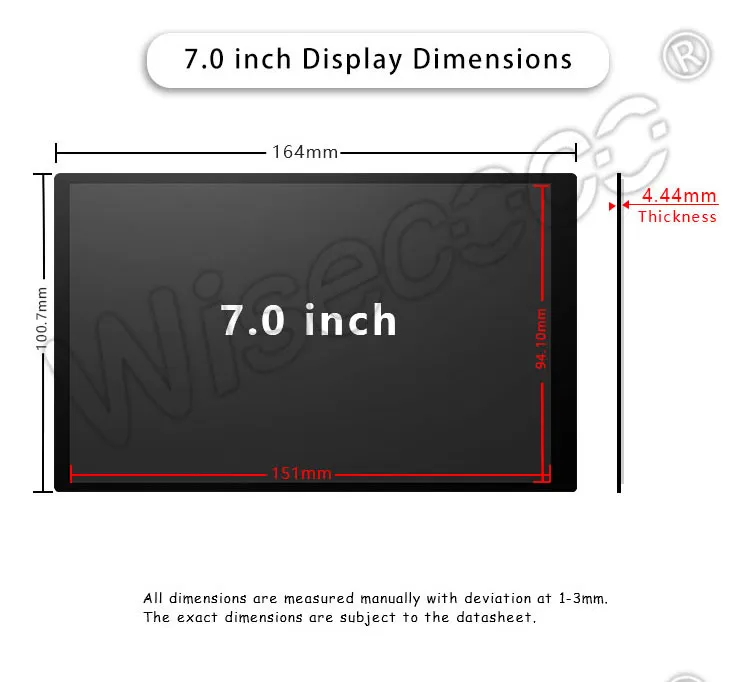

Outline Dim.
|
164*100.7*4.44(H*V) mm
|
|
Bezel Area
|
–
|
Contrast Ratio
|
1100 : 1 (Typ.) (TM)
|
|
Luminance
|
500 Cd/m² (Typ.)
|
Response Time
|
–
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Work Mode
|
IPS, Normally Black, Transmissive
|
|
Good View at
|
Symmetry
|
Treatment
|
–
|
|
Color Depth
|
16.7M 72% NTSC
|
Backlight
|
WLED
|
|
Weight
|
TBD
|
Used for
|
PAD ,Tablet,Raspberry Pi,etc.
|
|
Frame Rate
|
–
|
Touch Screen
|
Optional
|
|

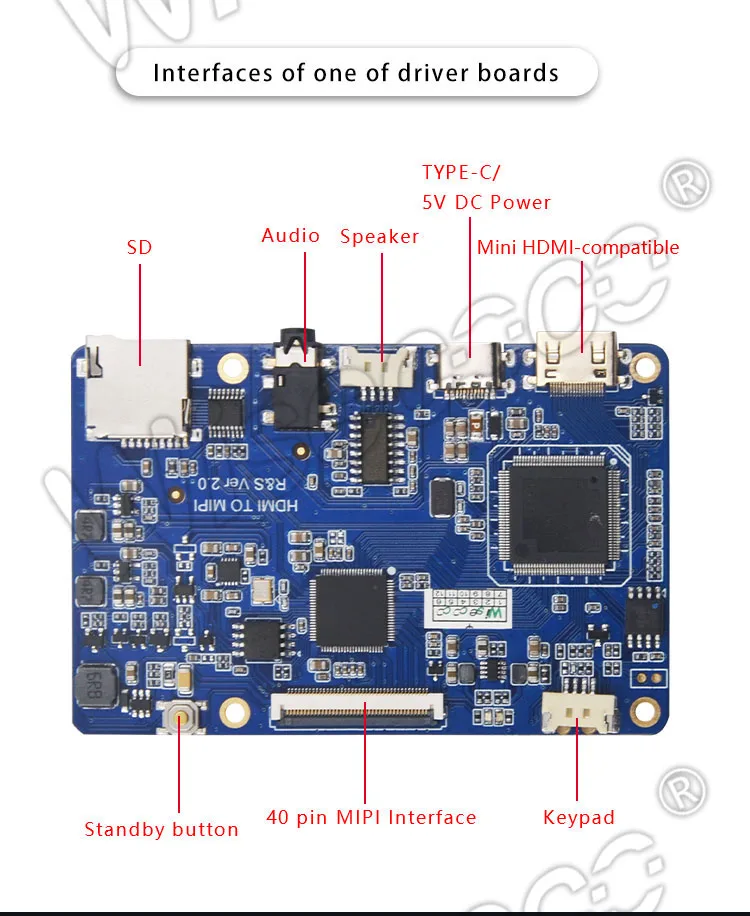

Interface Type
|
MIPI (4 data lanes)
|
||
|
Power Supply
|
–
|
||
|
Environment
|
Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C
|
||
