- Size:7 inch
- Resolution:1920×1200

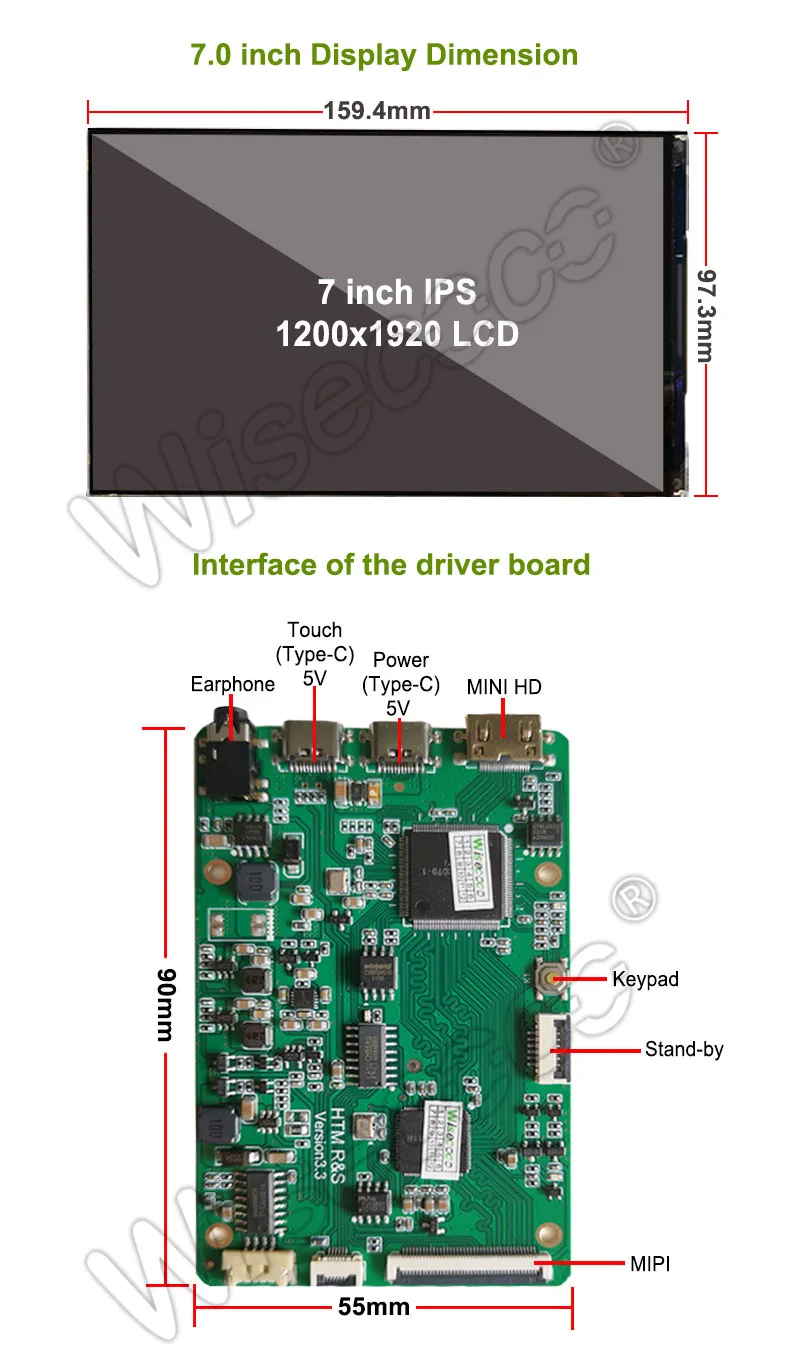

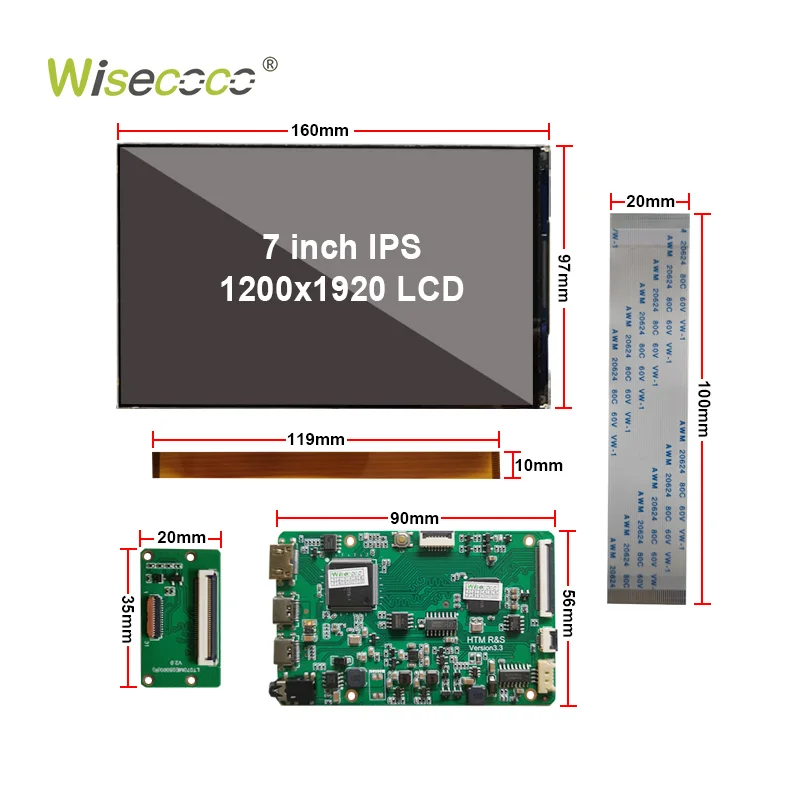

- Outline Dimension:160.8×98.7×1.98mm
- Active Area:151.2 × 94.5 (H×V) mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness: 500 cd/m² (Typ.)

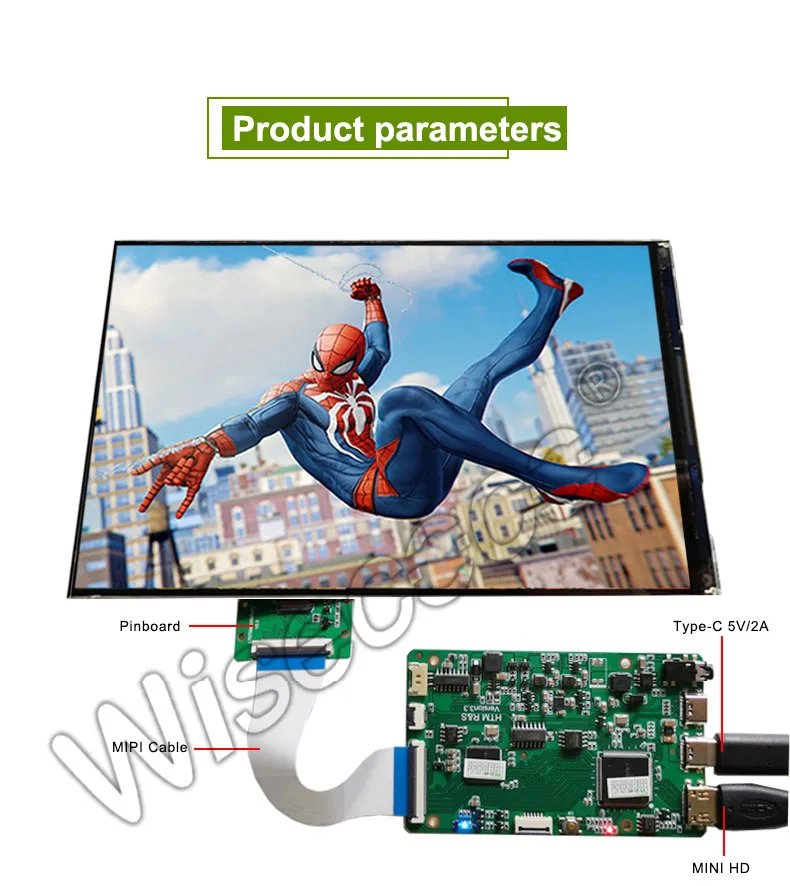

- Interface: MIPI (4 data lanes)

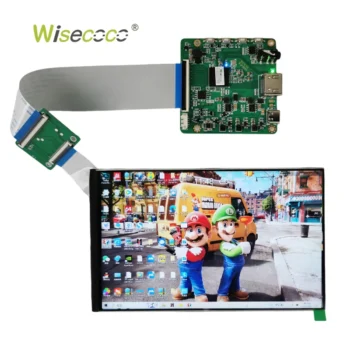

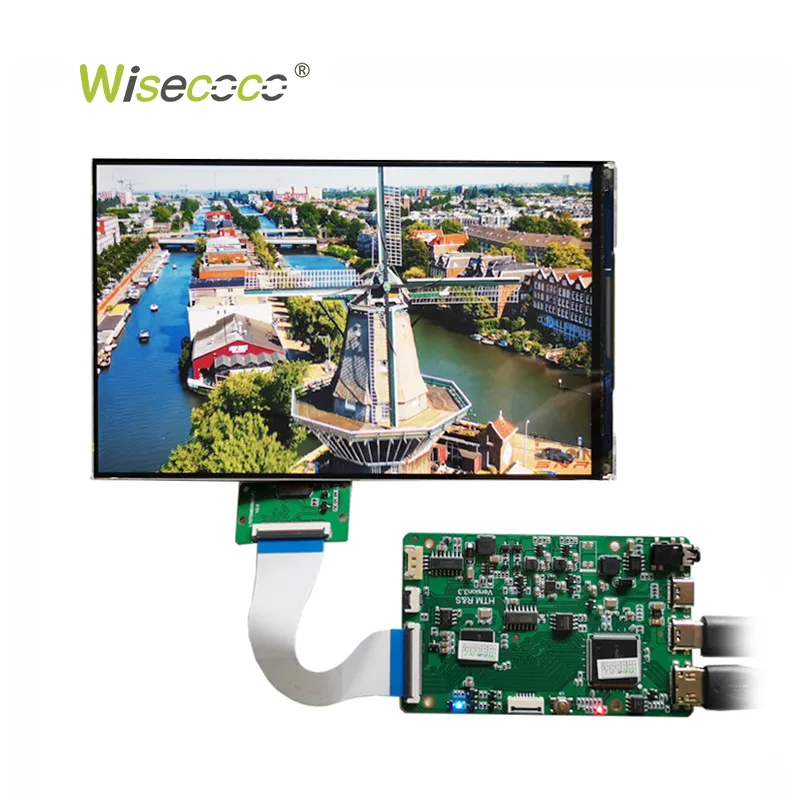

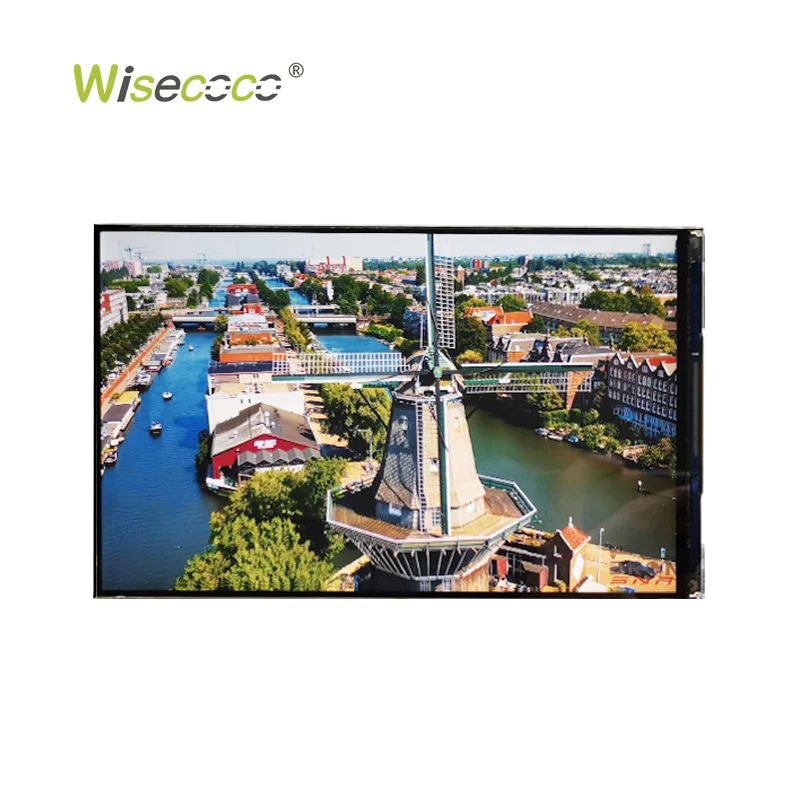

7 Inch FHD 1920×1200 IPS Landscape LCD MIPI Interface High Contrast Ratio LCD Display Module
$115.00
7″ FHD IPS Landscape LCD Display— 1920×1200 | 500 cd/m² | 1100:1 Contrast
7-inch FHD IPS TFT-LCD display with 1920×1200 resolution in landscape mode, 500 cd/m² brightness, and full symmetric viewing angle. Featuring a MIPI interface, WLED backlight, and wide -10~60°C operating temperature range, this display is designed for tablet, Raspberry Pi, and smart home applications.
|
Screen Size
|
7 inch
|
Screen Type
|
TFT-LCD
|
|
Resolution
|
1920*1200
|
Brightness
|
500 cd/m²
|
|
Contract Ratio
|
1100:1
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
|

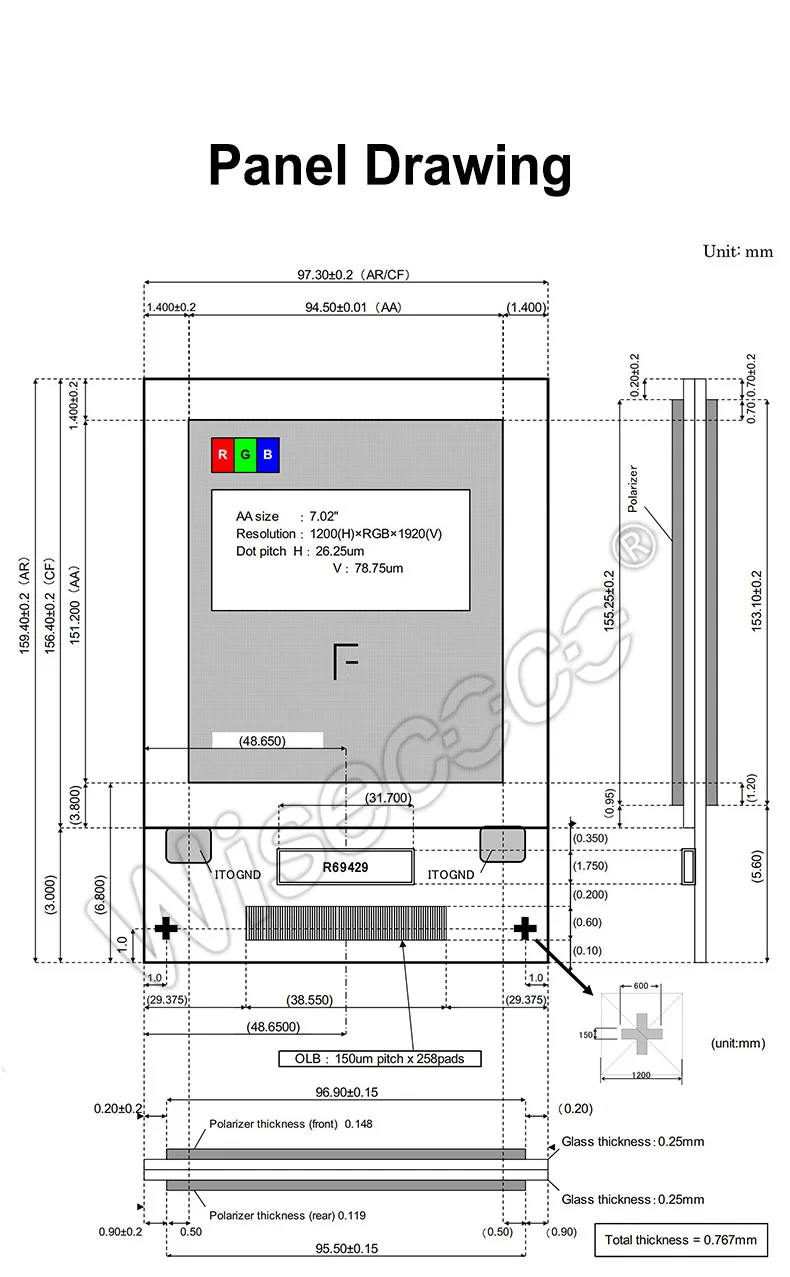

Display Outline Size(mm)
|
98.7*160.8*1.98
|
Active Area(mm)
|
94.5*151.2 (H×V)
|
|
Interface
|
MIPI
|
Support Color
|
16.7M
|
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Display Mode
|
Landscape
|
Light Source
|
WLED
|
|
Designed For
|
Tablet Screen，Raspberry Pi, Smart Home
|
||
|
Environment
|
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||
Features:
- 1920×1200 FHD IPS Panel — Sharp, detailed visuals in landscape orientation.
- 80/80/80/80 Wide Viewing Angle — Consistent color and contrast from virtually any position.
- 1100:1 Contrast Ratio — Strong dynamic range for crisp, well-defined imagery.
- 500 cd/m² Brightness — Bright, clear display for indoor and handheld use.
Ideal for: Tablet screens · Raspberry Pi projects · Smart home panels · Embedded landscape displays
Wisecoco offers One-step customized display module solutions.
