- Size:7 inch
- Resolution: 1200×1920

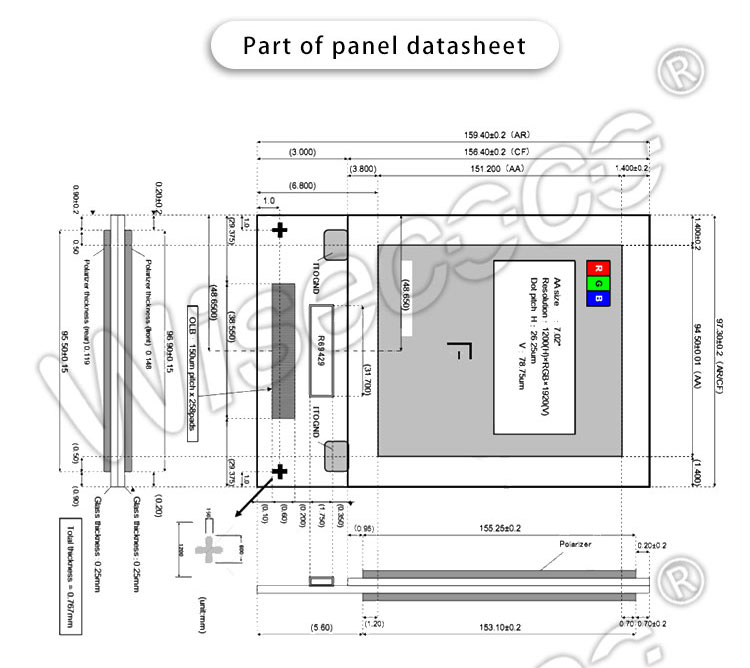

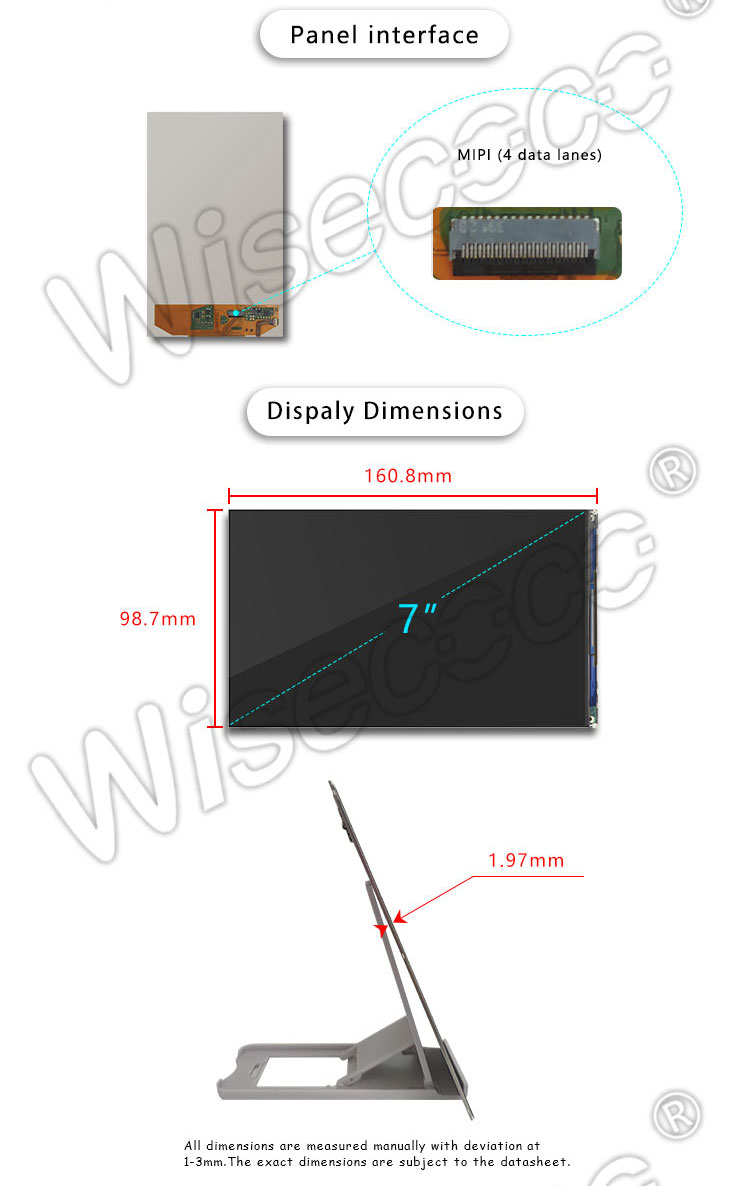

- Outline Dimension:98.7×160.8×1.97 (H×VxD) mm
- Active Area:94.5(H)x151.2(V) mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Color: 16.7M 72% (CIE1931)
- Interface: MIPI (4 data lanes)

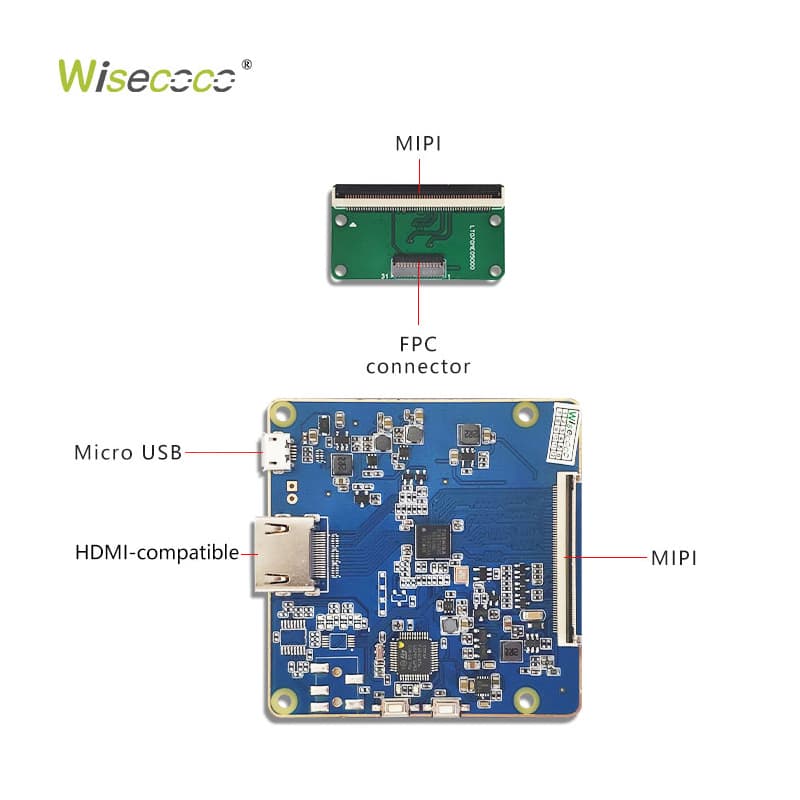

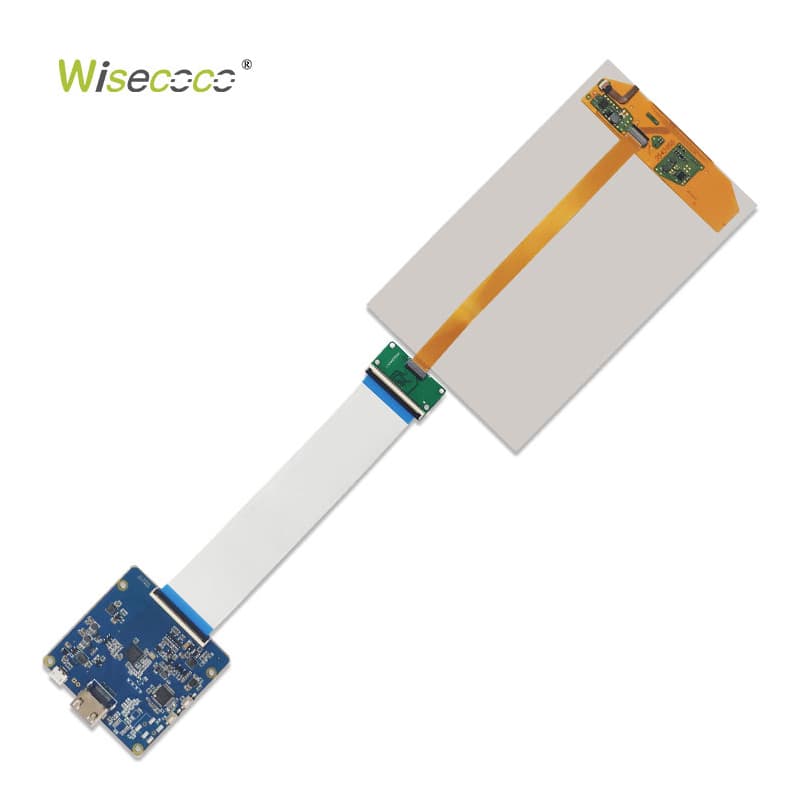

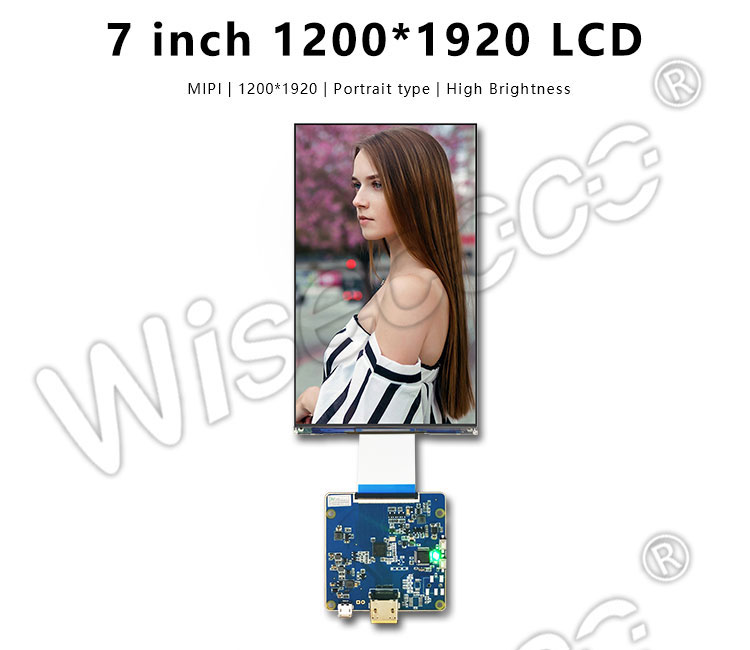

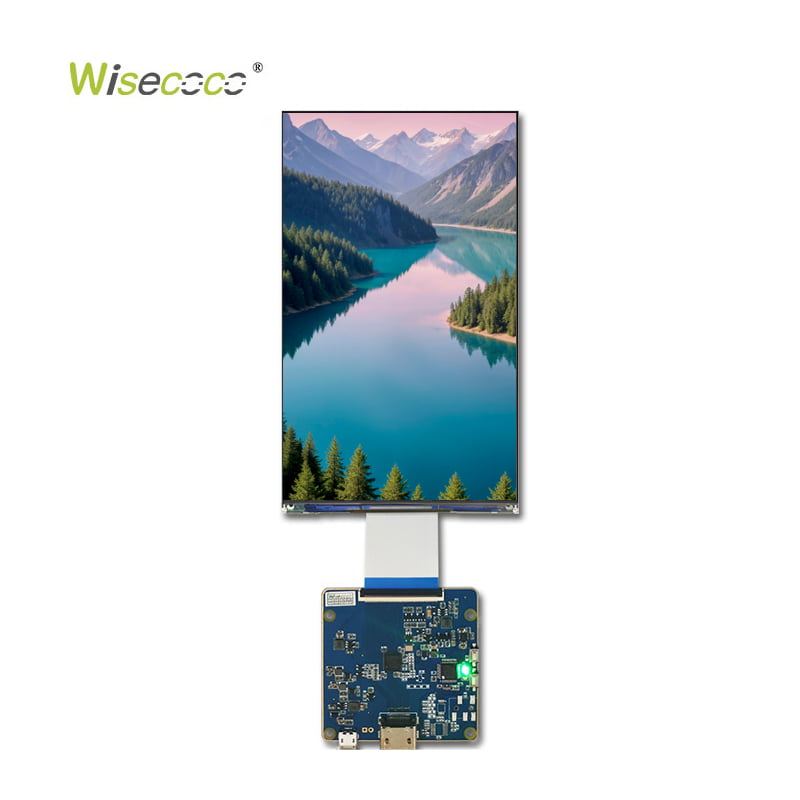

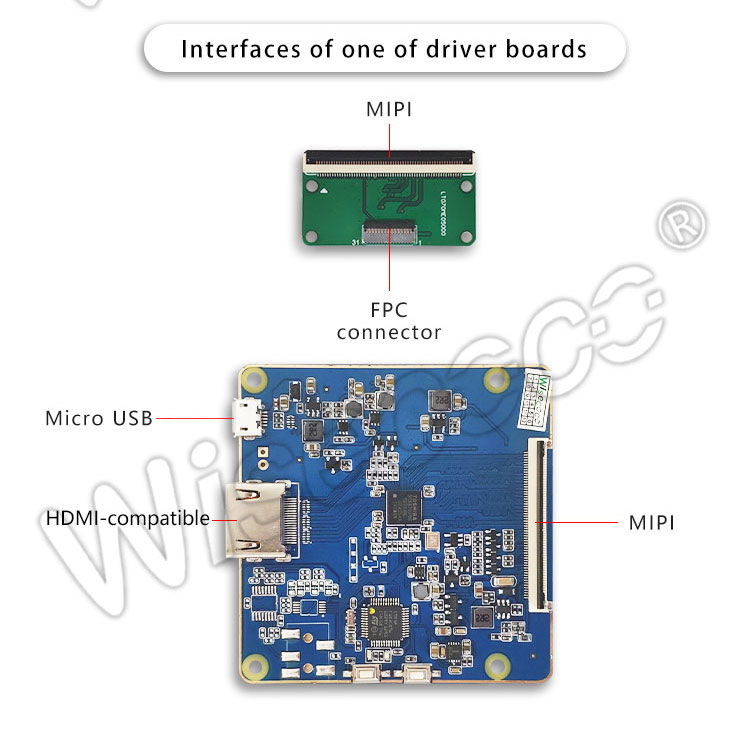

7 Inch 1200*1920 IPS TFT LCD Module High Brightness 7″ LCD Display Panel with MIPI Driver Board
$75.00

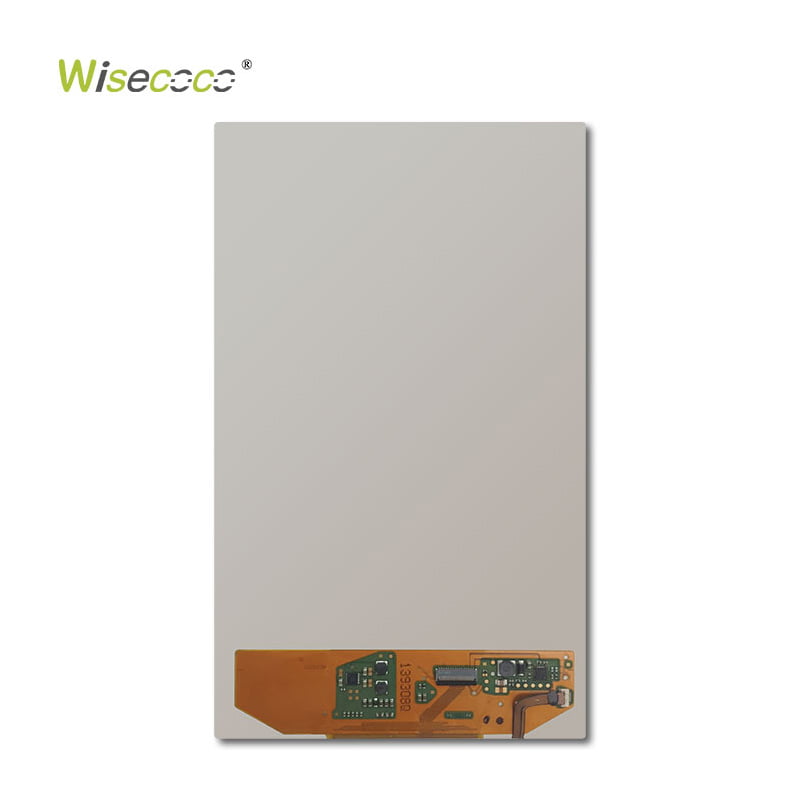

7″ IPS Portrait TFT LCD Panel — 1200×1920 | 300 cd/m² | 1100:1 Contrast
7-inch IPS LTPS TFT-LCD panel with 1200×1920 WUXGA portrait resolution, 300 cd/m² brightness, and full symmetric viewing angle. Featuring a 4-lane MIPI interface and WLED backlight, this high-brightness display is designed for pad and tablet applications.
|
Diagonal Size
|
7 inch
|
Type
|
LTPS TFT-LCD, LCM
|
|
Pixel Format
|
1200(RGB)*1920 [WUXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
94.5(H)*151.2(V) mm
|
Treatment
|
–
|
|
Bezel Area
|
98.7(H)*160.8(V) mm
|
Contrast Ratio
|
1100:1 (Typ.) (TM)
|
|

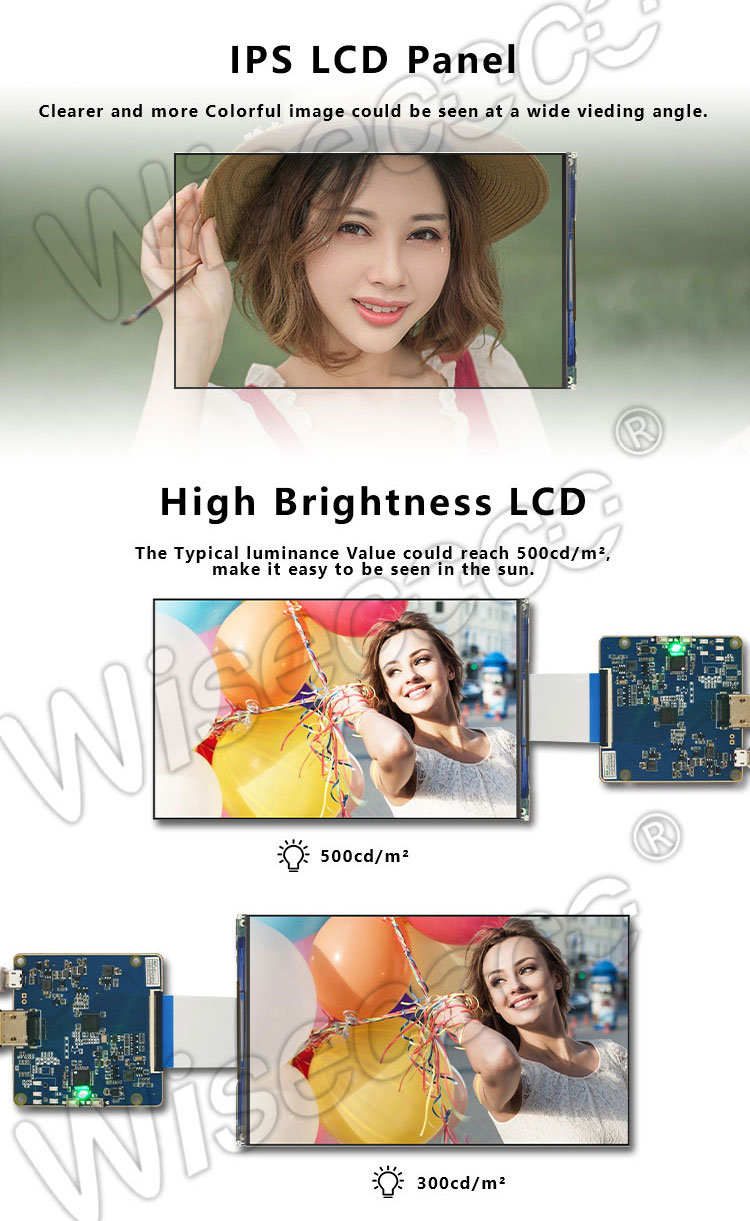

Luminance
|
300 Cd/m² (Typ.)
|
Response Time
|
–
|
|
View Direction
|
Symmetry
|
Displya Mode
|
IPS, Normally Black, Transmissive
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Lamp Type
|
WLED
|
|
Support Color
|
16.7M 72% (CIE1931)
|
Designed For
|
Pad & Tablet
|
|
Weight
|
–
|
Touch Panel
|
–
|
|
Interface Type
|
MIPI (4 data lanes)
|
||
|
Power Supply
|
–
|
||
|
Environment
|
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||
Features:
- 1200×1920 WUXGA Portrait Panel — High-resolution, sharp visuals in portrait orientation.
- 80/80/80/80 Wide Viewing Angle — Consistent color and contrast from virtually any position.
- 1100:1 Contrast Ratio — Strong dynamic range for crisp, well-defined imagery.
- 16.7M Colors — Rich, accurate color reproduction.
Ideal for: Portrait-oriented tablets · Pad devices · Embedded portrait displays · Kiosk/signage panels
Wisecoco offers One-step customized display module solutions.
