- Size:5.5 inch
- Resolution:1920×1080
- Panel Interface:MIPI (4 data lanes)
- Active Area:68.04(H)*120.96(V) mm

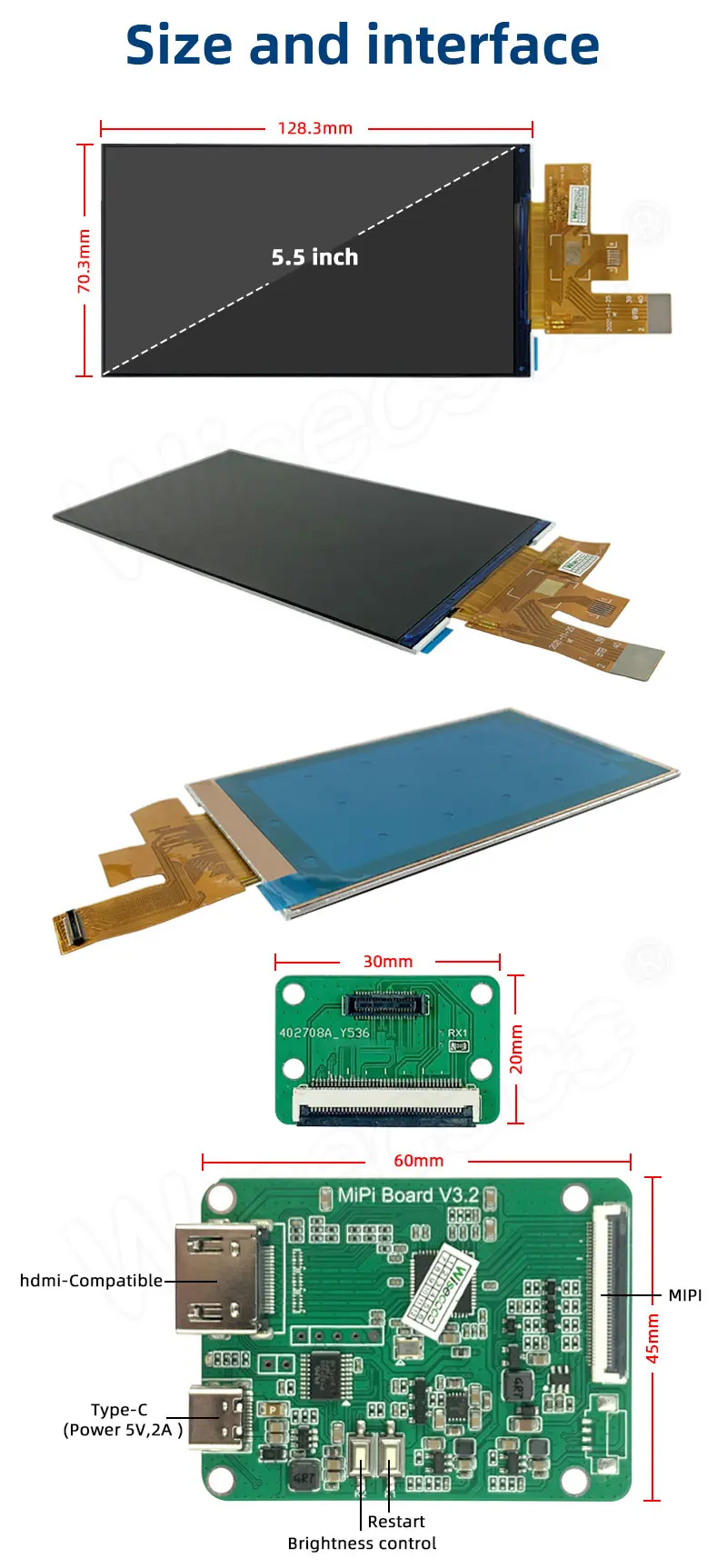

- Outline Dimension:70.04(W)*128.26(H)*1.78(D)mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥200)
- Brightness:1200cd/m²(Typ.)
- Operation / Storage Temp:-20~60°C / -30~70°C
5.5 Inch 1920×1080 FHD IPS High Brightness Display 1200 Nits MIPI TFT Lcd Module for Handheld Device
$119.00
5.5″ FHD IPS High Brightness Display — 1920×1080 | 1200cd/m² | MIPI

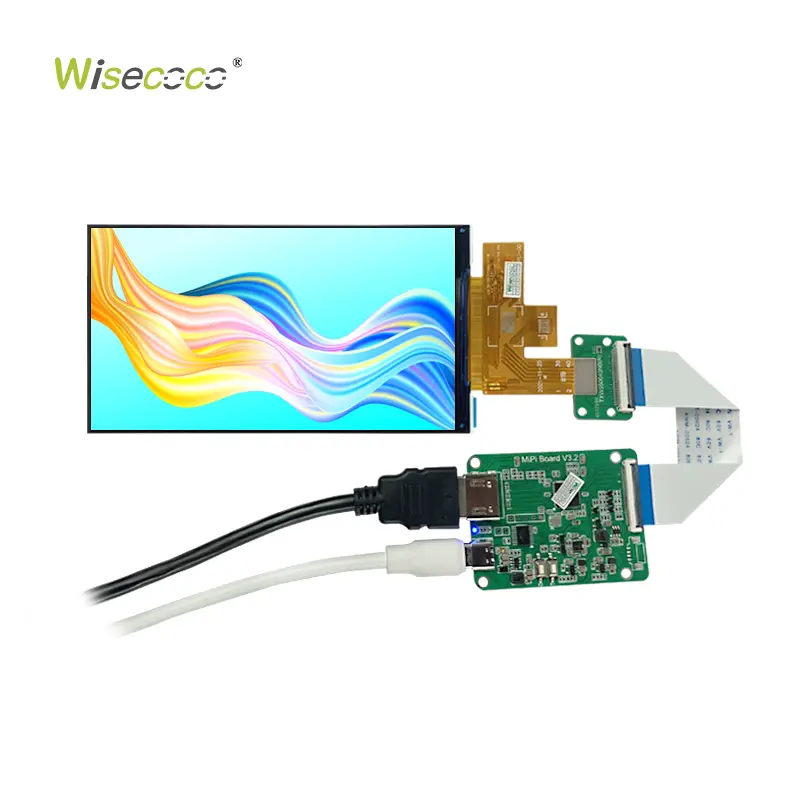

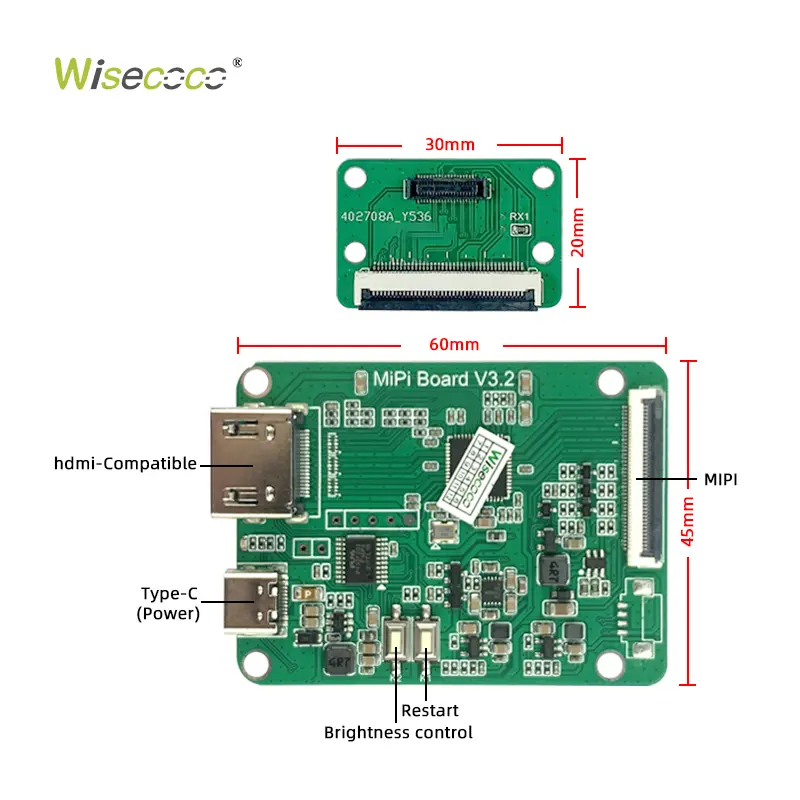

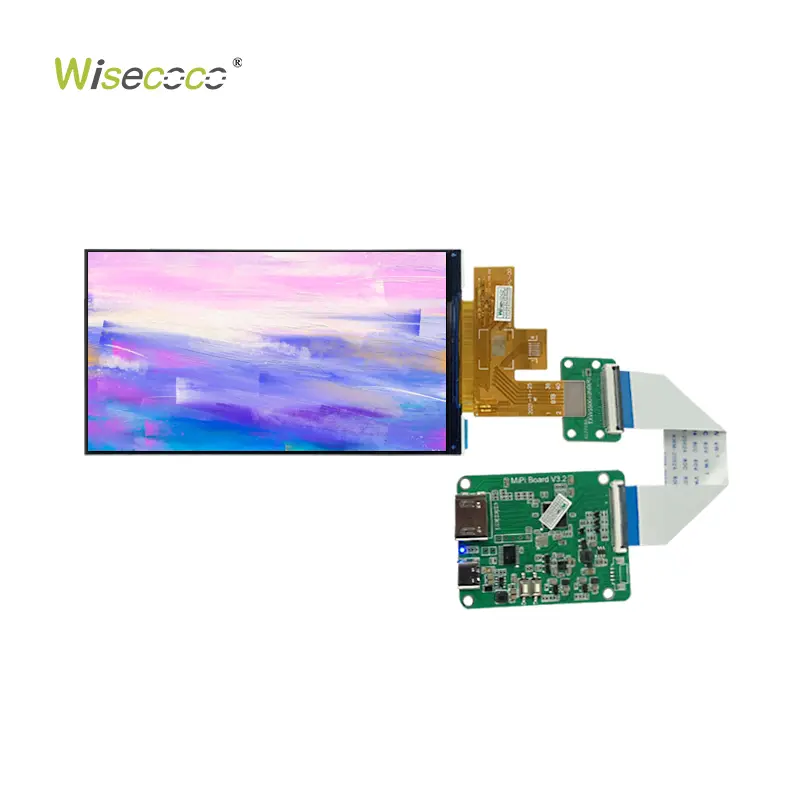

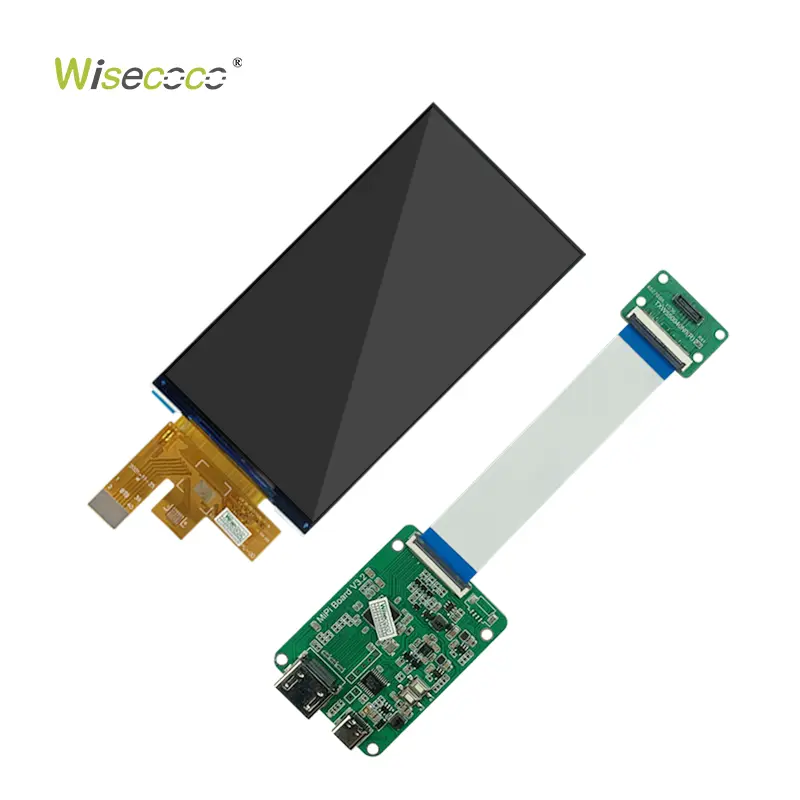

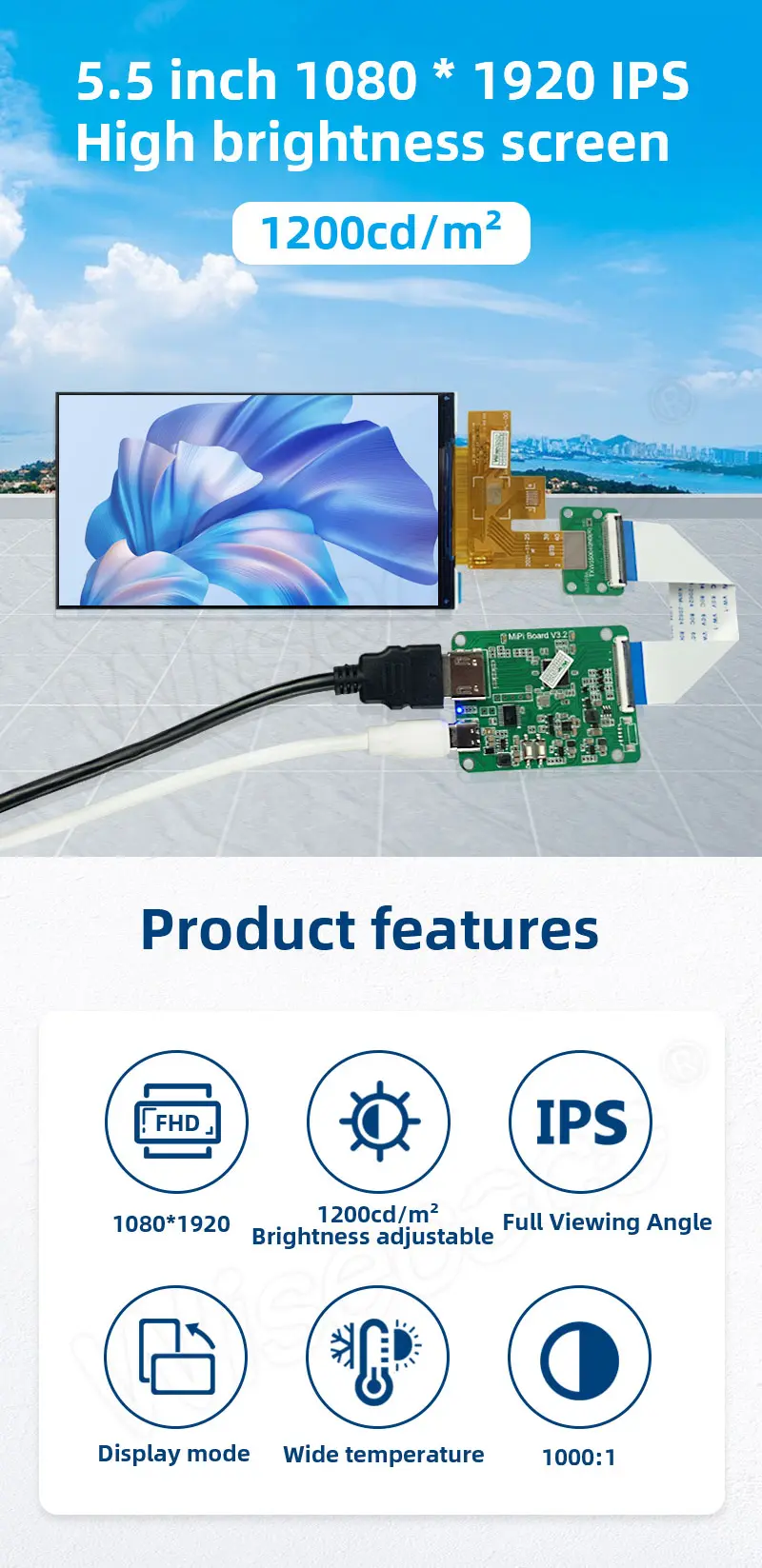

5.5-inch FHD IPS display delivering sharp 1080×1920 resolution with 1200cd/m² high brightness for outdoor and high-ambient-light applications. Featuring full viewing angle IPS technology, adjustable brightness, wide temperature tolerance, and a MIPI driver board with Type C connectivity, this display is built for demanding visibility-critical projects.
|
General Features :
|
|||
|
Panel Size
|
5.5 inch
|
Panel Type
|
TFT LCD
|
|
Resolution
|
1920×1080
|
Pixel Format
|
RGB Vertical Stripe
|
|
Display Area
|
69.12*122.88 mm
|
Outline Size
|
72.8(W)*131.2(H)*1.81(D)mm
|
|
Brightness
|
1500 Cd/m² (Typ.)
|
Contrast Ratio
|
3000:1 (Min.) (TM)
|
|
Best View on
|
Symmetry
|
Viewing angle
|
80/80/80/80 (Typ.)(CR≥200)
|
|
Response Time
|
2 ms (Max.)
|
Touch Screen
|
Optional
|
|
Application
|
Mobile, Handheld, PDA
|
||
|
Signal Interface
|
MIPI (4 data lanes)
|
||
|
Input Voltage
|
3.3V (Typ.)(VDDI)
|
||
|
Environment
|
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C
|
||
Features:
- 1080×1920 FHD Resolution — Sharp, high-definition IPS panel delivering crisp detail for icons, UI graphics, and video content.
- 1200cd/m² Ultra-High Brightness — Exceptional outdoor-readable brightness with adjustable levels, ensuring visibility even in direct sunlight.
- IPS Full Viewing Angle — Genuine IPS panel technology ensures consistent color and brightness from virtually any angle, without color shift or contrast loss.
- 1000:1 Contrast Ratio — Balanced dynamic range for clear, well-defined imagery.
- Wide Operating Temperature Range — Reliable performance across extreme hot and cold environments, suited for industrial and outdoor use.
Ideal for: Outdoor equipment displays · Industrial control panels · High-brightness handheld devices · Automotive & marine displays · Maker & prototyping projects
Wisecoco offers One-step customized LCD display solutions.
