- Size:7 inch
- Resolution:800×480
- Panel Interface:50 pins Parallel RGB (1 ch, 6/8-bit)
- Outline Dimension:162.5(H)x96.62(V)x1.43(D) mm
- Active Area:154.08(H)×85.92(V) mm
- Viewing Angle L/R/U/D:70/70/50/70 (Typ.)(CR≥10)
- Brightness(cd/m2):400cd/m²

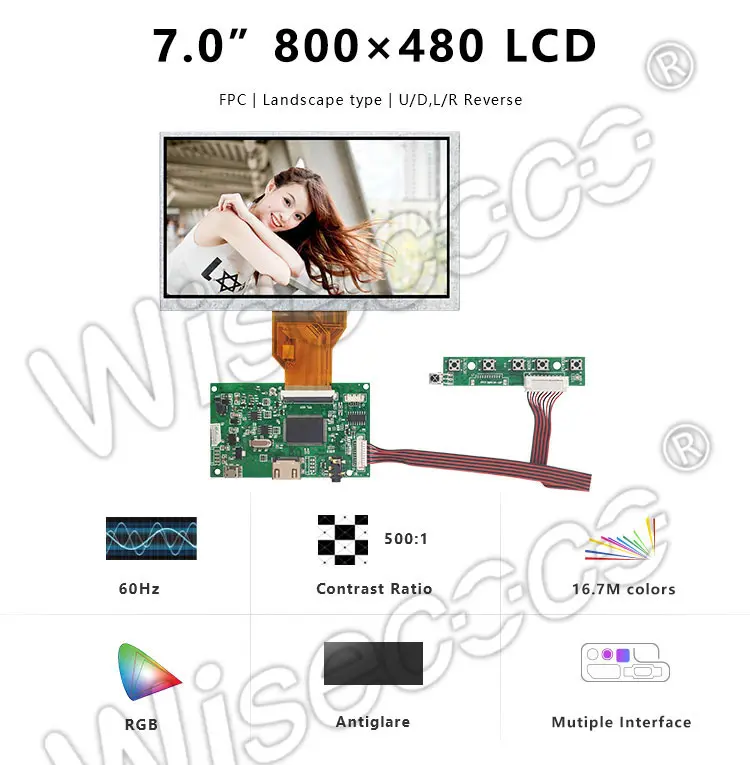

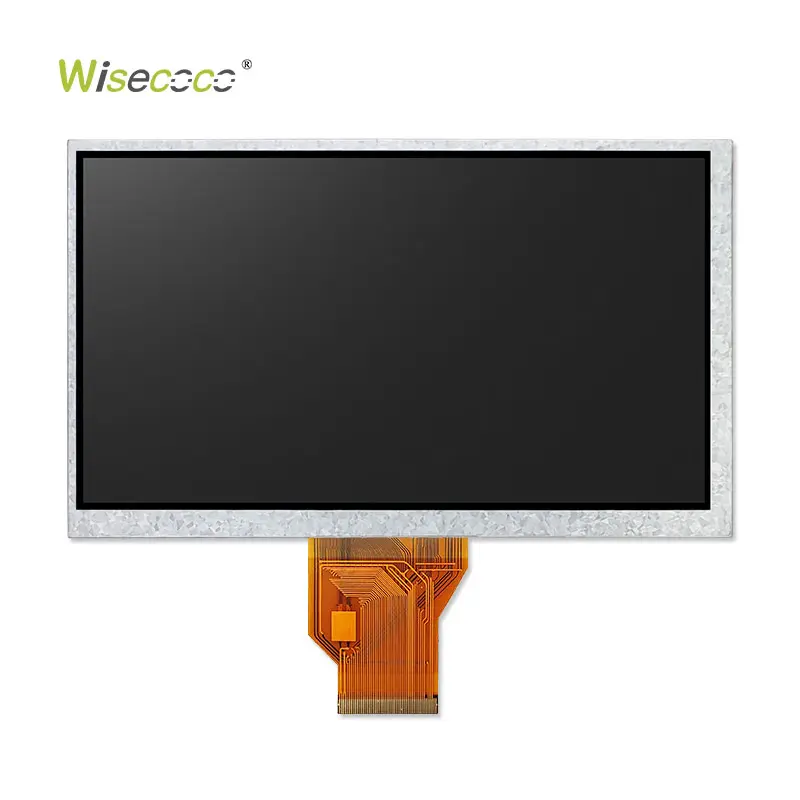

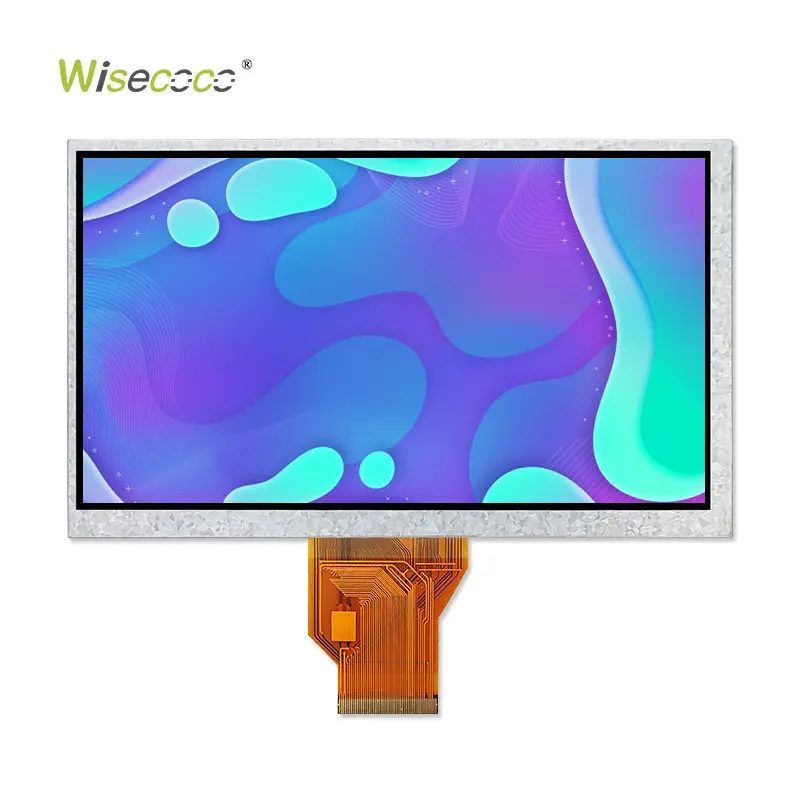

7 Inch TFT LCD Display 800×480 FPC Interface 50 Pin Tft LCD Module for Vending Machine
$45.00

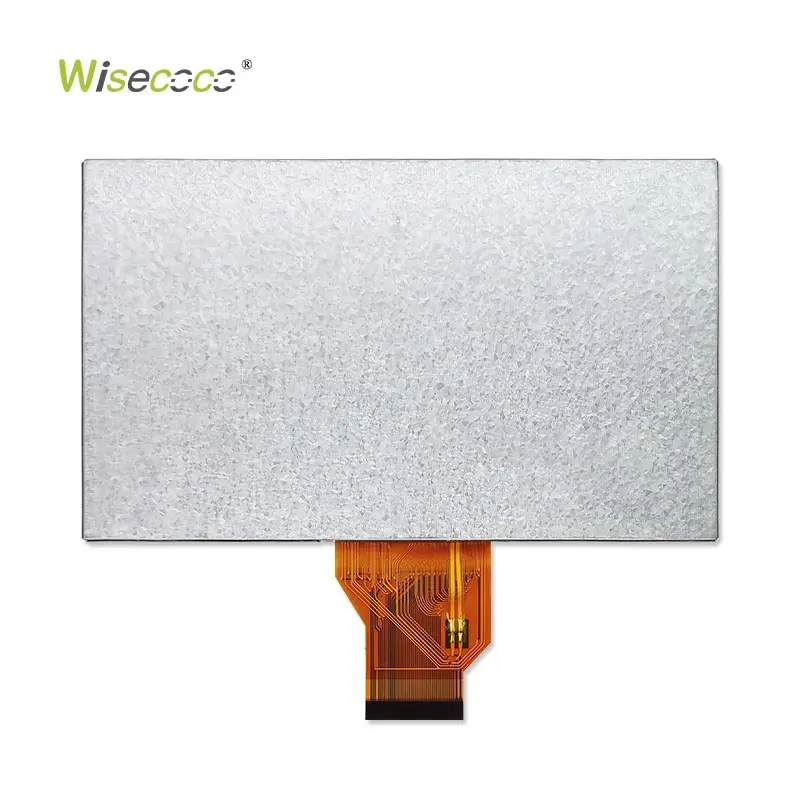

7.0 Inch TFT-LCD Display — 800×480 | FPC | Antiglare | Automotive Grade
7.0-inch TFT-LCD display delivering 800(RGB)×480 resolution with antiglare surface treatment and reliable performance across extreme temperatures. Featuring 400cd/m² brightness, U/D/L/R reverse configuration, and a 20,000-hour WLED light source, this display is purpose-built for portable DVD players and automotive display applications.
|
Diagonal Size
|
7.0 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
800(RGB)×480
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
154.08(H)×85.92(V) mm
|
Outline Dim.
|
162.5(H)*96.62(V) *1.43(D) mm
|
|
Bezel Area
|
–
|
Treatment
|
Antiglare
|
|
Luminance
|
400 cd/m2 (Typ.)
|
Contrast Ratio
|
500:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
25 (Typ.)(Tr+Tf)
|
|
Viewing Angle
|
70/70/50/70 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
262K/16.7M 50 (CIE1931)
|
Light Source
|
WLED [3S9P] , 20K hours , W/O Driver
|
|
Weight
|
Designed For
|
Portable DVD Player Automotive Display
|
|
|
Frame Rate
|
–
|

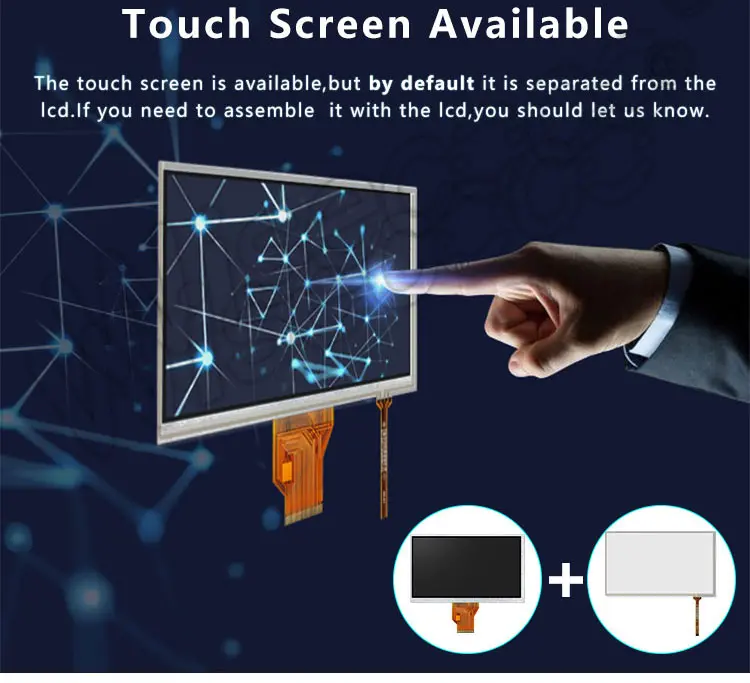

Touch Panel
|
Optional
|
|
Interface Type
|
50 pins Parallel RGB (1 ch, 6/8-bit) , FPC
|
||
|
Power Supply
|
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
|
||
|
Environment
|
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
|
||
Features:
- 800×480 Resolution with Antiglare Surface — Clear, glare-reduced imagery suited for icons, text, and video content in varied lighting.
- U/D/L/R Reverse Configuration — Flexible display orientation to fit diverse automotive and portable device mounting needs.
- 400cd/m² Brightness — Bright, clear display readable across varied ambient lighting conditions.
- 500:1 Contrast Ratio — Balanced dynamic range for clear, well-defined imagery.
Ideal for: Portable DVD players · Automotive & in-vehicle displays · Marine & outdoor equipment displays · Industrial control panels · Custom embedded display integration
Wisecoco offers One-step customized display solutions.
