- Size:7 inch
- Resolution:1024×600
- Panel Interface:LVDS (1 ch, 6/8-bit)

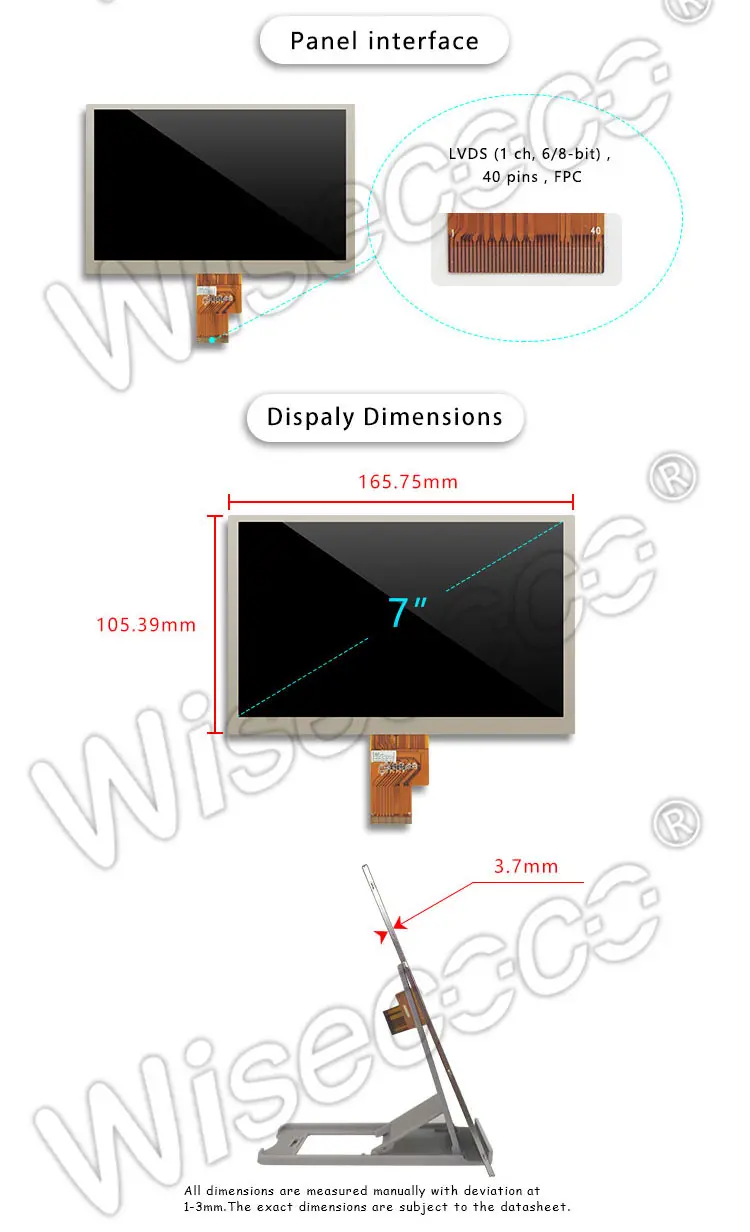

- Outline Dimension:165.75(W)x105.39(H)x3.7(D)mm
- Active Area:153.6(W)x90(H)mm
- Viewing Angle :70/70/70/70 (Typ.)(CR≥10)
- Brightness(cd/m2):250cd/m²

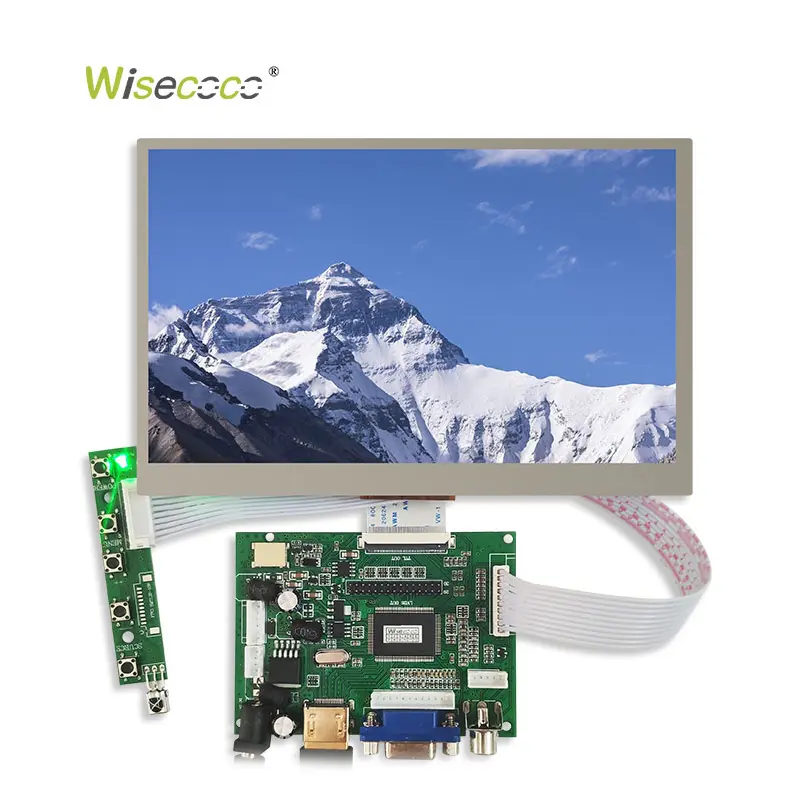

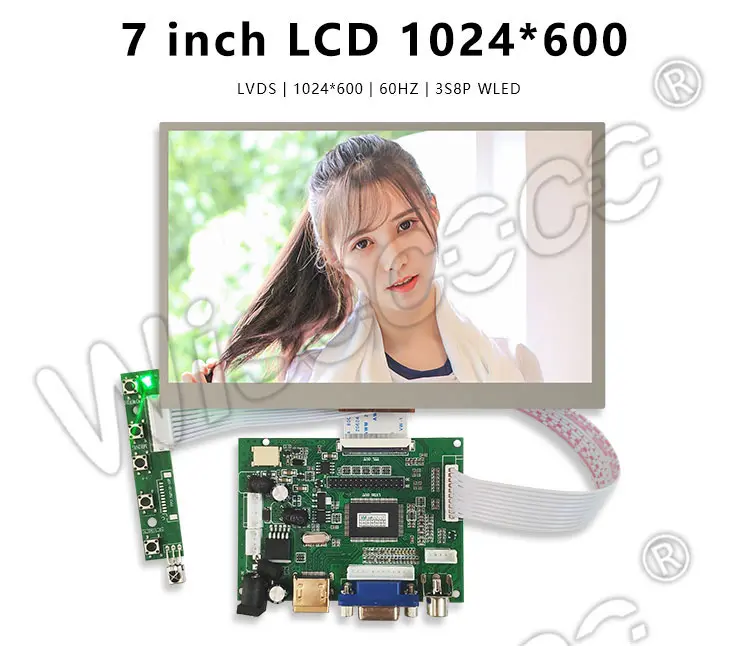

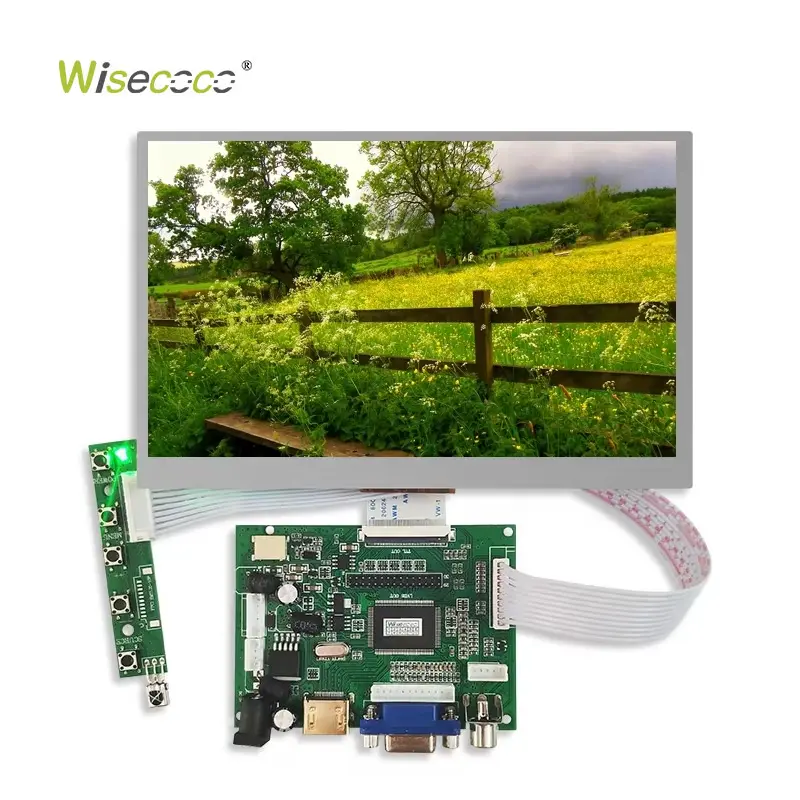

7 Inch TFT LCD Screen 1024×600 40pin LVDS Interface Wide Temperature Industrial Display
$45.00
7″ TFT LCD Display — 1024×600 | 250 cd/m² | LVDS Interface
7-inch TFT LCD screen with 1024×600 WSVGA resolution, 700:1 contrast ratio, and a hard-coated, anti-glare surface. Running at 60Hz with an LVDS interface (40-pin FPC), this display is designed for automotive and portable DVD player applications, with optional touch panel support.
|
Diagonal Size
|
7.0 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1024(RGB)*600,WSVGA
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
153.6(W)*90(H)mm
|
Outline Dim.
|
165.75(W)*105.39(H)*3.7(D)mm
|
|
Bezel Area
|
156.14(W)*92.60(H)mm
|
Treatment
|
Glare (Haze 0%), Hard coating
|
|
Luminance
|
250Cd/m2 (Typ.)
|
Contrast Ratio
|
700:1 (Typ.) (TM)
|
|
View Direction
|
6 O’clock
|
Response Time
|
10/15 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
70/70/70/70 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
262K/16.7M 70% NTSC
|
Light Source
|
3S8P WLED , 20K hours , Without Driver
|
|
Weight
|
–
|
Designed For
|
Portable DVD Player Automotive Display
|
|
Frame Rate
|
60 Hz
|

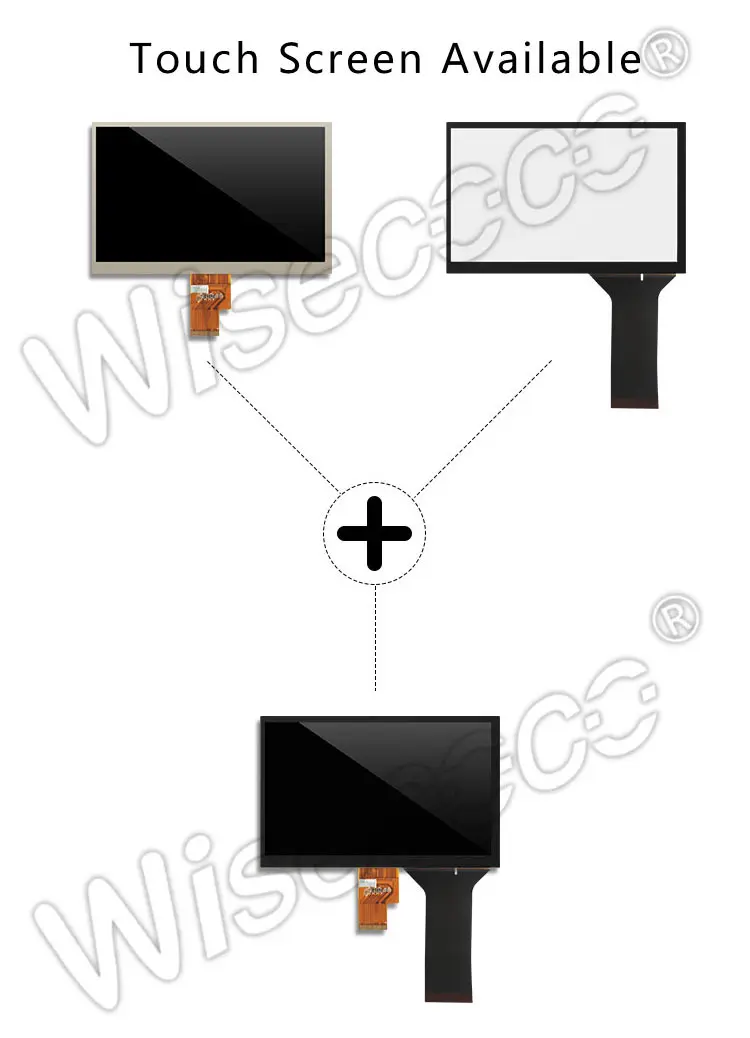

Touch Panel
|
Optional
|
|
Interface Type
|
LVDS (1 ch, 6/8-bit) , 40 pins , FPC
|
||
|
Power Supply
|
3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
|
||
|
Environment
|
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
|
||
Features:
- 1024×600 WSVGA Resolution — Clear visuals for compact automotive and portable displays.
- 700:1 Contrast Ratio — Well-defined imagery with solid dynamic range.
- Hard-Coated, Anti-Glare Surface — 0% haze treatment for improved readability.
- LVDS Interface, 40-Pin FPC — Standard connection for automotive and embedded driver boards.
- 60Hz Frame Rate — Smooth video playback for DVD and media applications.
Ideal for: Automotive displays · Portable DVD players · Embedded media systems · In-vehicle infotainment panels
Wisecoco offers One-step customized display module solutions.
