- Size:7 inch
- Resolution:1920×1080
- Panel Interface:Full-featrued Usb-c Function

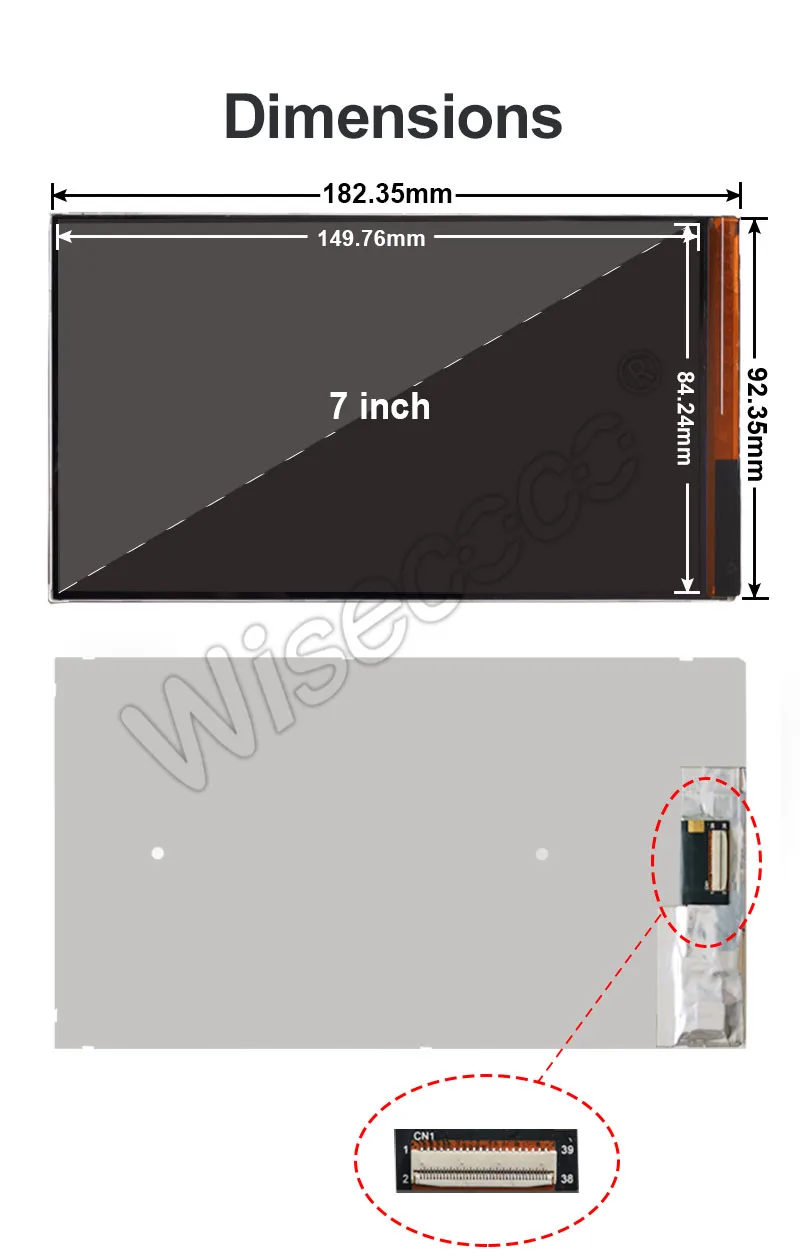

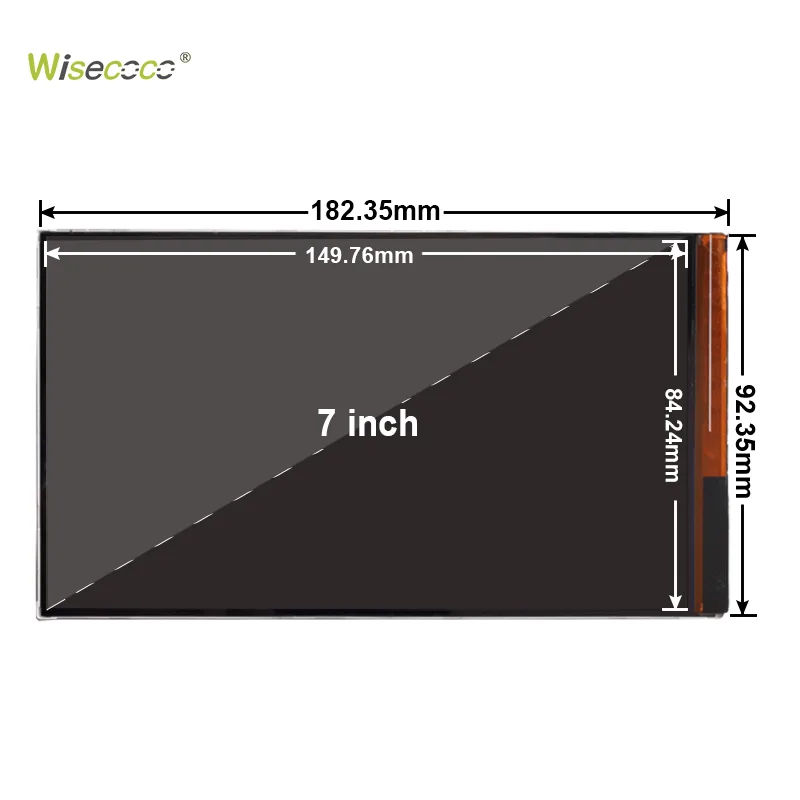

- Outline Dimension:182.35*92.35mm
- Active Area:149.76*84.2mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness(cd/m2):350 cd/m²
- Touch: Built-in Touch

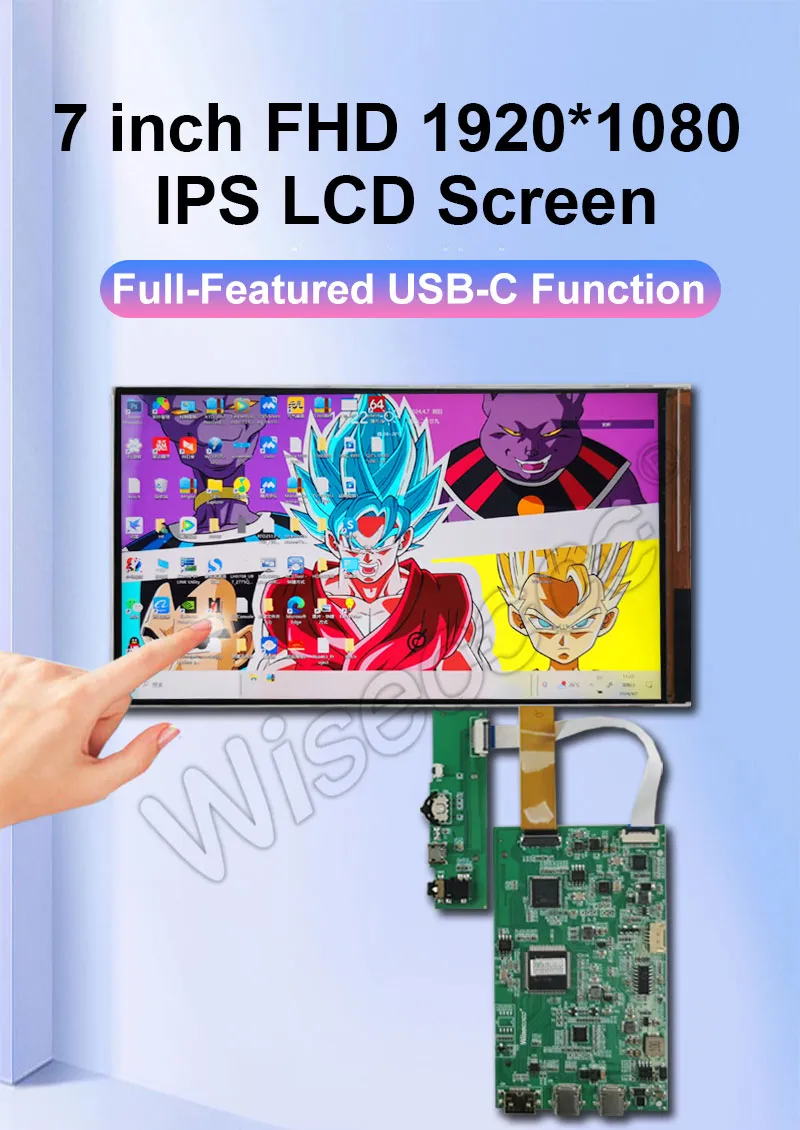

7 Inch TFT LCD Display 1920×1080 FHD Touchscreen Ultra-thin IPS LCD Screen with Full-featrued Usb-c Function
$105.00
7″ FHD IPS Touch Display — 1920×1080 | 350 cd/m² | Full-Featured USB-C

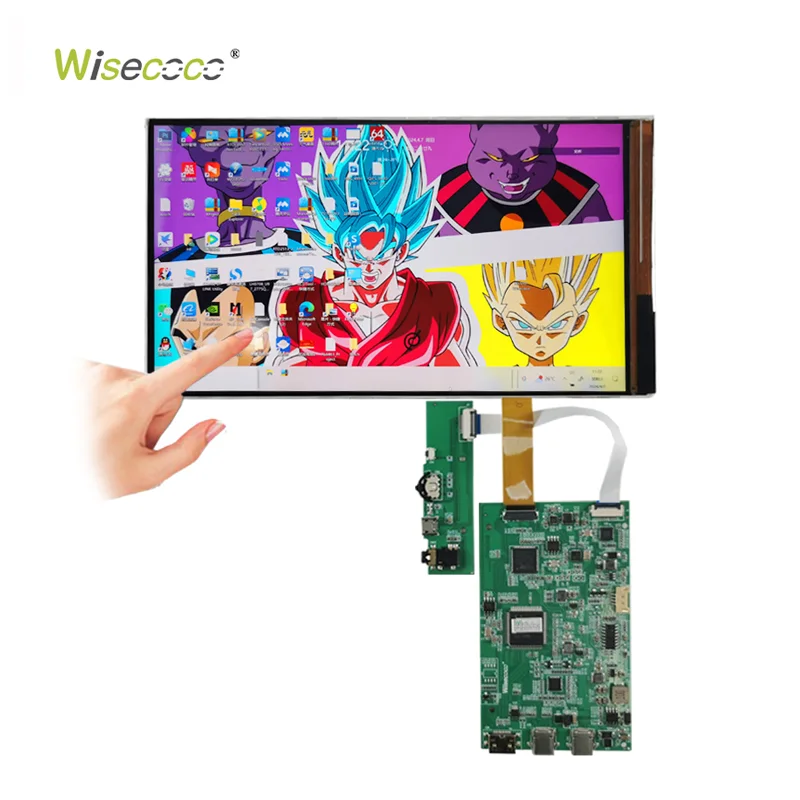

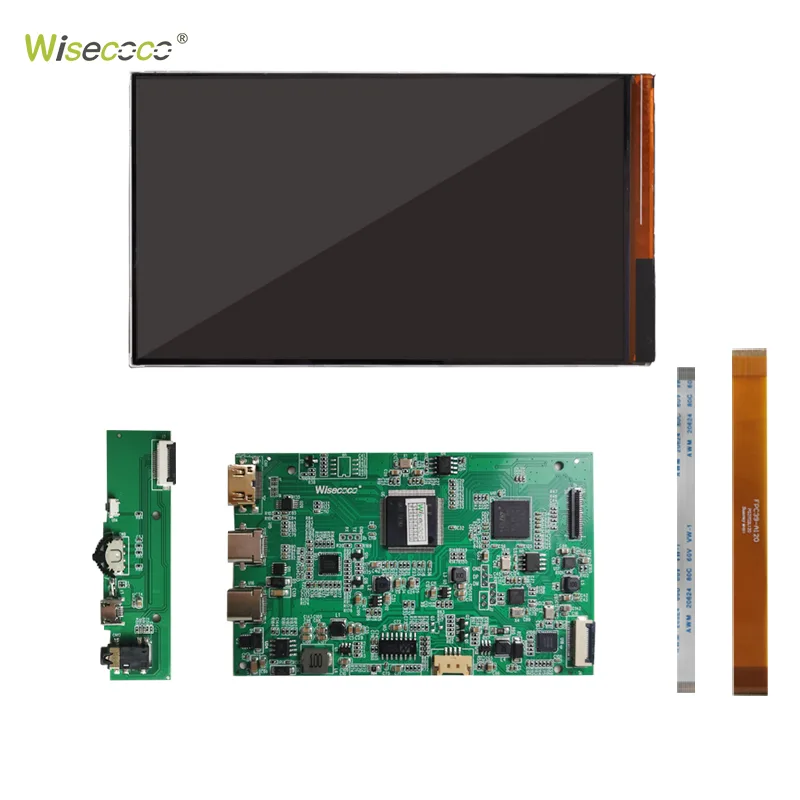

7-inch FHD IPS LCD touch screen with a built-in capacitive touch panel and full-featured USB-C interface, delivering single-cable video, touch, and power connectivity. With Mini HD-compatible input as well, this display connects directly to phones, tablets, laptops, and Switch consoles, making it a flexible portable monitor solution for OEM integration.
|
Diagonal Size
|
7 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1920*1080 FHD
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
149.76*84.2mm
|
Outline Dim.
|
182.35*92.35mm
|
|
Bezel Area
|
–
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
1300:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 72% (CIE1931)
|
Light Source
|
9S7P WLED , 15K hours , With LED Driver
|
|
Weight
|
–
|
Designed For
|
Laptop,and so on.
|
|
Fresh Rate
|
60Hz
|
Touch Panel
|
Available
|
|

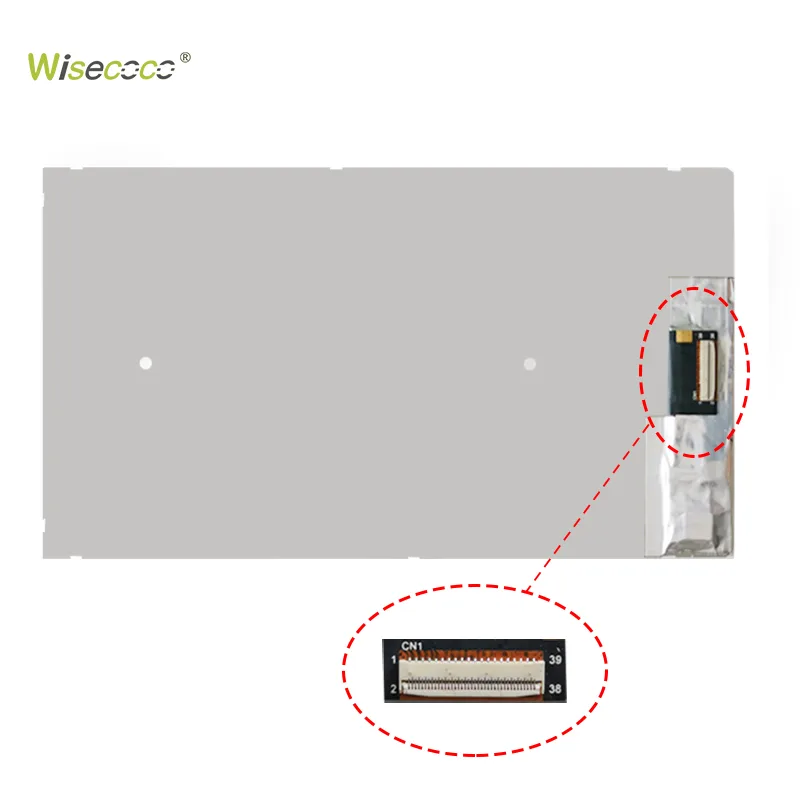

Interface Type
|
Full-featrued Usb-c Function
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
||
Features:
- 1920×1080 FHD IPS Panel — Sharp, accurate visuals with consistent color from wide viewing angles.
- Built-In Touch Screen — Direct touch interaction without an external controller.

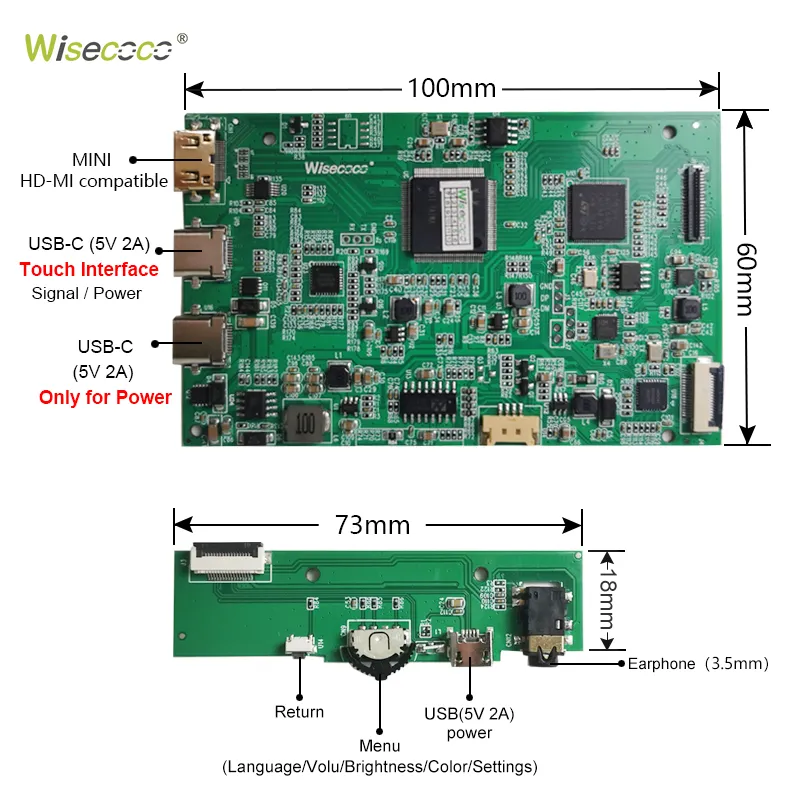

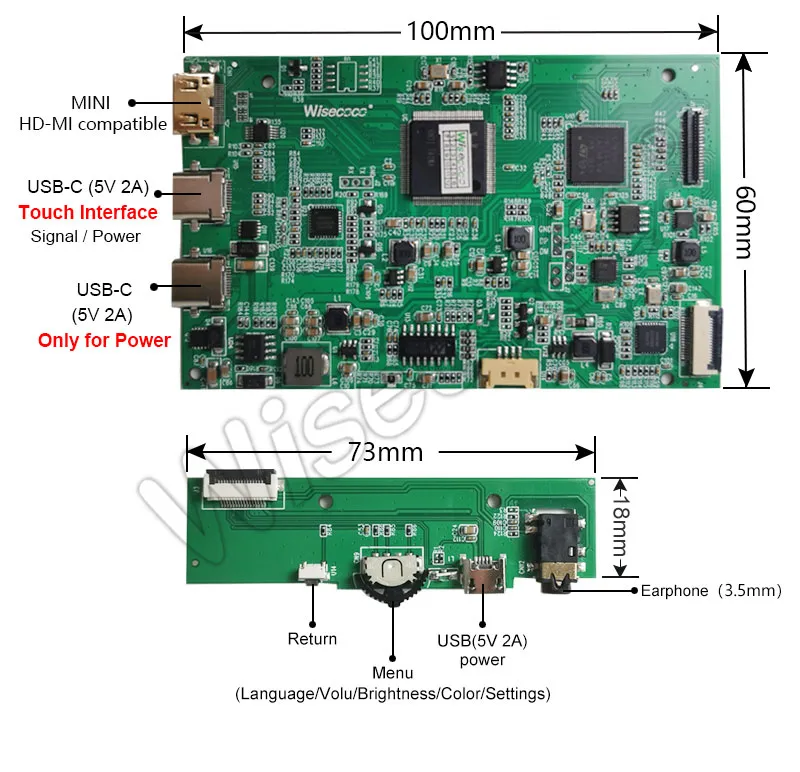

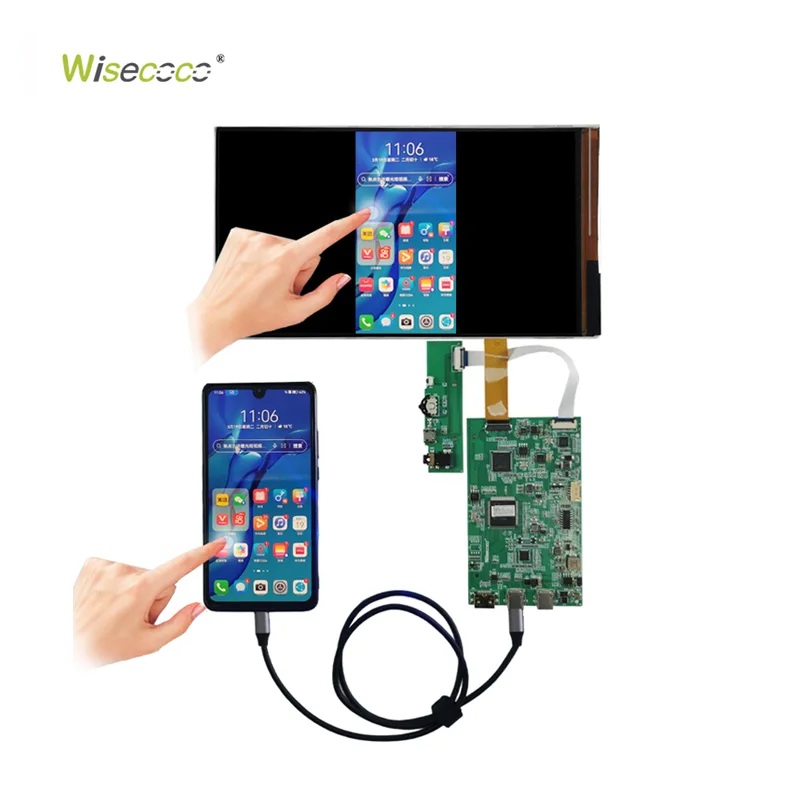

- Full-Featured USB-C — Single-cable video, touch, and power for simplified connections.

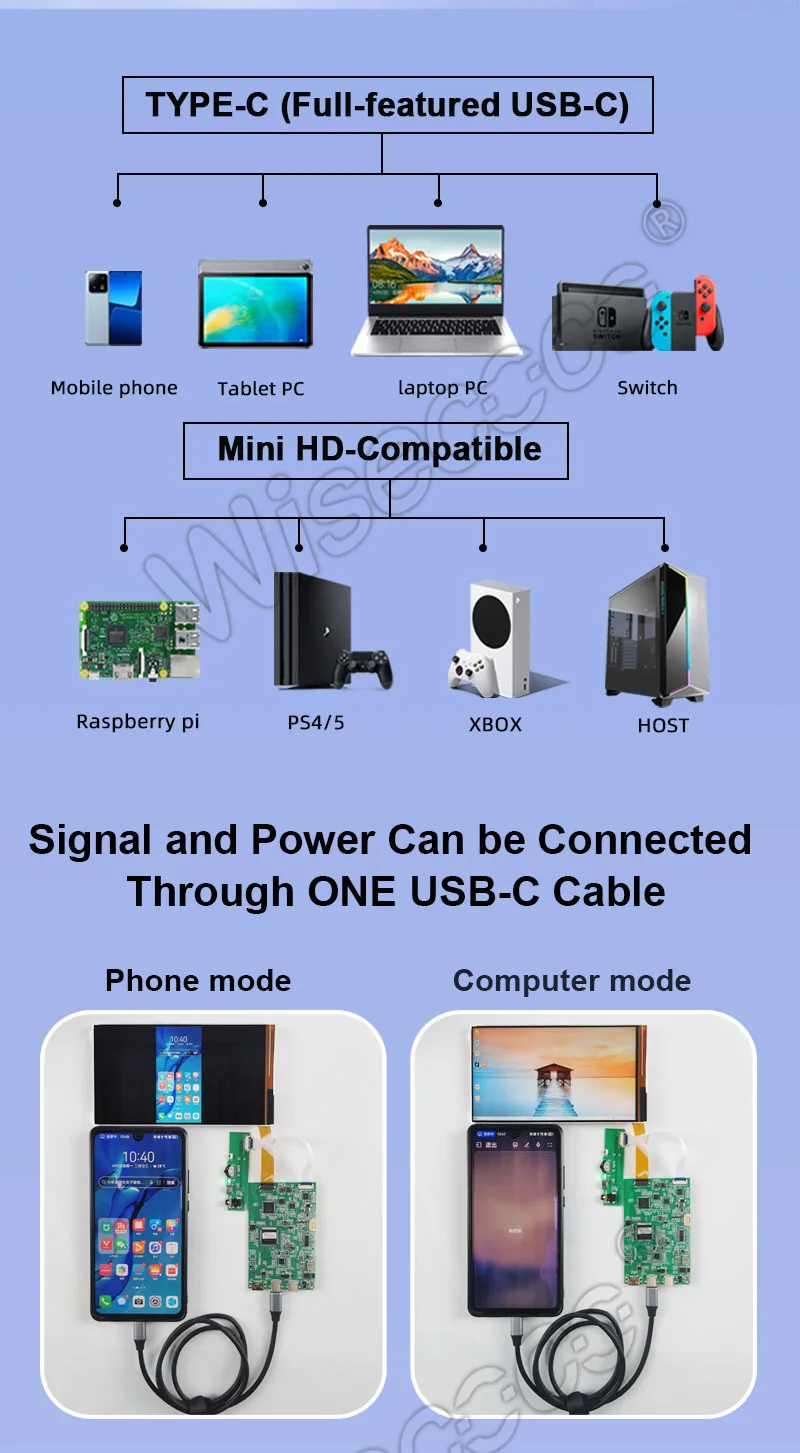

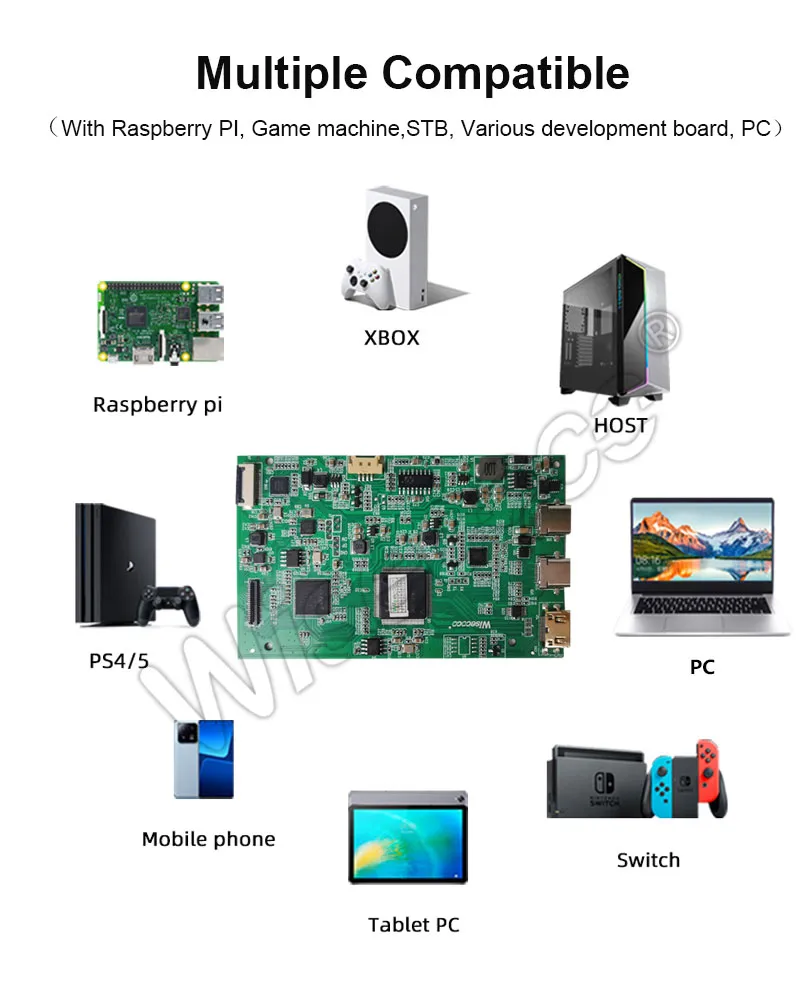

- Mini HD-Compatible Input — Broad compatibility with mobile phones, tablets, laptop PCs, and gaming consoles like Switch.
- 350 cd/m² Brightness — Clear, bright visuals for everyday portable use.

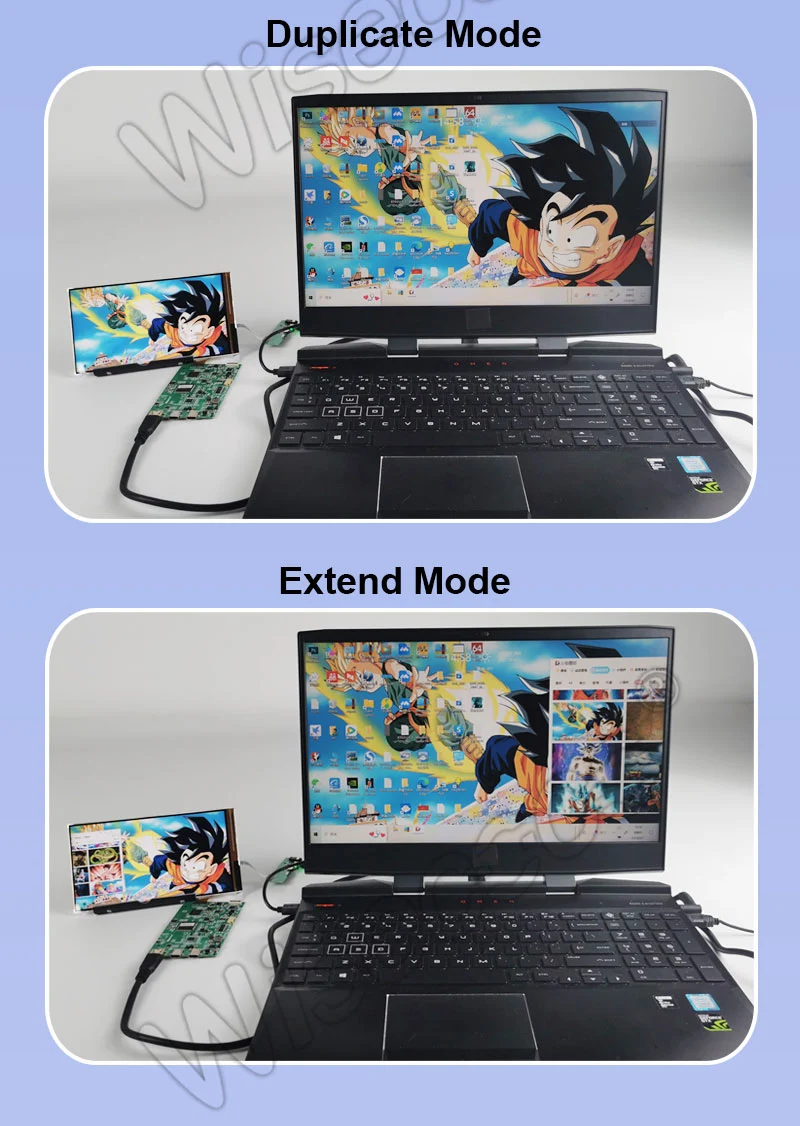

Ideal for: Portable monitors for laptops & phones · Gaming console displays (Switch) · Tablet & mobile accessory screens · OEM touch monitor solutions
Wisecoco offers One-step customized display solutions.
Add a review
Be the first to review “7 Inch TFT LCD Display 1920×1080 FHD Touchscreen Ultra-thin IPS LCD Screen with Full-featrued Usb-c Function”
Related products
-

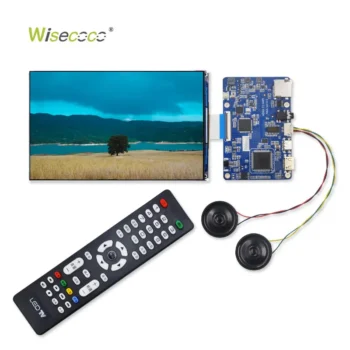

Wisecoco 7 Inch 120HZ IPS Display 1920×1080 Touch Screen For Raspberry Pi 5 Portable Handheld Gaming Console Cell Phone 500nits
