- Size:6 inch
- Resolution:1440×2560
- Panel Interface:MIPI (2 ch, 4 data lanes)

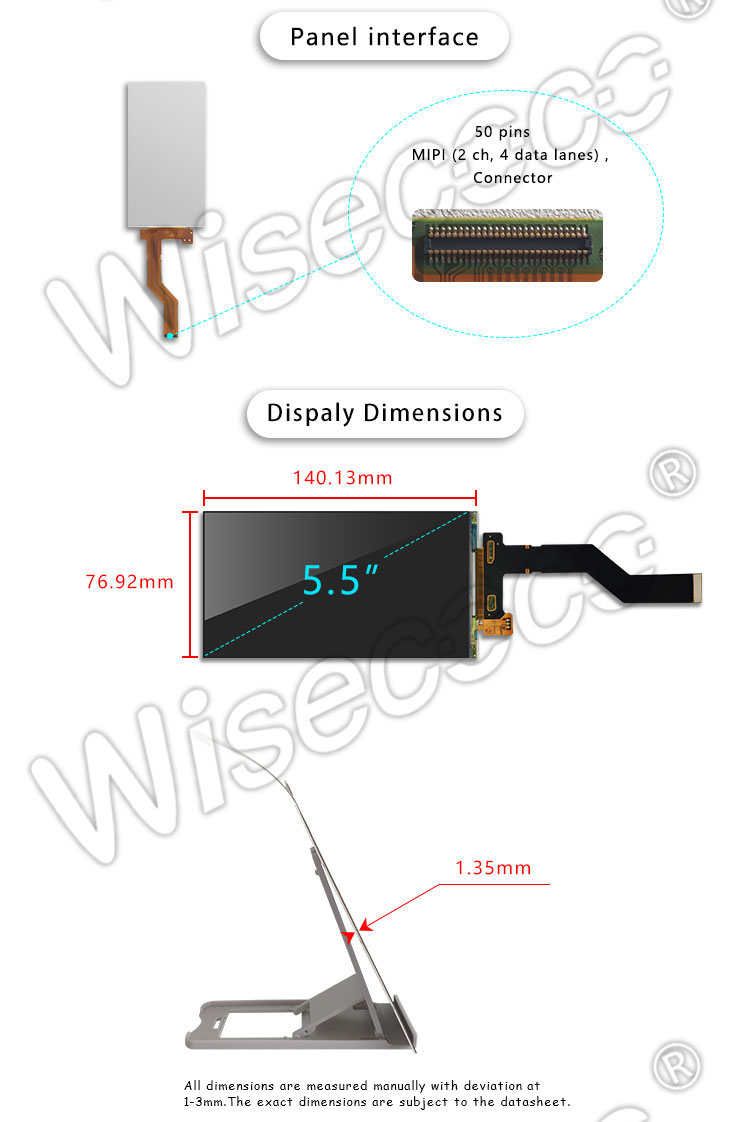

- Outline Dimension:76.92(H)*140.13(V)*1.35(D) mm
- Active Area:74.52(H)*132.48(V) mm
- Viewing Angle L/R/U/D:80/80/80/80 (Typ.)(CR≥10)
- Brightness:450cd/m²(Typ.)
6 Inch 1440*2560 2K Lcd Display High Definition MIPI Driver Board Portrait IPS LCD Module Screen for Industrial
$65.00

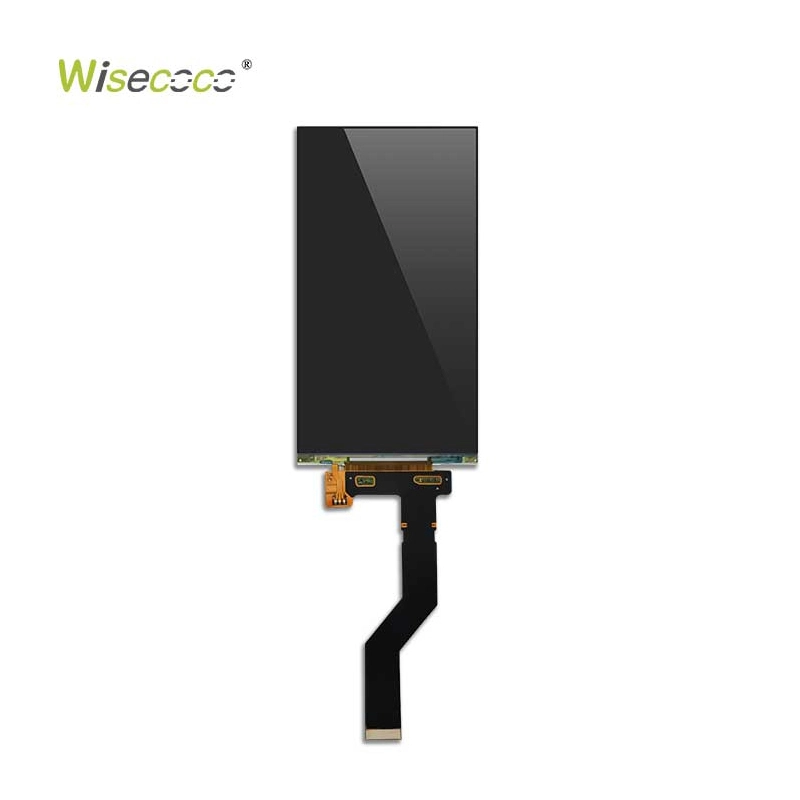

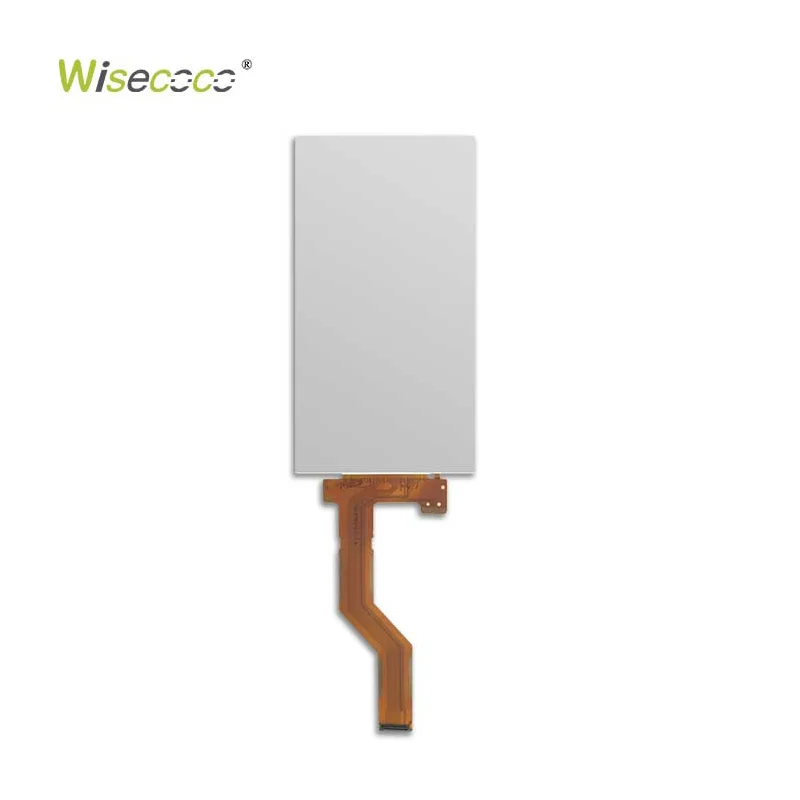

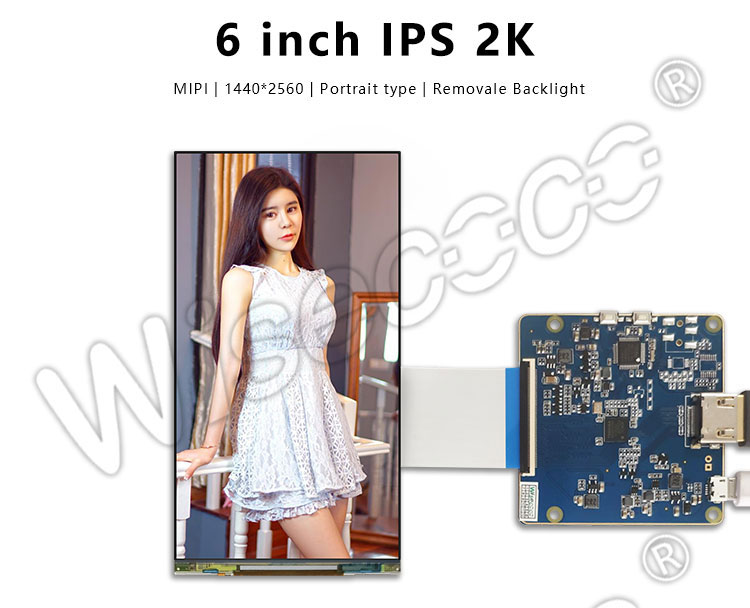

6″ IPS 2K LCD Display — 1440×2560 | 450 cd/m² | MIPI Interface

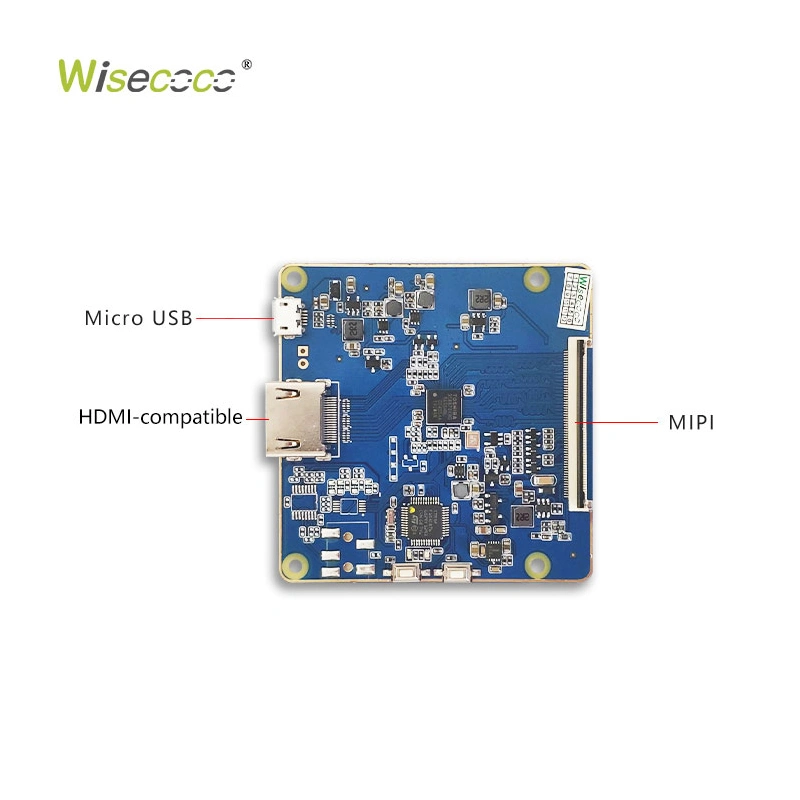

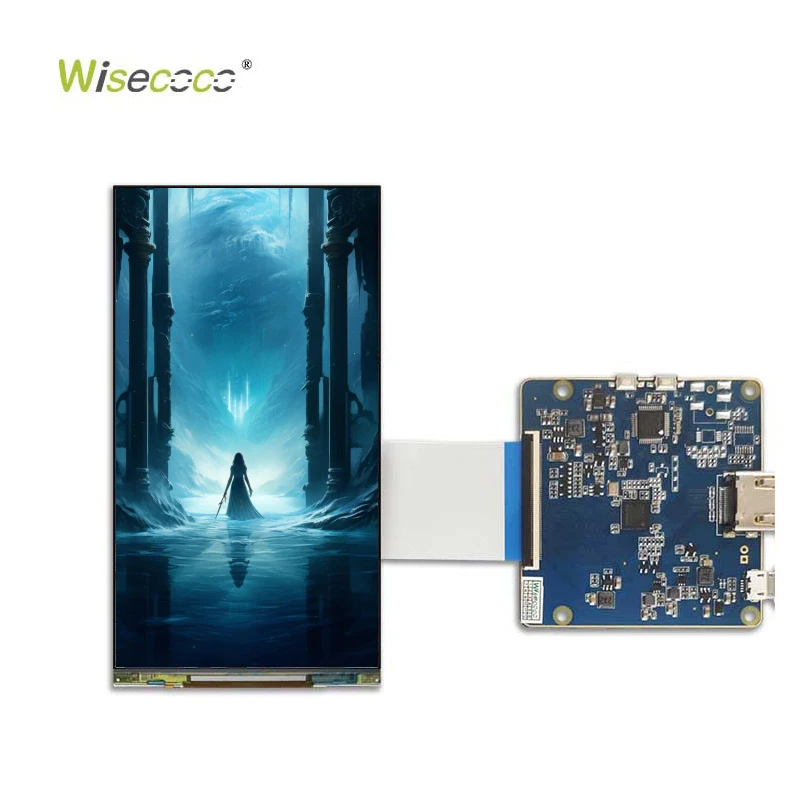

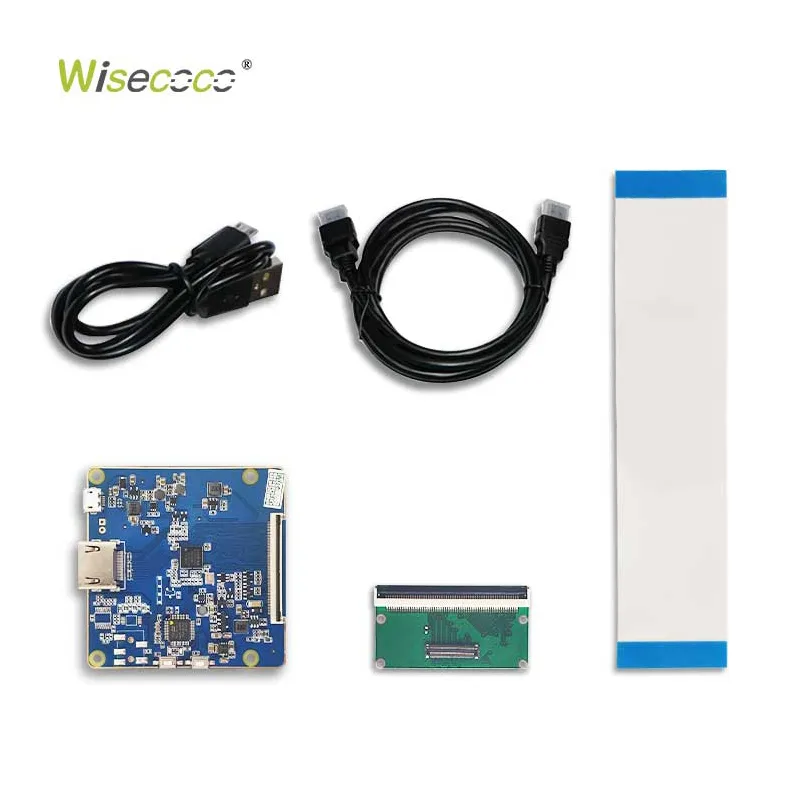

6-inch portrait IPS TFT LCD display with Quad-HD 1440×2560 resolution, 450 cd/m² brightness, and a removable backlight design. Paired with a MIPI driver board (2-lane, 4 data lanes, 50-pin connector), this panel is built for compact, high-resolution portrait applications such as VR devices, 3D printers, and Raspberry Pi-based projects.
|
General Features
|
|||
|
Diagonal Size
|
6 inch
|
Type
|
LCM, CG-Silicon
|
|
Pixel Format
|
1440(RGB)*2560 (Quad-HD)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
74.52(H)*132.48(V) mm
|
Outline Dim.
|
76.92(H)*140.13(V)*1.35(D) mm
|
|
Luminance
|
450 Cd/m² (Typ.)
|
Contrast Ratio
|
1300 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
35 (Max.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
New Mode2, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70% (CIE1931)
|
Light Source
|
8S2P WLED , No Driver
|
|
Weight
|
Designed For
|
VR 3D printer,Raspberry PI
|
|
|
Interface Type
|

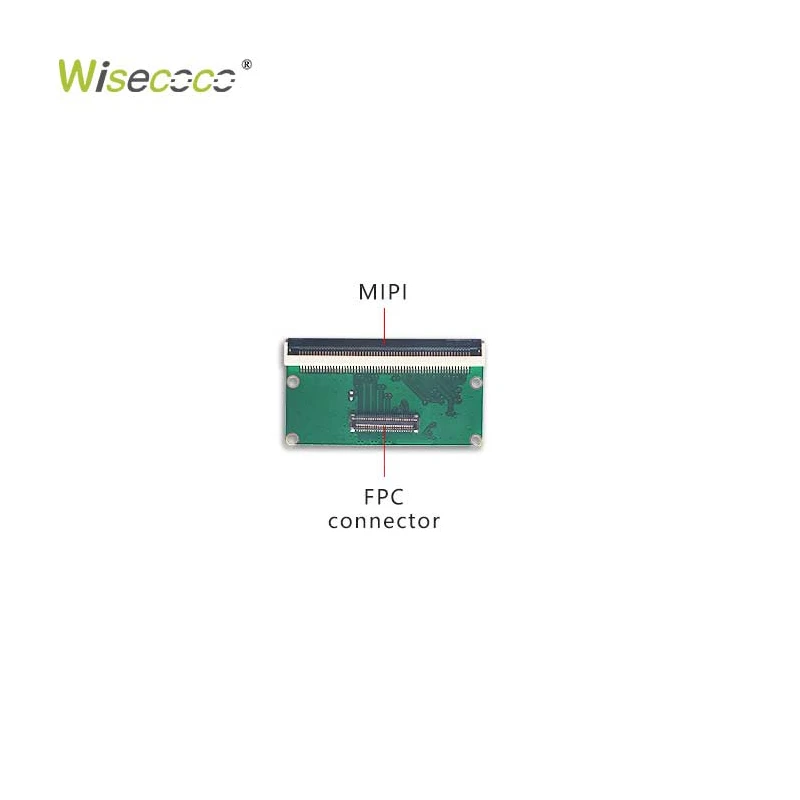

MIPI (2 ch, 4 data lanes) , Connector , 50 pins
|
||
|
Power Supply
|
1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
|
||
|
Environment
|
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
|
||
Features:
- Quad-HD 1440×2560 Resolution — Exceptionally sharp visuals in a compact 6″ portrait panel.
- 450 cd/m² Brightness — Bright, clear image quality for enclosed device applications.

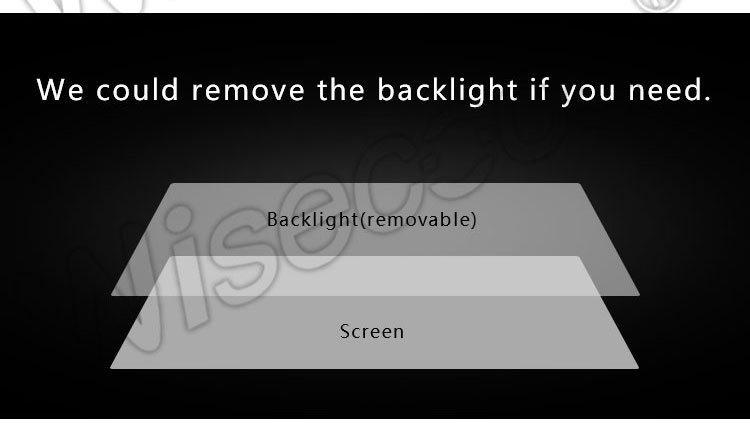

- Removable Backlight Design — Flexible mechanical integration for space-constrained enclosures.
- 80/80/80/80 Wide Viewing Angle — Consistent color and contrast from virtually any angle.

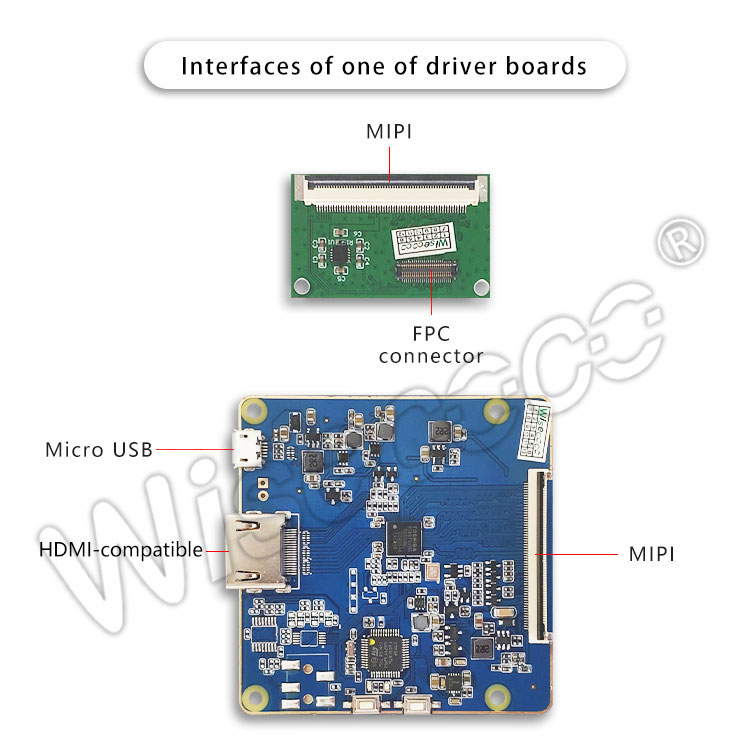

- MIPI Interface, 50-Pin Connector — Straightforward integration with compatible host/driver boards.
- 1300:1 Contrast Ratio — Enhanced dynamic range for crisp, well-defined imagery.
Ideal for: VR headsets · 3D printers · Raspberry Pi projects · Portrait-oriented embedded displays
Wisecoco offers One-step customized display solutions.
