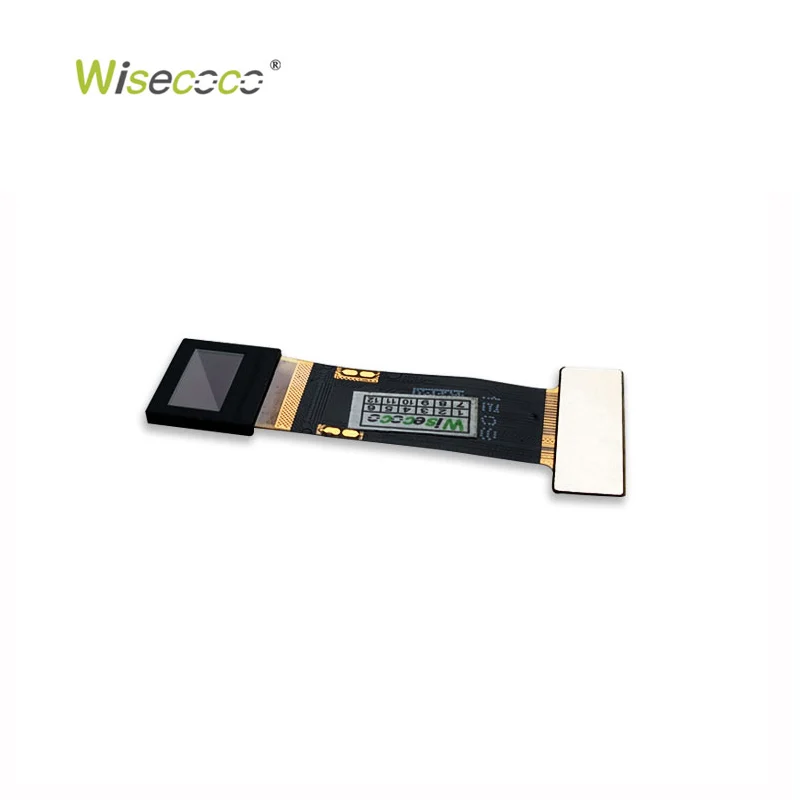

0.39 Inch 1920×1080 Micro OLED Display MIPI Interface Amoled With Type-C To MIPI Driver Board For HMD AR VR

$285.00

  • Size:0.39 inch
  • Resolution:1920×1080
  • Panel Interface:MIPI
  • Brightness:1500 cd/㎡

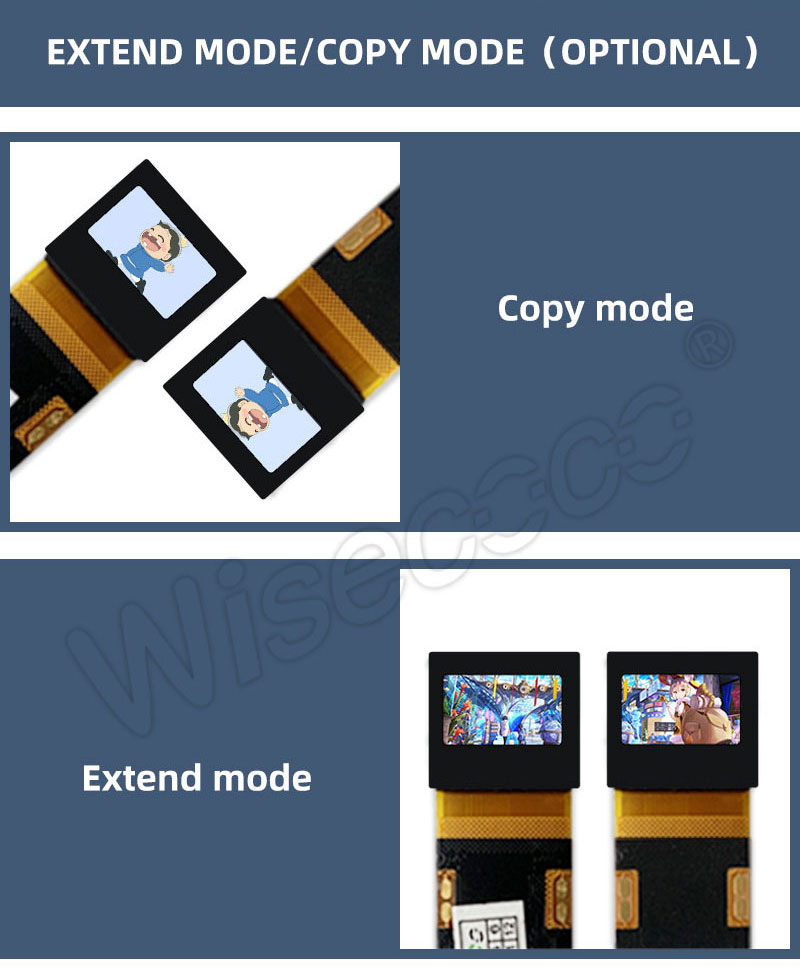

  • Mode:Extend mode / Copy mode Optional

Get a Quote

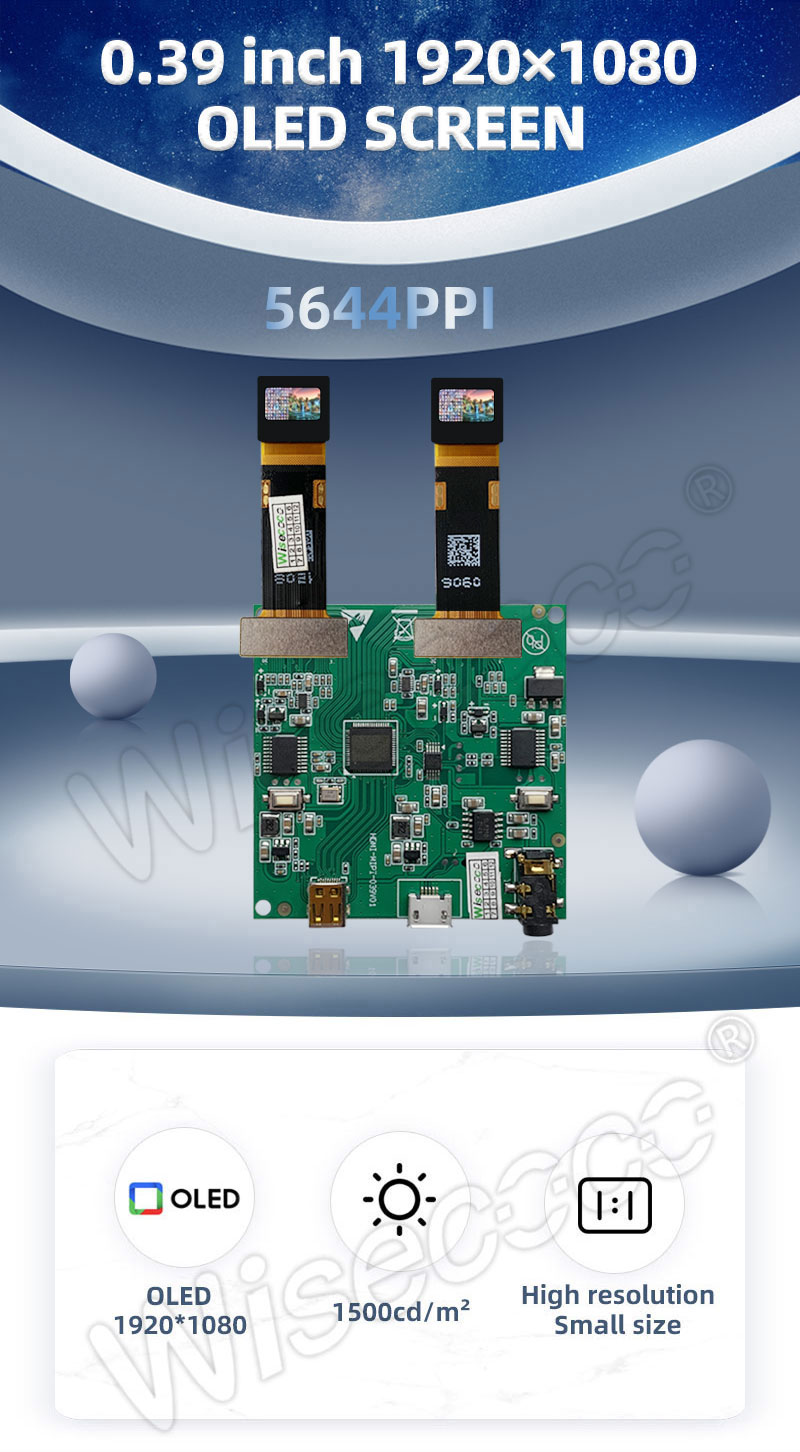

0.39″ Micro OLED Display — 1920×1080 | 5644 PPI | Dual-Panel | 1500cd/m²

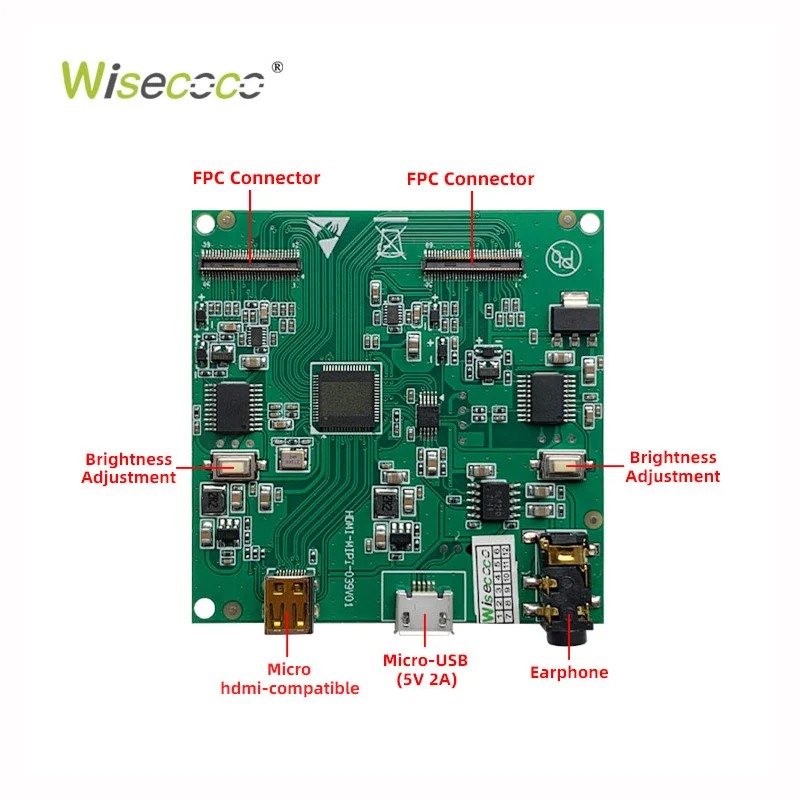

0.39-inch micro OLED display delivering ultra-high pixel density at 5644 PPI with full 1920×1080 resolution packed into an exceptionally small form factor. Featuring self-emissive OLED technology, 1500cd/m² brightness, and a dual-panel HDMI/USB driver board, this micro-display is purpose-built for near-eye and high-density optical applications.

Display Size
0.39 Inch
Screen Type
OLED
Pixel Format
1920*1080
Brightness
1500 cd/㎡
Color Depth
16.7M
Contrast Ratio
10000:1

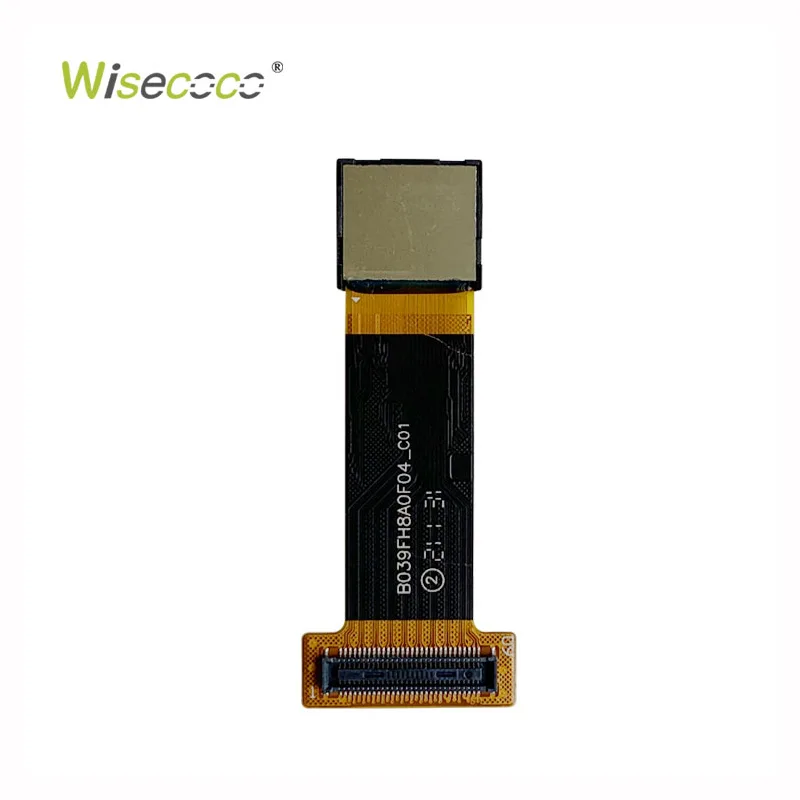

Interface
FPC

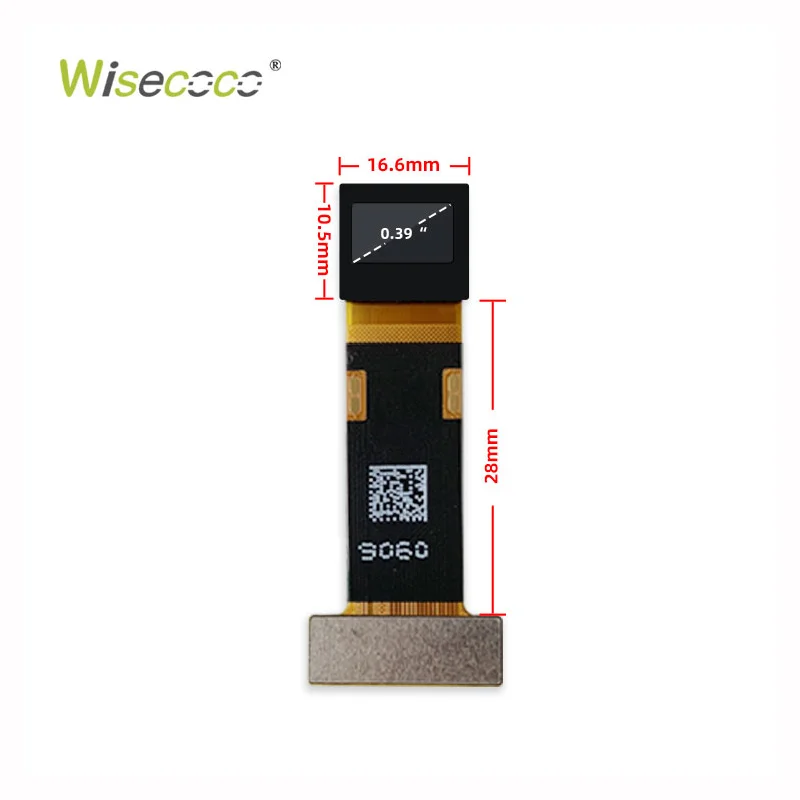

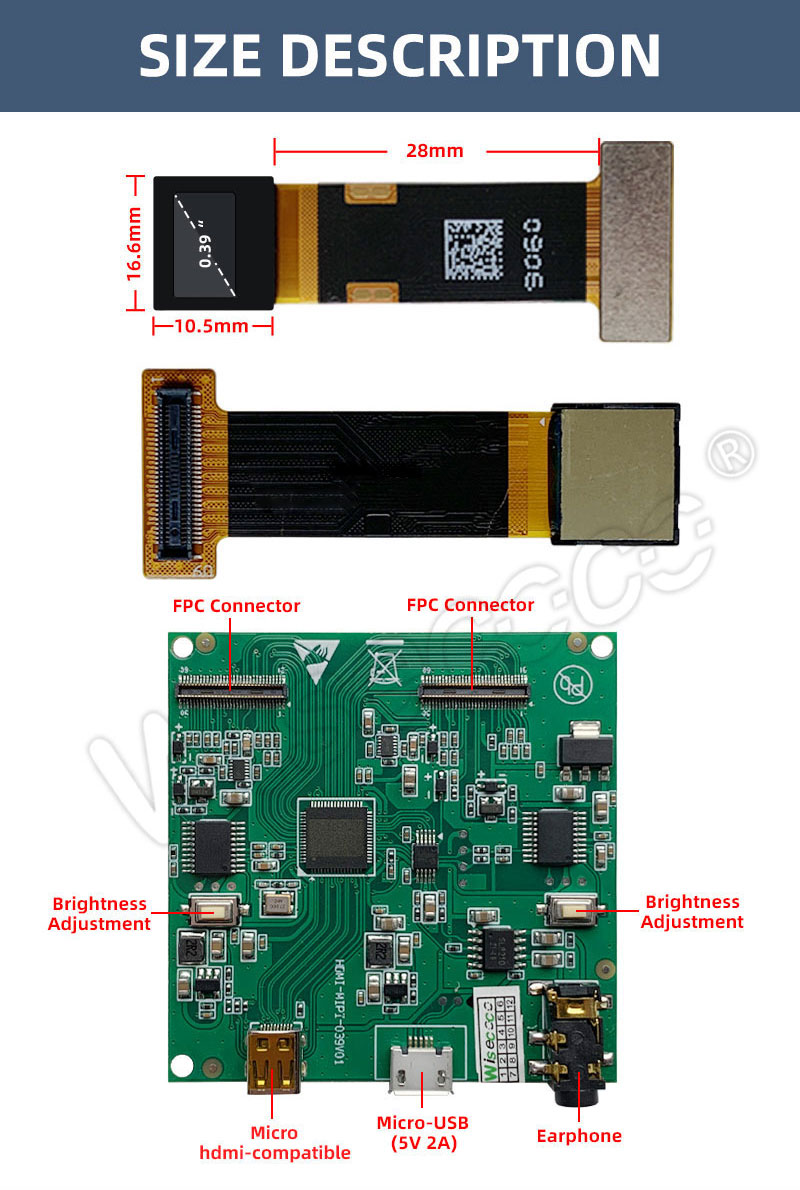

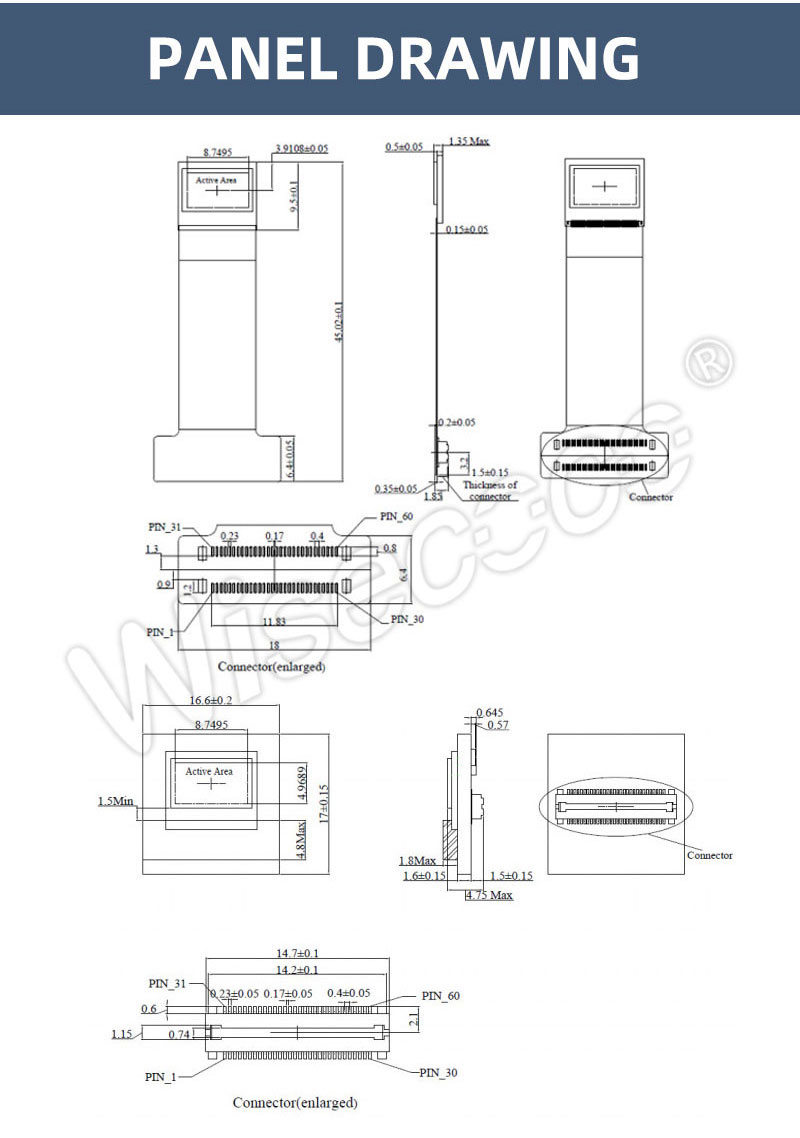

Outline Dimension(mm)
16.6(W)*10.5(H)
Active Area
8.7495(W) × 4.9689(H)
Operation Temp.
-40 ~ 85 °C
Storage Temp.
-55 ~ 125 °C
Viewing Angle
89/89/89/89 (Typ.)(CR 10)
Applications
Virtual Reality application（AR/VR）, Head mounted displays, Near-Eye Displays

Features:

  • 1920×1080 Resolution at 5644 PPI — Exceptional pixel density packed into a micro-sized panel, delivering razor-sharp detail invisible to the naked pixel.

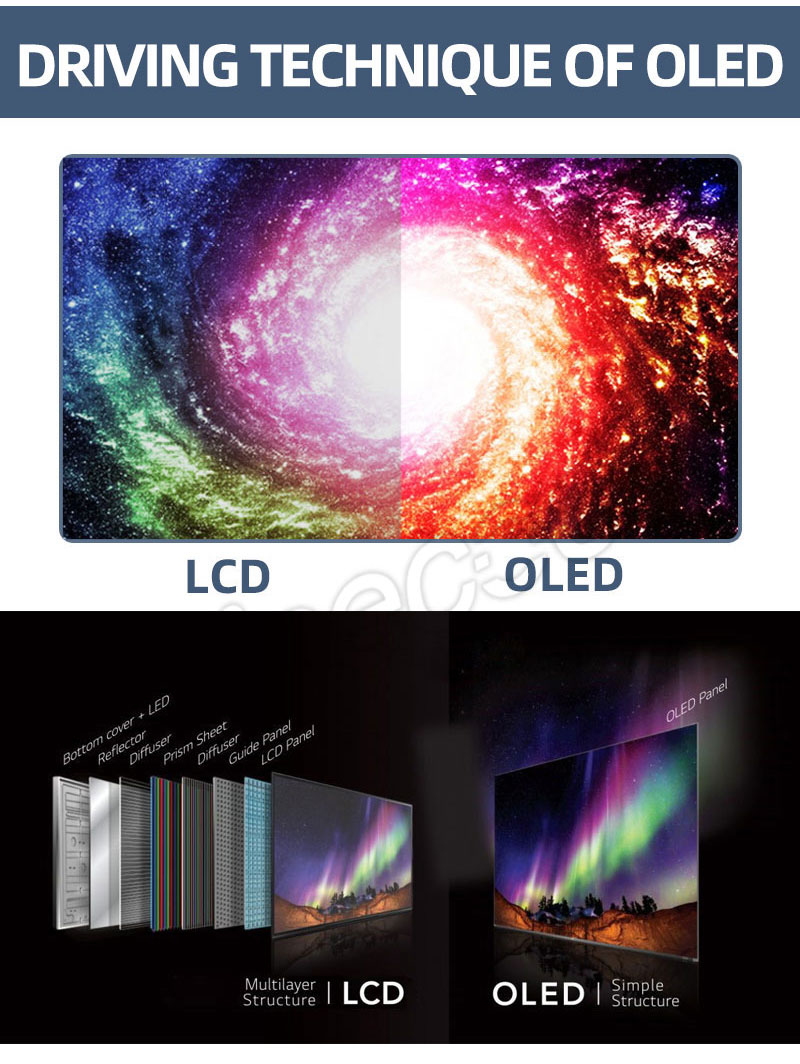

  • Self-Emissive OLED Technology — True blacks and high contrast for immersive, high-quality image reproduction.
  • 1500cd/m² High Brightness — Bright, clear visuals suited for demanding optical viewfinder and near-eye applications.
  • Ultra-Compact Small Size — Just 0.39 inches, ideal for space-constrained optical and wearable integration.

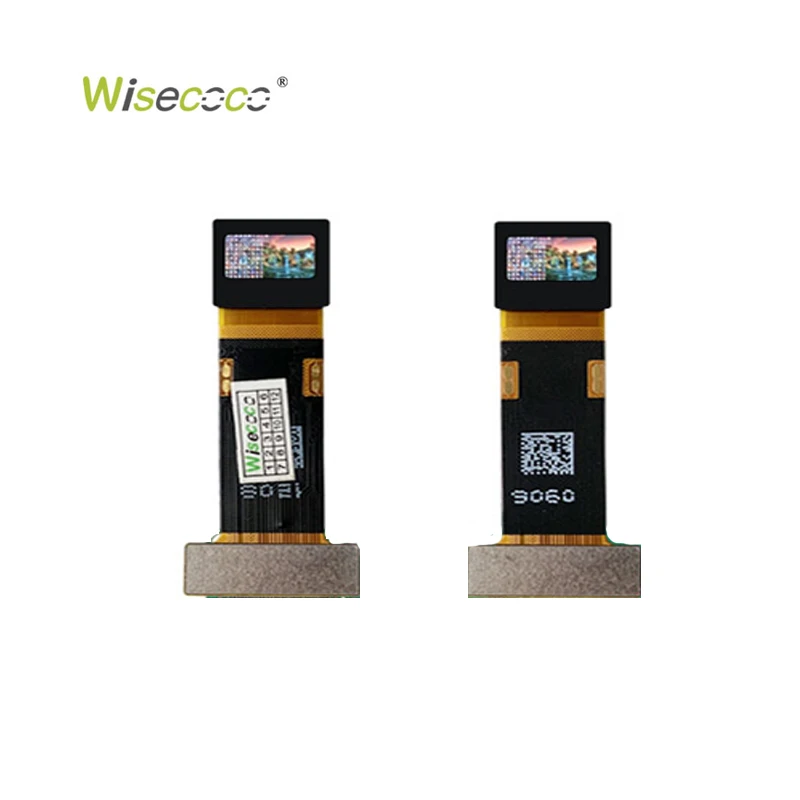

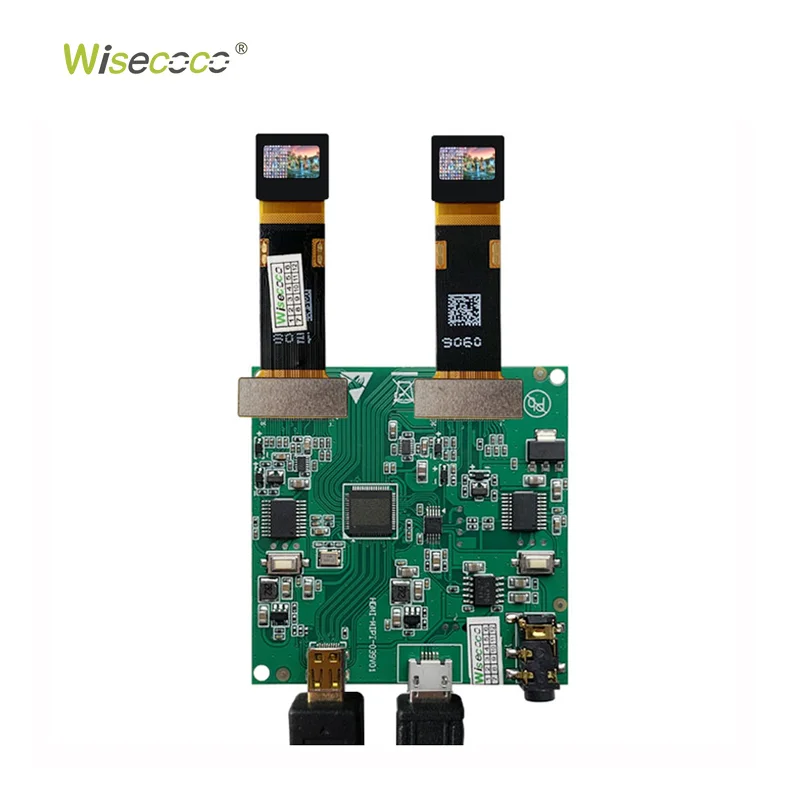

  • Dual-Panel Configuration — Two synchronized micro-displays driven by a single board, suited for stereoscopic and binocular applications.

Ideal for: VR/AR near-eye viewfinders · Camera electronic viewfinders (EVF) · Binocular optical devices · Micro-projector systems · Custom high-density optical projects

Wisecoco offers One-step customized display module solutions.
