- Size:1.39 inch
- Resolution:454×454
- Panel Interface:MIPI (1 data lane)
- Active Area:35.4(W)x35.4(H)mm
- Outline Dimension:39.4(W)x39.4(H)x0.75(D)mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness :350cd/m²(Typ.)
- Operation / Storage Temp:-20~60°C / -30~70°C
-20%

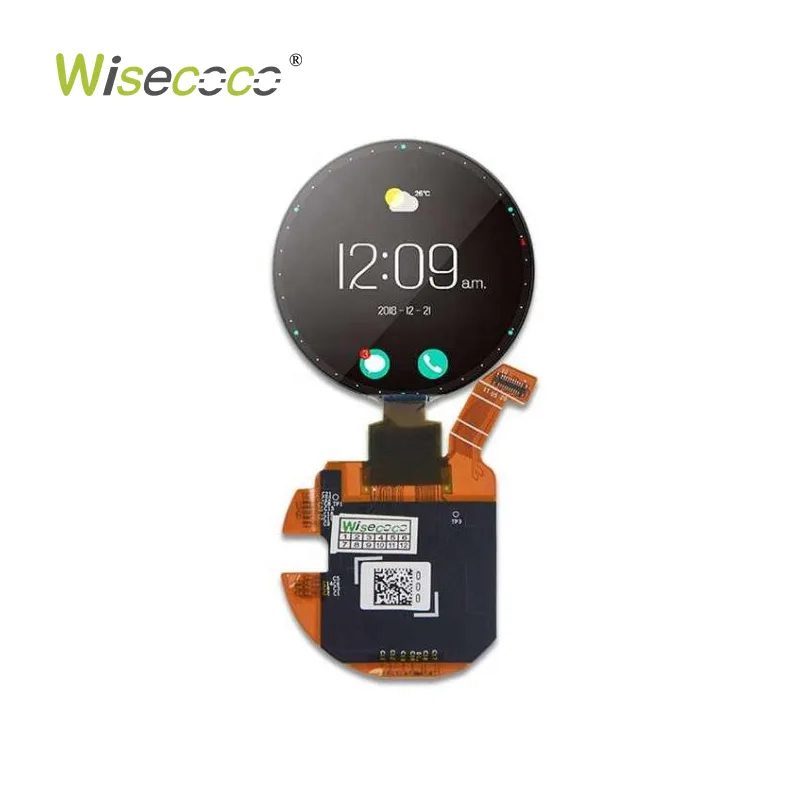

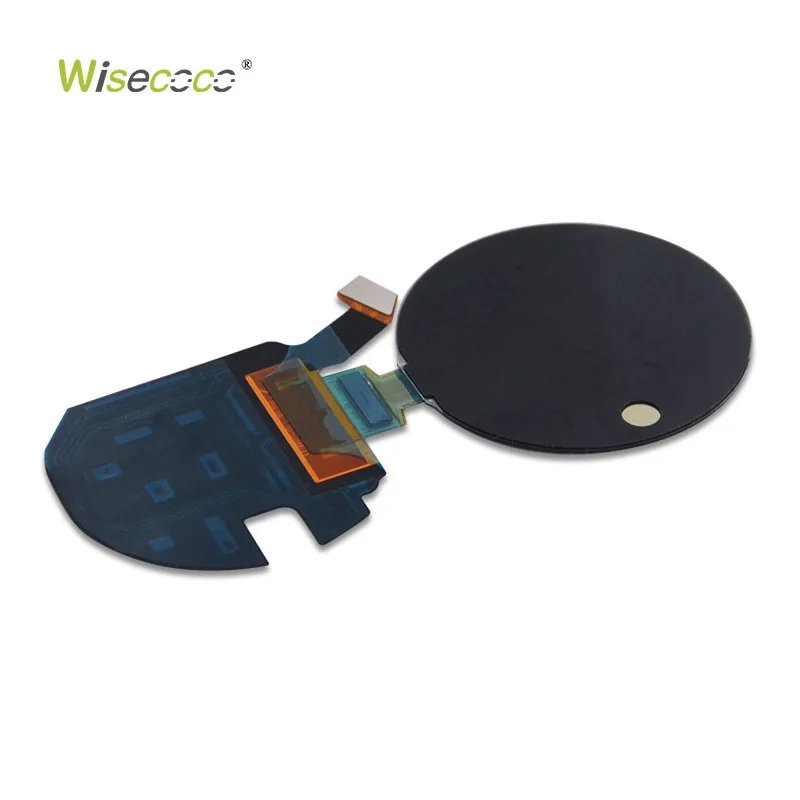

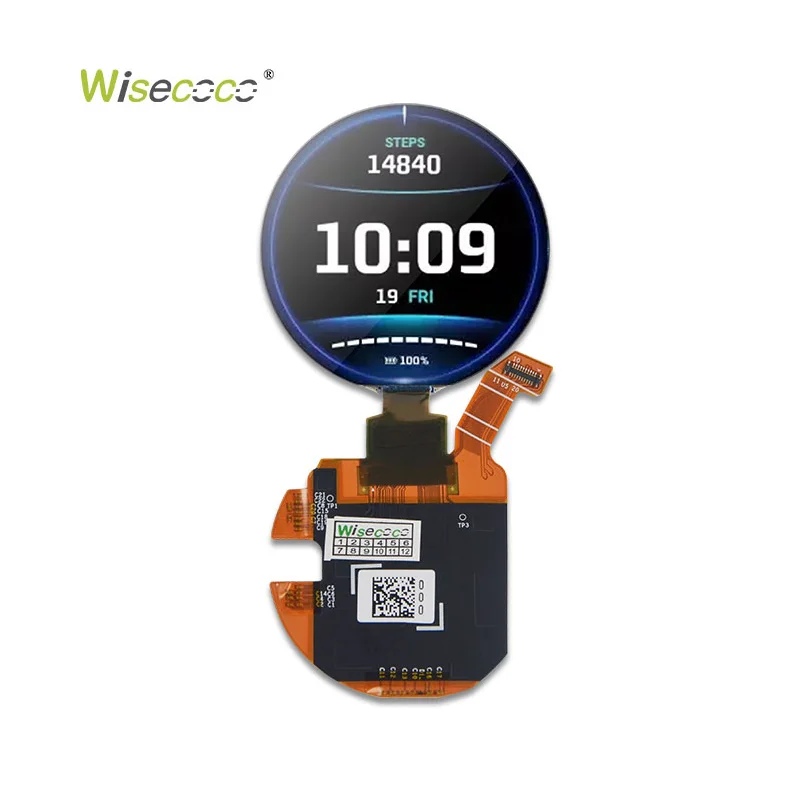

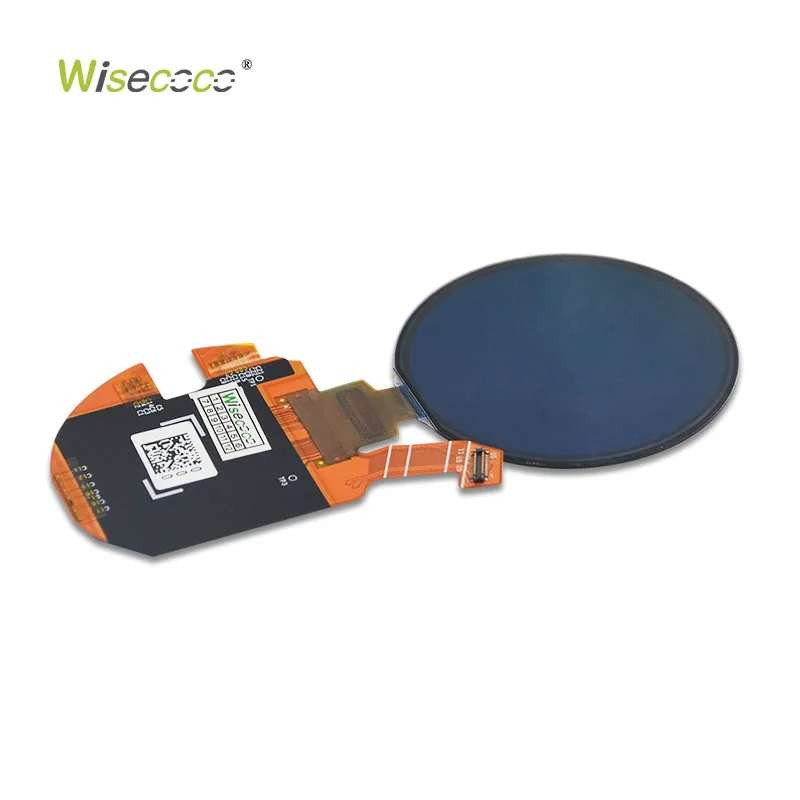

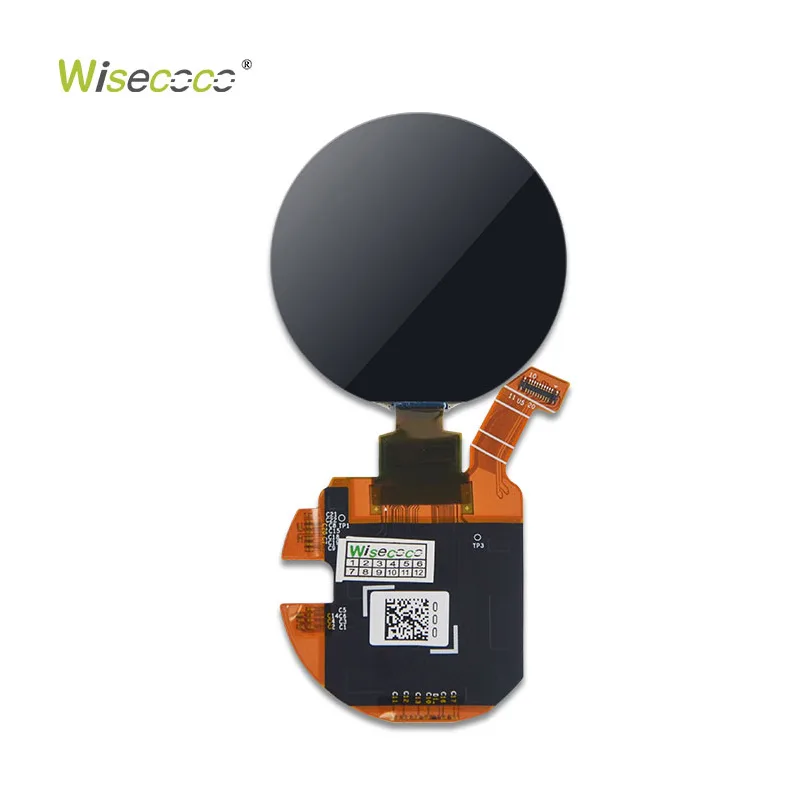

Manufacture1.39 Inch 454*454 IPS MINI Slim Circular Smart Watch Screen OLED AMOLED Display Panel for Intelligent Appliance
Original price was: $98.00.$78.00Current price is: $78.00.
| General Features : | |||
| Panel Size | 1.39 inch | Panel Type | AM-OLED, OLED |
| Resolution | 454(RGB)×454 | Pixel Format | RGB Vertical Stripe |
| Display Area | 35.4(W)×35.4(H) mm | Outline Size | 39.4(W)×39.4(H)×0.75(D) mm |
| Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Best View on | Symmetry |
| Display Colors | 16.7M 101% NTSC | Lamp Type | self |
| Touch Screen | Optional | Application | Wearable Display, Smart Watch |
| Signal Interface | MIPI (1 data lane) , 20 pins Connector | ||
| Input Voltage | 1.8/3.3/3.3/-3.3V (Typ.)(VDDIO/VCI/ELVDD/ELVSS) | ||
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
| Color | Blue, Gray |
|---|
