- Size:13.3 inch
- Resolution:1920×1080
- Panel Interface:eDP (2 Lanes)
- Active Area:293.76×165.24mm
- Outline Dimension:297.46×183.99mm
- Viewing Angle:85/85/85/85 (Typ.)
- Brightness :400cd/m²(Typ.)
- Operation / Storage Temp:-20~70°C / -40~85°C
- Touch:Optional
-14%

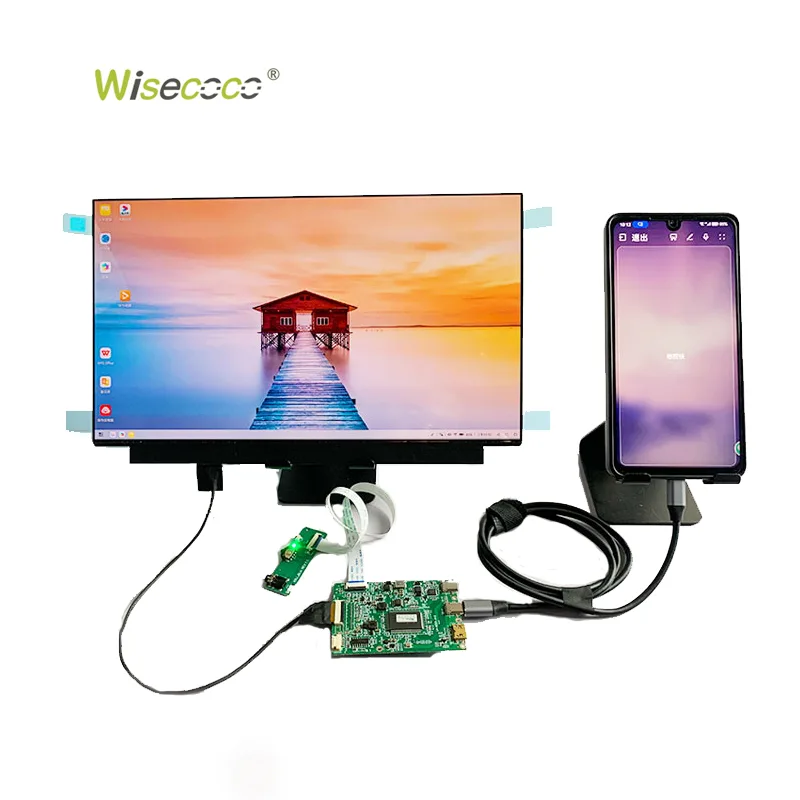

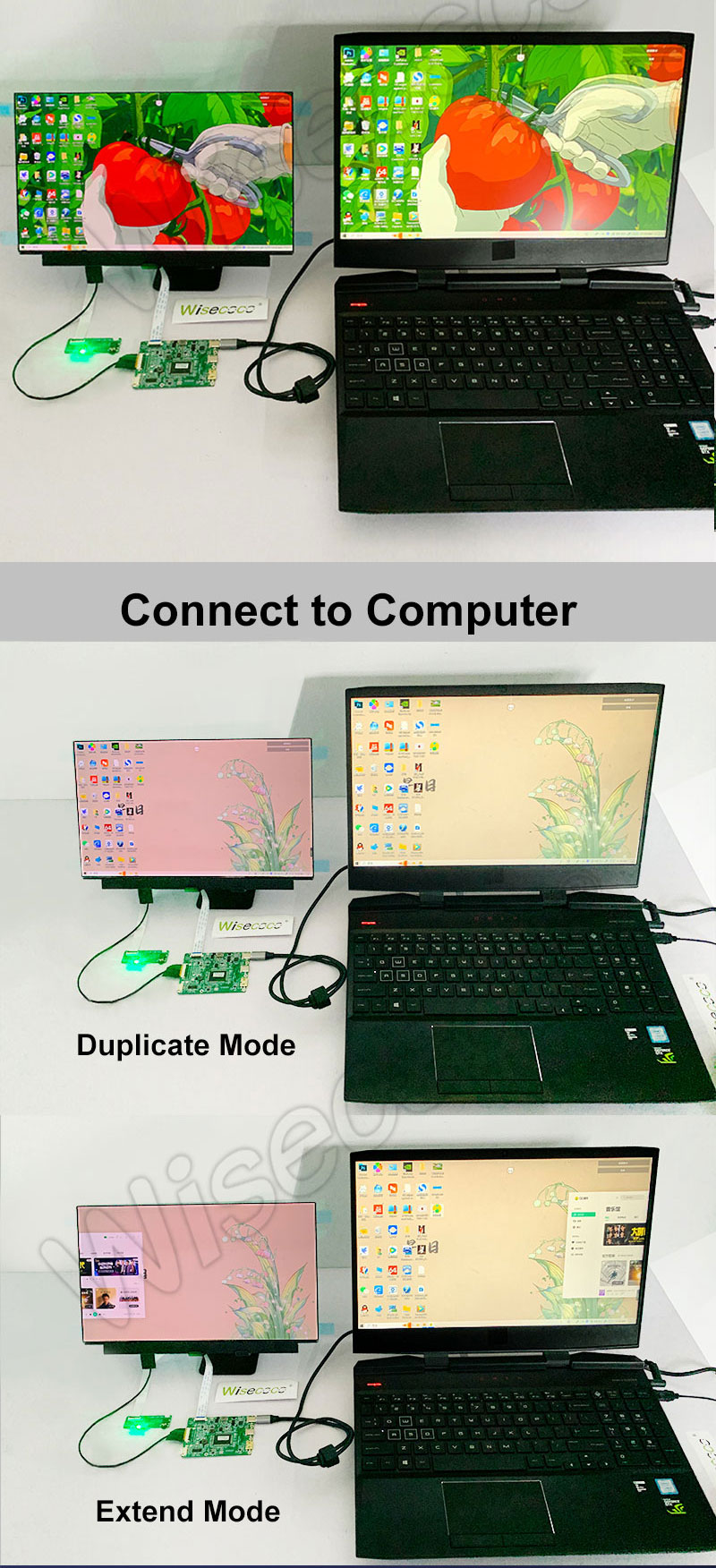

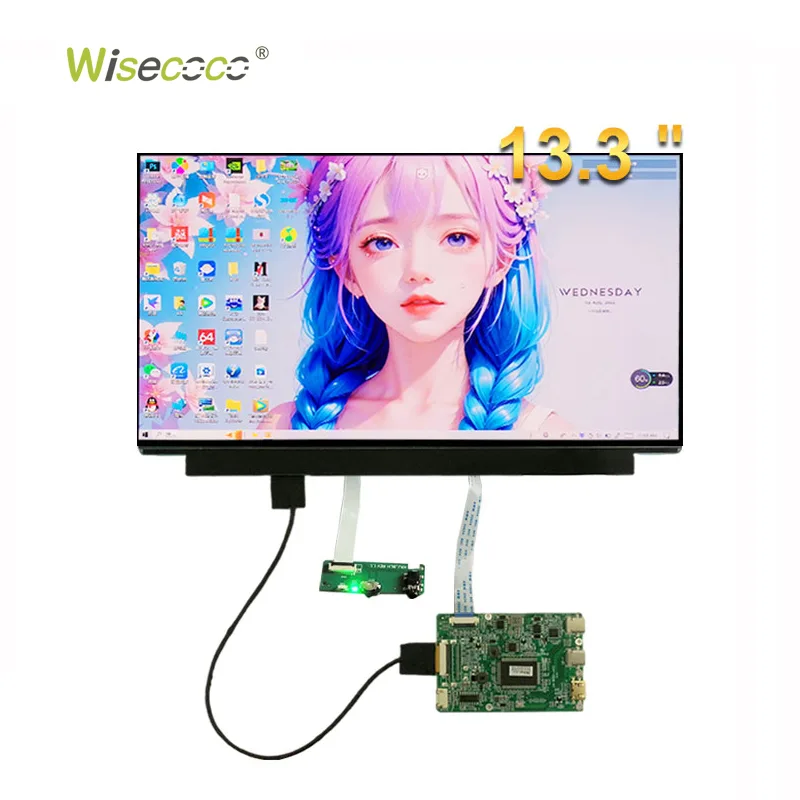

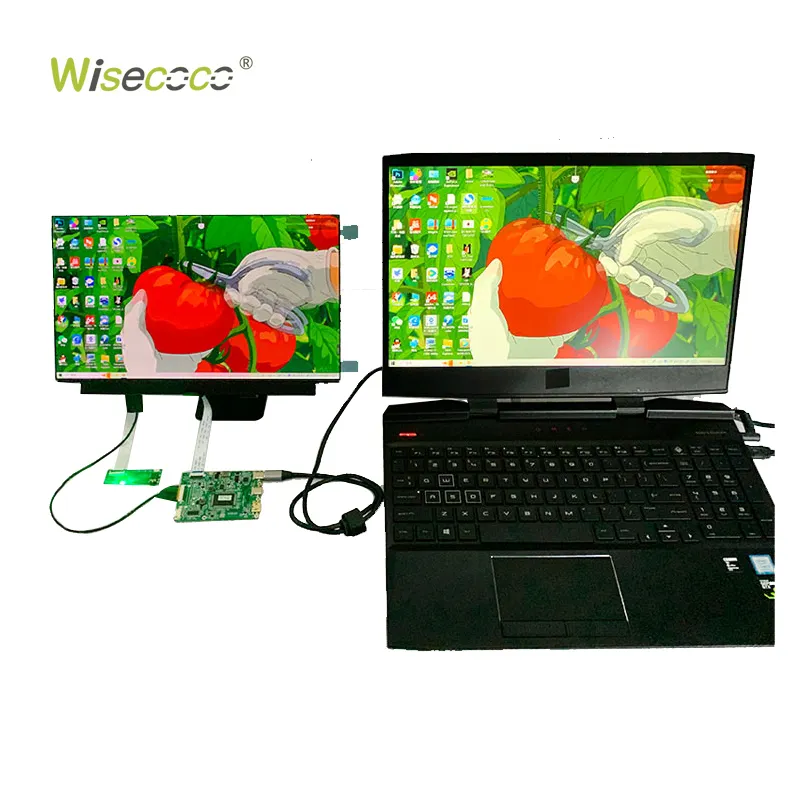

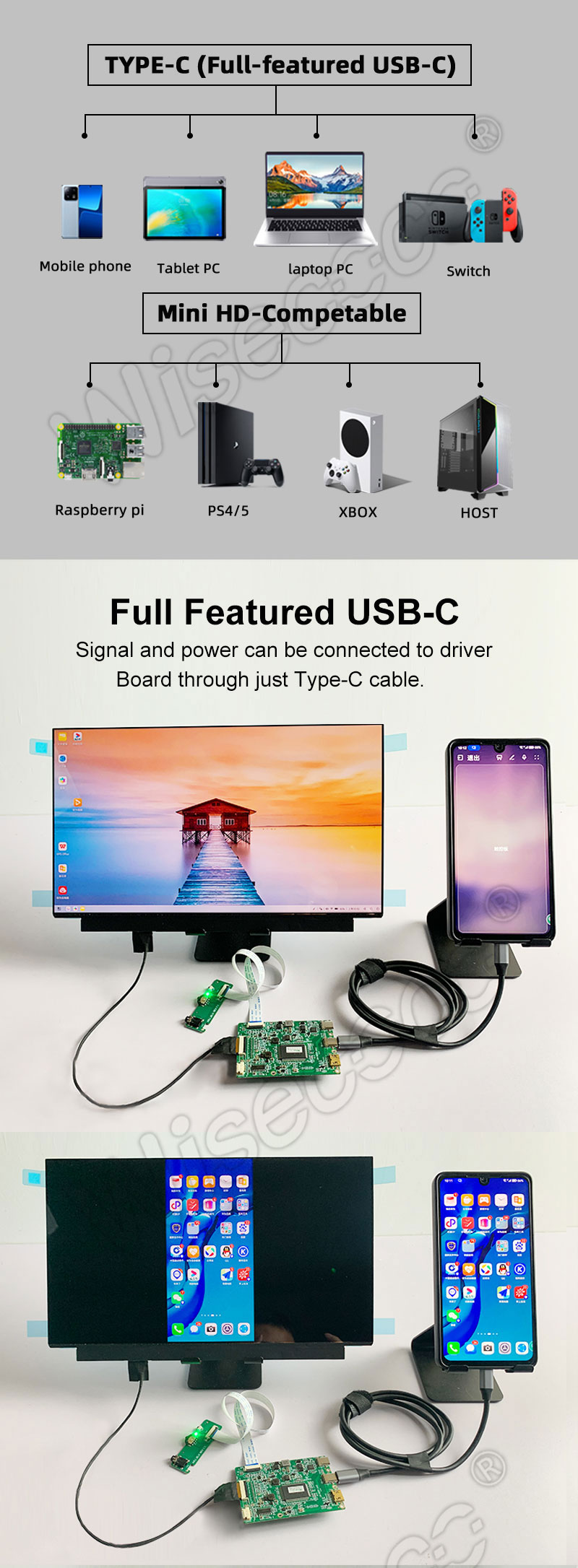

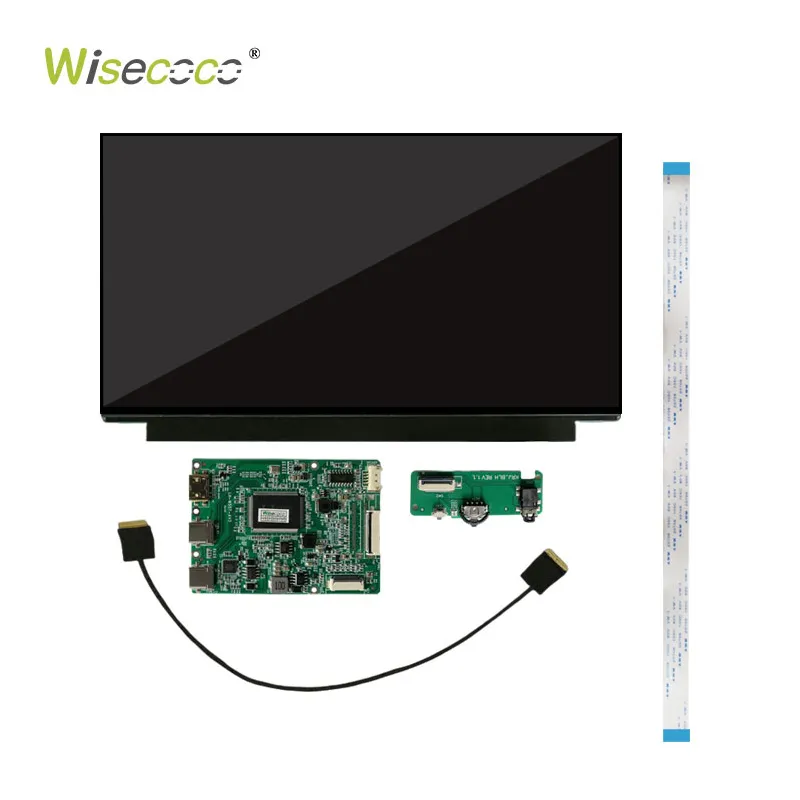

Wisecoco Ultra Thin And Light In Weight 13.3 Inch FHD Amoled Display with 1920×1080 Ips Touch Optional Full-Featured Usb-C
Original price was: $210.00.$180.00Current price is: $180.00.
|
General Features |
|||
|
Diagonal Size |
13.3 inch |
Type |
AM-OLED, OLED , Full Module |
|
Pixel Format |
1920*1080 |
Configuration |
RGB Vertical Stripe |
|

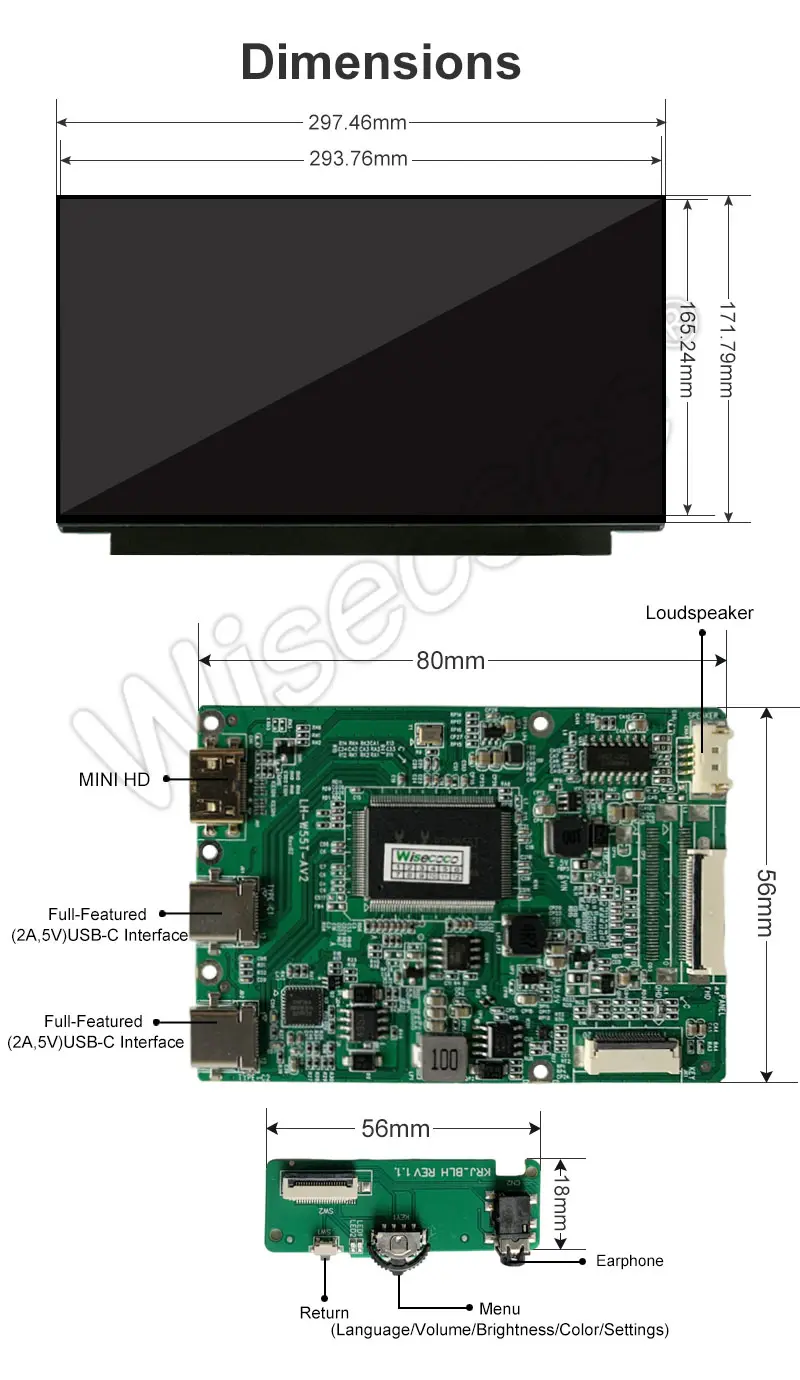

Active Area |
293.76(W)×165.24(H) mm |
Outline Dim. |
297.76(H)×186.34(V)×2.5(D) mm |
|
Bezel Area |
– |
Treatment |
Glare (Haze 0%) |
|
Luminance |
400 cd/m² (Typ.) |
Contrast Ratio |
100000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
1 (Typ.)(Tr+Td) ms |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
– |
|
Support Color |
1.07B 100% DCI-P3 |
Light Source |
self |
|
Form Style |
Slim (PCBA Flat, T≤3.2mm) |
Designed For |
Laptop&Industrial panel&advertising |
|
Frame Rate |
60Hz |
Touch Panel |
without |
|
Interface Type |
eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector |
||
|
Power Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C |
||
| Color | Orange |
|---|
