- Size:5.5 inch
- Resolution:2160×3840
- Panel Interface:MIPI (2 ch, 4 data lanes)
- Active Area:68.04(W)*120.96(H) mm
- Outline Dimension:69.84(W)*128.76(H) mm
- Viewing Angle:80/80/80/80 (Min.)(CR≥10)
- Brightness:450cd/m²(Typ.)
- Operation / Storage Temp:-20~70°C / -30~70°C

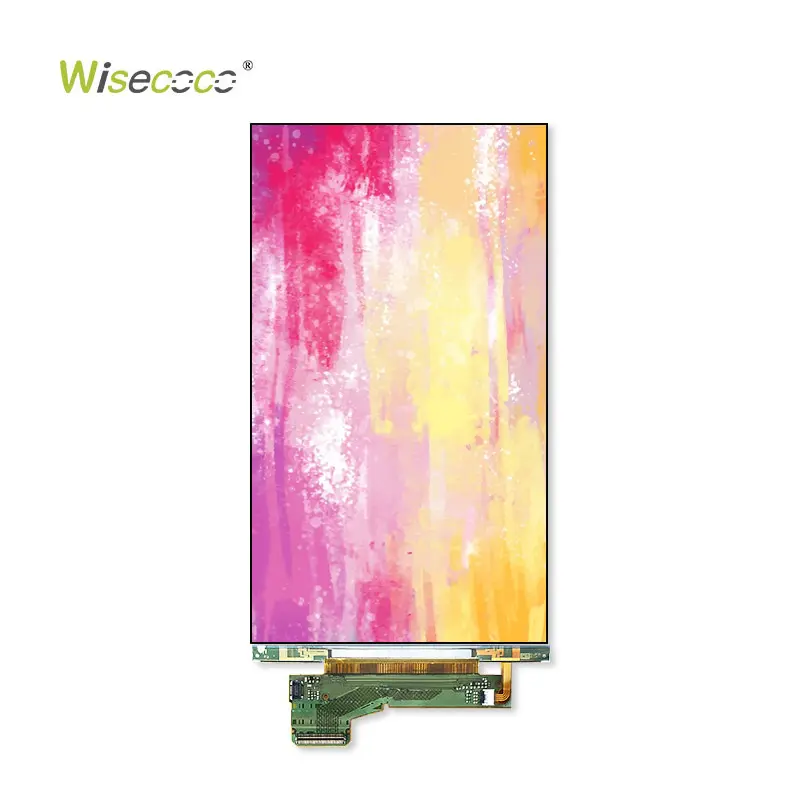

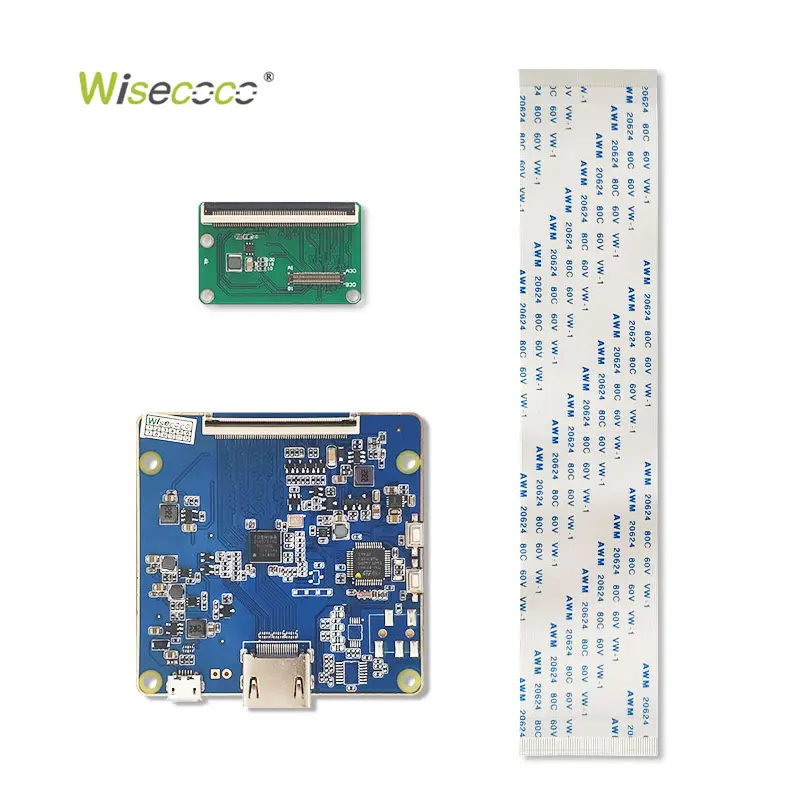

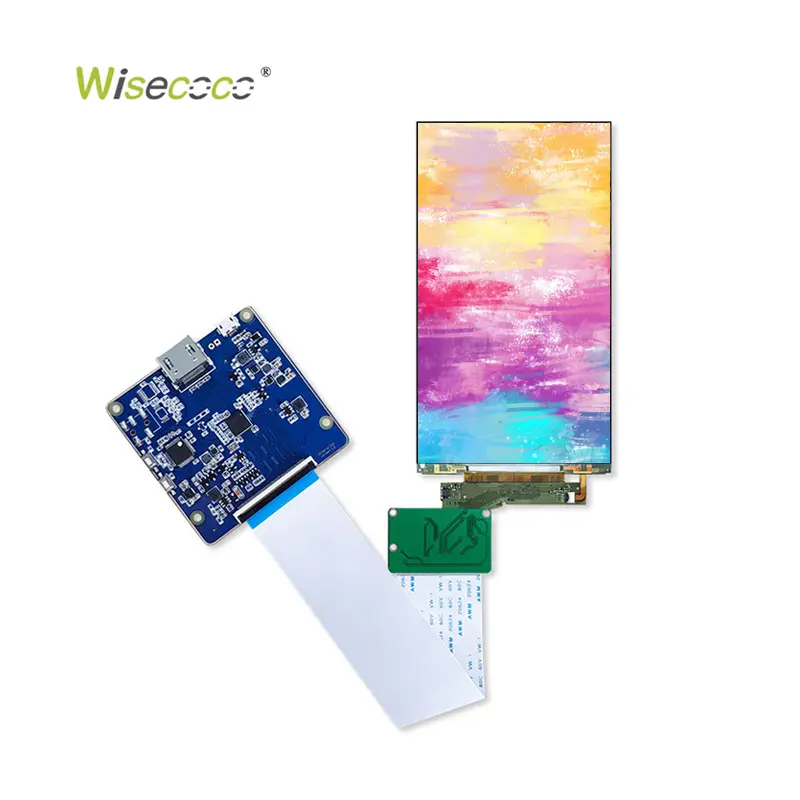

5.5 Inch Uhd 4k 2160×3840 High Brightness Lcd Display Panel Screen with 60 Pin Mipi Controller Board
$159.00
5.5″ IPS 4K LCD Display — 2160×3840 | MIPI | High Color Gamut | High Brightness
5.5-inch IPS 4K CG-Silicon LCD display delivering ultra-sharp 2160×3840 (4K UHD) resolution with 16.7M color support and wide RGB color gamut. Featuring 530cd/m² high luminance, MIPI interface, and multiple driver board options with flexible input/output interfaces, this display is built for premium visual applications requiring exceptional detail and clarity.
|
General Features
|
|||
|
Diagonal Size
|
5.5 inch
|
Type
|
CG-Silicon, LCM
|
|
Pixel Format
|
2160(RG/BR/GB)×3840 , UHD
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
68.04(W)×120.96(H) mm
|

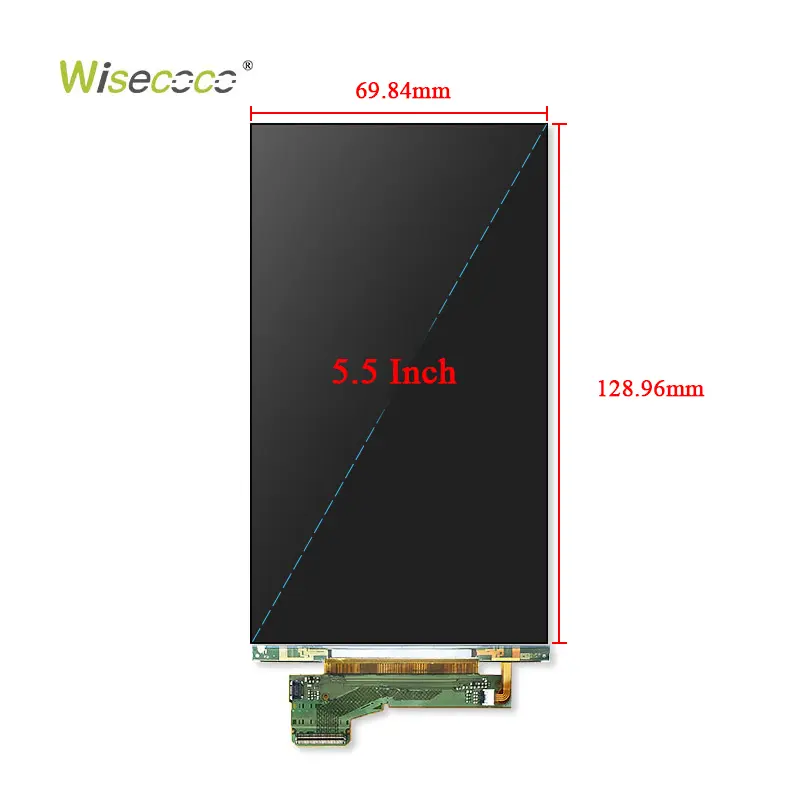

Outline Dim.
|
69.84(W)×128.76(H) mm
|
|
Bezel Area
|
–
|
Treatment
|
Glare (Haze 0%)
|
|
Luminance
|
450 cd/m² (Typ.)
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Min.)(CR≥10)
|
Operating Mode
|
New Mode2, Normally Black, Transmissive
|
|
Support Color
|
16.7M 90% (CIE1931)
|
Light Source
|
6S3P WLED , Without Driver
|
|
Weight
|
–
|
Designed For
|
HMD AR,VR
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
MIPI (2 ch, 4 data lanes) , 60 pins , Connector
|
||
|
Power Supply
|
1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN)
|
||
|
Environment
|
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
|
||
Features:
- 2160×3840 4K UHD Resolution — Ultra-sharp CG-Silicon IPS panel delivers exceptional pixel density and razor-fine detail for photos, video, and graphical content.
- 16.7M Colors with Wide RGB Gamut — Rich, accurate color reproduction for vivid, true-to-life visuals across a broad color spectrum.
- 450cd/m² High Luminance — Bright, clear display readable across a range of ambient lighting conditions.
- IPS Full Viewing Technology — Consistent color and brightness maintained from wide viewing angles, avoiding shift and contrast loss.
Ideal for: High-end handheld devices · Photography & imaging equipment · Premium consumer electronics · Industrial display integration · Custom embedded projects
Wisecoco offers One-step customized LCD display solutions.
