- Size:8.4 inch
- Resolution:1024×768
- Panel Interface:LVDS (1 ch, 8-bit)
- Active Area:170.496(W)x127.872(H) mm

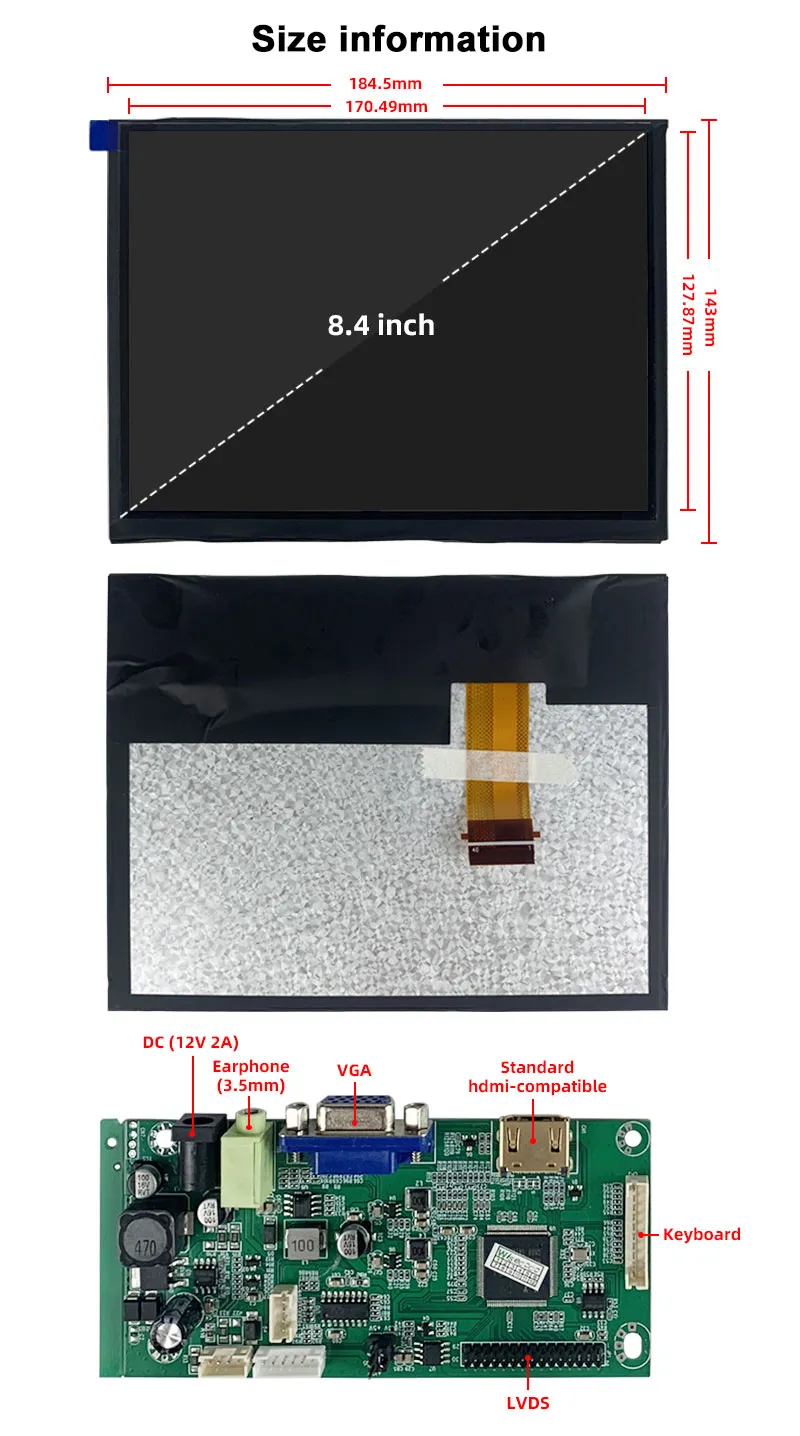

- Outline Dimension:184.5(H)x143(V) x9.95(D) mm
- Viewing Angle :89/89/89/89 (Min.)(CR≥10)
- Brightness:1500 cd/m²
- Operation / Storage Temp:-40~85°C / -40~90°C
- Touch Panel: Optional

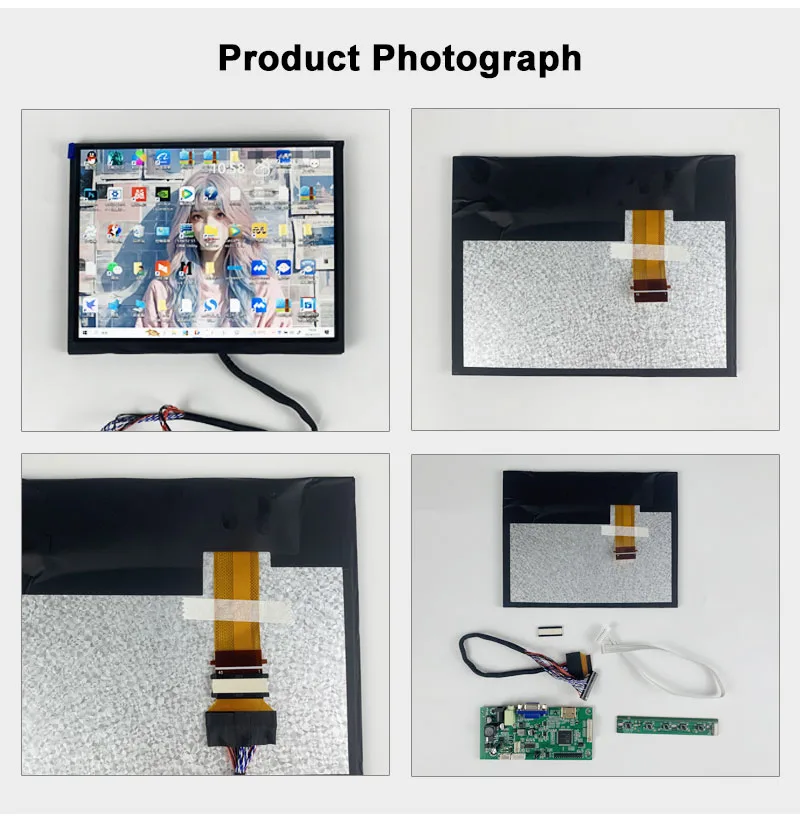

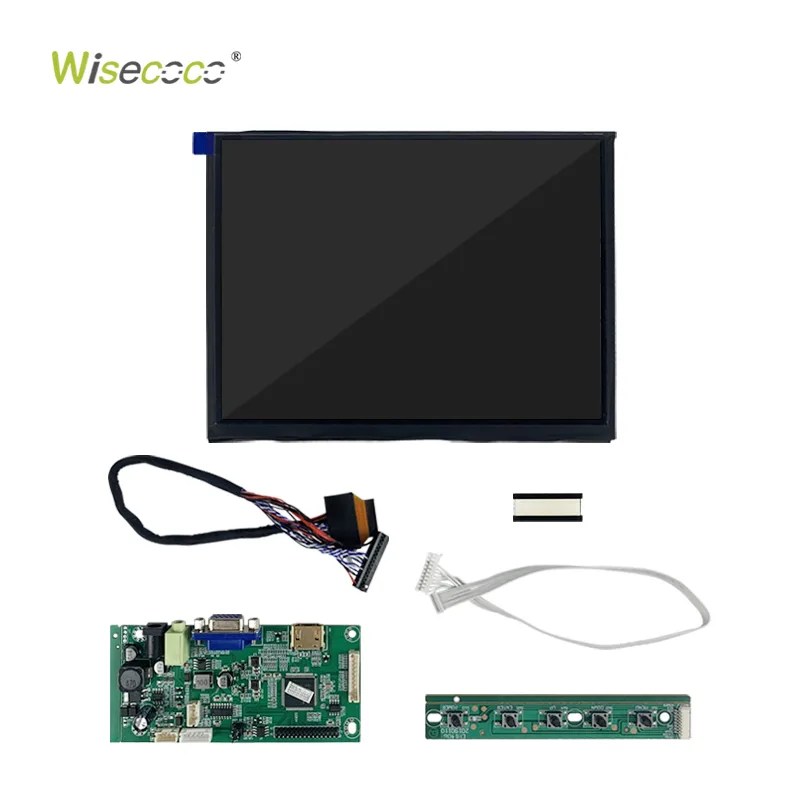

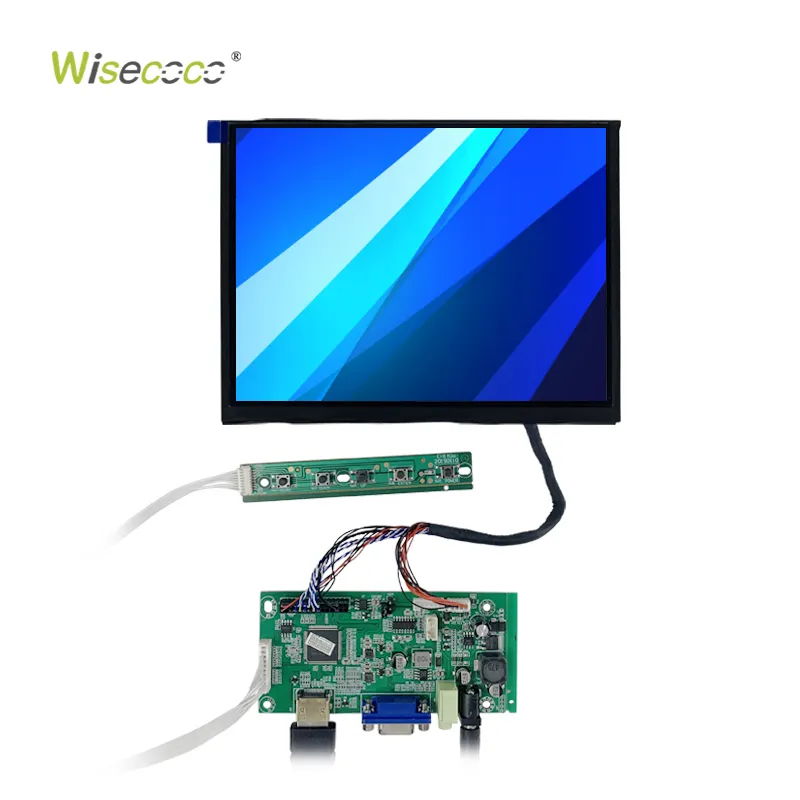

8.4 Inch TFT LCD Display 1024×768 LVDS 1500nits Ultra High Brightness Wide Temperature LCD Display With Driver Board
$165.00
8.4″ IPS High Brightness LCD Display — 1024×768 | 1500cd/m² | Sunlight Readable

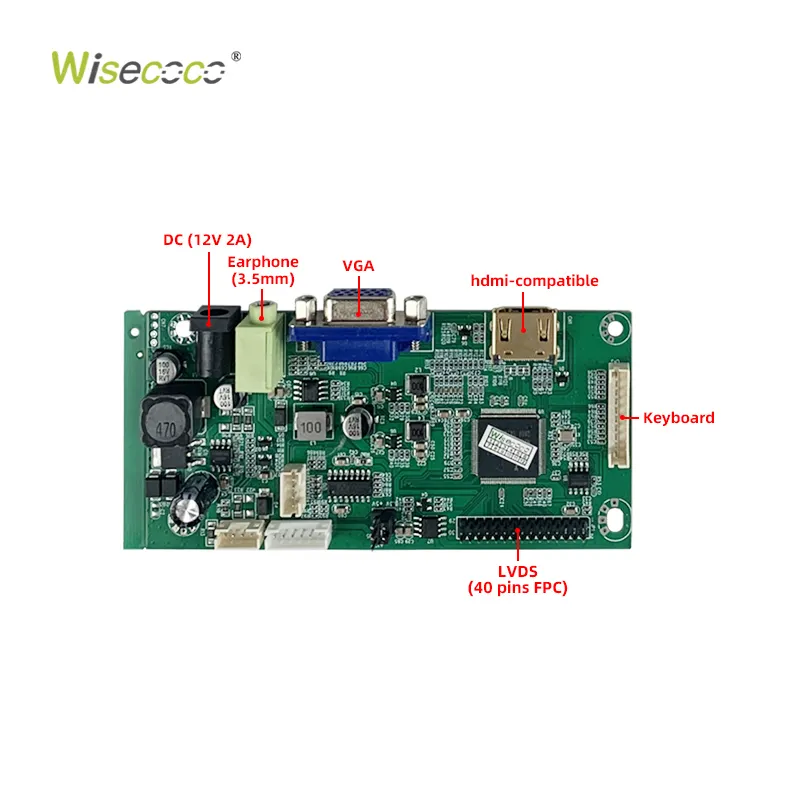

8.4-inch IPS lcd display delivering 1024×768 resolution with exceptionally high 1500cd/m² brightness for sunlight-readable outdoor applications. Featuring full IPS viewing angle, extreme temperature endurance, a 1000:1 contrast ratio, and an HDMI+VGA driver board with optional touch panel, this display is built for demanding outdoor and industrial visibility requirements.
|
Panel Size
|
8.4 inch
|
Panel Type
|
a-Si TFT-LCD, LCM
|
|
Resolution
|
1024(RGB)*768 , XGA 152PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Display Area
|
170.496(W)*127.872(H) mm
|
Response Time
|
40 (Max.)(Tr+Td)
|
|
Outline Size
|
184.5(H)*143(V) *9.95(D) mm
|
Light Source
|
WLED [10S3P] , W/O Driver
|
|
Brightness
|
1200 Cd/m² (Typ.)
1500 Cd/m² (Max) |
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
Best View on
|
Symmetry
|
Display Mode
|
IPS, Normally Black, Transmissive
|
|
Display Colors
|
16.2M 70% NTSC
|
Viewing Angle
|
89/89/89/89 (Min.)(CR≥10)
|
|
Frequency
|
60Hz
|
Touch Screen
|
Available capacitive touch screen
|
|
Panel Weight
|
–
|
Application
|
Automative Display
|
|
Signal Interface
|

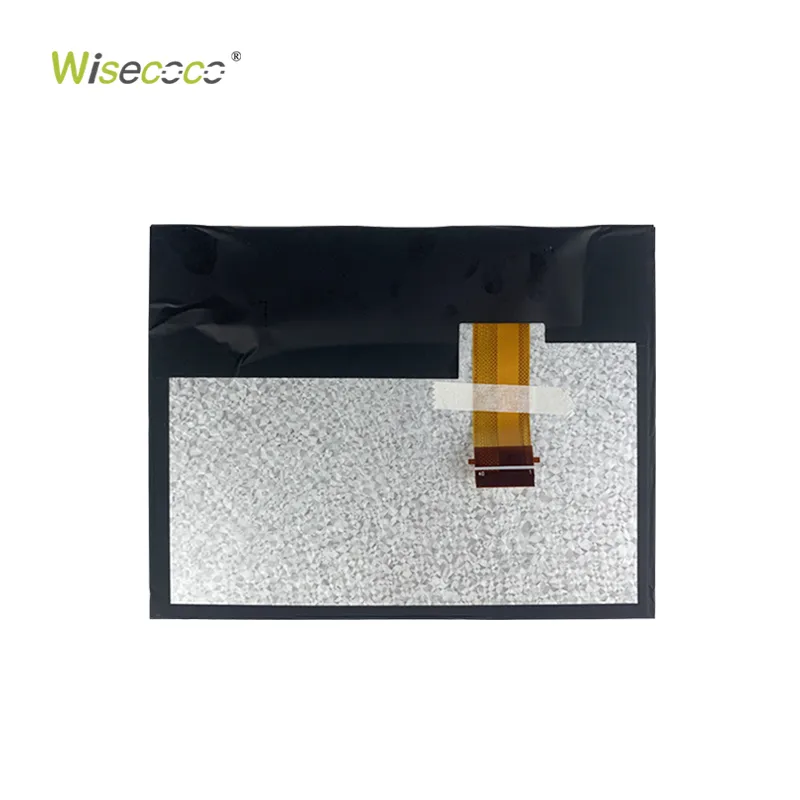

LVDS (1 ch, 8-bit) , 40 pins FPC
|
||
|
Environment
|
Operating Temp.: -40 ~ 75 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.84G (27.8 m/s²)
|
||
Features:
- 1024×768 Resolution — Clear, reliable imagery for icons, UI graphics, and video content.
- 1500cd/m² Ultra-High Brightness — Exceptional sunlight-readable brightness, ensuring visibility even in direct outdoor light.
- IPS Full Viewing Angle — Genuine IPS panel technology ensures consistent color and brightness from virtually any angle, without color shift or contrast loss.
- 1000:1 Contrast Ratio — Balanced dynamic range for clear, well-defined imagery.
- Extreme Temperature Endurance — Reliable performance across extreme hot and cold environments, suited for outdoor and industrial deployment.
Advantages:

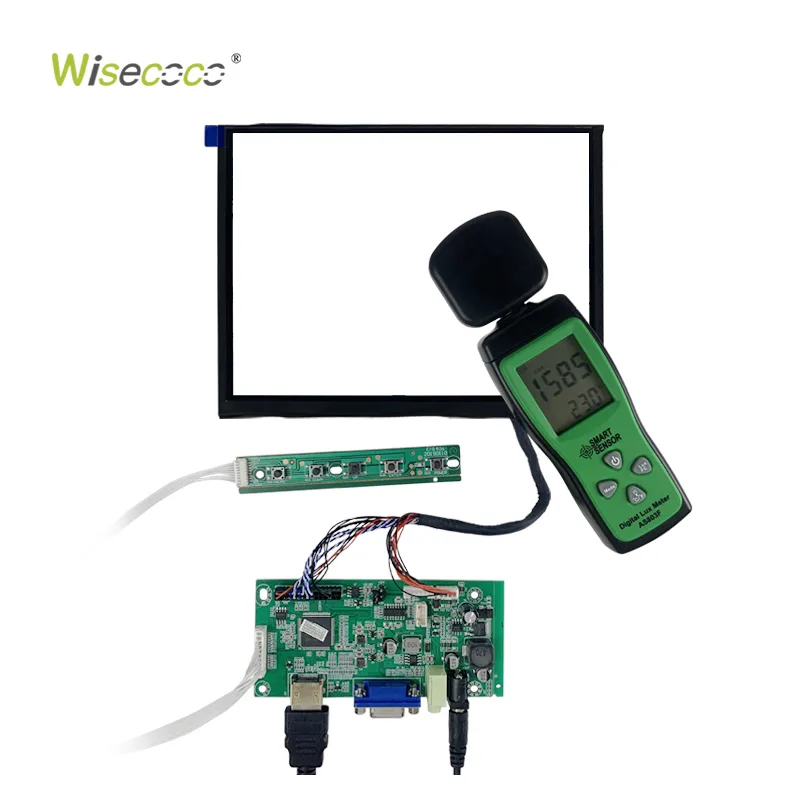

1. Support High Brightness up to 1500cd/m2. The typical brightness is 1200cd/m2, you can use keyboard to adjust the brightness.
2. Wide operating temperature -40 ~ 75 °C

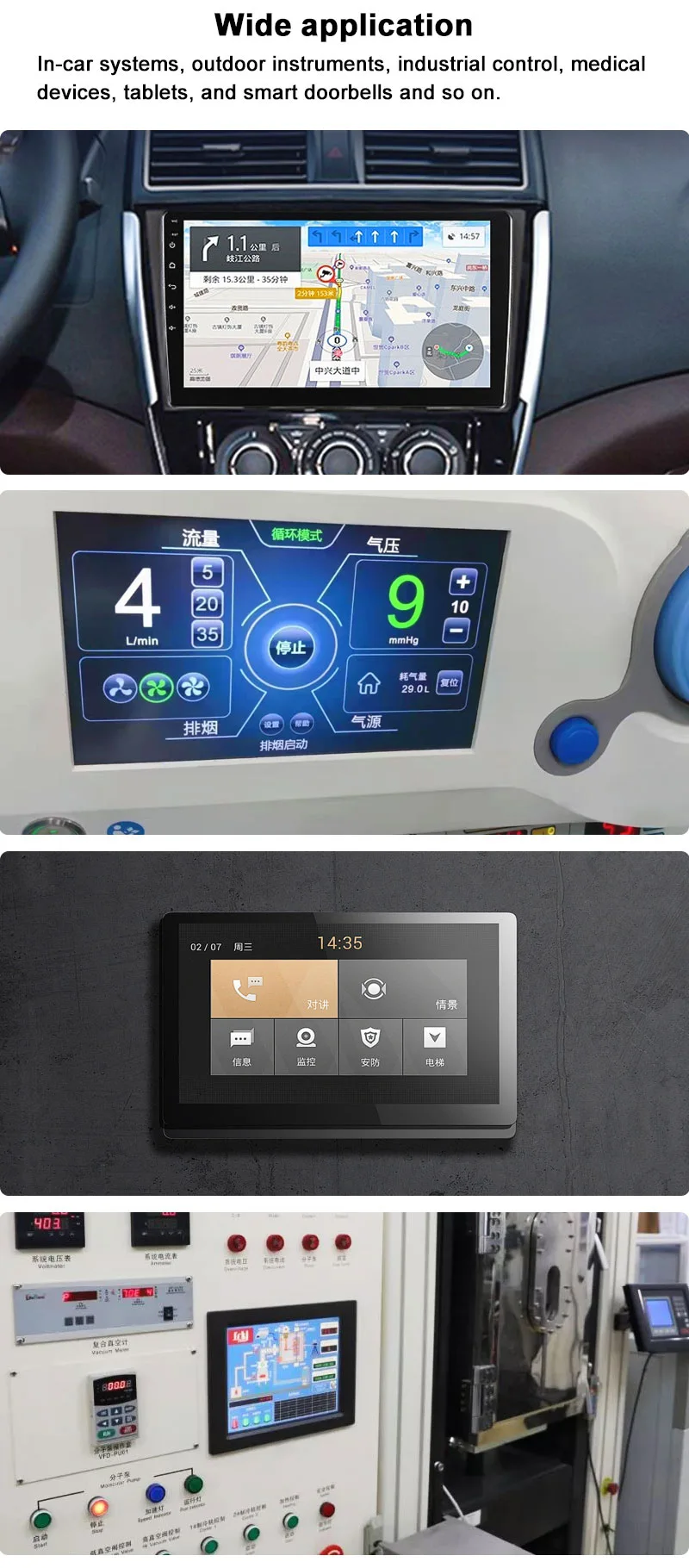

3. Suitable for Automotive Car Dashboard Navigation, indoor or outdoor advertising.
4. Original New Grade A+ screen.
5. Optional capacitive touch screen.
5. Professional technial support and R&D team. We are willing to offer turnkey display solution and assist you with your project.
2. Wide operating temperature -40 ~ 75 °C
3. Suitable for Automotive Car Dashboard Navigation, indoor or outdoor advertising.
4. Original New Grade A+ screen.
5. Optional capacitive touch screen.
5. Professional technial support and R&D team. We are willing to offer turnkey display solution and assist you with your project.
