- Size:8.8 inch
- Resolution:1920×480
- Panel Interface:MIPI
- Active Area:218.88(H)x54.72(V) mm

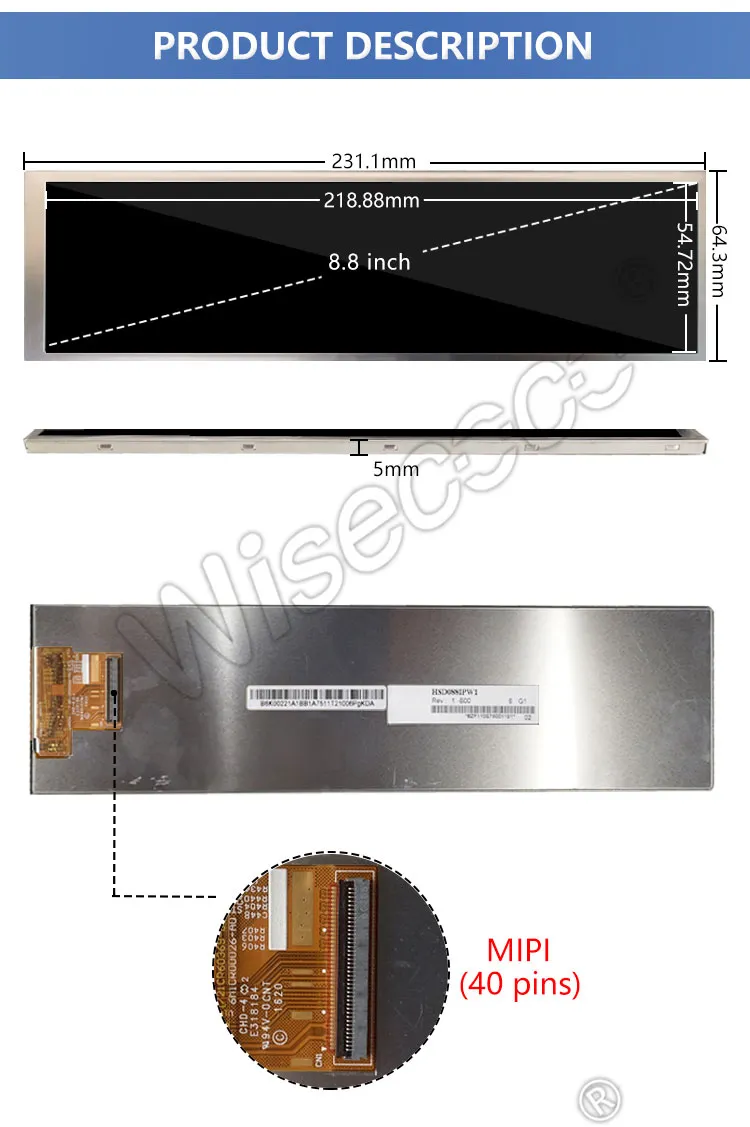

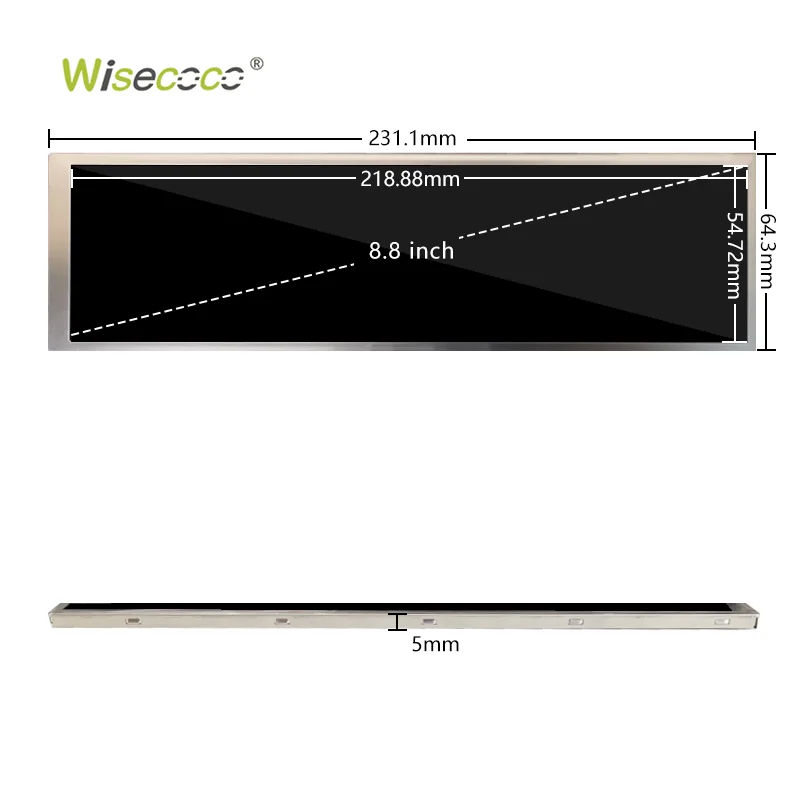

- Outline Dimension:231.3×64.3×6.4 (HxVxD) mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness:600(cd/m2)
- Operation / Storage Temp:-20~70°C / -30~80°C
- Touch:Optional

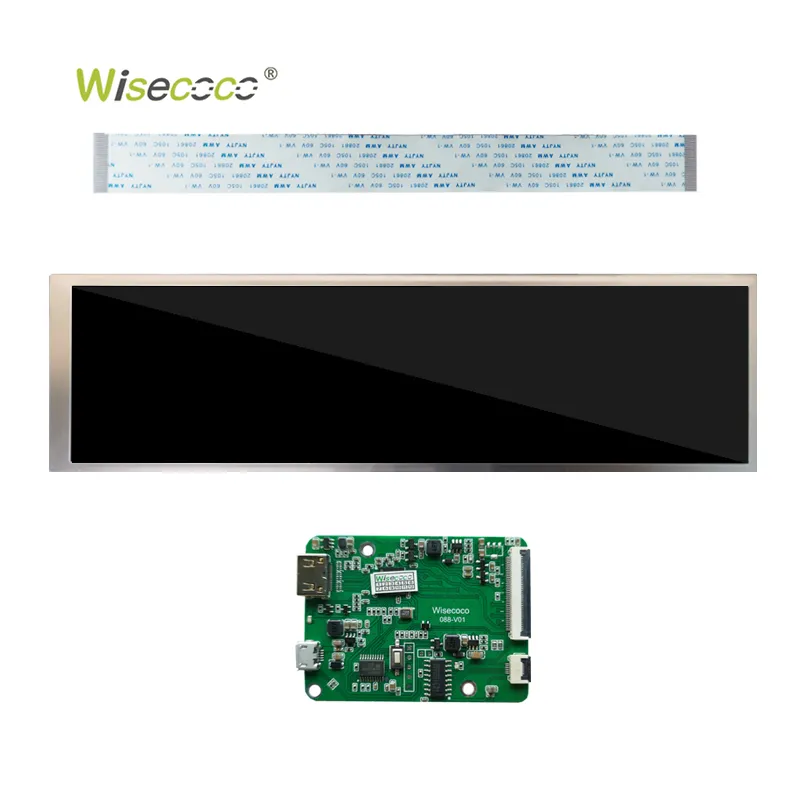

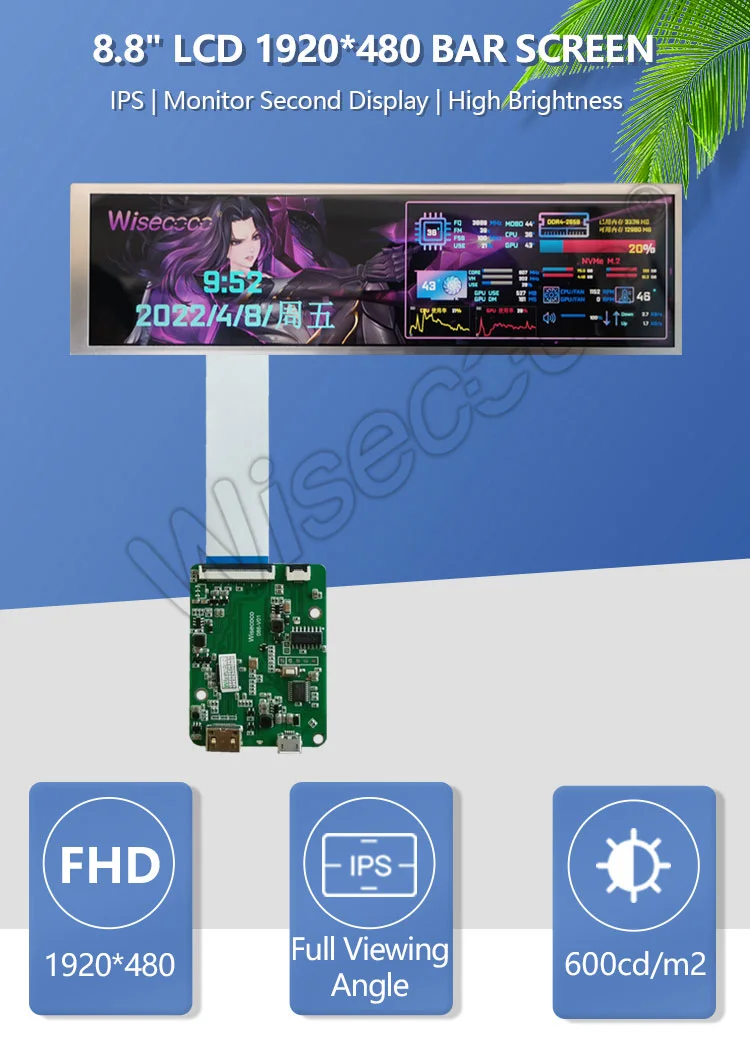

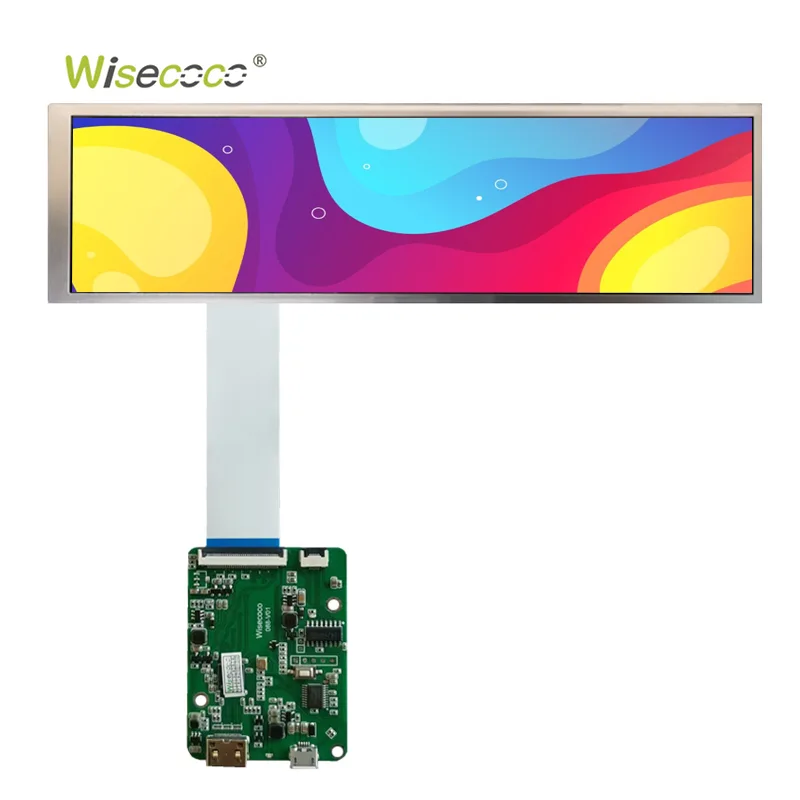

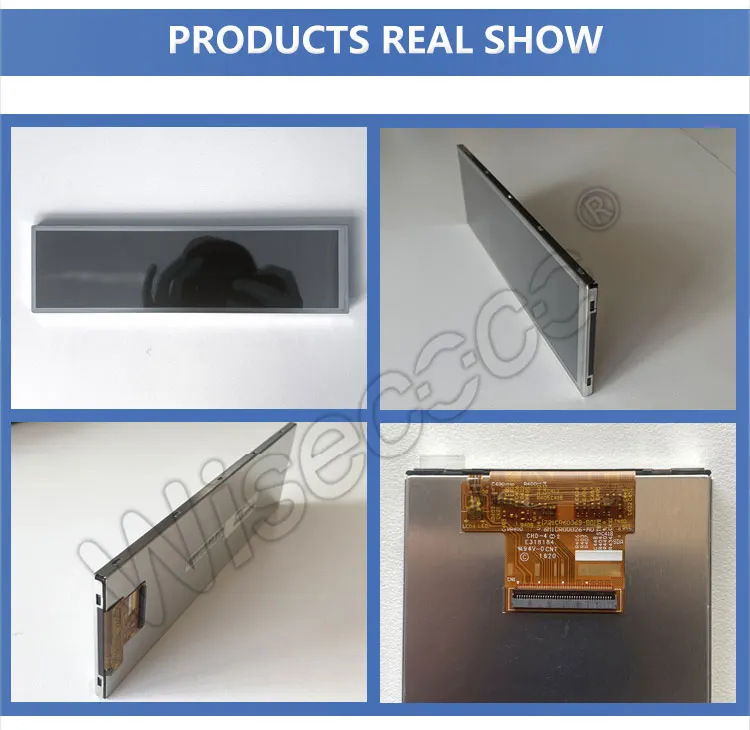

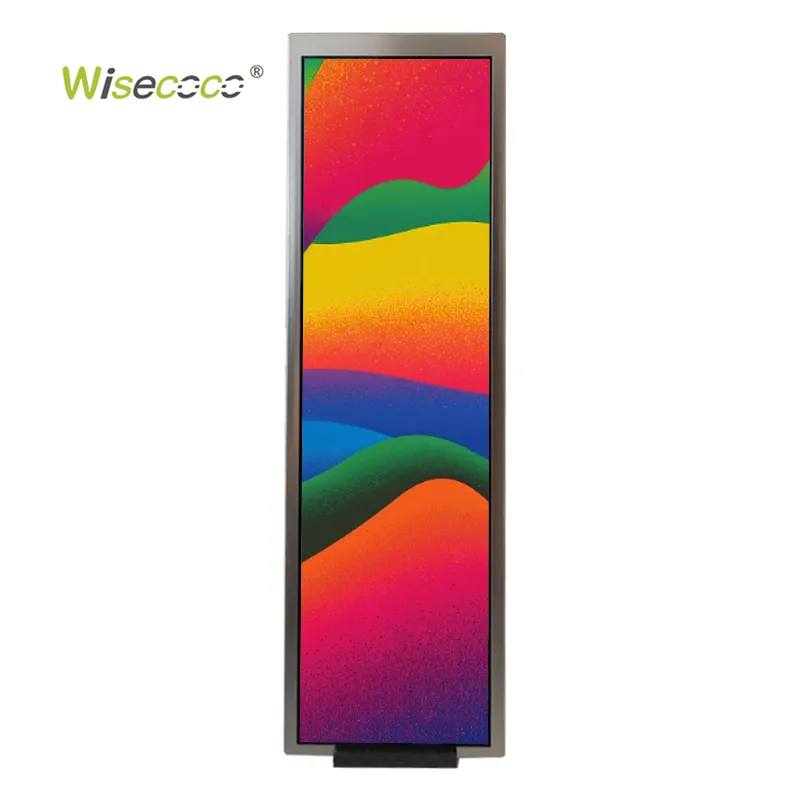

8.8 Inch Stretched LCD Display 1920×480 High Brightness Bar Type TFT LCD Display Modules Screen with MIPI Interface
$55.00
|

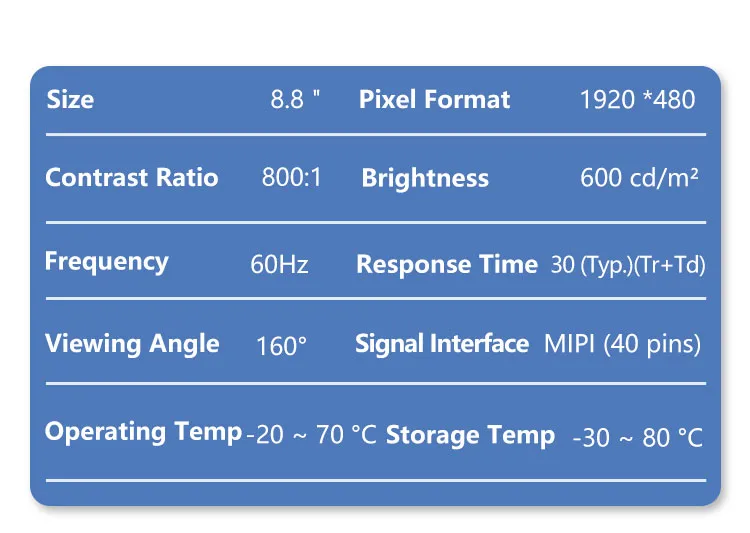

Diagonal Size
|
8.8 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Format
|
1920*480(RGB) 222PPI
|
Configuration
|
RGB Horizontal Stripe
|
|
Active Area
|
218.88(H)*54.72(V) mm
|

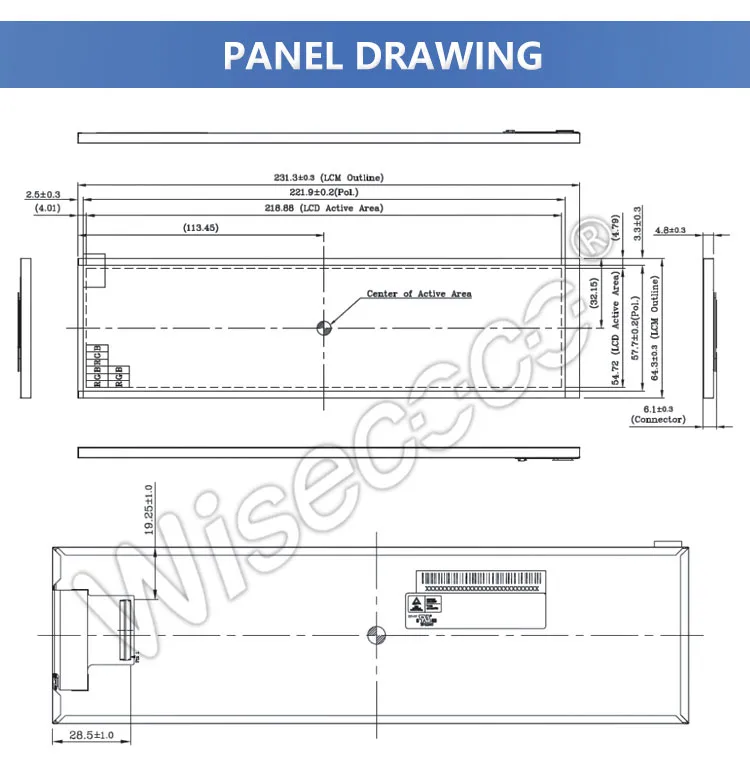

Outline Dim.
|
231.3*64.3*6.4 (H*V*D) mm
|
|
Luminance
|
600 cd/㎡
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td) ms
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10) 50% NTSC
|
Operating Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Support Color
|
16.7M
|
Light Source
|
White LED backlight, 30K hours , without Driver board
|
|
Aspect Ratio
|
>3:1(H:V)
|

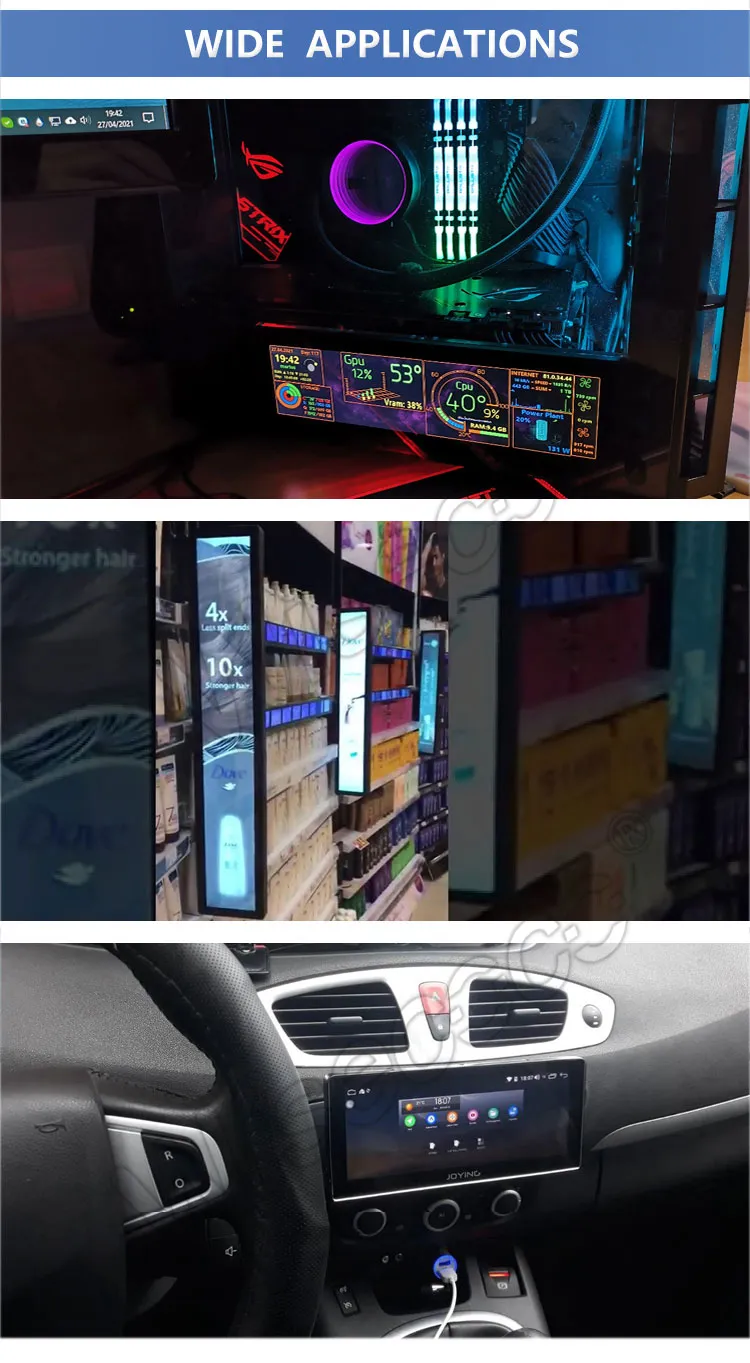

Designed For
|
Advertising Display, system monitor
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|

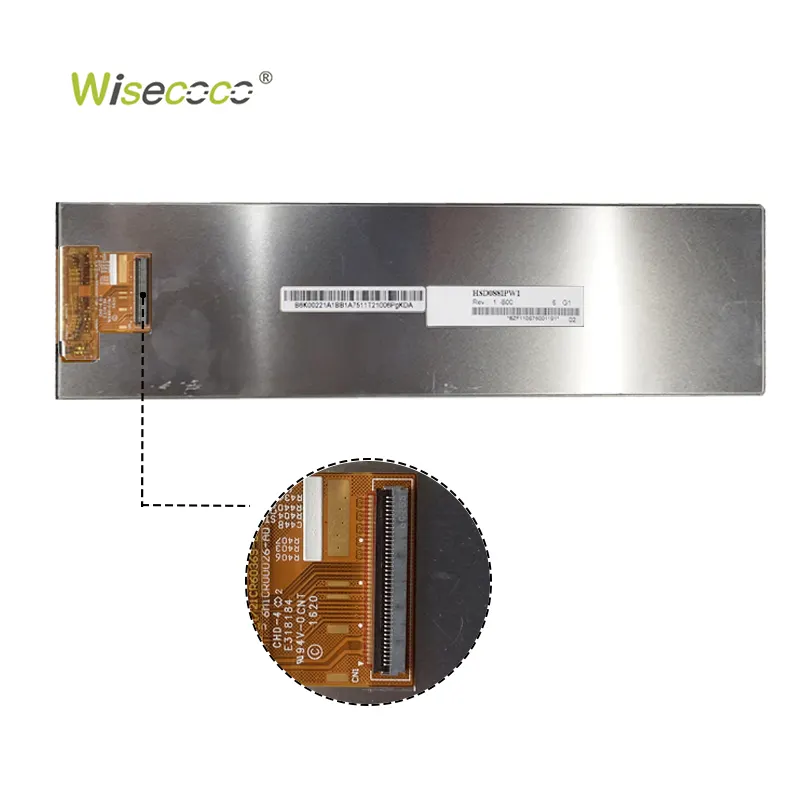

Interface Type
|
MIPI (4 data lanes) , 40 pins , Connector
|
||
|
Power Supply
|
3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)
|
||
|
Environment
|
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
|
||
