- Size:12.3 inch
- Resolution:1920×720
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:292.32(W)×109.62(H) mm
- Outline Dimension:308.1(W)×134.86(H) ×15.6(D) mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
- Brightness:700 cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85 °C / -40 ~ 95 °C
-16%

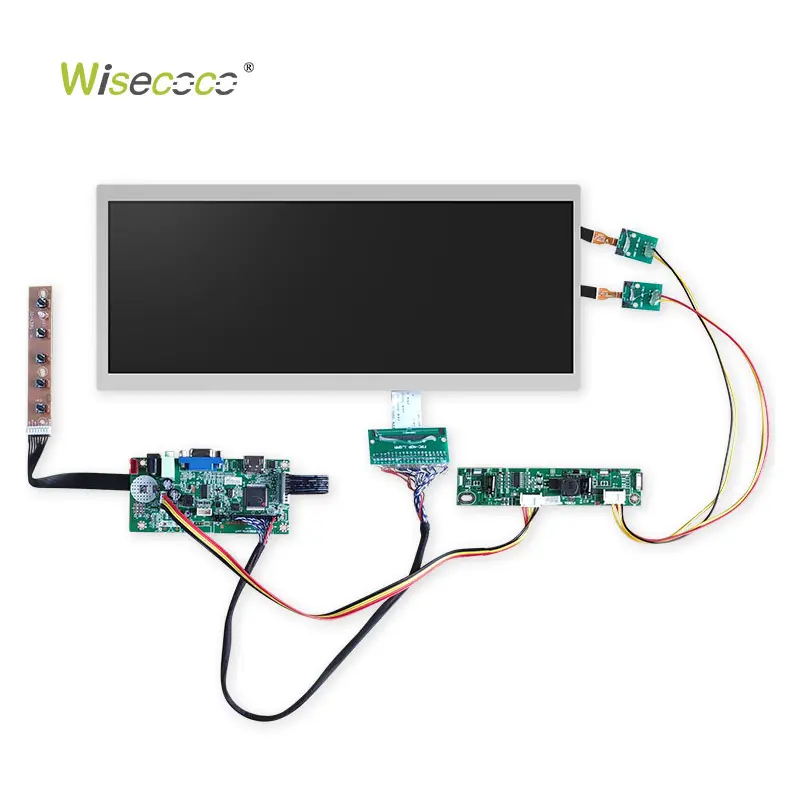

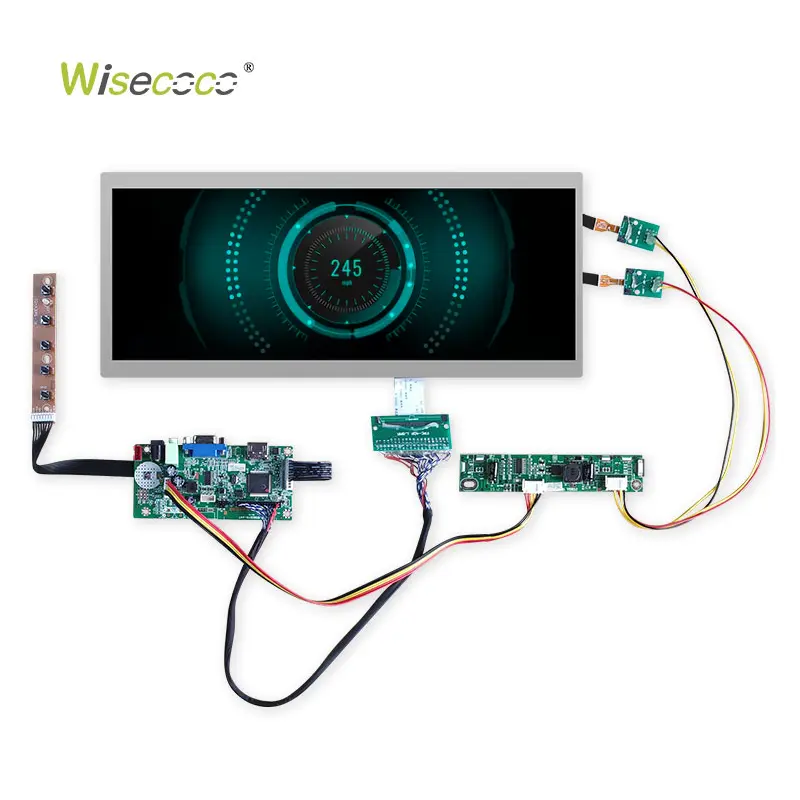

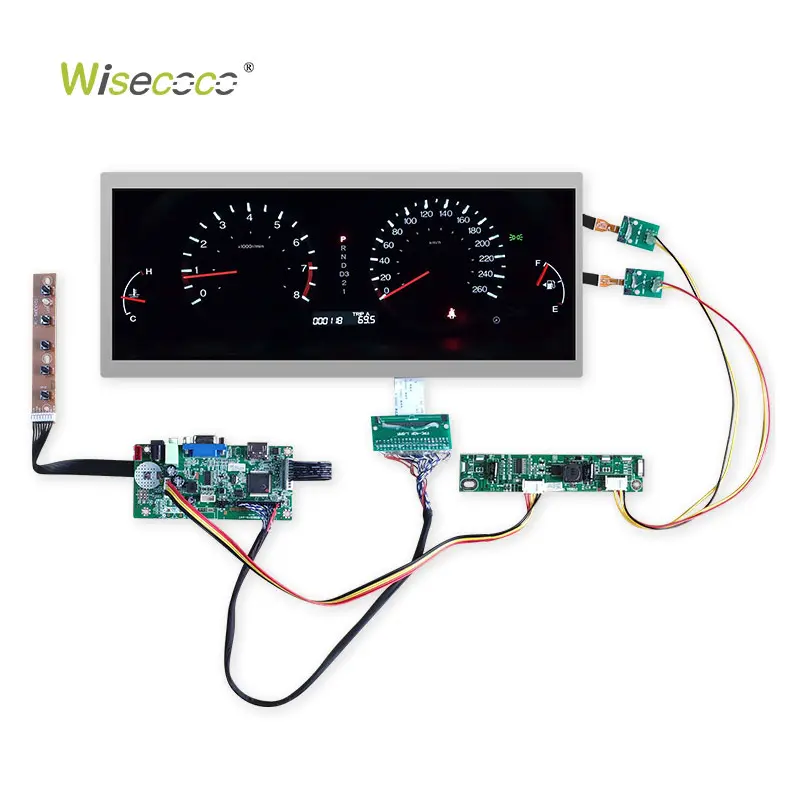

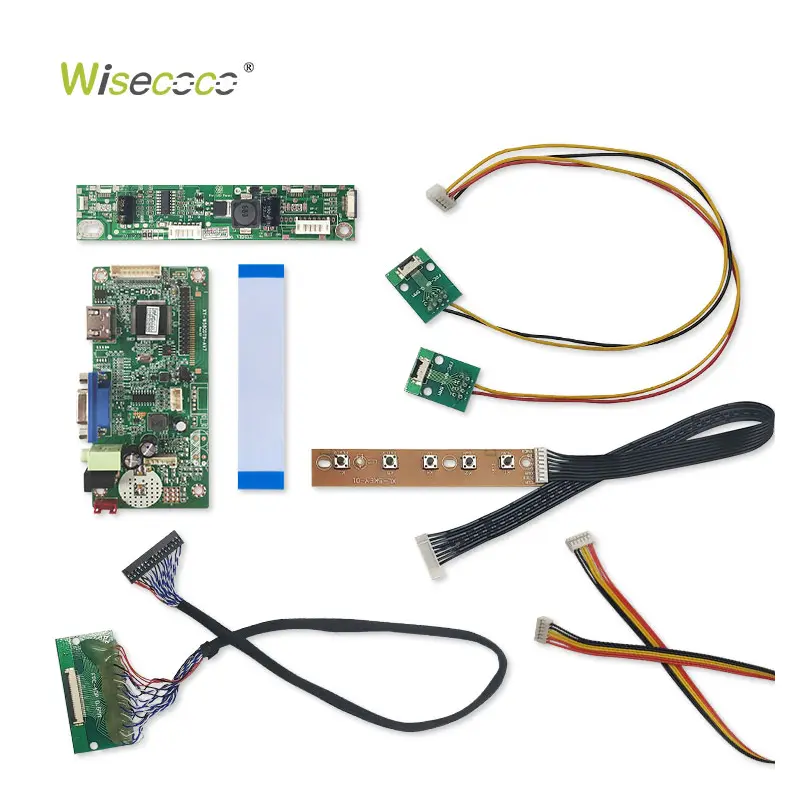

12.3 Inch TFT LCD Display 1920×720 High Brightness Wide Temperature Bar Type Display With Driver Board
Original price was: $190.00.$159.00Current price is: $159.00.
12.3″ IPS Bar LCD Display— 1920×720 | 700 cd/m² | LVDS | Automotive Grade
12.3-inch IPS Bar Type LCD panel engineered for automotive instrument clusters and high-vibration industrial environments. Combining 700 cd/m² high brightness, 3G seismic vibration resistance, and WLED backlighting with wide-viewing-angle IPS technology, this panel delivers reliable, high-visibility display performance where standard panels fall short.
|
Screen Size
|
12.3 inch
|
Type
|
LCM, a-Si TFT-LCD
|
|
Resolution
|
1920(RGB)×720
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
292.32(W)×109.62(H) mm
|
Outline(mm)
|
308.1(W)×134.86(H) ×15.6(D) mm
|
|
Bezel Area(mm)
|
294.82(W)×112.12(H) mm
|
Treatment
|
Antiglare
|
|
Luminance
|
700 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
12/13 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
AHVA, Normally White, Transflective
|
|
Support Color
|
16.7M 70% (CIE1931)
|
Backlight
|
10S2P WLED , 10K hours , Without Driver
|
|
Panel Weight
|
590±59g
|
Used for
|
Automotive diplay
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
optional
|
|
Voltage Supply
|
3.3V (Typ.)
|
Signal Type
|
LVDS (2 ch, 8-bit) , 40 pins , Connector
|
|
Environment
|
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
Features:
700 cd/m² High Brightness — Sunlight-readable luminance level ensures clear visibility in vehicle cabins, outdoor-facing equipment, and brightly lit industrial settings without image washout
3G Seismic Vibration Resistance — Mechanically rated to withstand 3G vibration — a critical specification for automotive, motorsport, heavy machinery, and transport applications where road or operational vibration is constant
IPS Wide Viewing Angle — Accurate, shift-free color reproduction across wide horizontal and vertical angles; drivers, passengers, and operators all see a consistent, clear image regardless of viewing position
1920×720 Wide-Format Resolution — Native stretched landscape ratio purpose-built for automotive dashboard and instrument cluster layouts, delivering crisp gauges, maps, and media without distortion
Wide Operating Temperature (-30°C ~ 85°C) — Engineered to perform in extreme cold and heat alike, with storage tolerance down to -40°C, making it suitable for unconditioned vehicle cabins and outdoor enclosures
Ideal for: Automotive center consoles & dashboards · Automotive instrument clusters Electric· Motorsport dashboards · vehicle instrument clusters · Outdoor stretched signage displays
Wisecoco offers One-step customized display module solutions.
