- Size:12.1 inch
- Resolution:800×600
- Panel Interface:LVDS (1 ch, 6/8-bit)
- Active Area:246(H)*184.5(V) mm
- Outline Dimension:279(H)*209(V)*11(D) mm
- Viewing Angle:80/80/50/60 (Typ.)(CR≥10)
- Brightness:400 cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85 °C / -30 ~ 85 °C
OEM 12.1 Inch 800×600 LVDS TFT LCD Display Wide Temperature LCD Module
$95.00

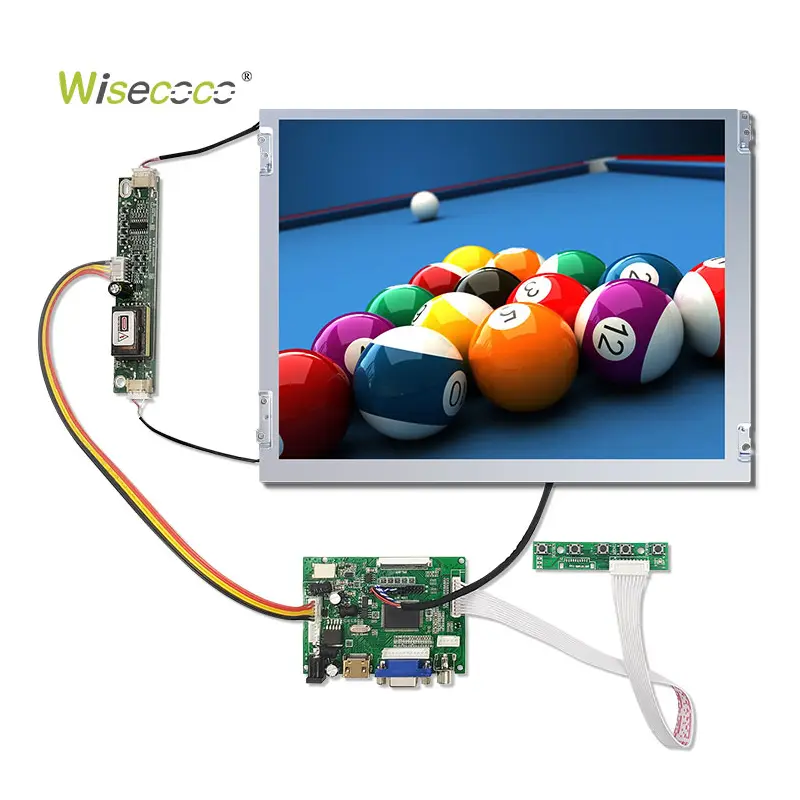

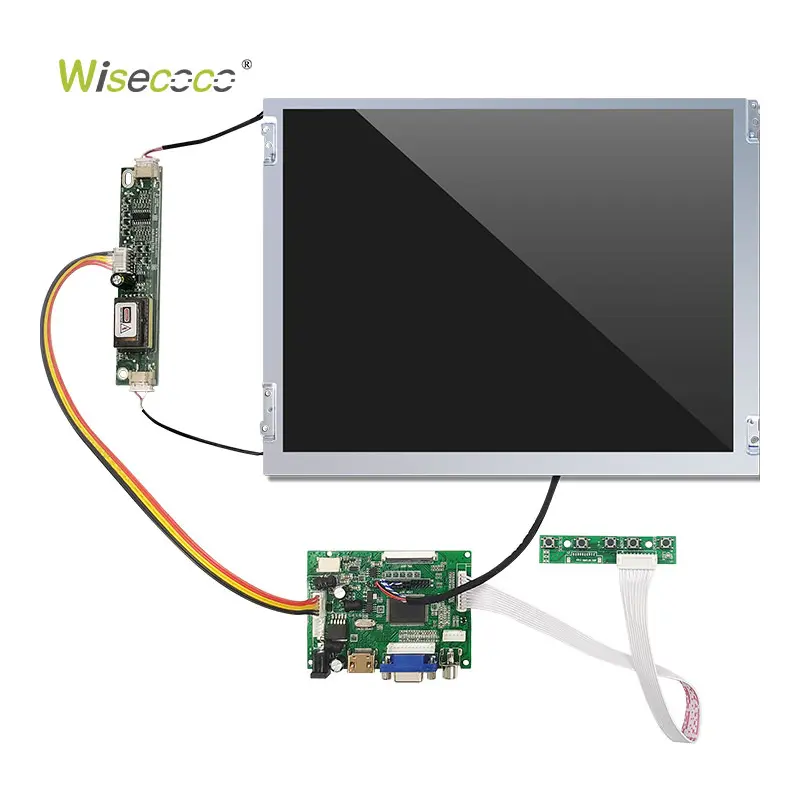

12.1″ TFT LCD Display— 800×600 | LVDS | CCFL Backlight
12.1-inch 800×600 tft lcd display with 400 cd/m² brightness, antiglare surface treatment, and CCFL backlight system. A proven, cost-effective display solution for legacy industrial equipment, replacement panels, and embedded systems.
|
General Features
|
|||
|
Screen Size
|
12.1 inch
|
Type
|
a-Si TFT-LCM
|
|
Pixel Number
|
800(RGB)*600 (SVGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
246(H)*184.5(V) mm
|
Outline(mm)
|

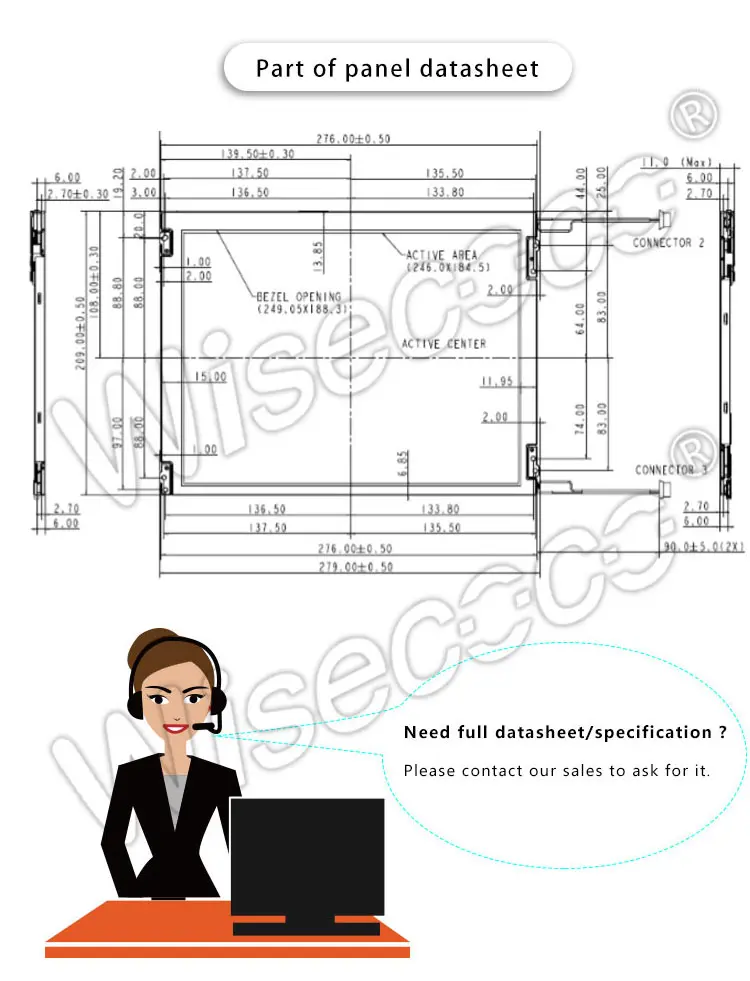

279(H)*209(V)*11(D) mm
|
|
Bezel Area(mm)
|
249.05(H)*188.3(V) mm
|
Treatment
|
Antiglare,Hard coating (3H)
|
|
Luminance
|
400 Cd/m² (Typ.)
|
Contrast Ratio
|
600:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
10/15 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
80/80/50/60 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transflective
|
|
Support Color
|
262K/16.2M
|
Backlight
|
CCFL [2 pcs] , 50K hours , W/O Driver
|
|
Outline Shape
|
–
|
Used for
|
industrial machines
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
optional
|
|
Voltage Supply
|
3.3V (Typ.)
|
Signal Type
|

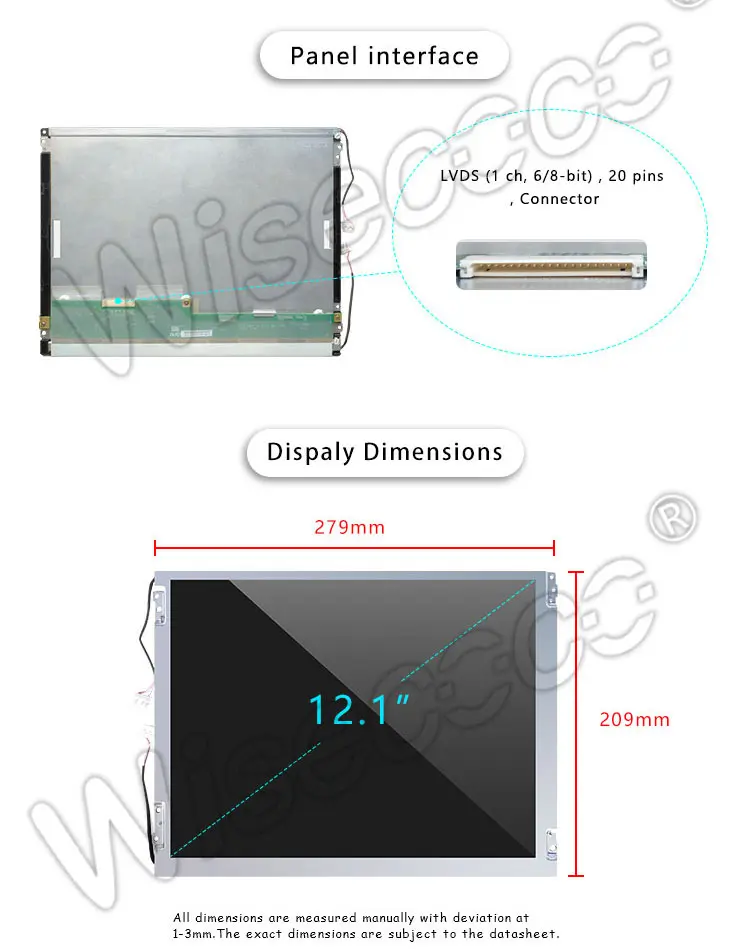

20 pins LVDS (1 ch, 6/8-bit) , Connector
|
|
Environment
|
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
|
||
Featuers:
- 400 cd/m² High Brightness — 400 cd/m² High Brightness — Above-average luminance for clear visibility in well-lit industrial and commercial environments
- Antiglare Surface — Matte coating minimizes reflections and glare, maintaining consistent readability across varied lighting conditions in factories, control rooms, and retail environments
- CCFL Backlight System — Established backlight technology offering stable, uniform illumination; ideal for legacy system replacements requiring backlight compatibility

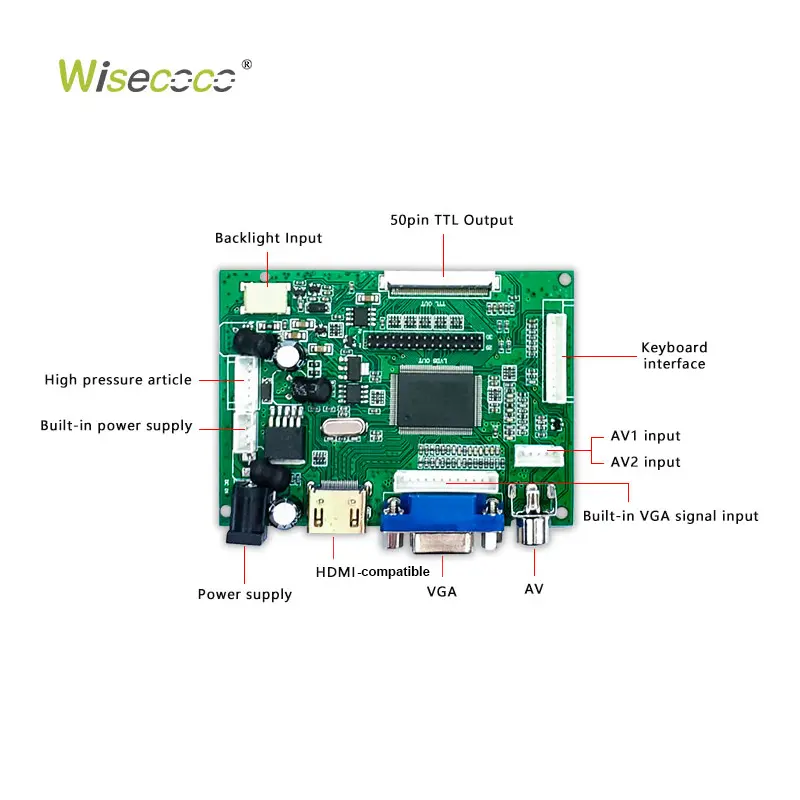

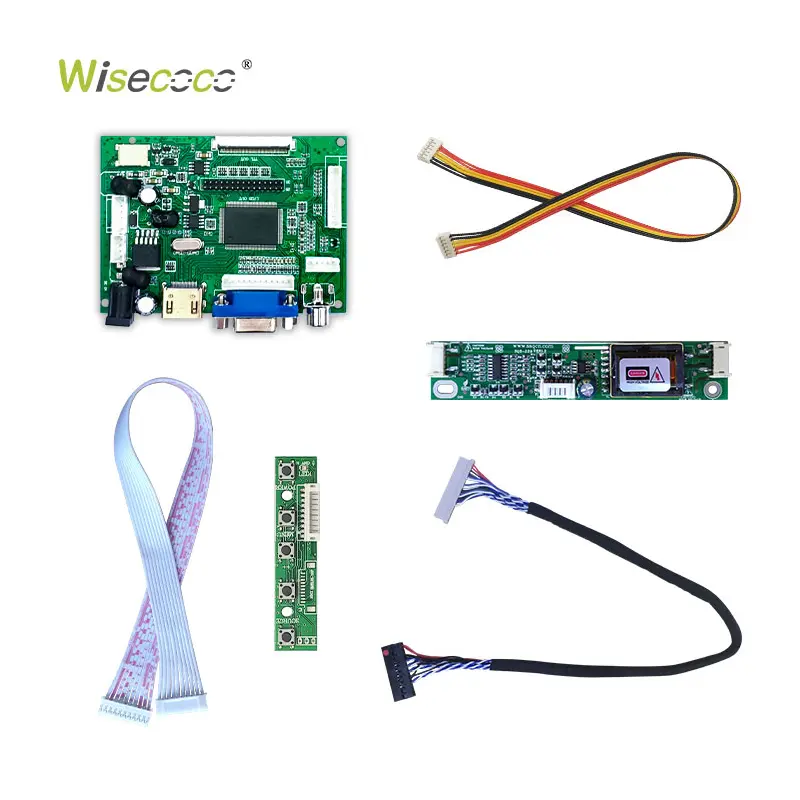

- Custom Configurations Available — Off-the-shelf and customized board/panel combinations available on request
Ideal for: Factory automation HMI · POS & kiosk terminals · Medical instrument displays
Wisecoco offers One-step customized LCD display module solutions.
