- Size:15 inch
- Resolution:1024×768

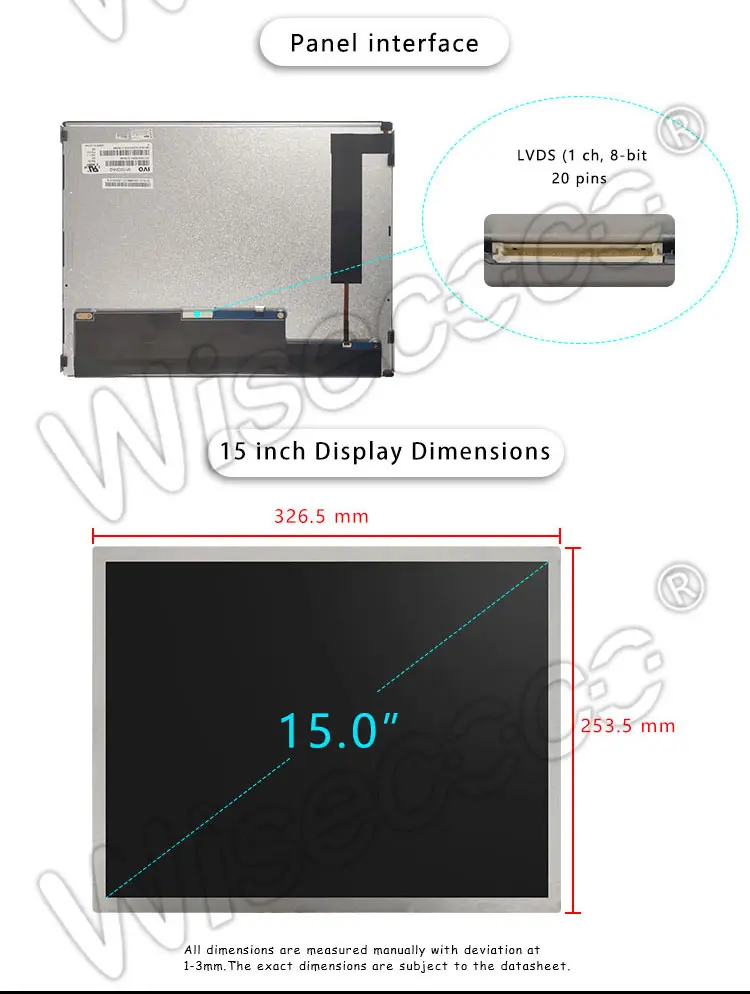

- Panel Interface:20 pins LVDS (1 ch, 8-bit)
- Active Area:304.128(H)x228.096(V)mm
- Outline Dimension:326.5(H)x253.5(V)mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
- Brightness:420 Cd/m² (Typ.)
- Operation / Storage Temp:-10 ~ 65 °C / -20 ~ 70 °C

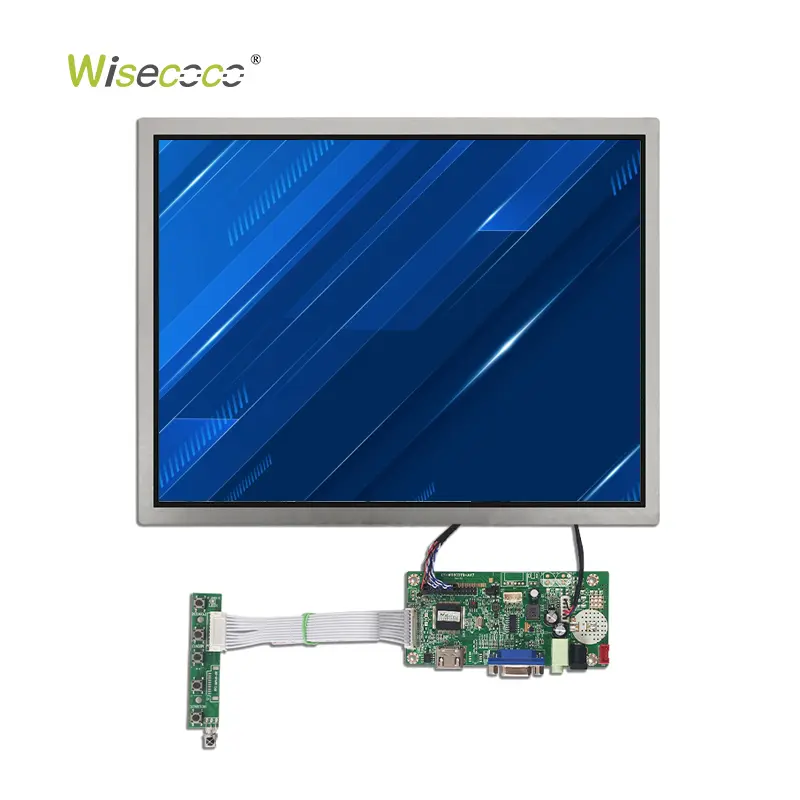

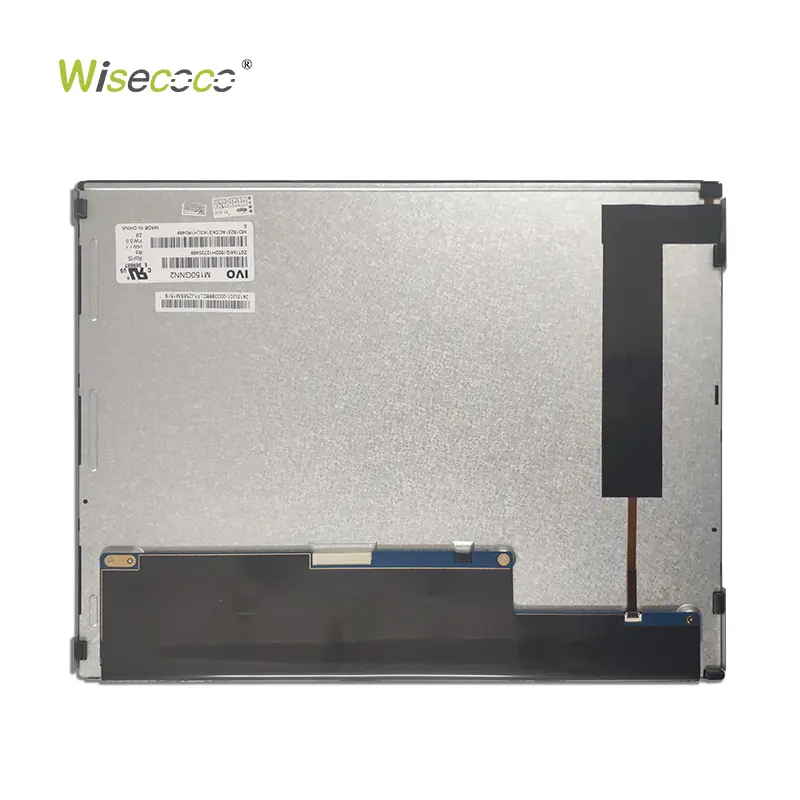

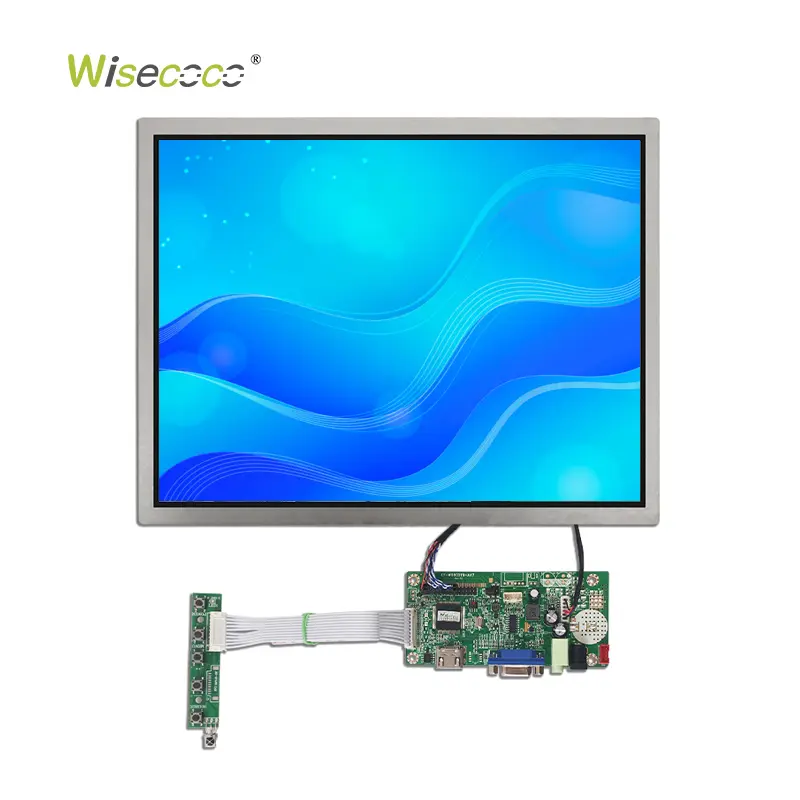

15 Inch TFT LCD Display 1024×768 LVDS WLED Backlight Wide Temperature Display For Automotive Display
$150.00

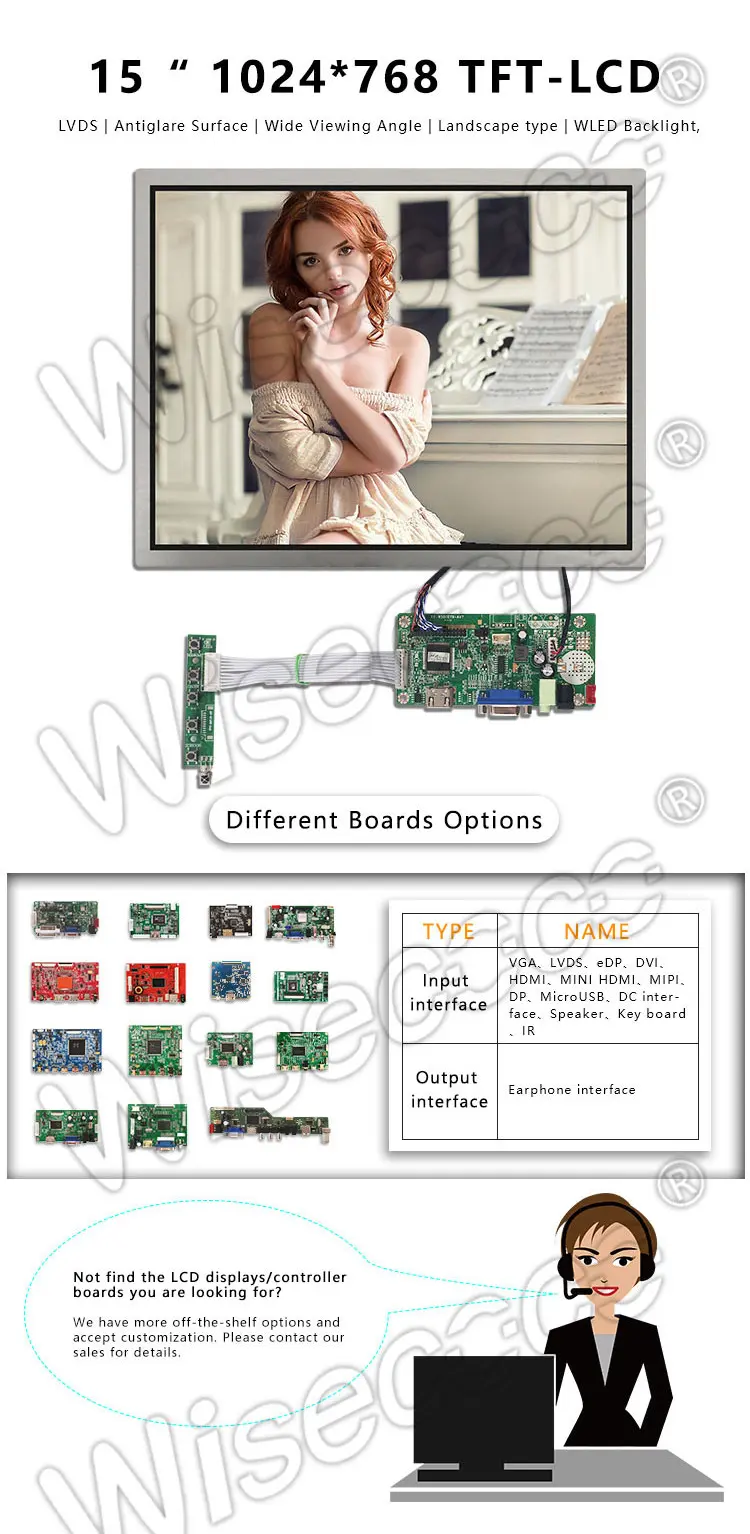

15″ TFT-LCD — 1024×768 XGA | 420 cd/m² | Industrial Grade | LVDS
15-inch TFT-LCD panel engineered specifically for industrial applications. Combining 420 cd/m² above-average brightness, antiglare surface treatment, WLED backlight and a wide operating temperature range of -10 to 65°C — a robust, long-life display solution for industrial monitors, HMI panels, and equipment displays requiring proven reliability.
|
Diagonal Size
|
15 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1024(RGB)*768[XGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
304.128(H)*228.096(V)mm
|
Outline Dim.
|
326.5(H)*253.5(V)mm
|
|
Luminance
|
420 Cd/m² (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
16 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
16.2M 70% NTSC
|
Light Source
|
WLED [10S3P] , 30K hours , With LED Driver
|
|
Weight
|
1.20Kgs (Max.)
|
Designed For
|
Industrial
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
–
|
|
Interface Type
|

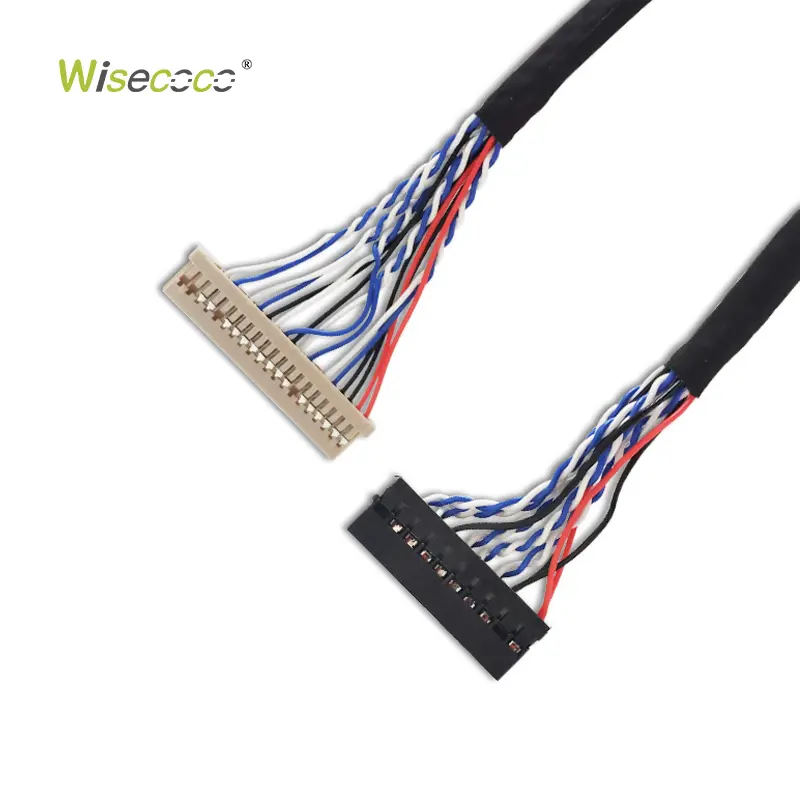

20 pins LVDS (1 ch, 8-bit) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -20 ~ 70 °C
|
||
Features:
- 420 cd/m² High Brightness — Above-average luminance for clear visibility in bright industrial settings. Maintains legible display under strong overhead lighting. Higher than typical 300 cd/m² general-purpose panels.
- Antiglare Surface — Matte surface treatment minimizes reflections. Comfortable extended viewing in mixed lighting environments. Reduces operator eye strain on factory floors and control rooms.
- Wide Operating Temperature (-10 ~ 65°C) — Performs reliably across a broad thermal range. Suitable for unconditioned industrial spaces and light outdoor enclosures. Storage rated down to -20°C.
- 80/80/80/80° Wide Viewing Angle — Clear image quality from operator and supervisory positions at various angles. Consistent readability across wide industrial panel installations.
Ideal for: Industrial HMI control panels · Factory automation monitors · Equipment and machinery displays · Industrial PC monitor replacement · Process control room displays · Long-life always-on industrial installations
Wisecoco offers One-step customized LCD display solutions.
