- Size:15 inch
- Resolution:1024×768
- Panel Interface:20 pins LVDS (1 ch, 8-bit)
- Active Area:304.128(H)x228.096(V)mm

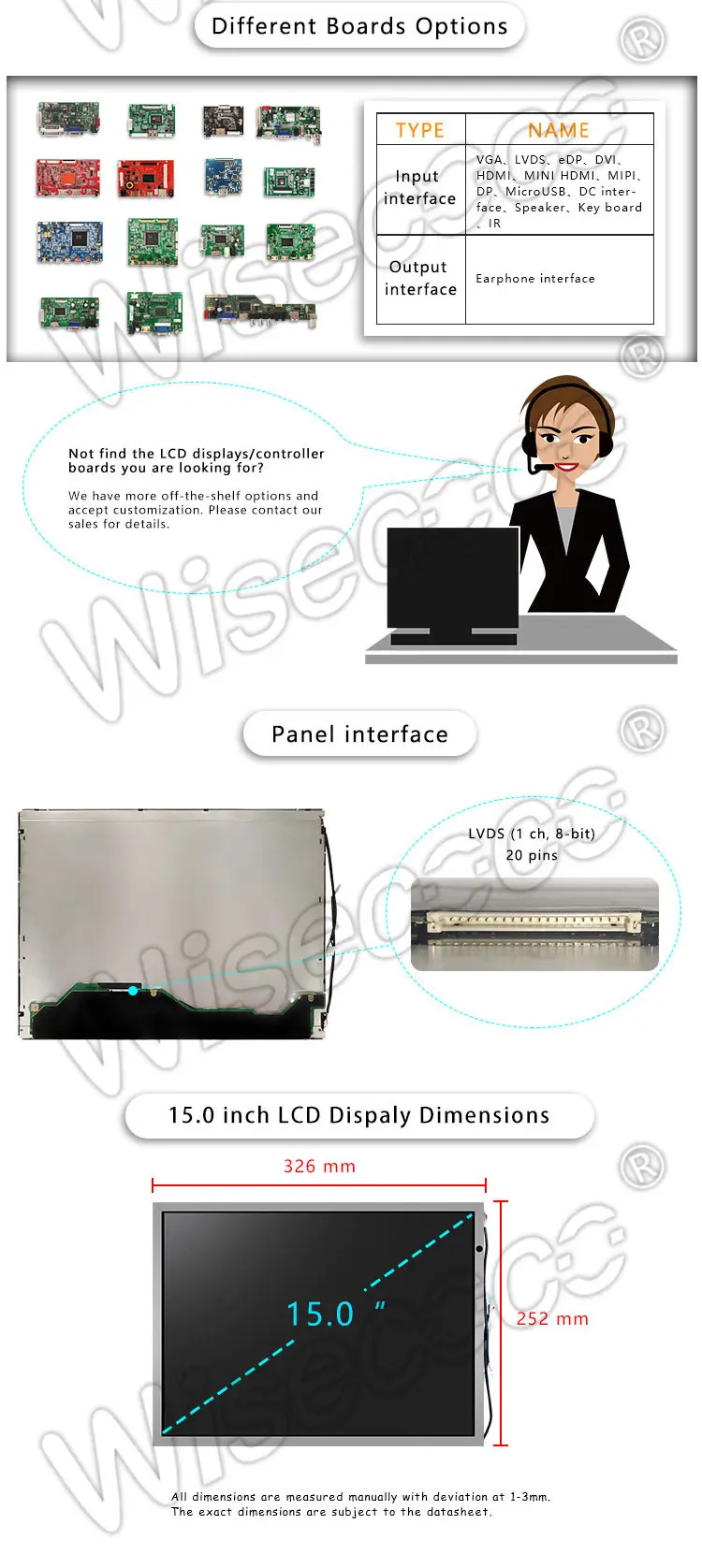

- Outline Dimension:326(H)×252(V) ×11.7(D) mm
- Viewing Angle:60/60/45/55 (Typ.)(CR≥10)
- Brightness:350 cd/m² (Typ.)
- Operation / Storage Temp:-0 ~ 60 °C / -25 ~ 60 °C

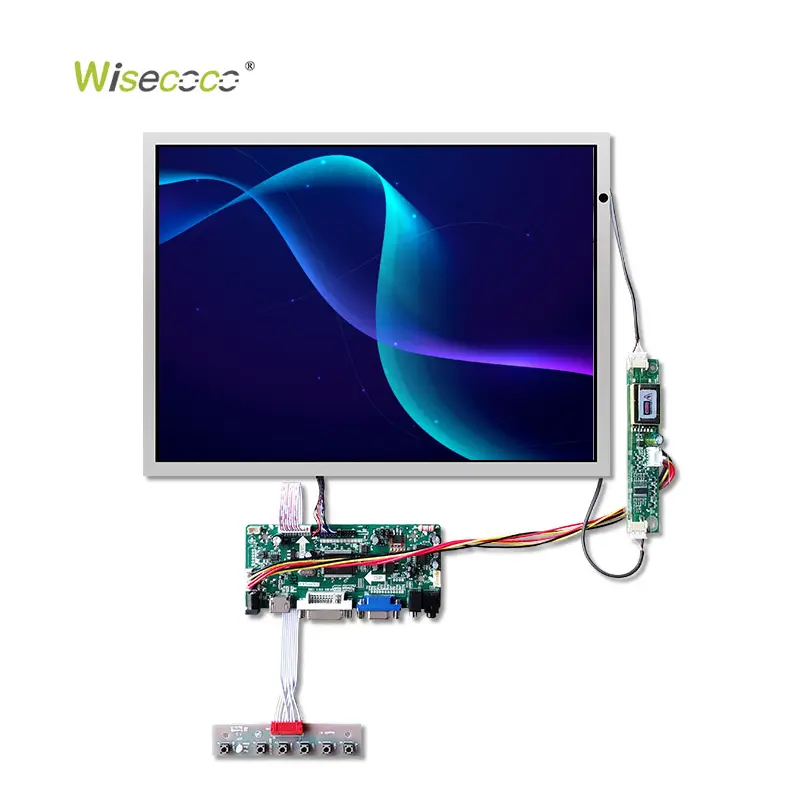

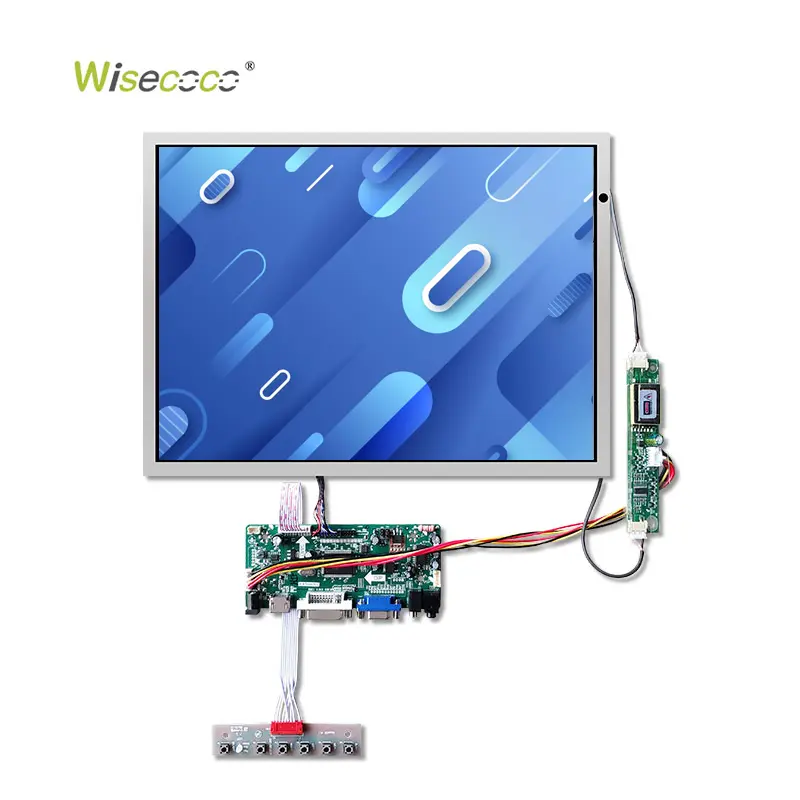

Customizable 15 Inch TFT LCD Panel 1024×768 Resolution LVDS Interface LCD Display Modules with Driver Board
$90.00

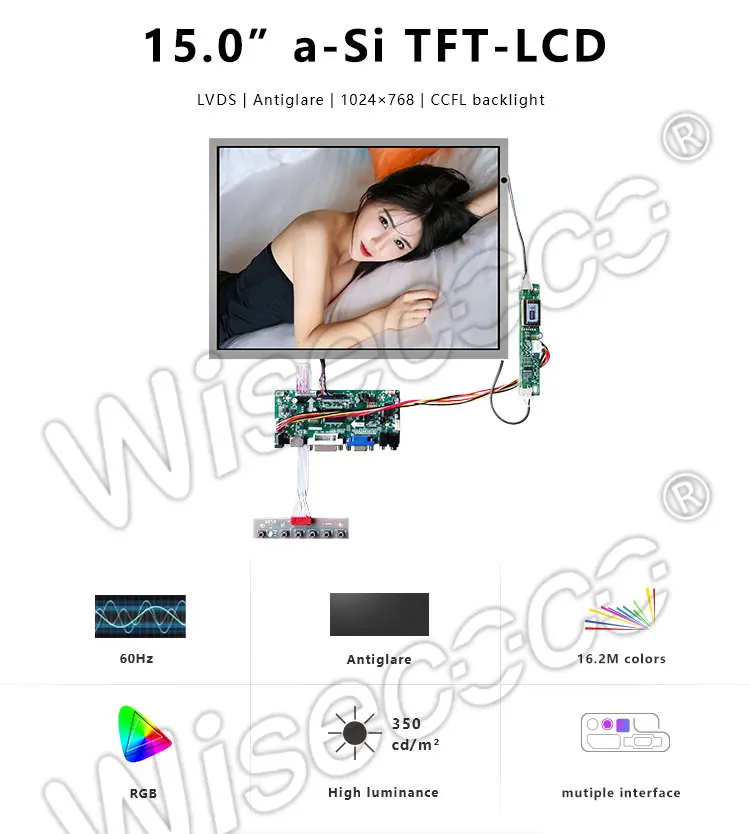

15″ a-Si TFT-LCD Panel— 1024×768 | 350 cd/m² | Antiglare | CCFL
15-inch TFT-LCD panel with antiglare surface treatment, CCFL backlight system, and broad controller board compatibility. A cost-effective, proven display solution for legacy industrial equipment replacement, POS terminals, and embedded systems requiring a reliable 15-inch lcd panel with maximum signal source flexibility.
|
Diagonal Size
|
15 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1024(RGB)×768 [XGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
304.128(H)×228.096(V) mm
|
Outline Dim.
|
326(H)×252(V) ×11.7(D) mm
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
550:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
2/6 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
60/60/45/55 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
16.2M
|
Light Source
|
CCFL [2 pcs] , 50K hours , W/O Driver
|
|
Weight
|
–
|
Designed For
|
industrial
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
20 pins LVDS (1 ch, 8-bit) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C
|
||
Features:
- 350 cd/m² Brightness — Clear, comfortable luminance for indoor industrial and commercial environments. Suitable for control rooms, POS counters, and equipment displays. Adequate for overhead-lit workspaces.
- Antiglare Surface — Matte coating minimizes reflections and glare. Reduces operator eye strain during extended use. Maintains consistent readability under overhead fluorescent and LED lighting.
- CCFL Backlight System — Established backlight technology for stable, uniform illumination. Ideal for legacy system replacements requiring CCFL compatibility. Cost-effective option for budget-conscious industrial builds.
Ideal for: Industrial monitor replacement · Factory automation HMI panels · POS & kiosk terminals · Equipment and machinery displays · Embedded control panel builds · Budget industrial display projects
Wisecoco offers One-step customized LCD display solutions.
