- Size:15.6 inch
- Resolution:1920×1080
- Panel Interface:LVDS (2 ch, 8-bit)

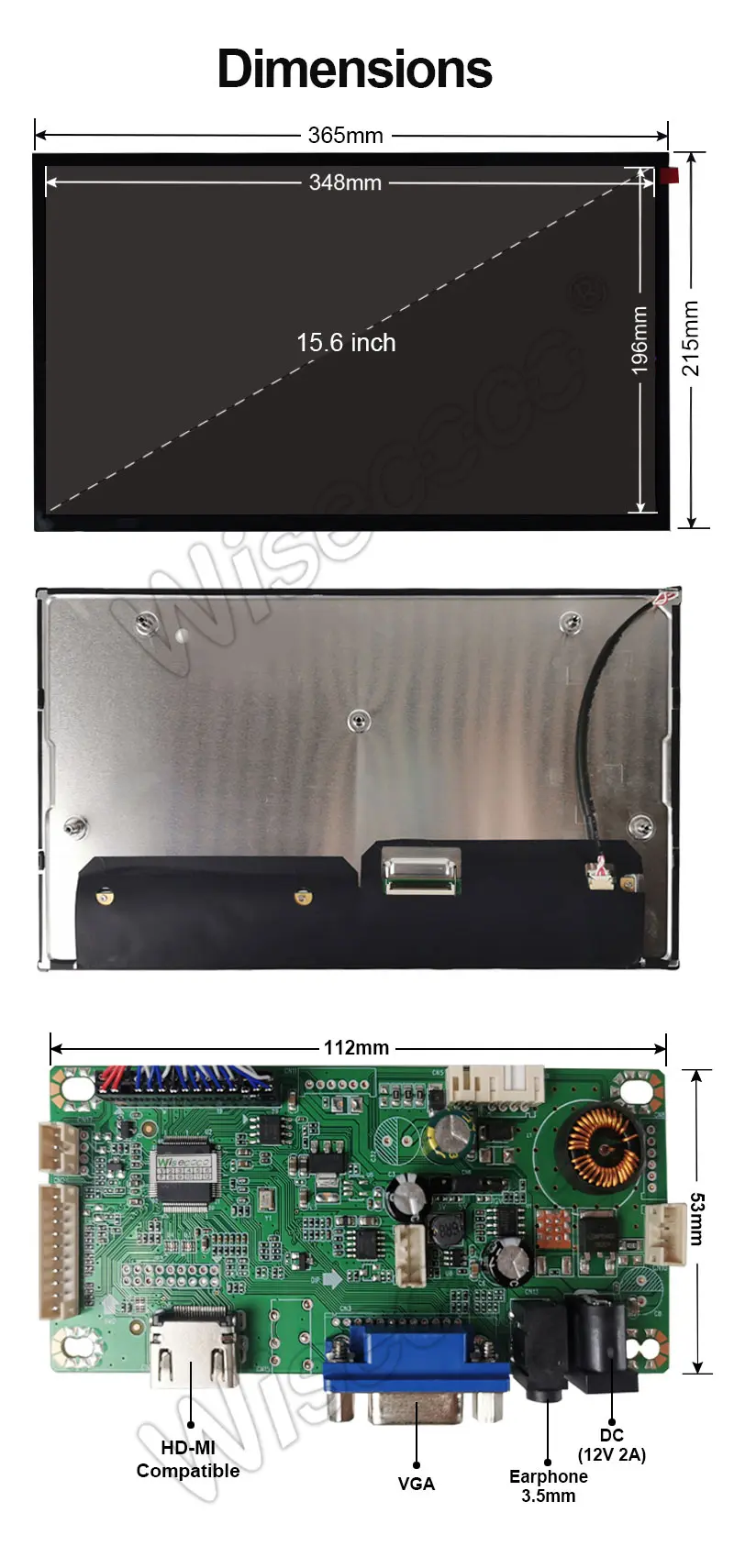

- Active Area:348(W)×196(H) mm
- Outline Dimension:365(W)×215(H) mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness :1200cd/m²
- Operation / Storage Temp:-30~85°C / -40~90°C

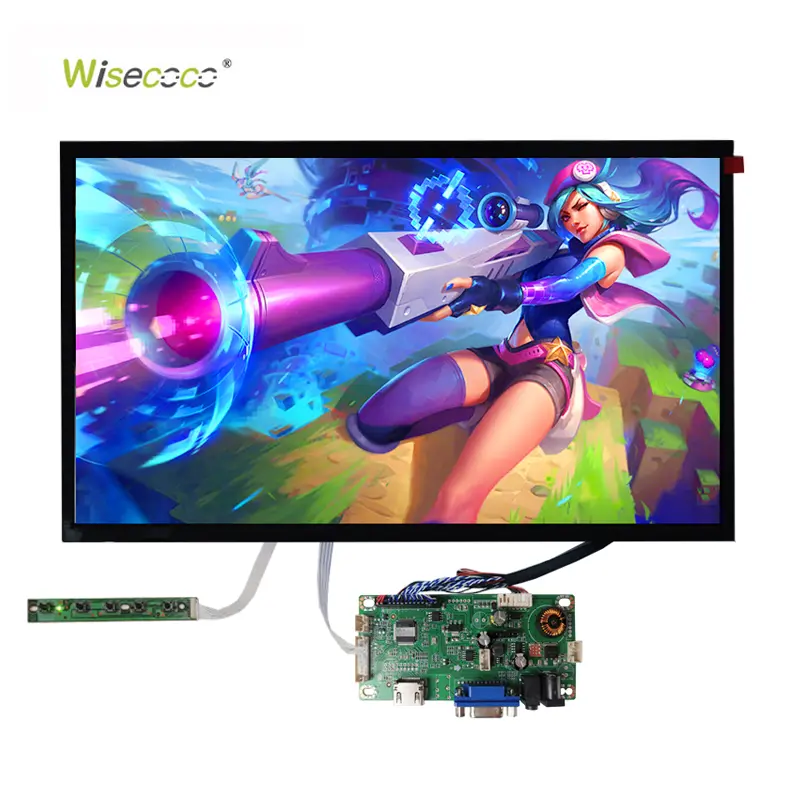

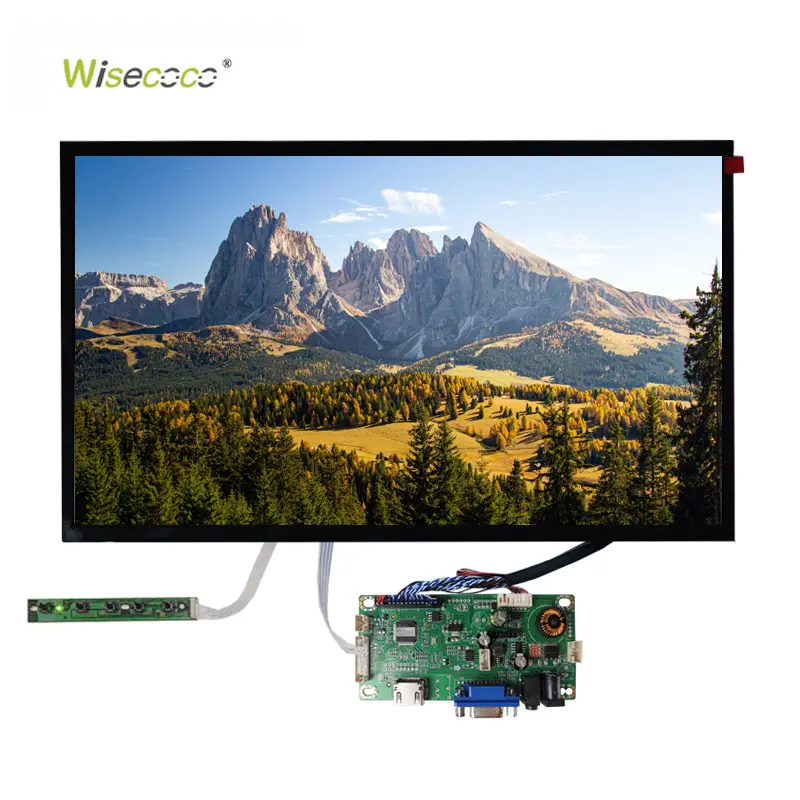

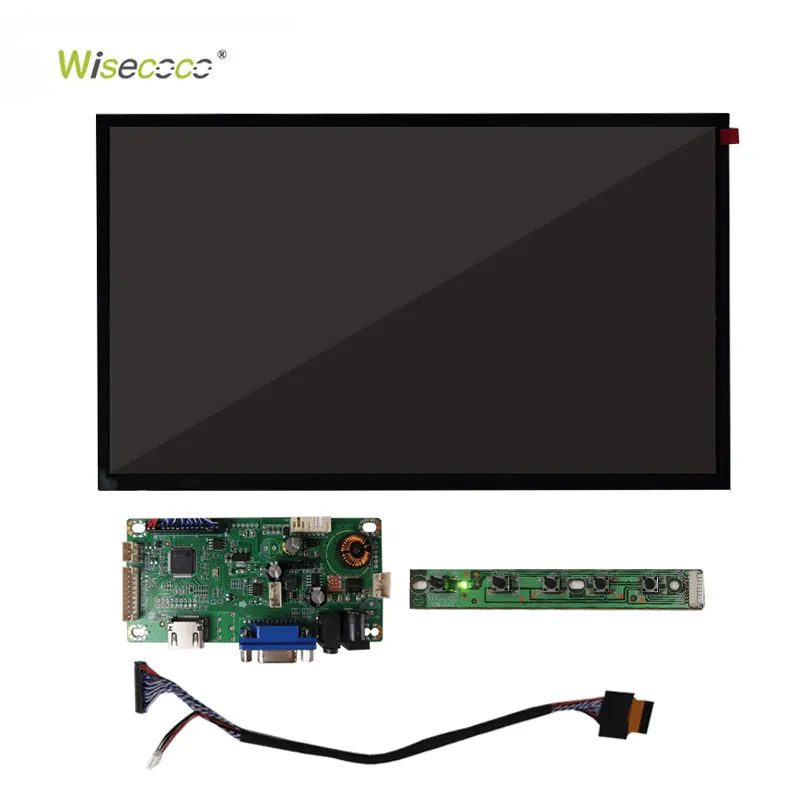

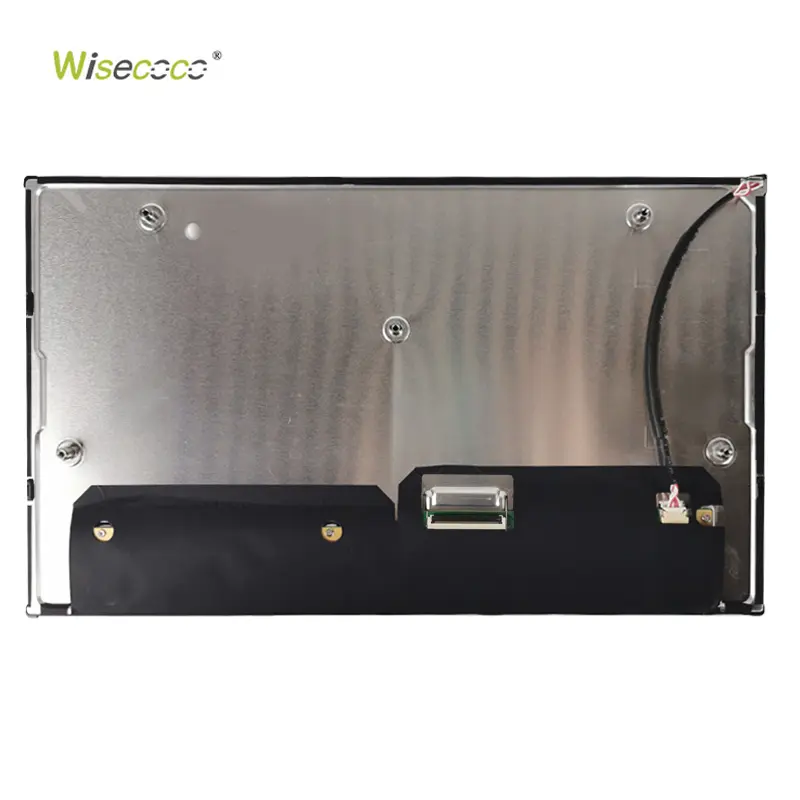

15.6 Inch TFT LCD Display 1920×1080 LVDS 1200nits High Brightness Wide Temperature Display For Industrial
$180.00
|
Diagonal Size
|
15.6 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
1920(RGB)×1080 [FHD]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
348(W)×196(H) mm
|
Outline Dim.
|
365(W)×215(H) mm
|
|
Bezel Area
|
–
|
Surface
|
Hard coating
|
|
Luminance
|
1200 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
15/15 (Max.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70%
|
Light Source
|
4 strings WLED , 30K hours , Without Driver
|
|
Weight
|
TBD
|
Designed For
|
Automotive display,Outdoor display ,conference Room and Industrial Display
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
LVDS (2 ch, 8-bit) , 50 pins Connector
|
||
|
Power Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
