- Size:28 inch
- Resolution:1920×360
- Interface Type:51 pins LVDS (1 ch, 8-bit)
- Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
- Brightness:700 cd/m²
- Active Area:732*165*16.8mm

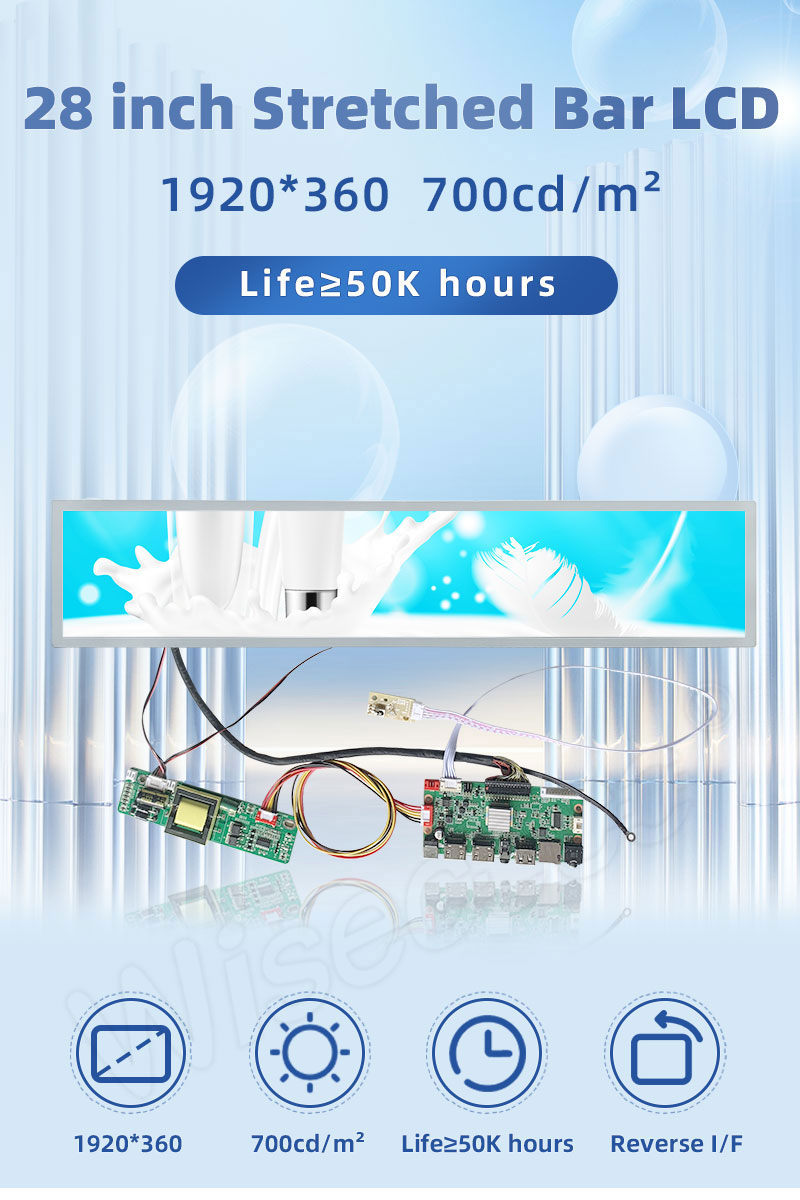

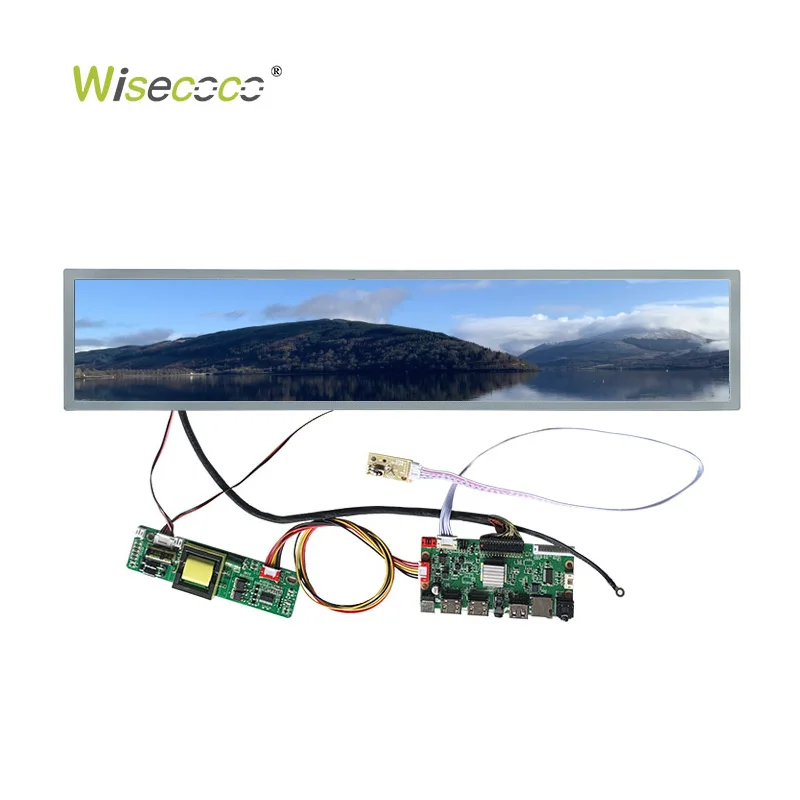

28 Inch Stretched Bar Lcd Display 1920×360 Resolution LVDS High Brightness 700nits IPS TFT LCD Display
$280.00
|
Screen Size
|
28 inch
|
Screen Type
|
a-Si TFT-LCD
|
|
Resolution
|
1920*360
|
Brightness
|
700 nits
|
|
Contract Ratio
|
1200:1
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|

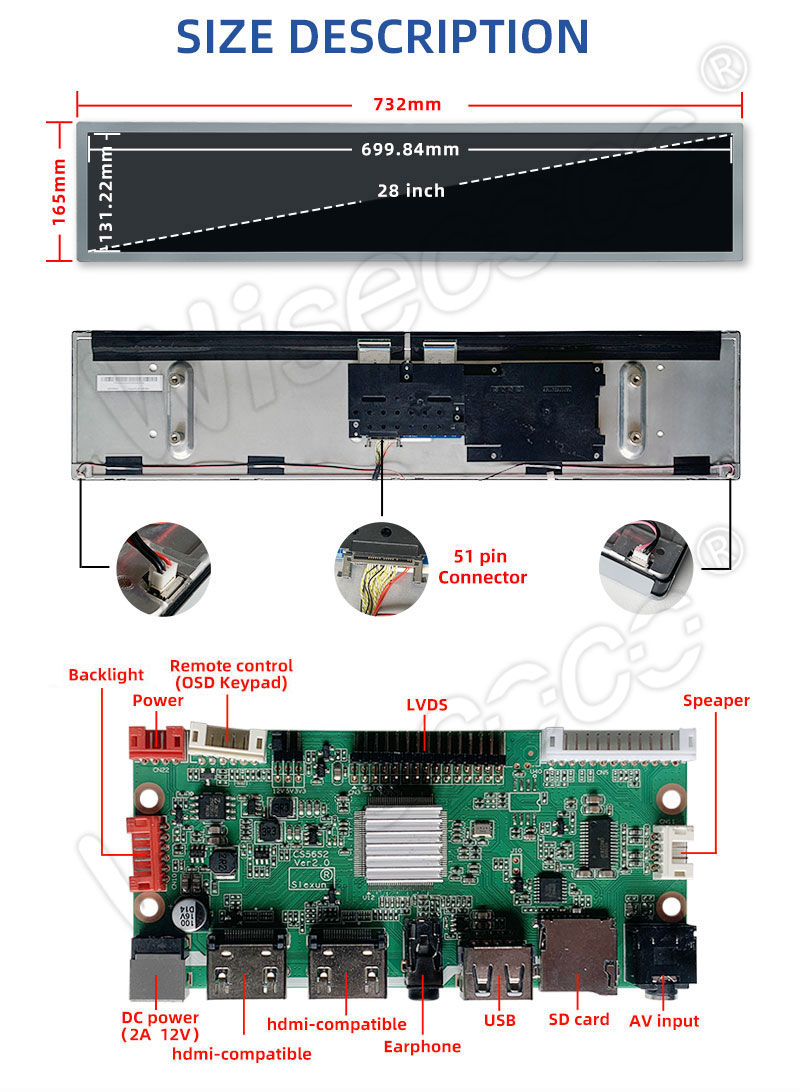

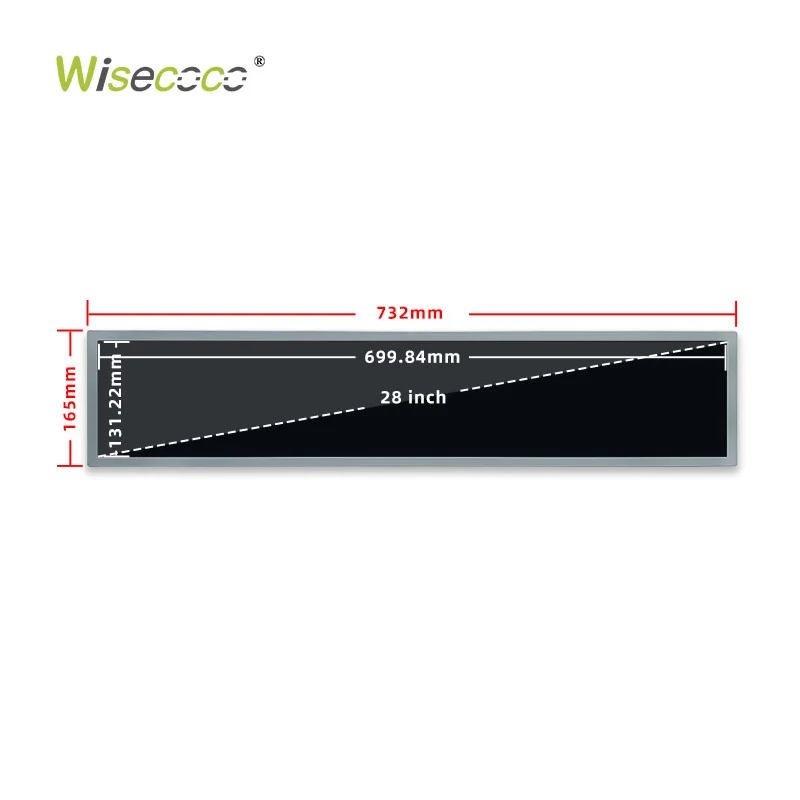

Display Outline Size(mm)
|
732*165*16.8
|
Display Area(mm)
|
699.84(H)*131.22(V)
|
|
Fresh Rate
|
60 Hz
|
Support Color
|
16.7M 72% NTSC
|
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Response Time
|
8 (Typ.)(G to G) ms
|
Light Source
|
WLED , 50K hours
|
|
Weight
|
2.4 Kgs
|
Display Mode
|
Landscape
|
|

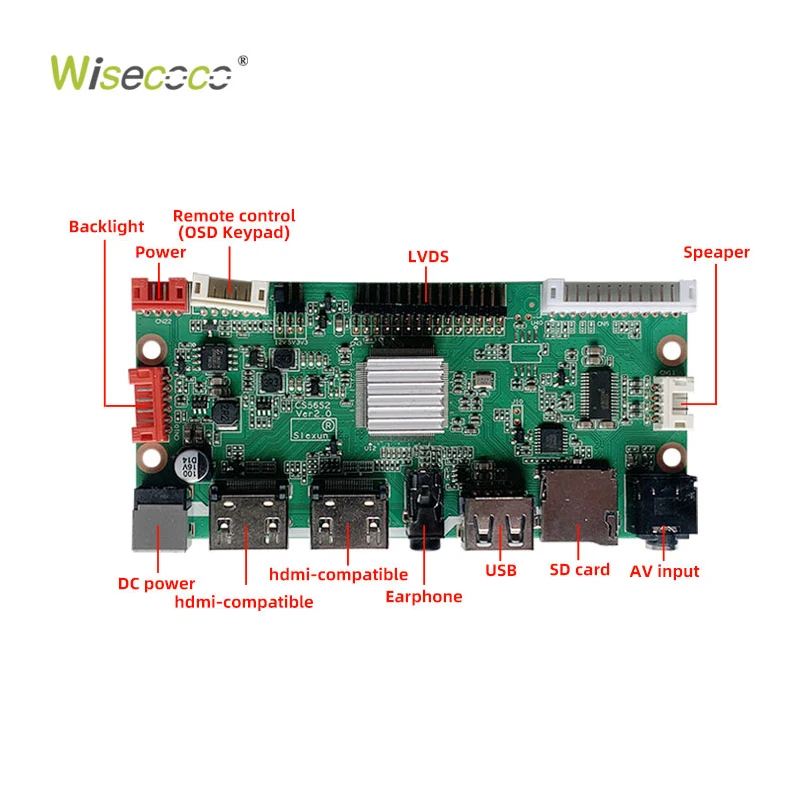

Interface Type
|
51 pins LVDS (1 ch, 8-bit)
|
Voltage Supply
|
12.0V (Typ.)
|
|
Operating Temperature
|
0℃~50℃
|
Designed For
|
Automotive display, Advertising display. Digital signage.
|
