Size:8.8 inch
Resolution:1920×480
Active Area:218.88×54.72 (H*V)mm
Outline Dimension:231.3×64.3×6.4 (HxVxD)mm
Viewing Angle :85/85/85/85 (Typ.)
Brightness:600(cd/m2)
Contrast Ratio:800:1 (Typ.)(TM)
8.8″ Stretched Bar Type IPS TFT LCD Display 1920×480 600nits Brightness LCD Module
$38.00
|
General Features |
|||
|
Diagonal Size |
8.8 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Format |
1920×480(RGB) |
Configuration |
RGB Horizontal Stripe |
|

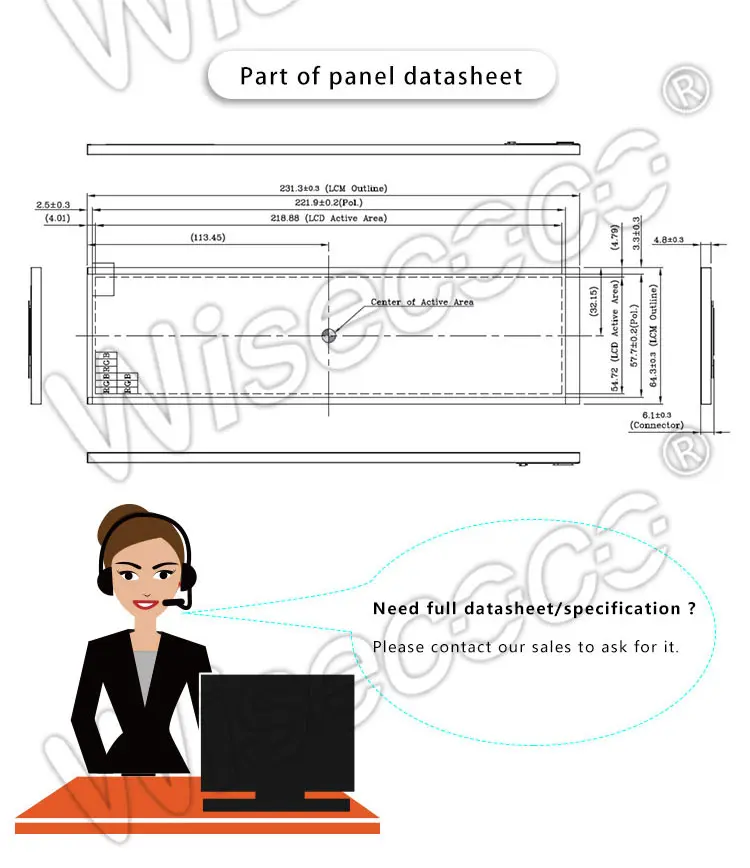

Active Area |
218.88 × 54.72 (H×V) mm |
Outline Dim. |
231.3 × 64.3 × 6.4 (H×V×D) mm |
|
Bezel Area |
221.9 × 57.7 (H×V) mm |
Treatment |
Hard coating |
|
Luminance |
600 cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
330 (Typ.)(Tr+Td) ms |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
IPS Pro, Normally Black, Transmissive |
|
Support Color |
16.7M |
Light Source |
White LED backlight, 30K hours , without Driver board |
|
Weight |
– |
Designed For |
Automotive Display |
| Frame Rate |
60Hz |
Touch Panel |
without |
|
Interface Type |
MIPI (4 data lanes) , 40 pins , Connector |
||
|
Power Supply |
3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
||
|
Environment |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
||
