- Size:12.6 inch
- Resolution:1920×515
- Panel Interface:eDP (2 Lanes)
- Outline Dimension:315.61(H)×94.02(V) ×5.3(D) mm
- Active Area:309.312(H)×82.9665(V) mm
- Viewing Angle :85/85/85/85 (Typ.)
- Brightness(cd/m2):250cd/m²(Typ.)
- Touchscreen:Optional capacitive touchscreen
-13%

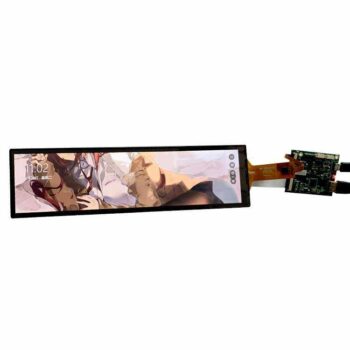

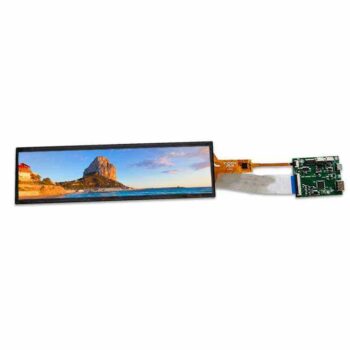

1920×515 Touch LCD With Case IPS Display 12.6 Inch Stretched Bar LCD Long Strip Screen 64 Cpu Gpu Monitoring Screen
Original price was: $160.00.$140.00Current price is: $140.00.
|
General Features
|
|||
|
Screen Size
|
12.6 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Number
|
1920(RGB)×515 157PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
309.312(H)×82.9665(V) mm
|
Outline(mm)
|
315.61(H)×94.02(V) ×5.3(D) mm
|
|
Bezel Area(mm)
|
–
|
Treatment
|
Antiglare (Haze 40%), Hard coating
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 45% NTSC
|
Light Source
|
WLED [8S6P] , 15K hours , With LED Driver
|
|
Form Style
|
–
|
Used for
|
Advertising display, extended display, extended monitor
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
Optional capacitive touchscreen
|
|
Voltage Supply
|
3.3V (Typ.)
|
Signal Type
|
eDP (2 Lanes) , 40 pins Connector
|
|
Environment
|
Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C
|
||
Advantages:
1. Stretched bar type screen, ultra-wide aspect ratio>3:1
2. Support High Definition clear image or video.
3. IPS full viewing angle. You will have better visual experience.
4. Multi-point capacitive touch. It’s better for users to control it.
6. Strong compatibility. It’s compatiable with Windows system PC and Raspberry Pi.
7. Original Grade A+ quality, 100% workable before shipment.
8. Many LCD screens and touch screen in stock now, ready for prompt delivery.
9. Cost-effective screen and competive price will be offered.
Applications:
1. PC Laptop, Desktop computer Aida64 temperature GPU, CPU, RAM monitoring screen;
2. Plug and play in Raspberry Pi 3B, 3B+, 4B.
3. Work as extended monitor. It’s slim and handy.
4. Landscape mode by default, work with PS3/ PS4, X-BOX and other game consoles.
