- Size:28 inch
- Resolution:1366×256
- Interface Type:LVDS
- Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
- Brightness:800 cd/m²
- Active Area:731.2(H)*165.4(V) mm

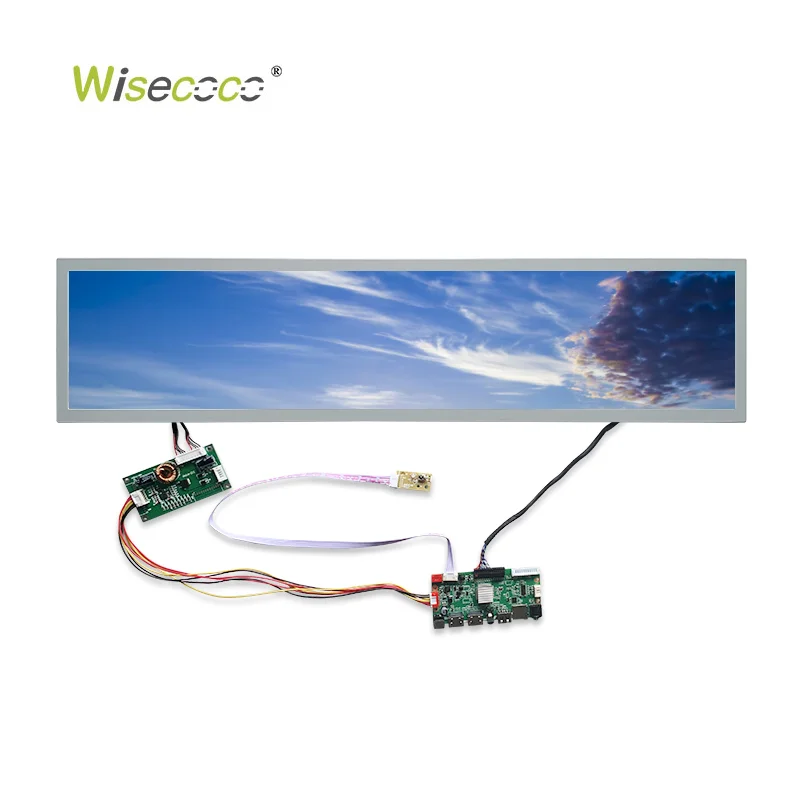

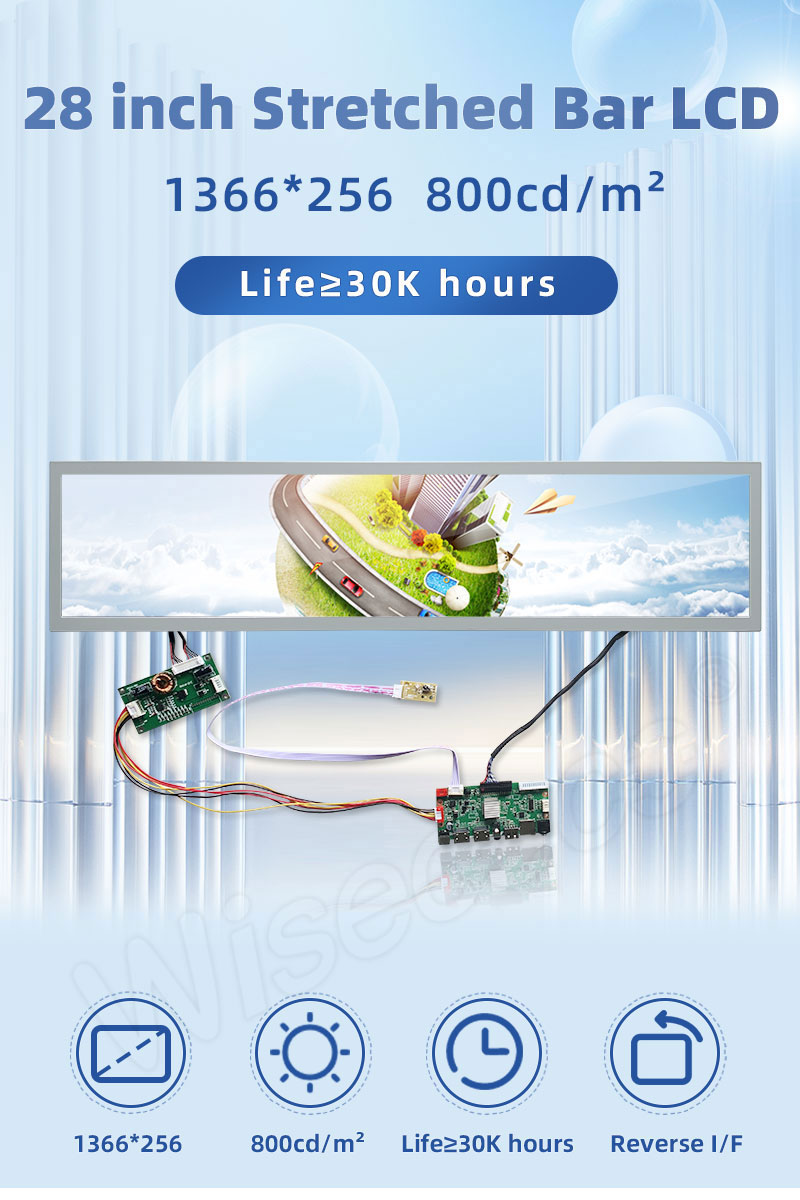

28 Inch Stretched LCD Display 1366×256 IPS LVDS High Brightness 800nits Ultra Wide TFT LCD Display
$249.00
|
Screen Size
|
28 inch
|
Screen Type
|
a-Si TFT-LCD
|
|
Resolution
|
1366*256
|
Brightness
|
800 nits
|
|
Contract Ratio
|
1200:1
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|

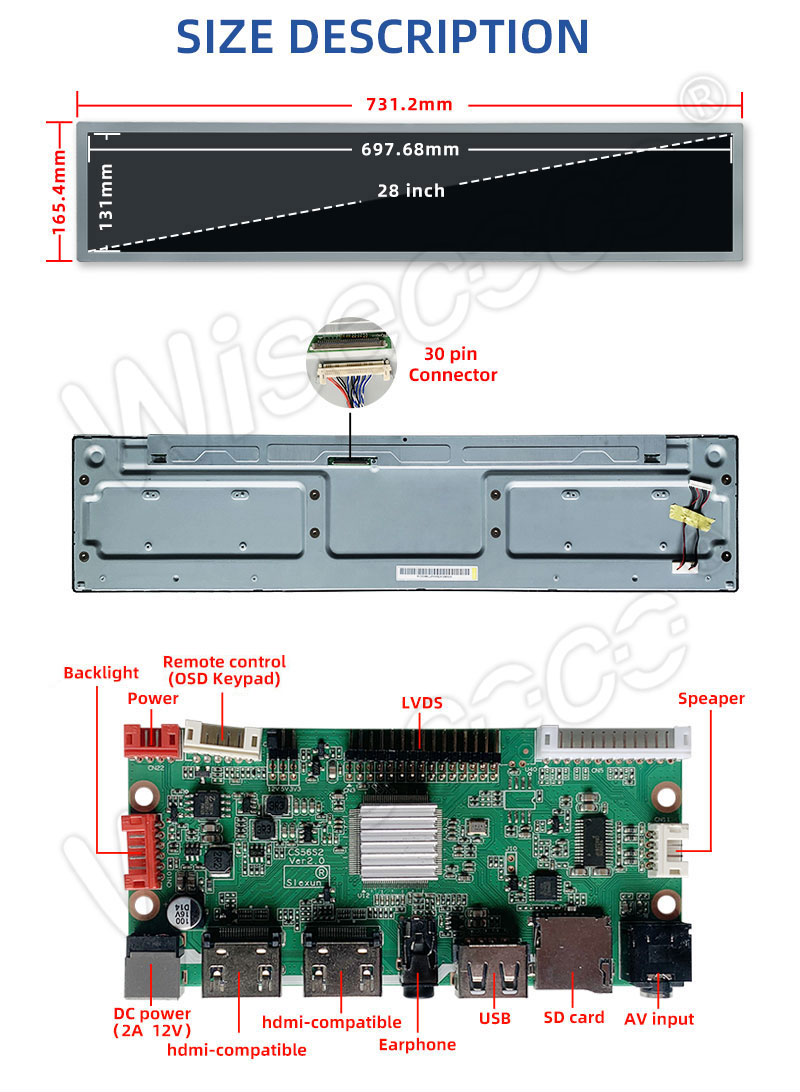

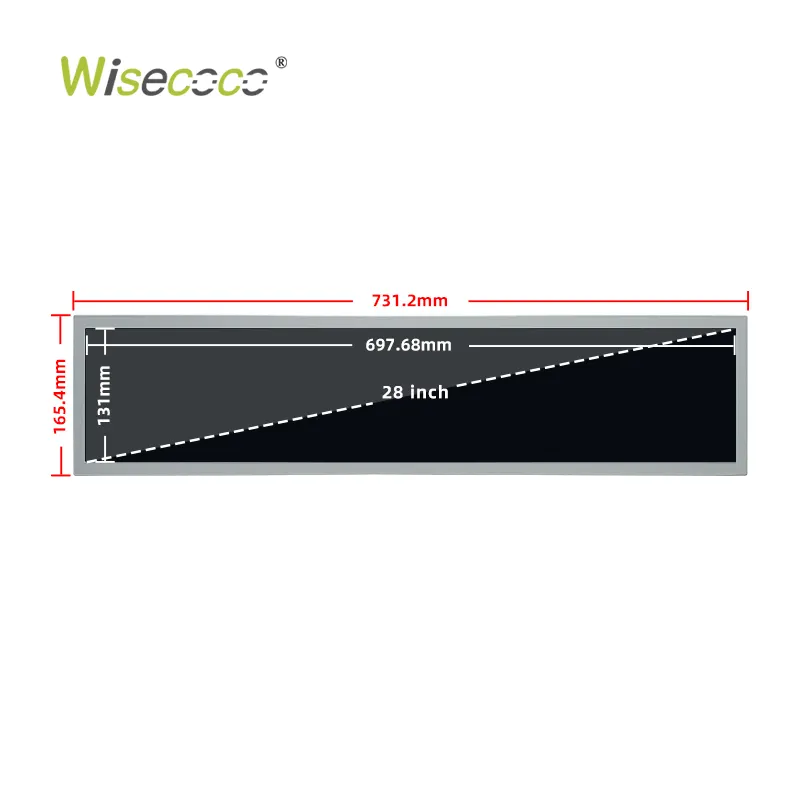

Display Outline Size(mm)
|
731.2(H)*165.4(V) mm
|
Display Area(mm)
|
697.68(H)*131(V)mm
|
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Response Time
|
8 (Typ.)(G to G) ms
|
Light Source
|
WLED , 30K hours
|
|
Support Color
|
16.7M
|
Designed For
|
Automotive display, Advertising display. Digital signage.
|
|
Weight
|
2.51 Kg
|
Display Mode
|
Landscape
|
|

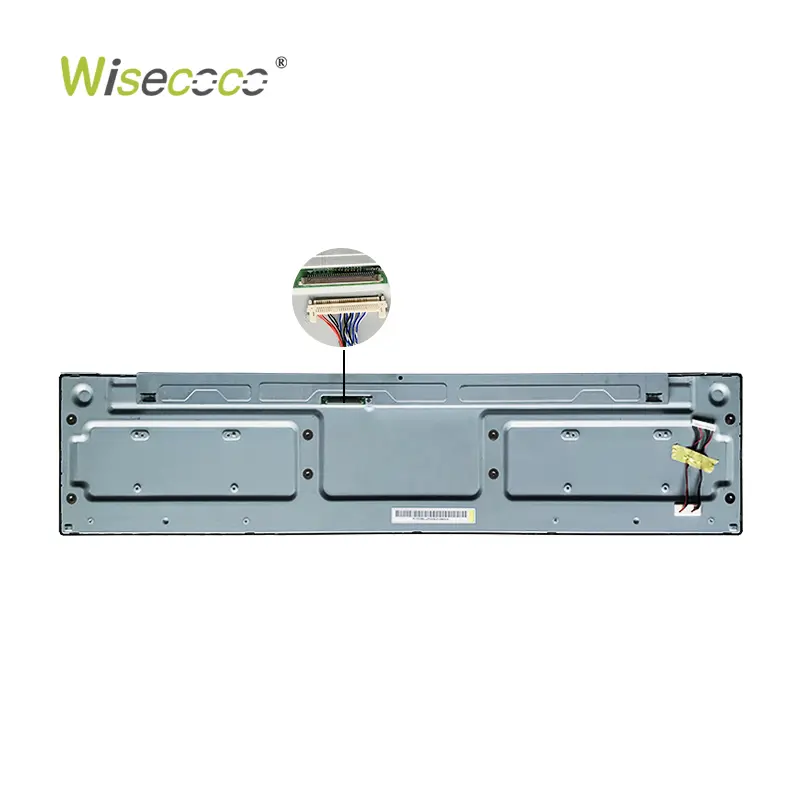

Interface Type
|
30 pins LVDS
|
||
|
Voltage Supply
|
12.0V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
