- Size:10.1 inch
- Resolution:1920×1200
- Panel Interface:eDP (2 Lanes)
- Display Color:16.7M
- Viewing Angle:80/80/80/80 (Typ.)(CR≥100)
- Brightness:650cd/m²(Typ.)
- Touch Panel:CTP available
10.1-Inch IPS TFT LCD Screen Display 30pins EDP 1200×1920 Resolution 650 Nits Lcd Module with Touch Panel
$89.00

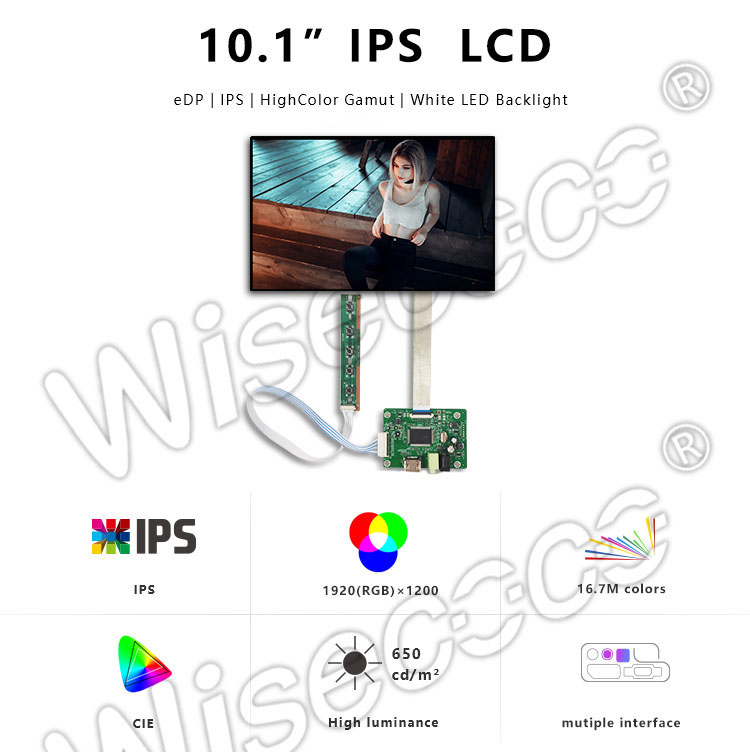

10.1″ IPS LCD Screen — 1920×1200 | 650 cd/m² | 1000:1 Contrast
10.1 Inch IPS LCD Screen is a WUXGA panel featuring 1920×1200 resolution, 650 cd/m² brightness, and full 80/80/80/80 viewing angle. The display connects via a 30-pin 2-lane eDP interface, includes an integrated WLED driver, and supports CTP touch for Pad, Tablet, and Raspberry Pi applications.
|
General Features
|
|||
|
Diagonal Size
|
10.1 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
1920(RGB)*1200 [WUXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
217.44(H)*135.9(V) mm
|

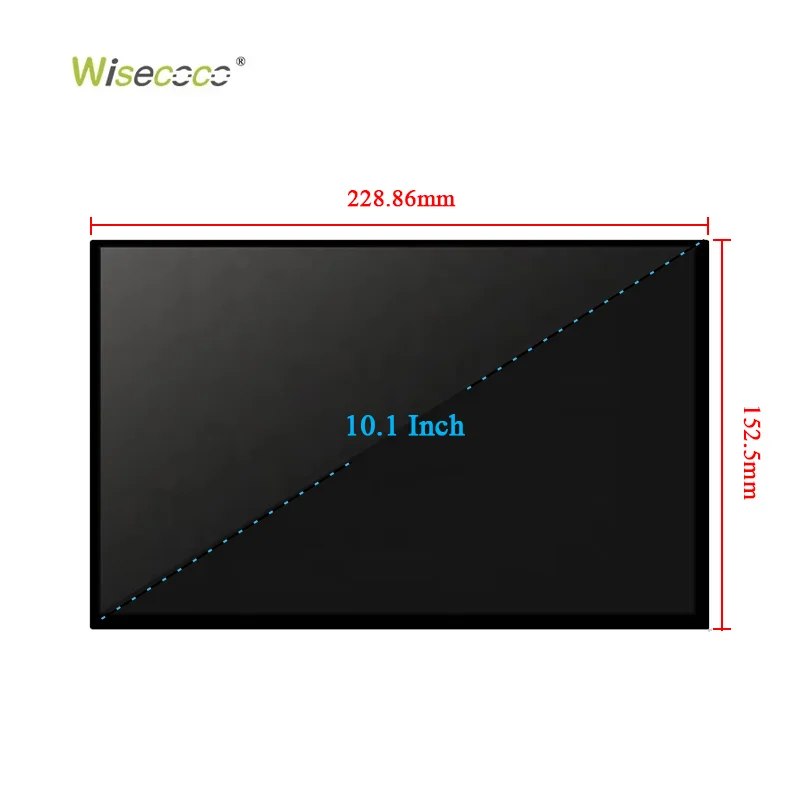

Outline Dim.
|
228.86(H)*152.5(V)*4.18(D) mm
|
|
Bezel Area
|
–
|
Treatment
|
Hard coating, Antireflection
|
|
Luminance
|
650 Cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
35 (Max.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥100)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 50% (CIE1931)
|
Light Source
|
WLED [10S6P] , With Driver
|
|
Weight
|
137g (Typ.)
|
Designed For
|
Pad&Tablet;Raspbery Pi
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
CTP available
|
|

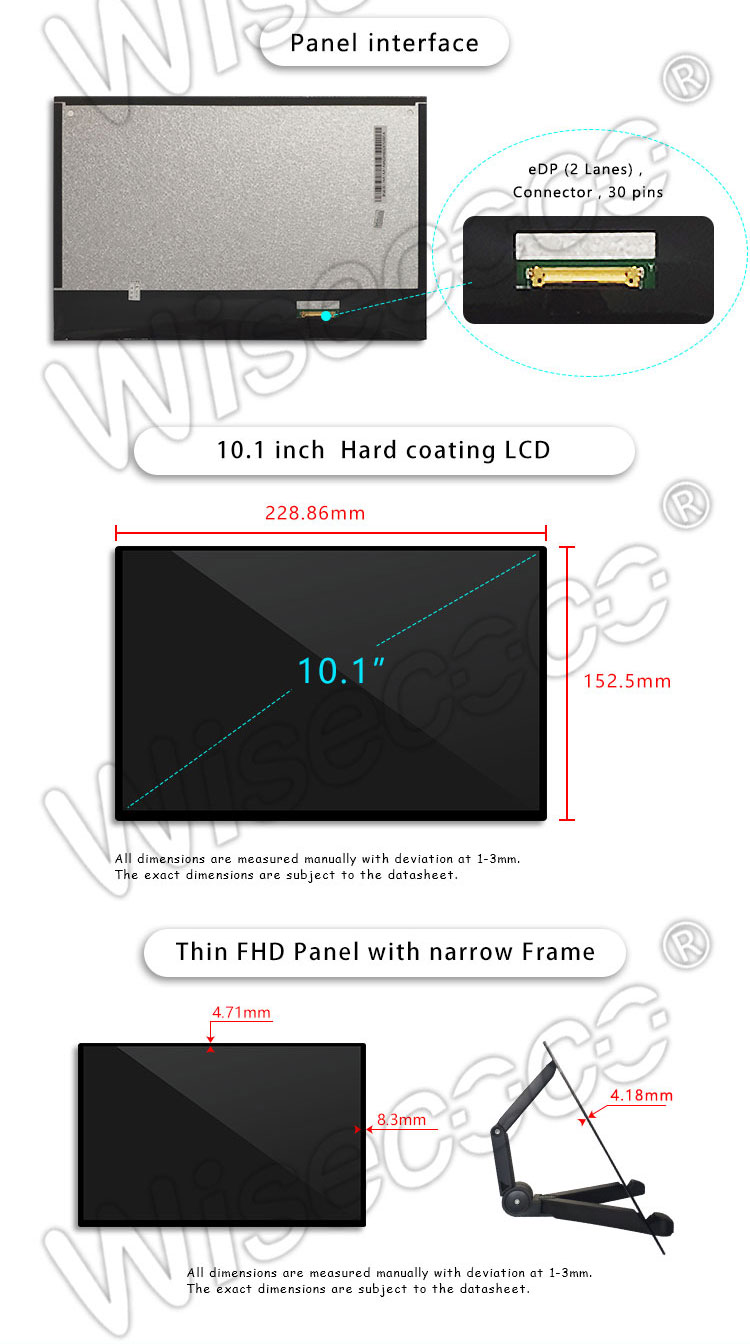

Interface Type
|
30 pins eDP (2 Lanes) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
Features:
- 1920×1200 WUXGA IPS Panel — Delivers sharp, detailed visuals with full viewing angle color consistency.
- 650 cd/m² Brightness — Bright, clear performance for handheld and desktop use.
- 1000:1 Contrast Ratio — Strong dynamic range for crisp, well-defined imagery.

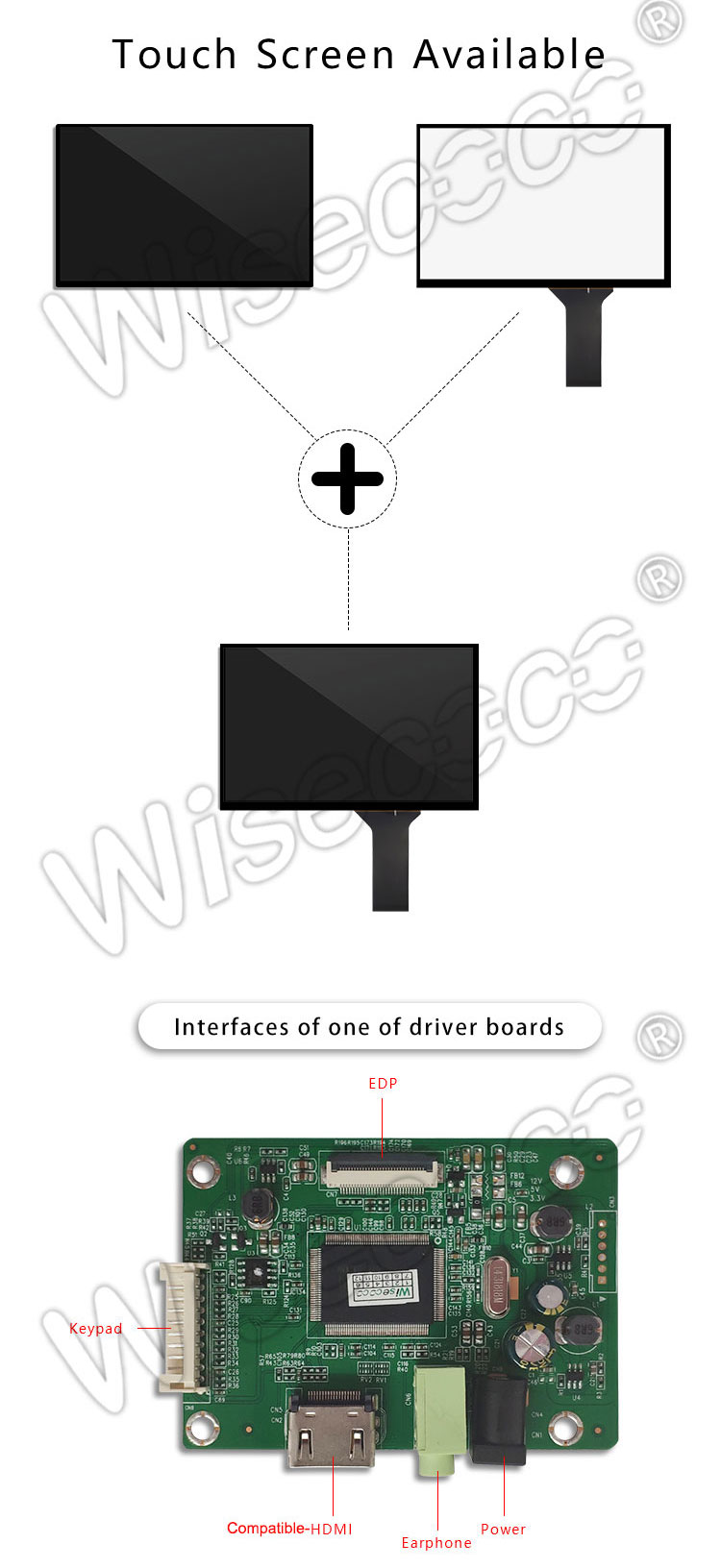

- CTP Touch Available — Configurable for capacitive touch integration.
Ideal for: Tablets & PAD devices · Raspberry Pi projects · Handheld consumer electronics · Portable embedded systems

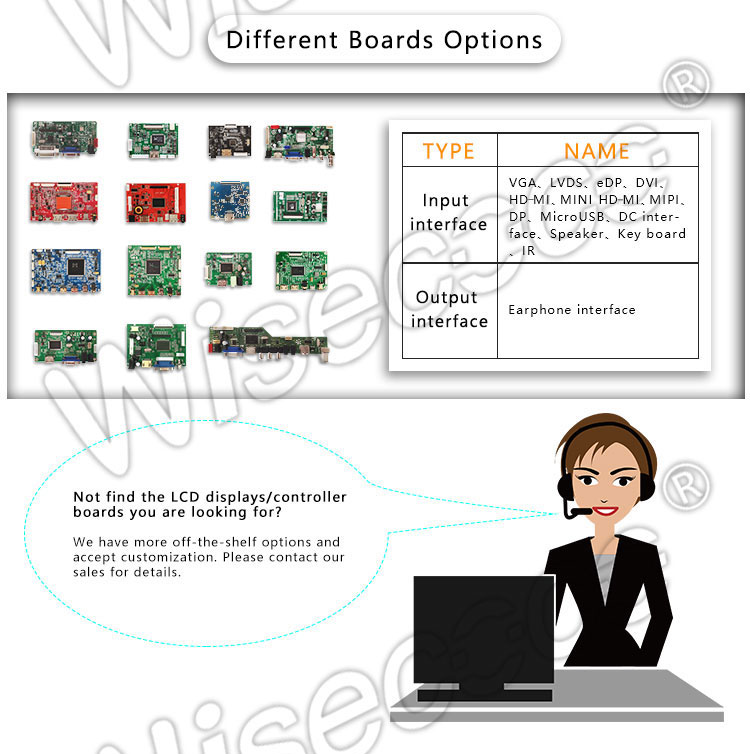

Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
