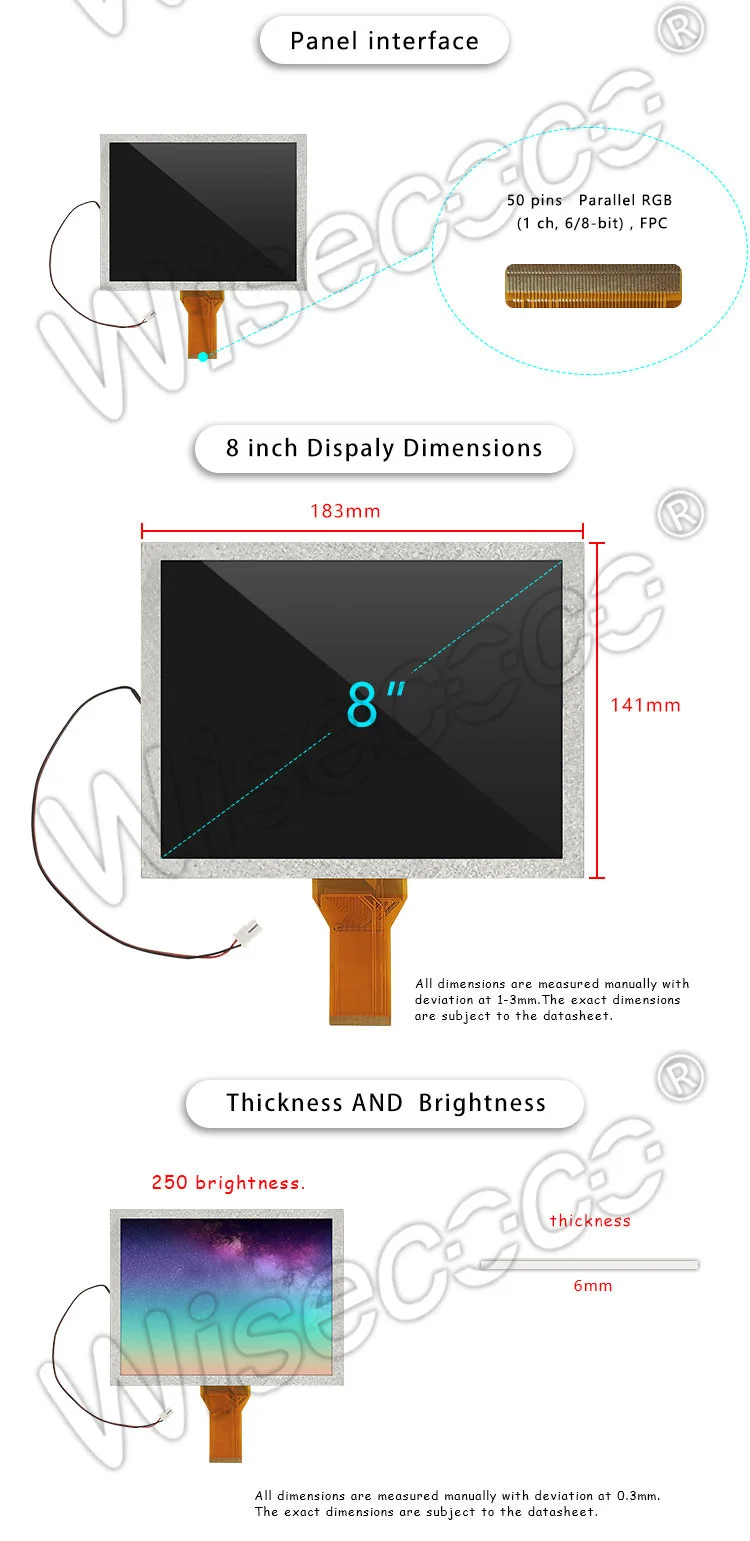

- Size:8 inch
- Resolution:800×600
- Panel Interface:Parallel RGB (1 ch, 6/8-bit)
- Active Area:162.0(H)x121.5(V)mm

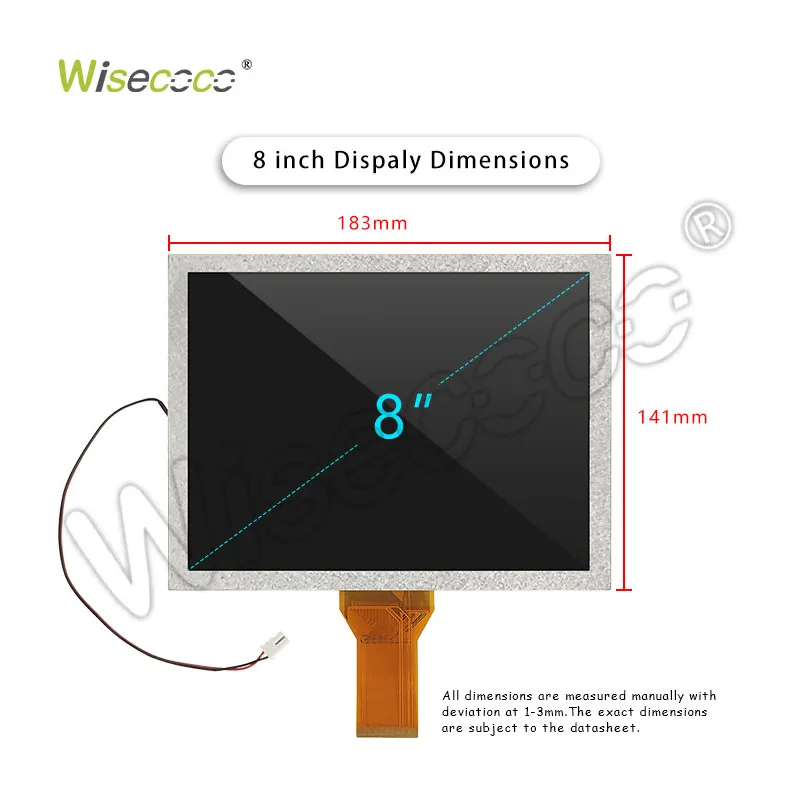

- Outline Dimension:183(H)x141(V)mm
- Viewing Angle :70/70/50/70
- Brightness:250(cd/m2)
- Operation / Storage Temp:-20~70℃ / -30~80℃

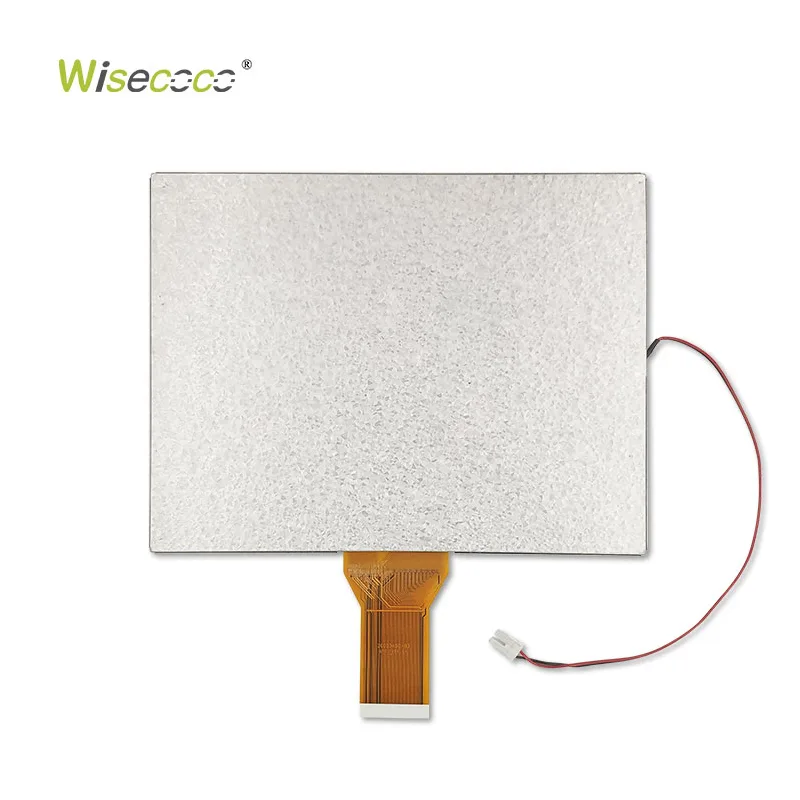

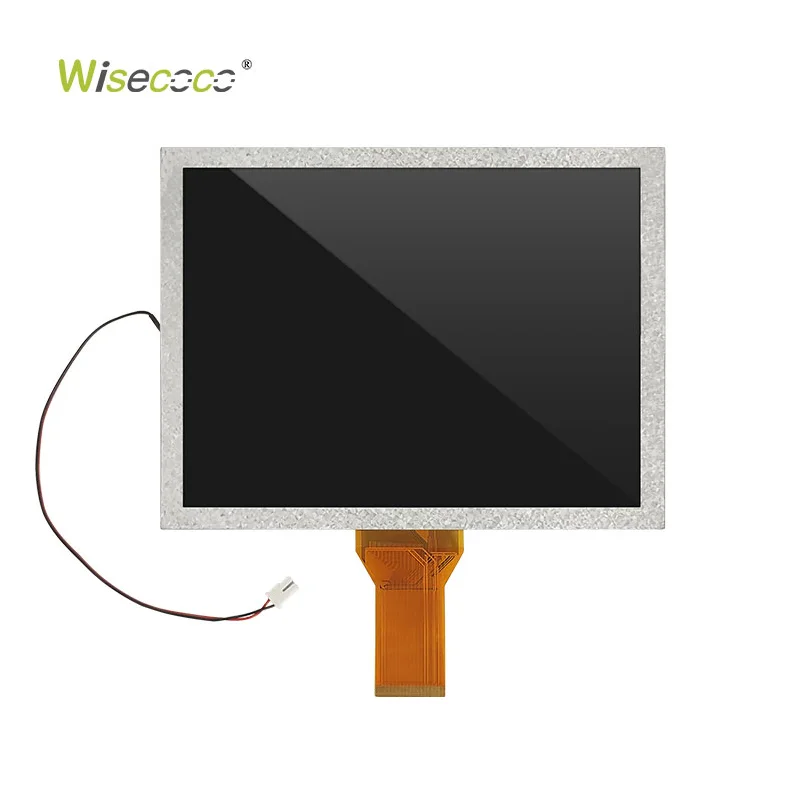

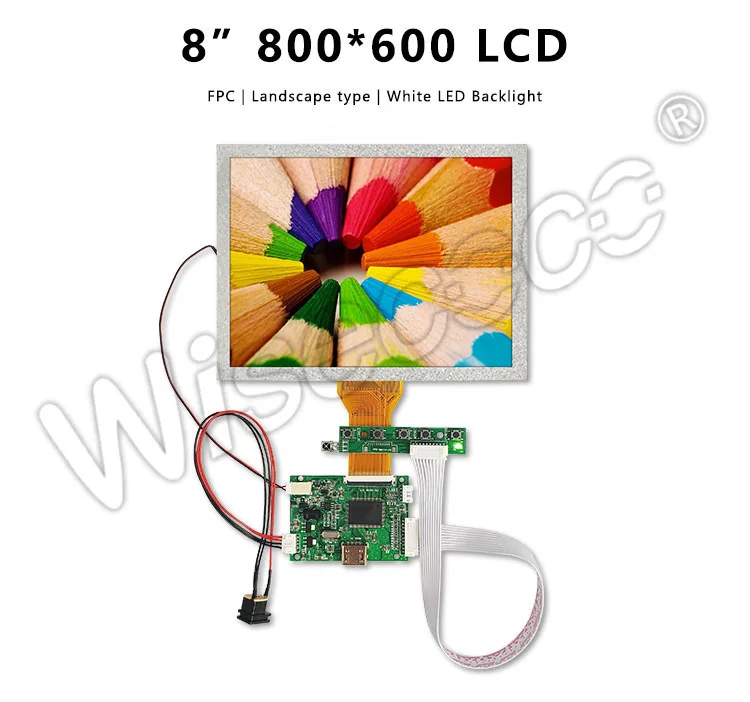

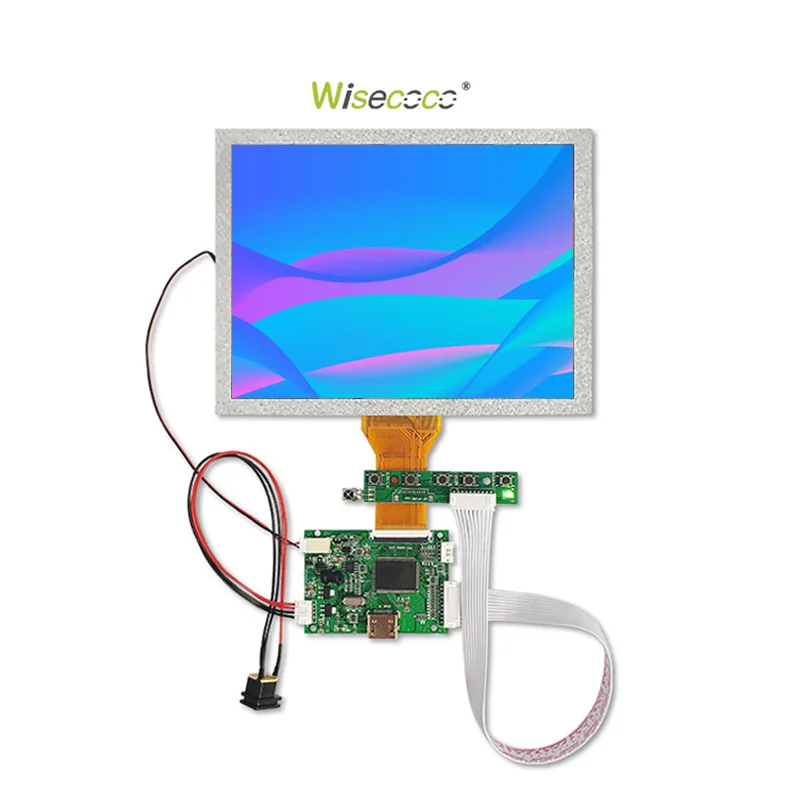

8 Inch 800*600 Lcd Display Panel RGB 50 Pins Interface Automotive Car Wide Temperature Tft Lcd Module Screen
$46.00
|
Screen Size
|
8.0 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Number
|
800(RGB)*600 (SVGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
162*121.5 (H*V)
|
Outline(mm)
|
183*141*6.3 (H*V*D)
|
|
Bezel Area(mm)
|
164.8*124.3 (H*V)
|
Treatment
|
Antiglare
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
500 : 1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
10/15 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
70/70/50/70 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transflective
|
|
Support Color
|
262K/16.2M
|
Backlight
|
3S9P WLED , 20K hours , No Driver
|
|
Outline Shape
|
–
|
Used for
|
Portable DVD Player & Digital Photo Frame
|
|
Refresh Rate
|
–
|
Touchscreen
|
Without Touch
|
|
Voltage Supply
|
3.3/10.4/16.0/-7.0V (Typ.)
|
Signal Type
|

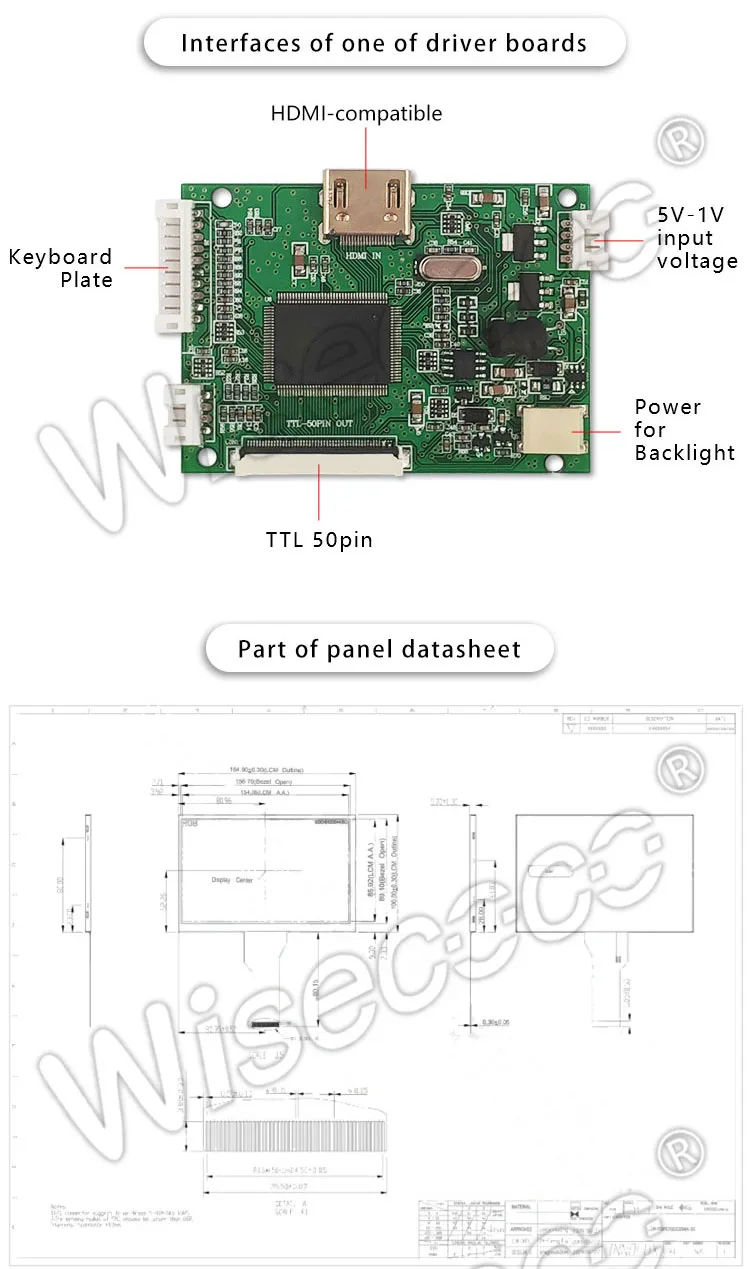

Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
|
|
Environment
|
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
|
||
