- Size:9.7 inch
- Resolution:2048×1536
- Panel Interface:eDP (4 Lanes)
- Active Area:196.608(H)x147.456(V) mm
- Outline Dimension:208.88(H)x167.12(V) mm
- Viewing Angle :89/89/89/89 (Typ.)(CR≥10)
- Brightness :440cd/m²(Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C
- Touch:Touch Optional

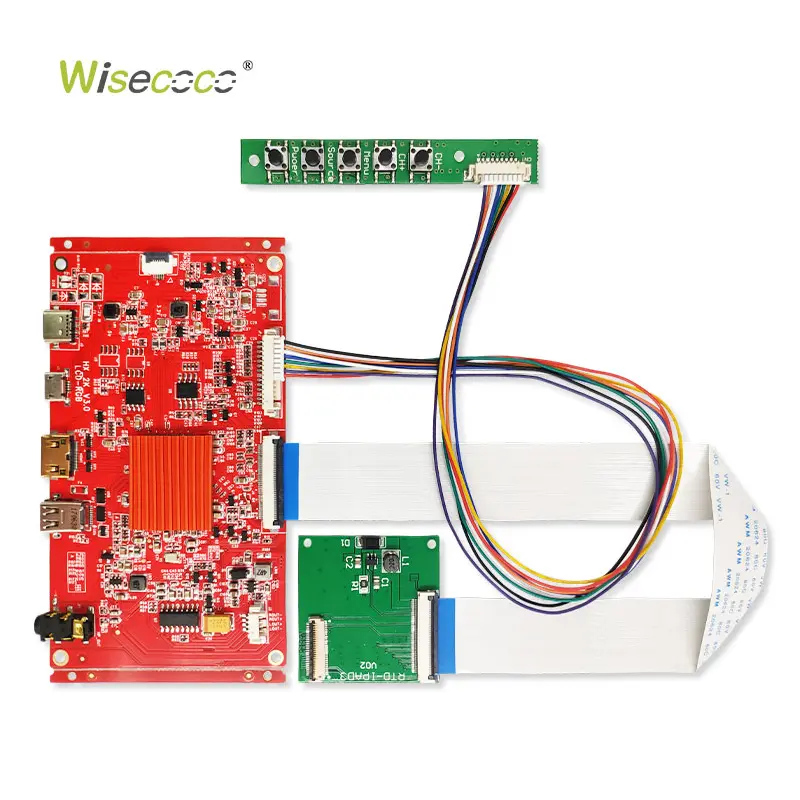

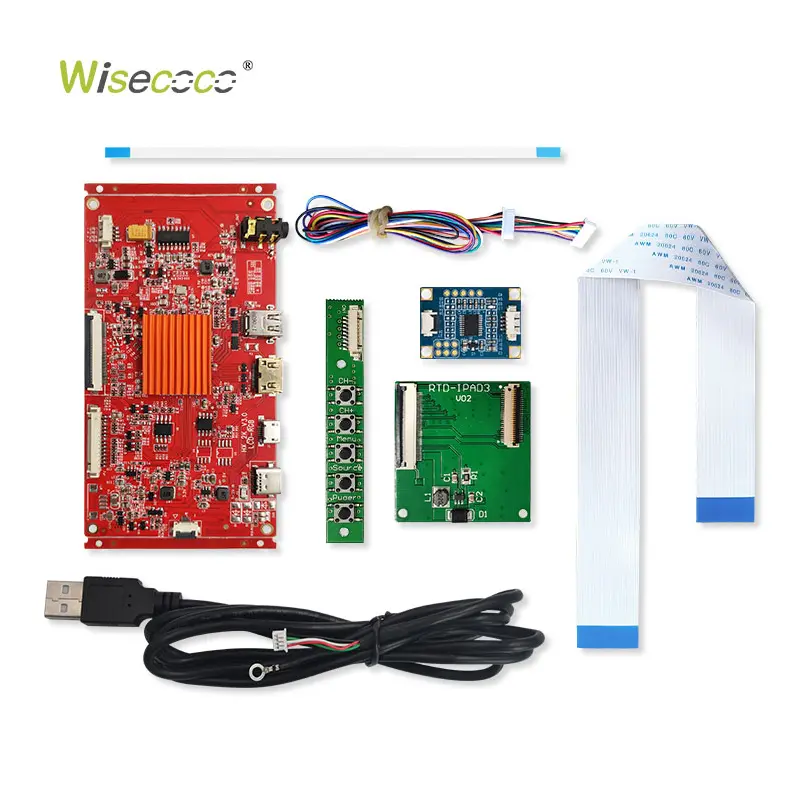

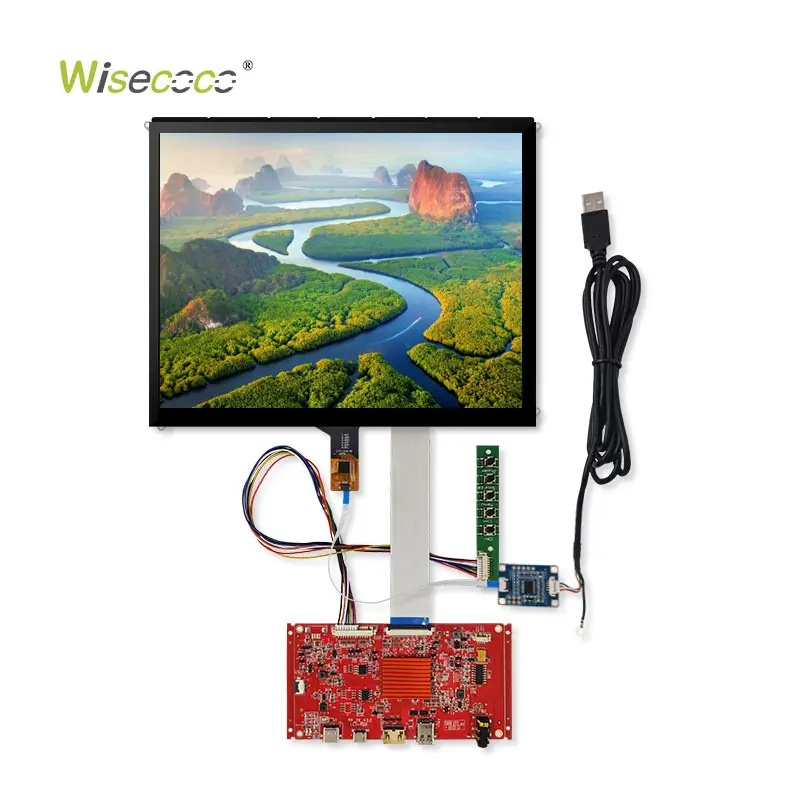

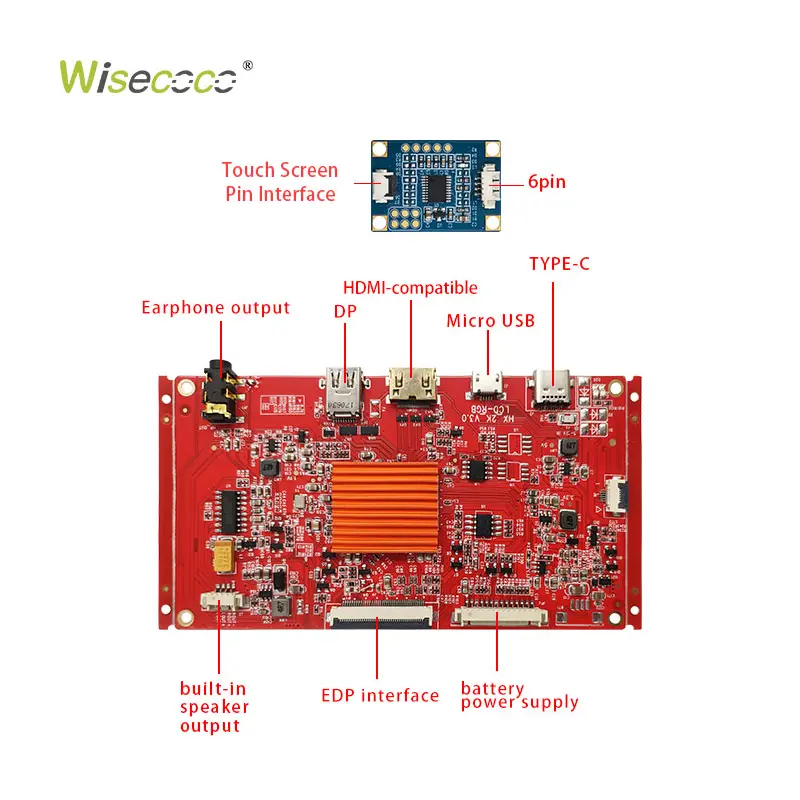

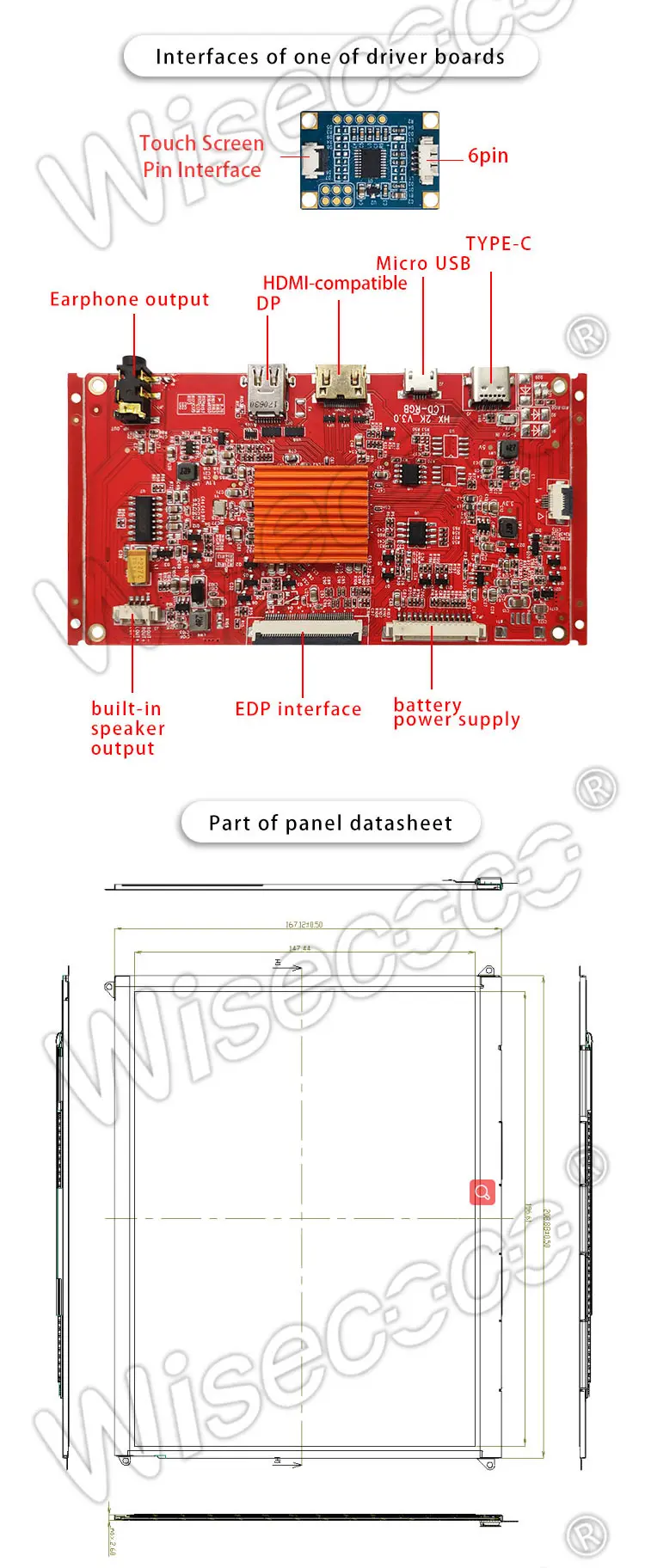

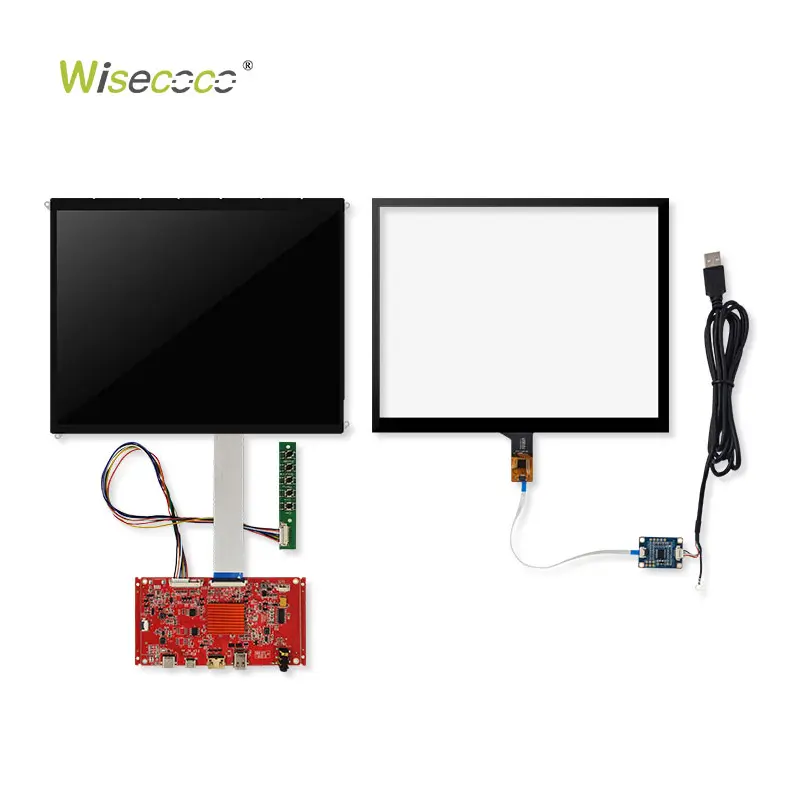

9.7 Inch Ips TFT LCD Module 2048×1536 51 Pin Edp Interface Touch Screen Panel with Controller Board
$105.00
9.7″ IPS QXGA Touch LCD Display — 2048×1536 | eDP | Hard Coating (3H) + Antireflection
9.7-inch IPS LCD display delivering sharp 2048(RGB)×1536 QXGA resolution with symmetrical wide viewing angle (89/89/89/89) and premium hard coating (3H) with antireflection surface treatment. Featuring 440cd/m² brightness, 16.7M color support at 75% NTSC, and an available touchscreen, this display is built for high-resolution tablet and professional visual applications.
| General Features | |||
| Diagonal Size | 9.7 inch | Type | CM, a-Si TFT-LCD |
| Pixel Format | 2048(RGB)×1536 (QXGA) | Configuration | RGB Vertical Stripe |

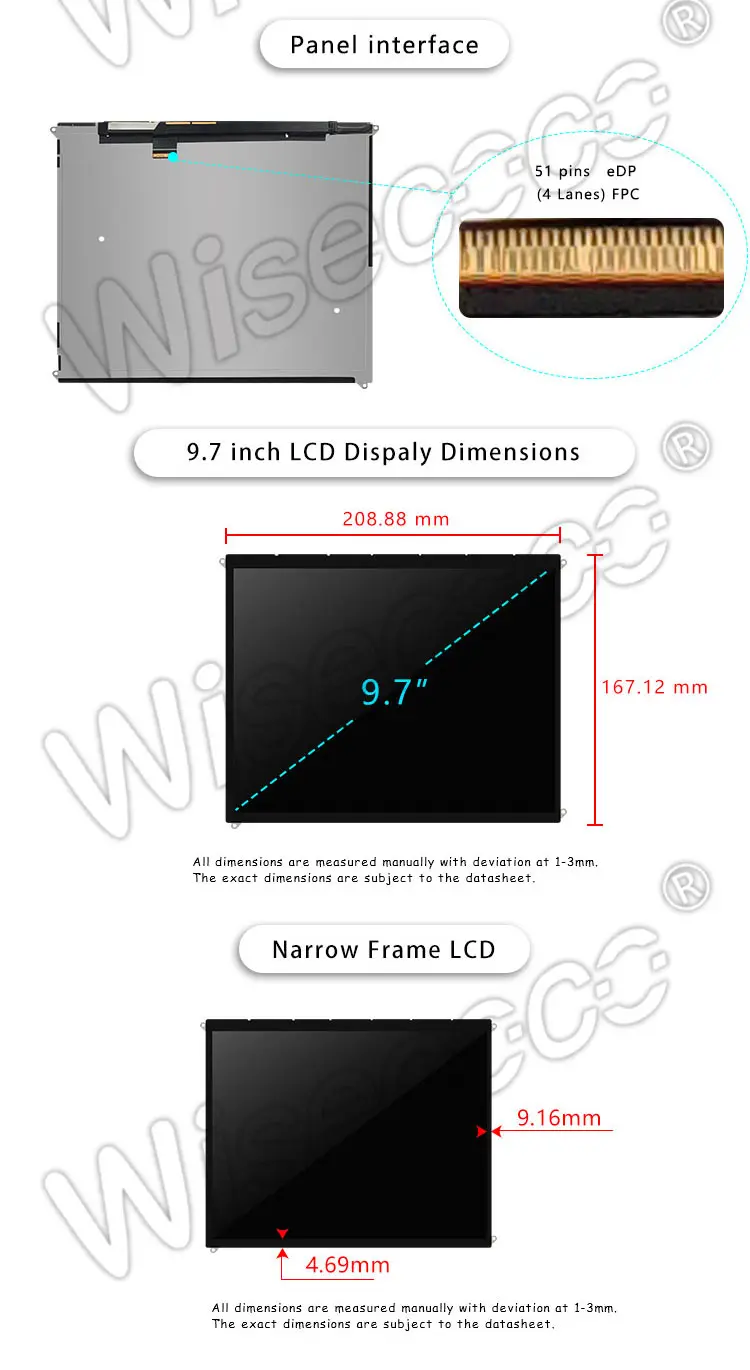

| Active Area | 196.608 × 147.456 (H×V) | Outline Dim. | 208.88 × 167.12 (H×V×D) |
| Bezel Area | 201.01 × 151.86 (H×V) | Treatment | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Luminance | 440cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 75% (CIE1931) | Light Source | WLED , 10K hours , No Driver |
| Frame Rate | 60Hz | Touch Panel | Available |
| Interface Type | eDP (4 Lanes) , FPC , 51 pins | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
Features:
- 2048×1536 QXGA Resolution — Sharp, high-density IPS panel delivers crisp detail for icons, text, and graphical interfaces.
- Wide Viewing Angle (89/89/89/89, CR≥10) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- 440cd/m² Brightness — Bright, clear display readable across a range of ambient lighting conditions.
- Hard Coating (3H) + Antireflection, 0% Haze — Scratch-resistant, glare-free surface treatment for enhanced clarity and durability.
- 16.7M Colors, 75% NTSC (CIE1931) — Rich, accurate color reproduction for vivid, true-to-life visuals.
- Touchscreen Available — Touch functionality available for interactive tablet applications.
Ideal for: Tablets & e-readers · Professional & creative tablet devices · High-resolution portable computing · Industrial touch panels · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
