- Size:9.7 inch
- Resolution:2048×1536
- Panel Interface:eDP (4 Lanes)
- Active Area:196.608(H)x147.456(V) mm
- Outline Dimension:208.88(H)x167.12(V) mm
- Viewing Angle :89/89/89/89 (Typ.)(CR≥10)
- Brightness :440cd/m²(Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

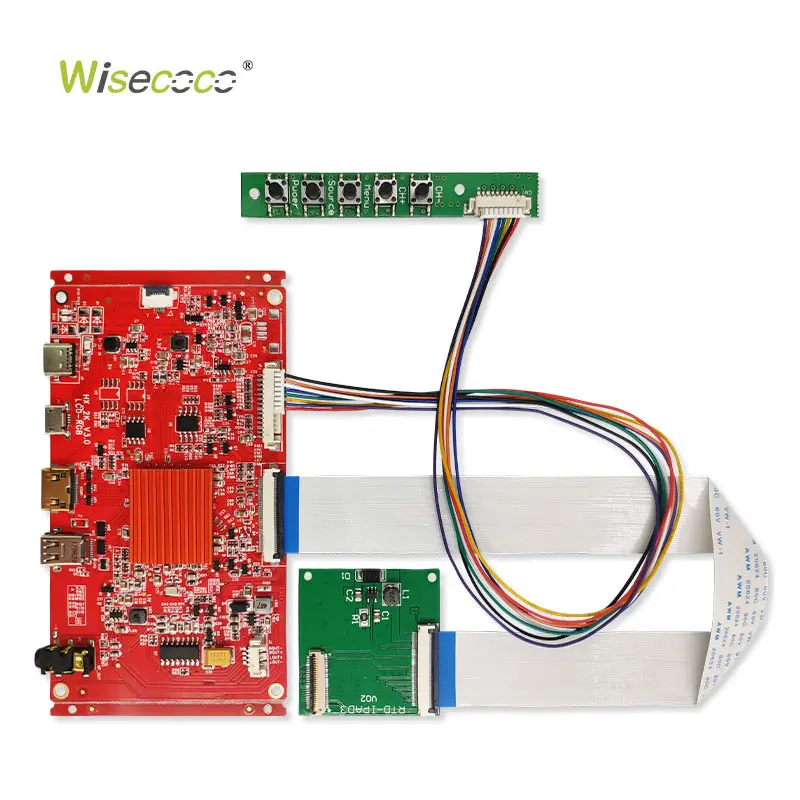

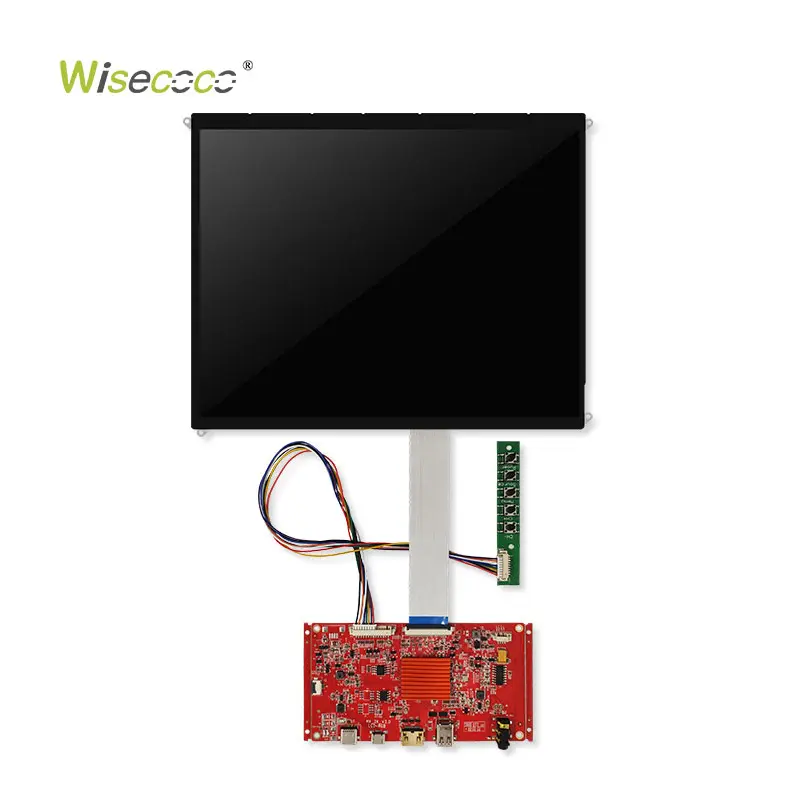

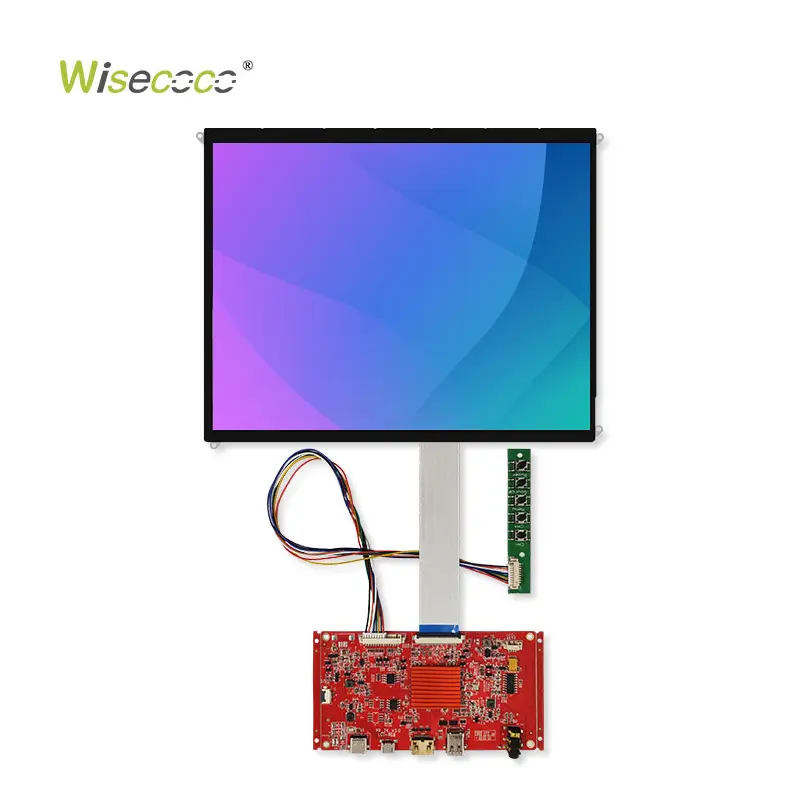

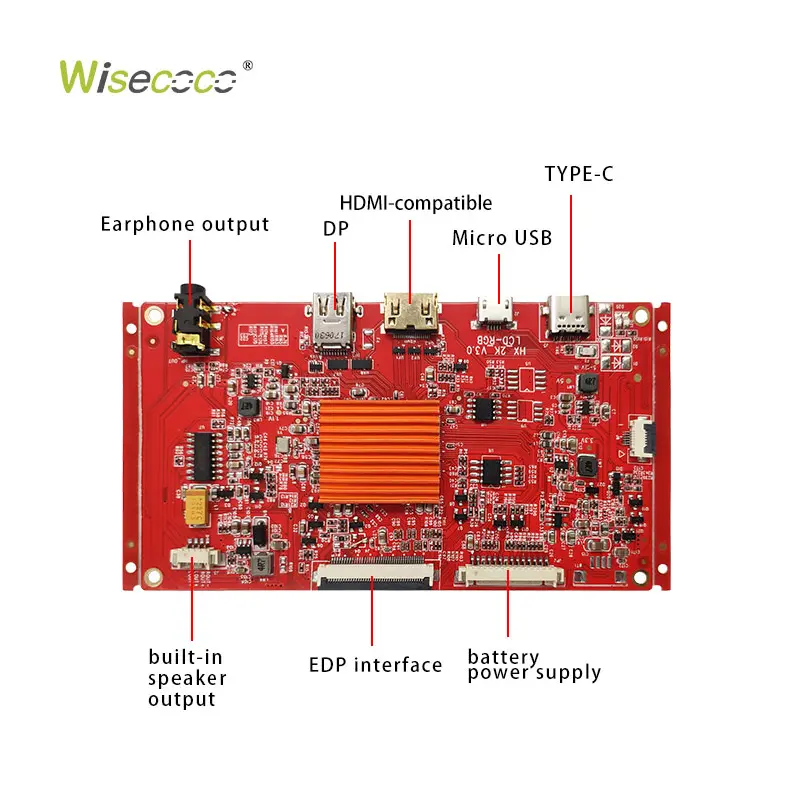

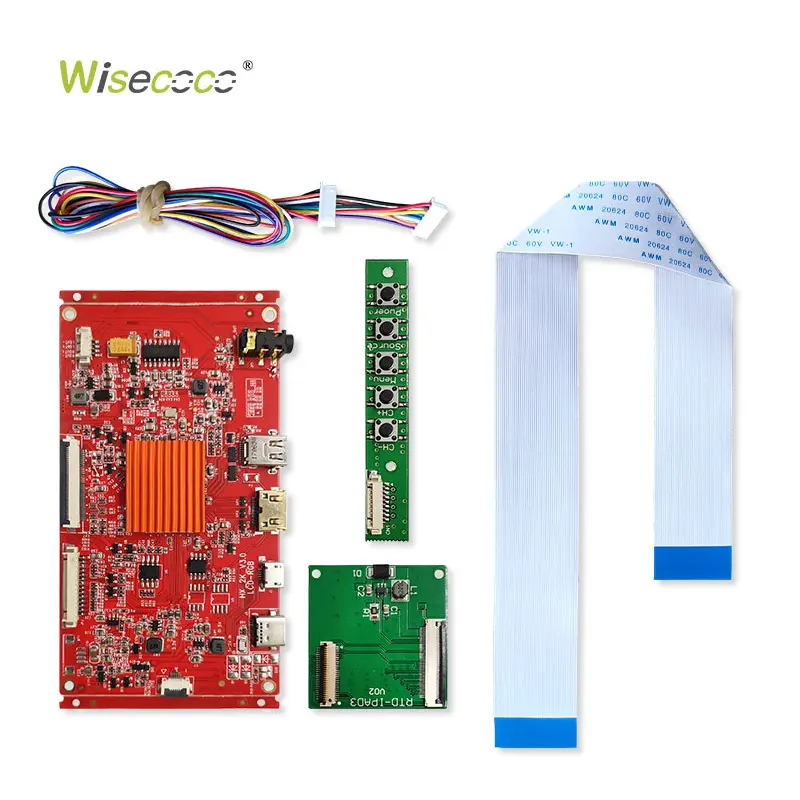

9.7 Inch TFT LCD Display 2048×1536 2K High Resolution EDP IPS LCD Module with Driver Board
$85.00
9.7″ IPS QXGA LCD Display — 2048×1536 | eDP | Hard Coating (3H) + Antireflection
9.7-inch IPS TFT LCD display delivering sharp 2048(RGB)×1536 QXGA resolution with symmetrical wide viewing angle (89/89/89/89) and premium hard coating (3H) with antireflection surface treatment. Featuring 440cd/m² brightness, a 600:1 contrast ratio, and eDP interface, this display is built for high-resolution tablet and professional visual applications.
|
Panel Size
|
9.7 inch
|
Panel Type
|
a-Si TFT-LCD, LCM
|
|
Resolution
|
2048(RGB)*1536 [QXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
196.608(H)*147.456(V) mm
|
Outline Dim.
|
208.88(H)*167.12(V) mm
|
|
Bezel Area
|
201.01(H)*151.86(V) mm
|
Contrast Ratio
|
600:1 (Typ.) (TM)
|
|
Brightness
|
440 Cd/m² (Typ.)
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
View Direction
|
Symmetry
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Light Source
|
WLED , 10K hours , W/O Driver
|
|
Frequency
|
60 Hz
|
Touch Screen
|
Without
|
|
Weight
|
140g (Max.)
|
Power Supply
|
3.3V (Typ.)
|
|
Interface Type
|
51 pins eDP (4 Lanes) , FPC
|
||
|
Treatment
|
Glare (Haze 0%), Hard coating (3H), Antireflection
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
Features:
- 2048×1536 QXGA Resolution — Sharp, high-density IPS panel delivers crisp detail for icons, text, and graphical interfaces.
- Wide Viewing Angle (89/89/89/89, CR≥10) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- Hard Coating (3H) + Antireflection, 0% Haze — Scratch-resistant, glare-free surface treatment for enhanced clarity and durability.
- 600:1 Contrast Ratio — Reliable dynamic range for clear, well-defined imagery.
- 440cd/m² Brightness — Bright, clear display readable across a range of ambient lighting conditions.
Ideal for: Tablets & e-readers · Professional & creative tablet devices · High-resolution portable computing · Industrial display integration · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
