- Size:9 inch
- Resolution:800×480
- Panel Interface:50 Pins TTL
- Active Area:198(H)×111.696(V) mm
- Outline Dimension:211.1(H)×126.5(V) mm
- Viewing Angle:70/70/50/70 (Typ.)(CR≥10)
- Brightness :250 cd/m² (Typ.)
- Operation / Storage Temp:-20~70°C / -30~80°C

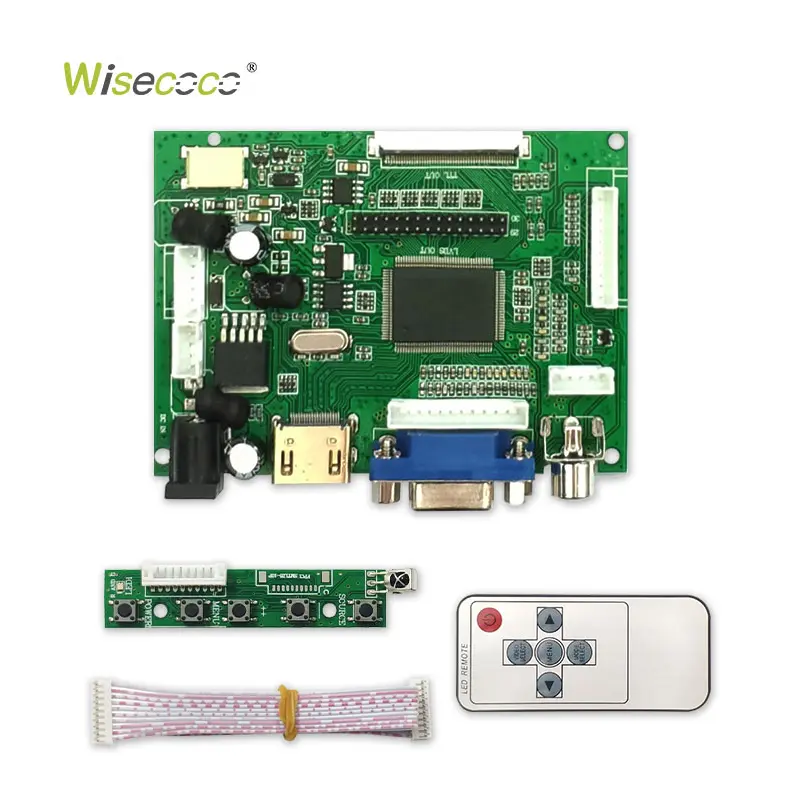

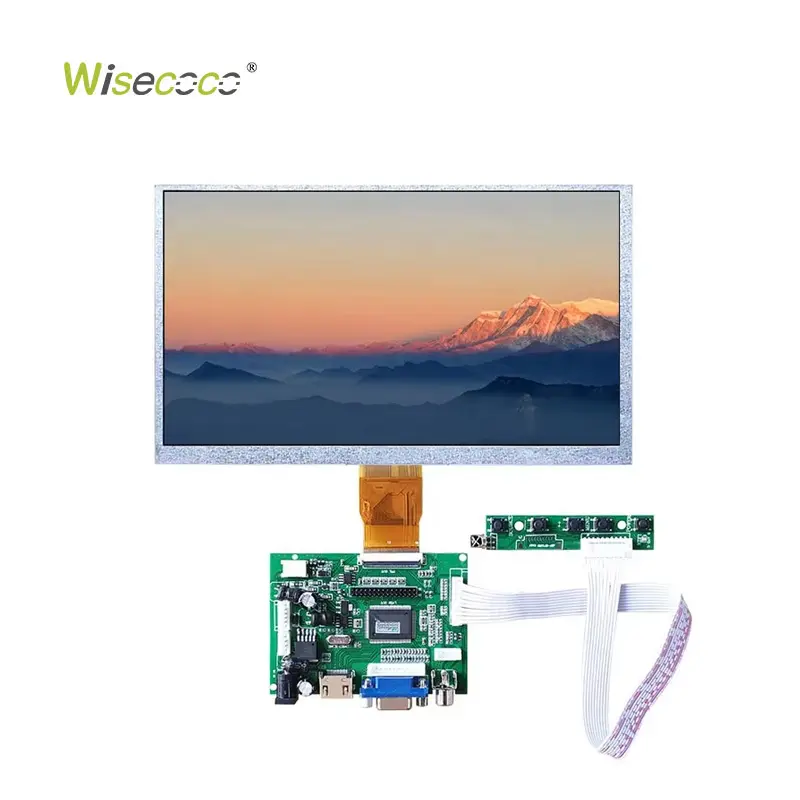

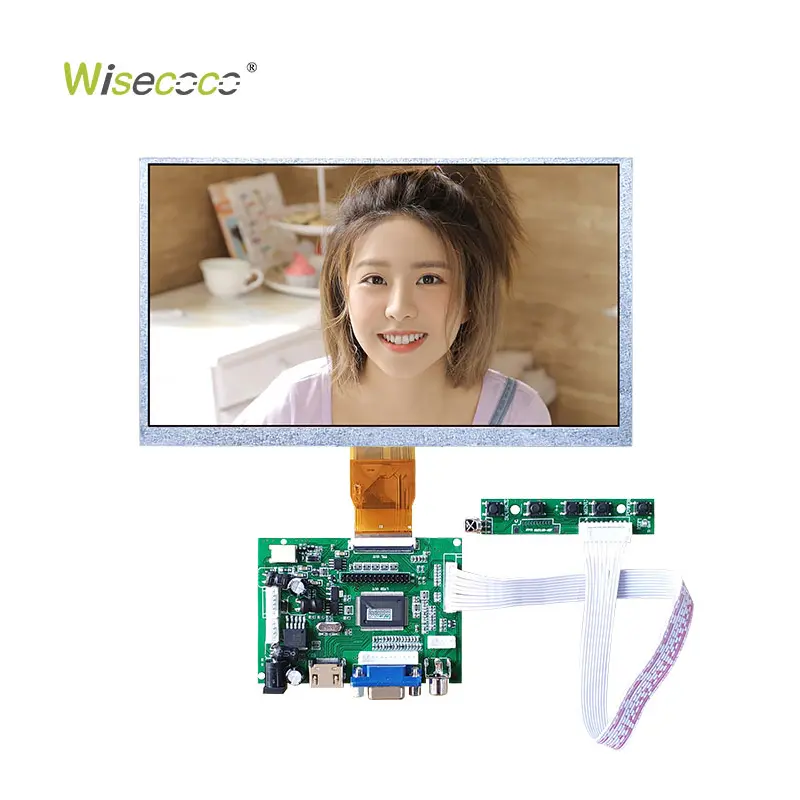

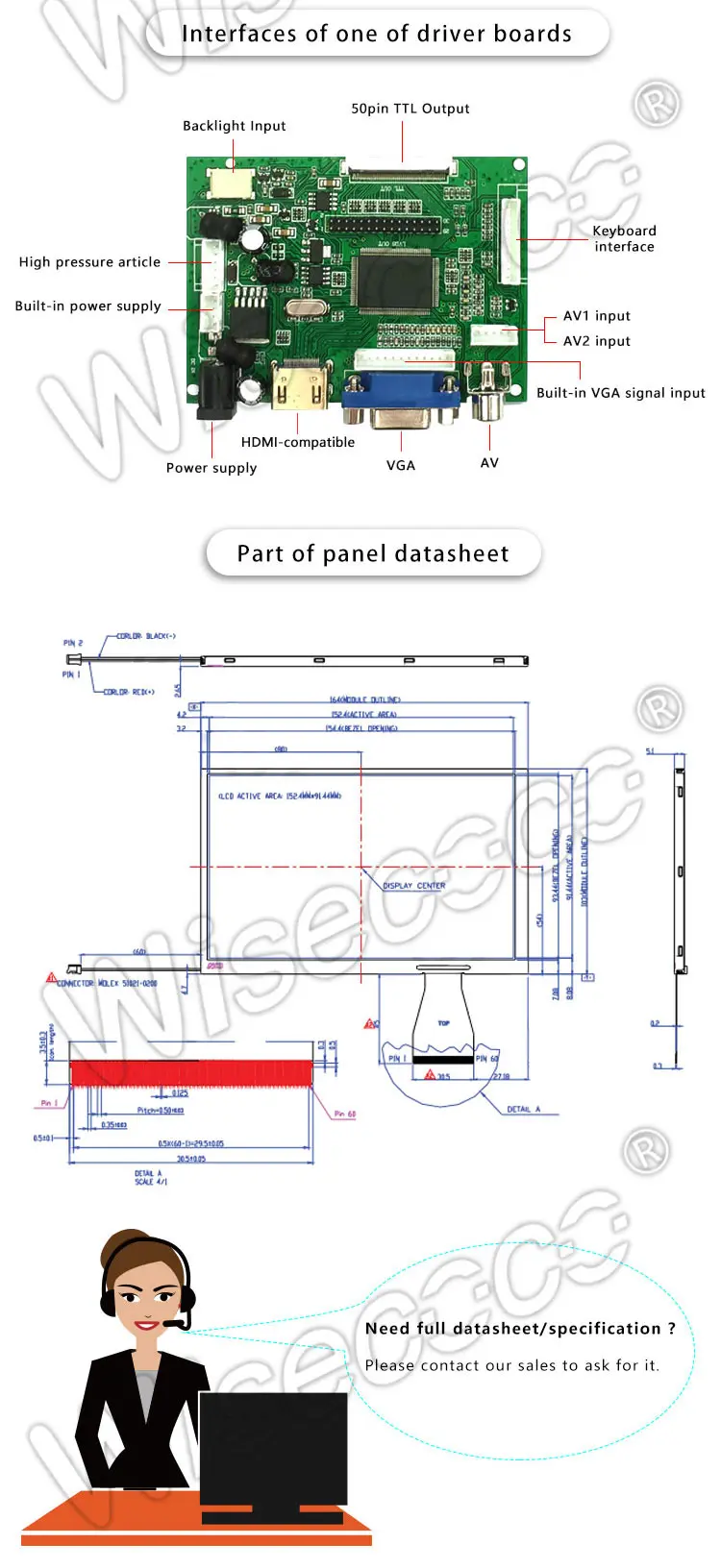

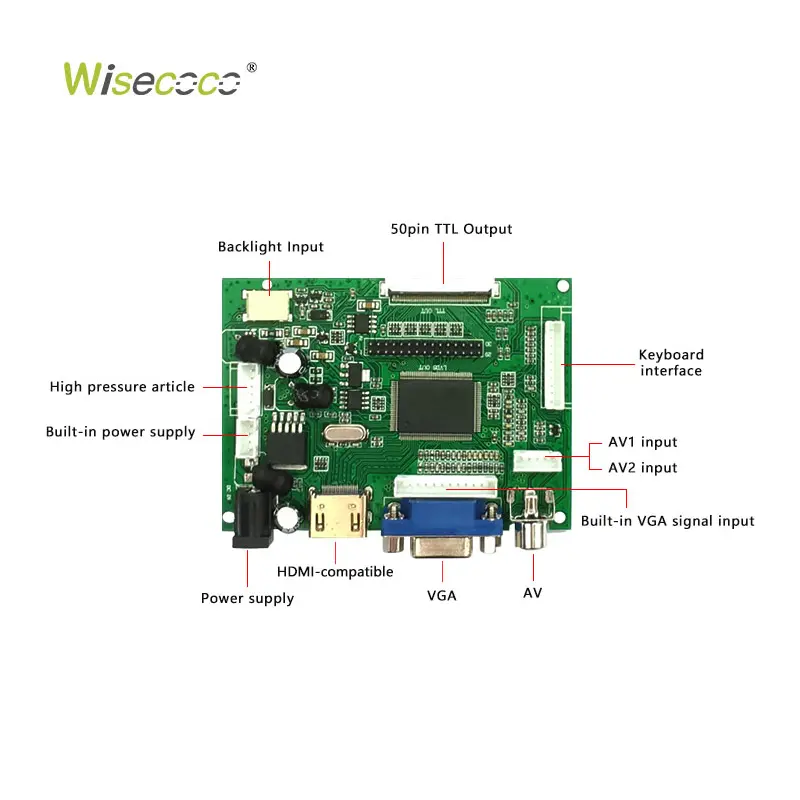

9 Inch 800×480 Tft Lcd Display Panel Module with 50 Pin TTL FPC Connector Controller Board
$60.00

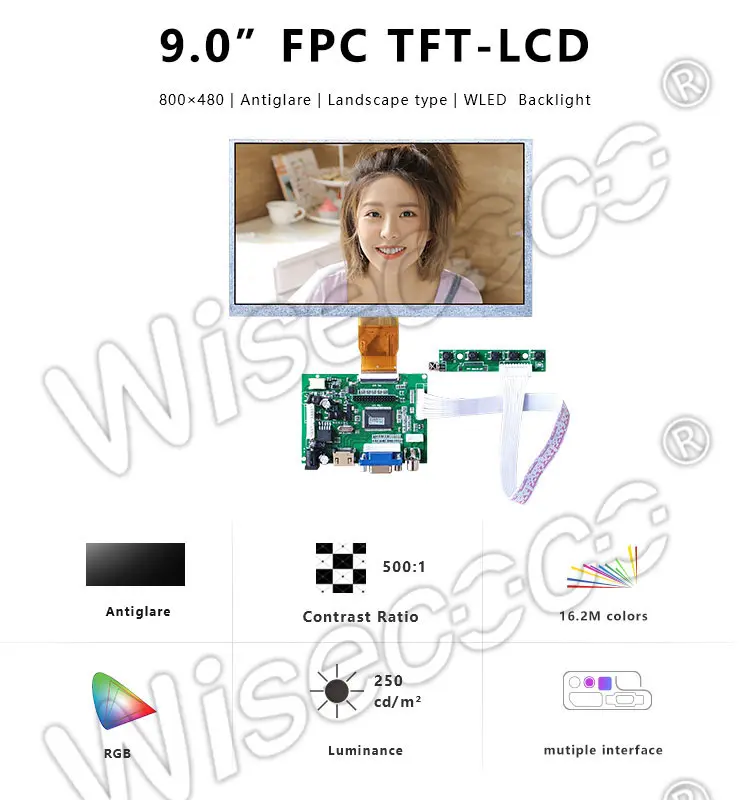

9.0″ TN LCD Display — 800×480 | 250 cd/m² | TTL Interface

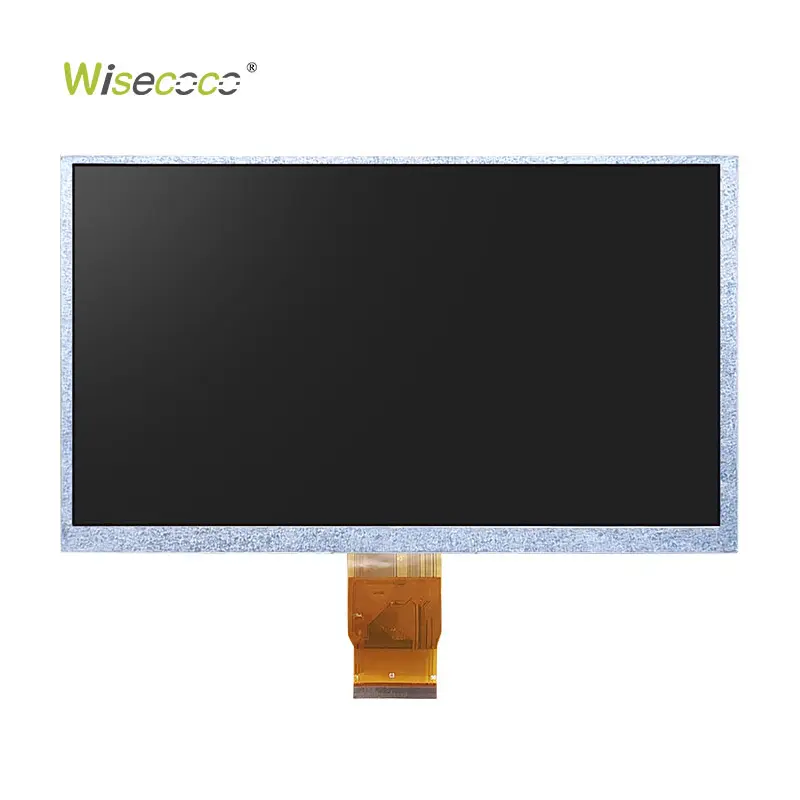

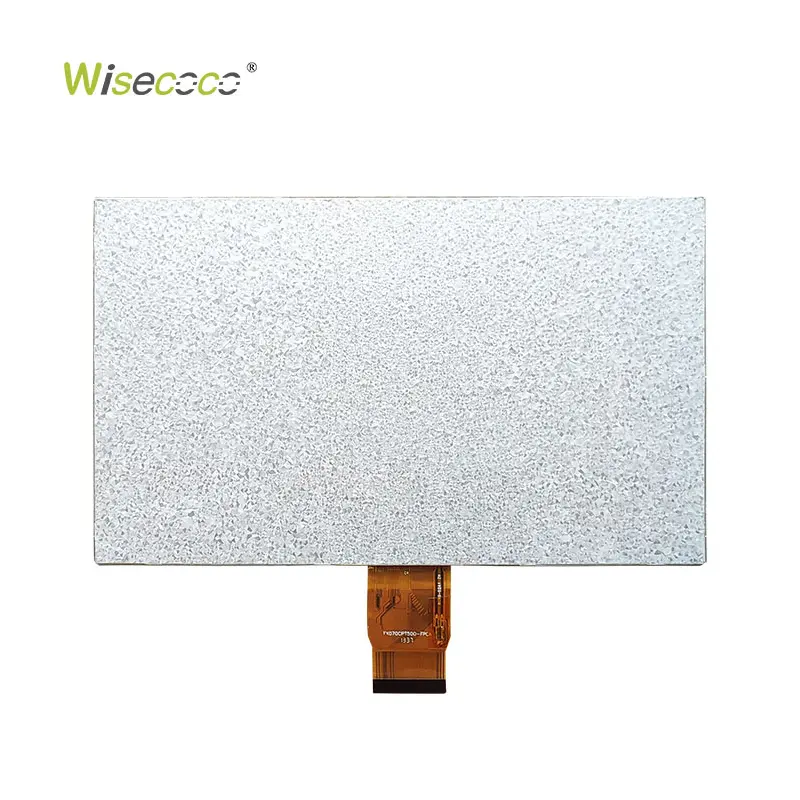

9.0 Inch FPC TFT-LCD Display is a WVGA panel featuring 800×480 resolution, 250 cd/m² brightness, and an antiglare surface. The display uses a 50-pin TTL interface (1 channel, 6/8-bit) via FPC, designed for portable DVD players and digital photo frames.
|
Diagonal Size
|
9.0 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
800(RGB)×480 [WVGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
198(H)×111.696(V) mm
|

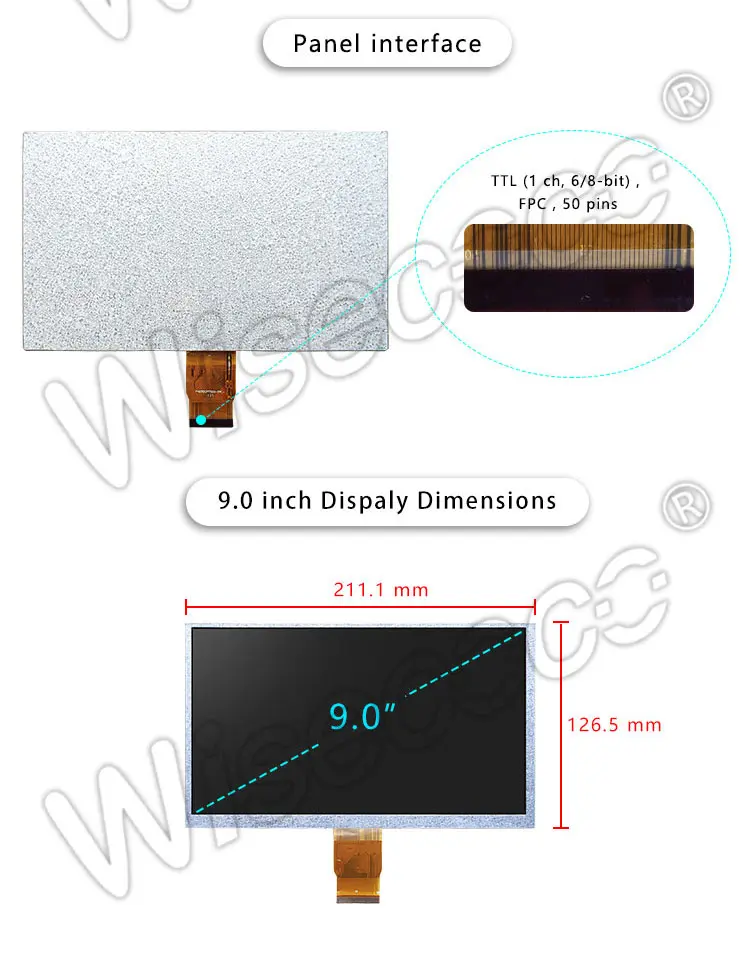

Outline Dim.
|
211.1(H)×126.5(V) mm
|
|
Bezel Area
|
201.0(H)×114.7(V) mm
|
Treatment
|
Antiglare
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
500:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
10/15 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
70/70/50/70 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
262K/16.2M
|
Light Source
|
WLED [3S11P] , 20K hours , W/O Driver
|
|
Weight
|
–
|
Designed For
|
Portable DVD Player;Digital Photo Frame
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
without
|
|
Interface Type
|
50 pins TTL (1 ch, 6/8-bit) , FPC
|
||
|
Power Supply
|
3.3/10.4/16.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)
|
||
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
|
||
Features:
- 800×480 WVGA Resolution — Standard resolution suited to compact portable device screens.
- Antiglare Surface — Reduces reflections for improved readability.
- 500:1 Contrast Ratio — Solid dynamic range for defined imagery.
- TTL Interface (50-Pin FPC) — Standard connection for portable media device driver boards.
- Wide Operating Temperature (-20~70°C) — Reliable performance across varied environments.
Ideal for: Portable DVD players · Digital photo frames · Compact embedded media devices
