- Size:8.9 inch
- Resolution:2560×1600
- Panel Interface:MIPI
- Active Area:192x120mm
- Outline Dimension:197(H)x129.78(V) mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Without Backlight

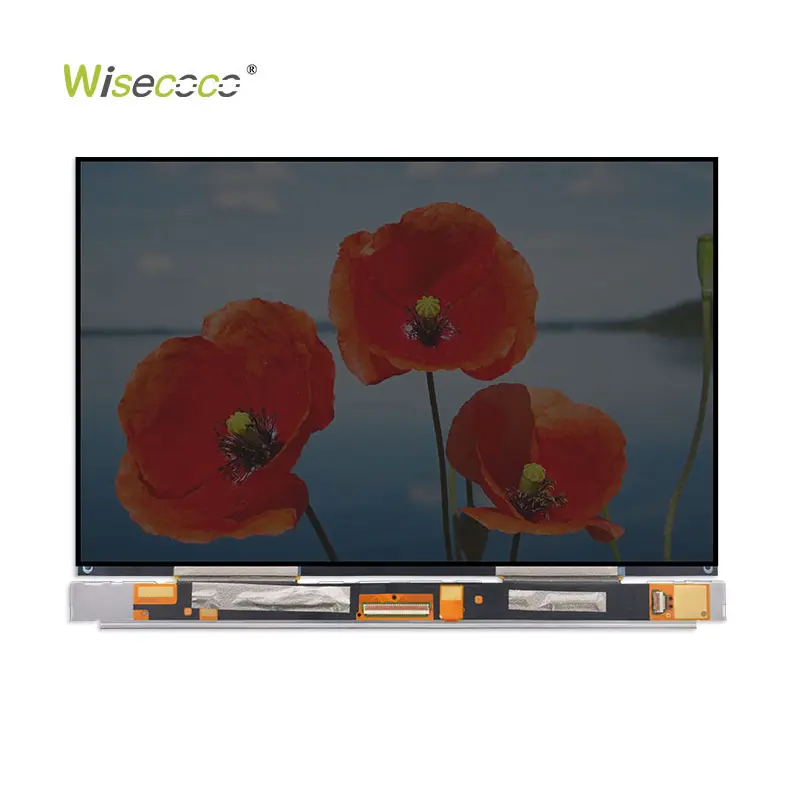

8.9 Inch 2560×1600 2k Ips Tft Lcd Display Panel Backlight Removed for 3d Printer Screen
$65.00
8.9″ 2K IPS LCD Display — 2560×1600 | 1200:1 Contrast | MIPI Interface | Backlight Removed
8.9″ 2K IPS LCD Display is an LTPS WQXGA panel featuring 2560×1600 resolution, full 80/80/80/80 viewing angle, and a 1200:1 contrast ratio. Purpose-built for 3D printer LCD screen applications, this panel ships with its backlight removed and a glass layer fitted on the back, requiring an external light source (such as a UV module) to display an image.
|
Diagonal Size
|
8.9 inch
|
Type
|
LTPS TFT-LCD , LCM
|
|
Pixel Format
|
2560(RGB)×1600 (WQXGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
192(H)×120(V) mm
|
Outline Dim.
|
197(H)*129.78(V) mm
|
|
Luminance
|
–
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
–
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 72% (CIE1931)
|
Light Source
|
–
|
|
Weight
|
–
|
Designed For
|
3d printer lcd screen
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
–
|
|
Interface Type
|

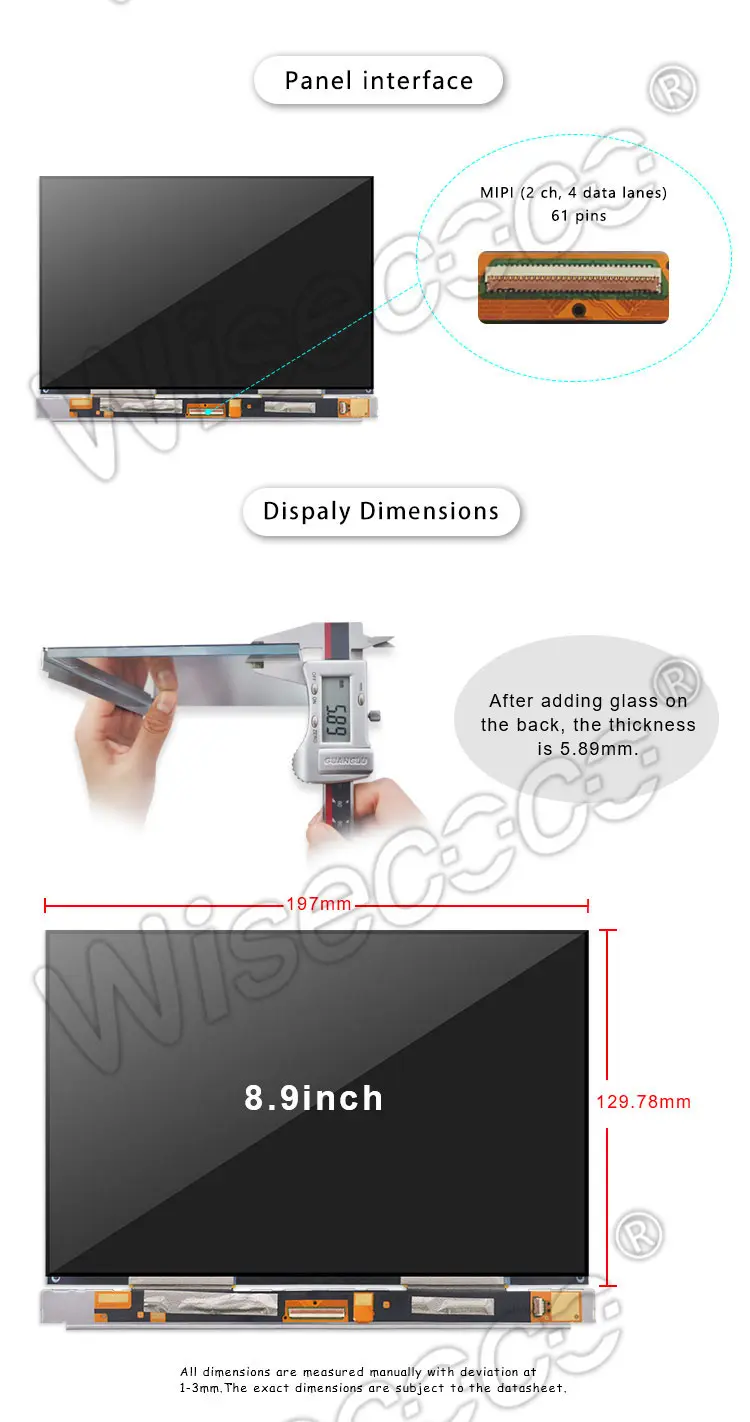

61 pins MIPI (2 ch, 4 data lanes) , Connector
|
||
|
Power Supply
|
1.8/3.3V (Typ.)(VDDIO/VBAT)
|
||
|
Environment
|
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C
|
||
Features:
- 2560×1600 WQXGA LTPS IPS Panel — Delivers exceptionally sharp, detailed visuals in a compact 8.9″ size.
- 80/80/80/80 Full Viewing Angle — Consistent color and contrast from virtually any position.
- 1200:1 Contrast Ratio — Strong dynamic range for crisp, well-defined imagery.
- 16.7M Colors, 72% CIE Gamut — Rich, accurate color reproduction.

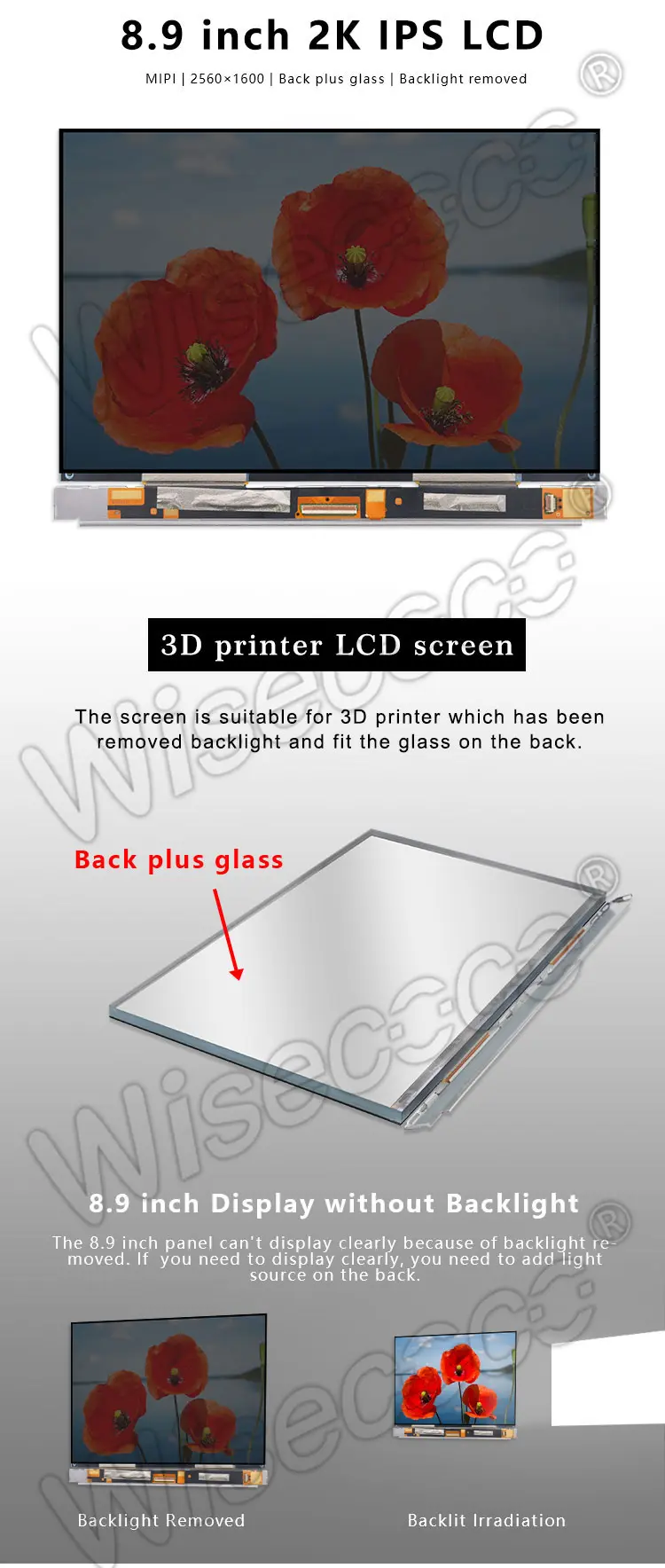

- Backlight Removed, Back Plus Glass — Purpose-modified for 3D printer integration, with a glass layer fitted on the back in place of the original backlight.
Ideal for: Resin 3D printer LCD screens · Masking LCD replacement panels · Custom backlight-free display builds
Contact Wisecoco for custom high-resolution IPS display solutions
