- Size:7 inch
- Resolution:1280×768
- Panel Interface:LVDS (1 ch, 8-bit) + SPI
- Outline Dimension:207.78(H) x 118.49(V) x 11.87 (D) mm
- Active Area:152.448 × 91.4688 (H×V) mm
- Brightness(cd/m2):1200cd/m²
- Touchscreen:Optional CTP, RTP
- Operating Temperature: -40 ~ 85 °C
-4%

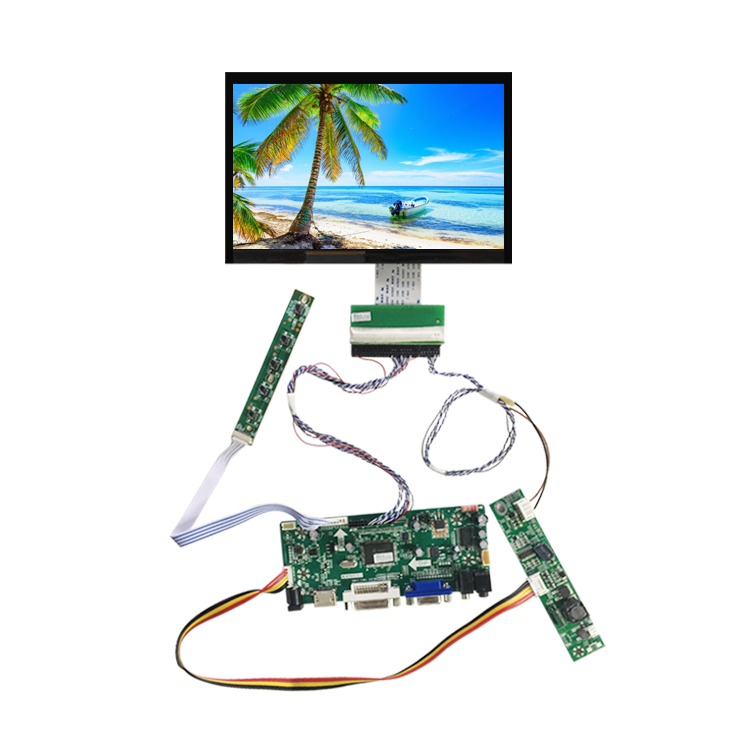

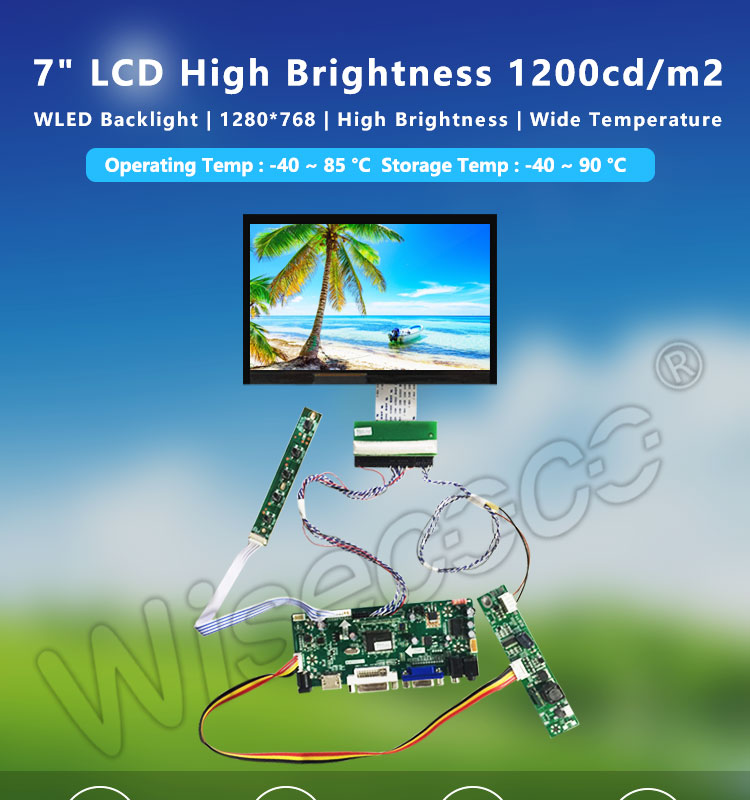

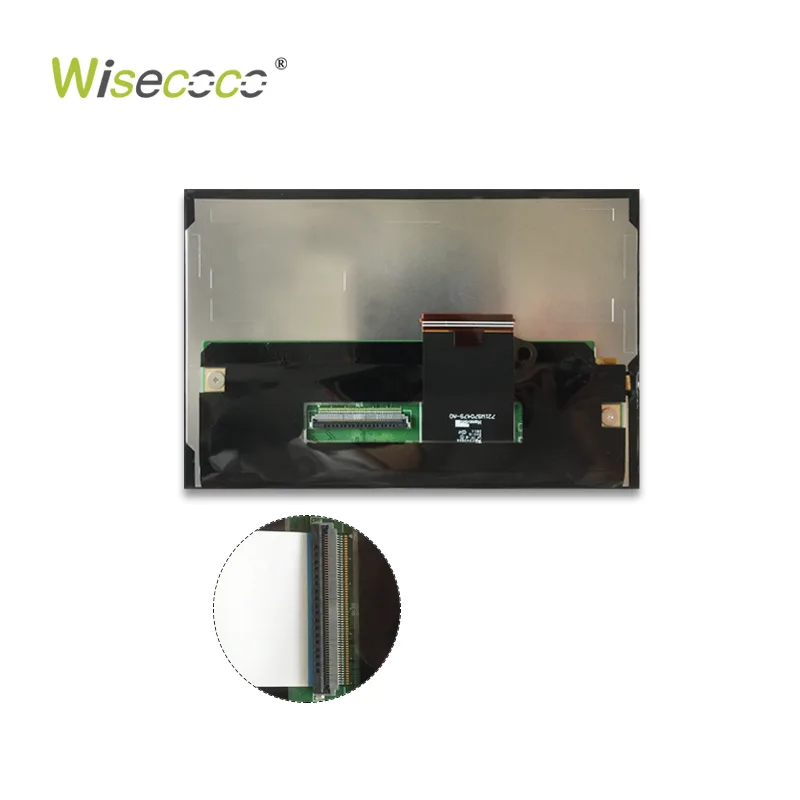

7 Inch 1280*768 1200nits TFT IPS LCD Display Module High Brightness Sunlight Readable Industrial Grade LCD Module for Automotive
Original price was: $135.00.$130.00Current price is: $130.00.

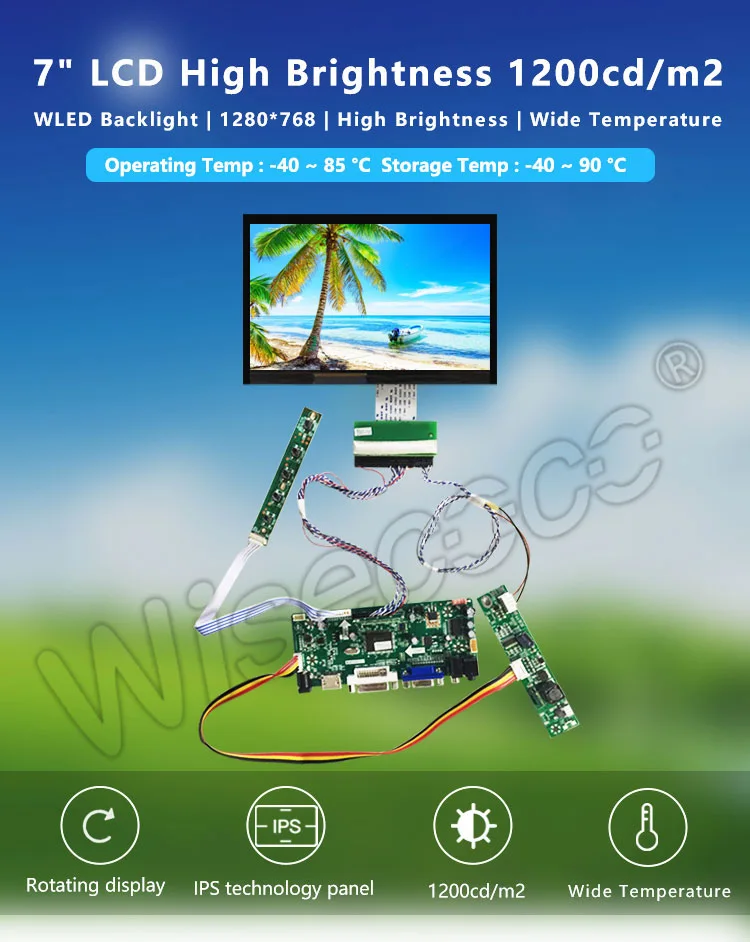

7″ High Brightness LCD Display — 1280×768 | 1200cd/m² | Wide Temperature | WLED
7-inch IPS LCD display delivering 1280×768 resolution with exceptionally high 1200cd/m² brightness for outdoor and high-ambient-light applications. Featuring extreme wide temperature tolerance, and a WLED backlight, this display gives builders flexible orientation control for demanding visibility-critical projects.
|

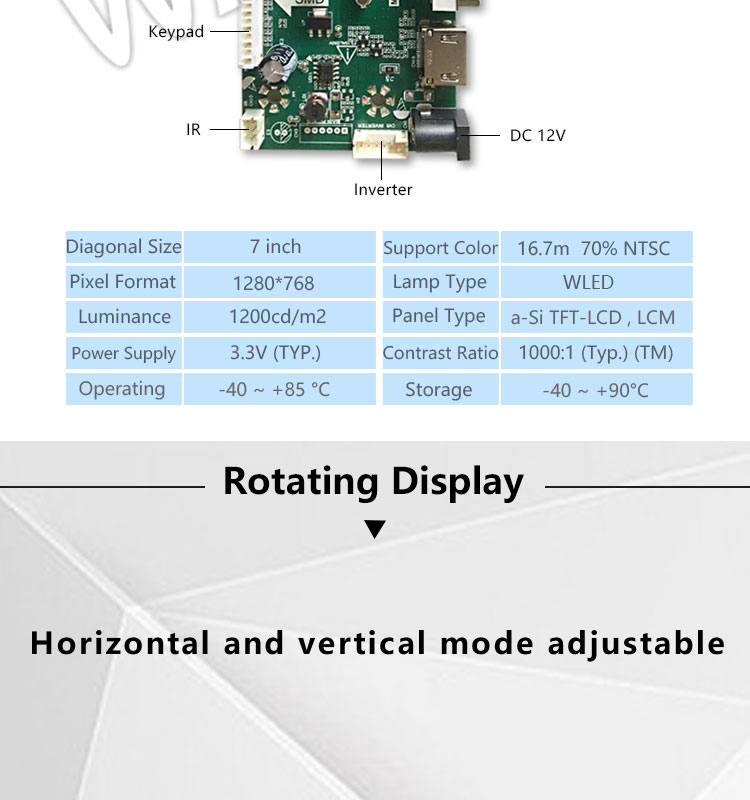

Diagonal Size
|
7 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Format
|
1280(RGB)×768 (WXGA) 213PPI
|
Configuration
|
RGB Vertical Stripe
|
|

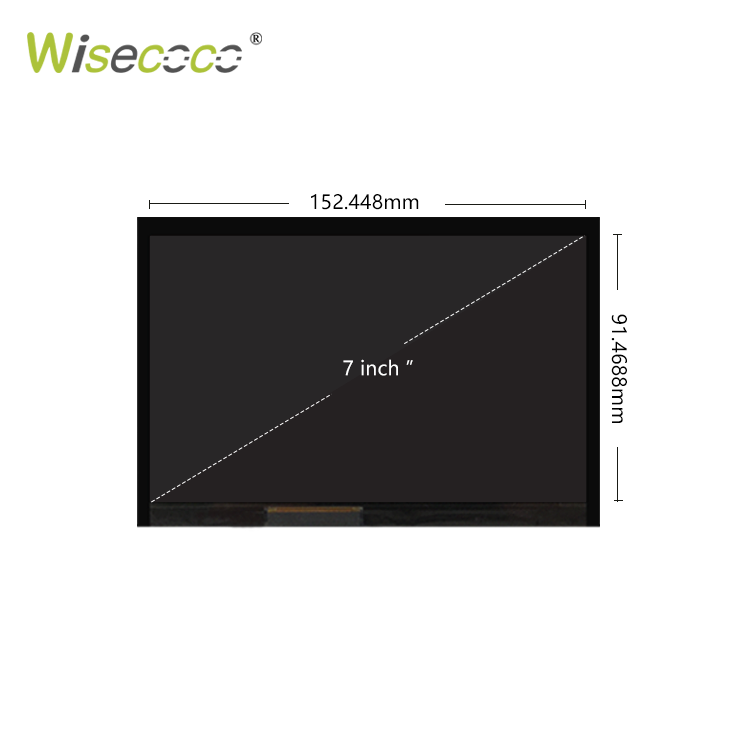

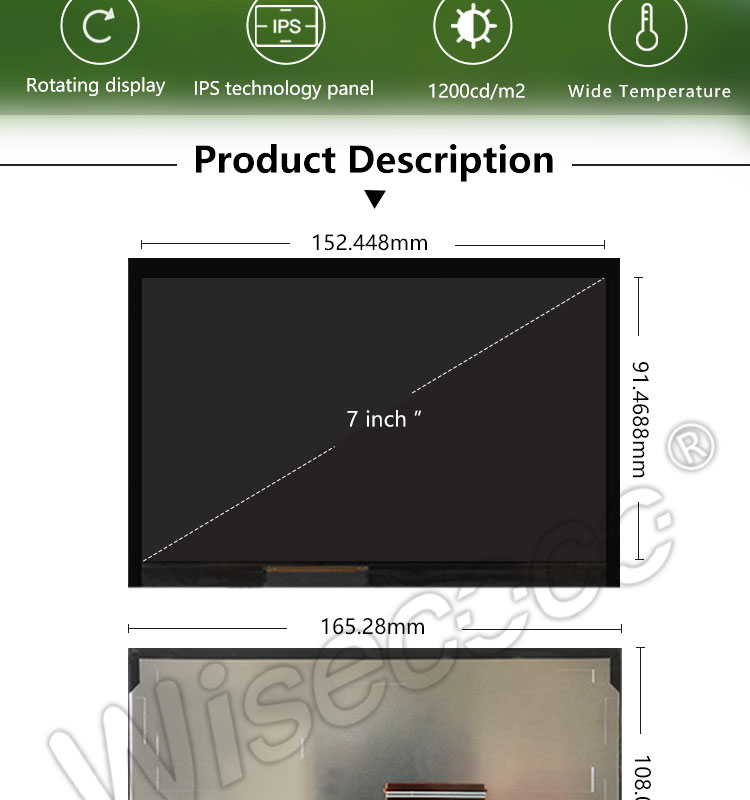

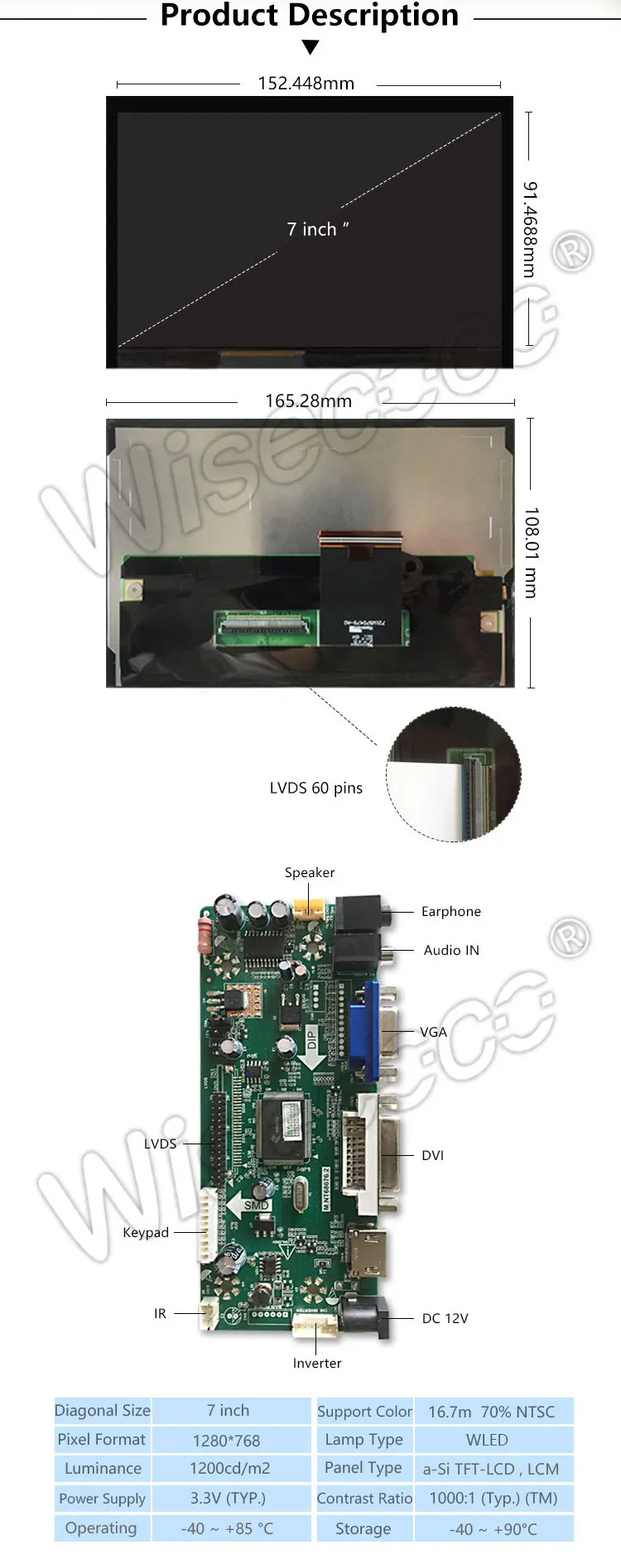

Active Area
|
152.448 × 91.4688 (H×V) mm
|
Surface treatment
|
AR/AF on ASF
|
|

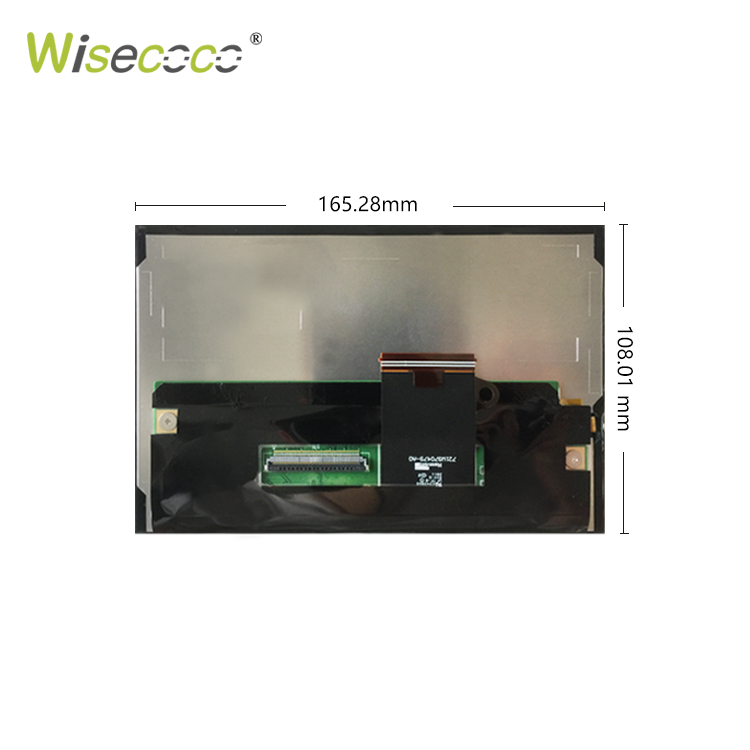

Outline Dimension (CL+LCM)
|
207.7854(H) x 118.4964(V) x 11.87 (D) (Typ., w/ component)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
Luminance
|
1200 cd/m² (Typ.)
|
Response Time
|
–
|
|
View Direction
|
Symmetry
|
Displya Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Viewing Angle
|
IFS Full viewing angle
|
Lamp Type
|
WLED
|
|
Support Color
|
16.7M
|
Designed For
|
Automotive display, Industrial grade display, Outdoor high brightness Advertising display
|
|
Weight
|
260(typ.)
|
Touch Panel
|
optional CTP, RTP
|
|

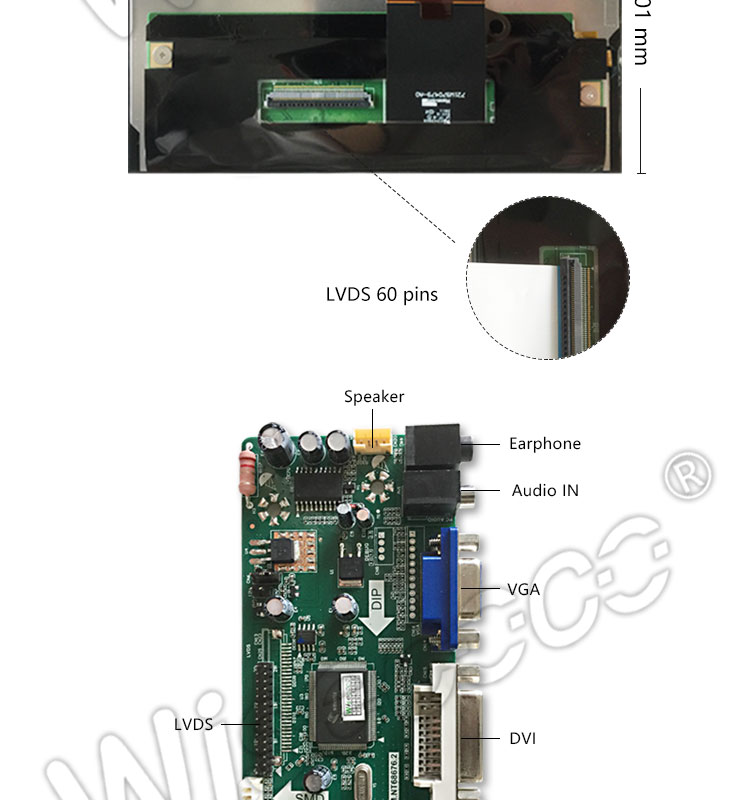

Interface Type
|
LVDS (1 ch, 8-bit) + SPI , 60 pins FPC
|
||
|
Voltage Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C
|
||
Features:
- 1280×768 Resolution — Clear, sharp imagery for icons, UI graphics, and video content.
- 1200cd/m² Ultra-High Brightness — Exceptional outdoor-readable brightness, ensuring visibility even in direct sunlight.
- Extreme Wide Operating Temperature Range — Operating -40~85°C, storage -40~90°C, reliable across the most demanding environments.
- WLED Backlight — Efficient, reliable illumination supporting the display’s high-brightness performance.
This 7 inch high brightness display can work in the wide temperature condition. ( Under -40 ~ 85 °C condition.)

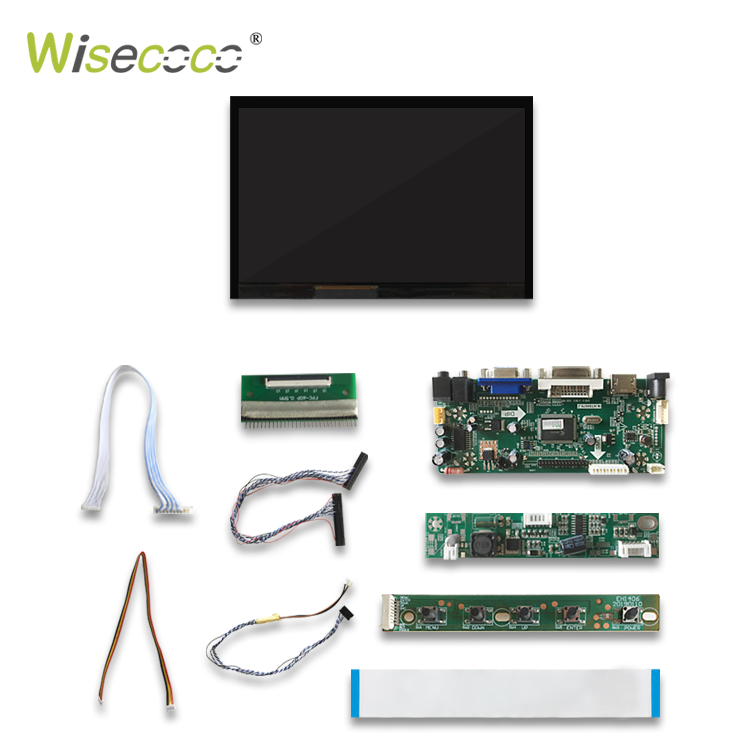

There are five buttons on the keyboard. The first one is for turn on or turn off. The other four buttons are menu, enter, “+” and”-” . You can adjust the brightness up to 1200cd/m2 by keyboard.
Application field:
1. Outdoor advertising display;
2. Automotive Vehicle-mounted & marine displays
3. Outdoor locker or Kiosk project;
4. Navigation console;
5. Embedded industrial equipment.
Welcome to contact us! We are willing to offer technical support.
