- Size:19 inch
- Resolution:1920×360
- Panel Interface:LVDS (2 ch, 8-bit)

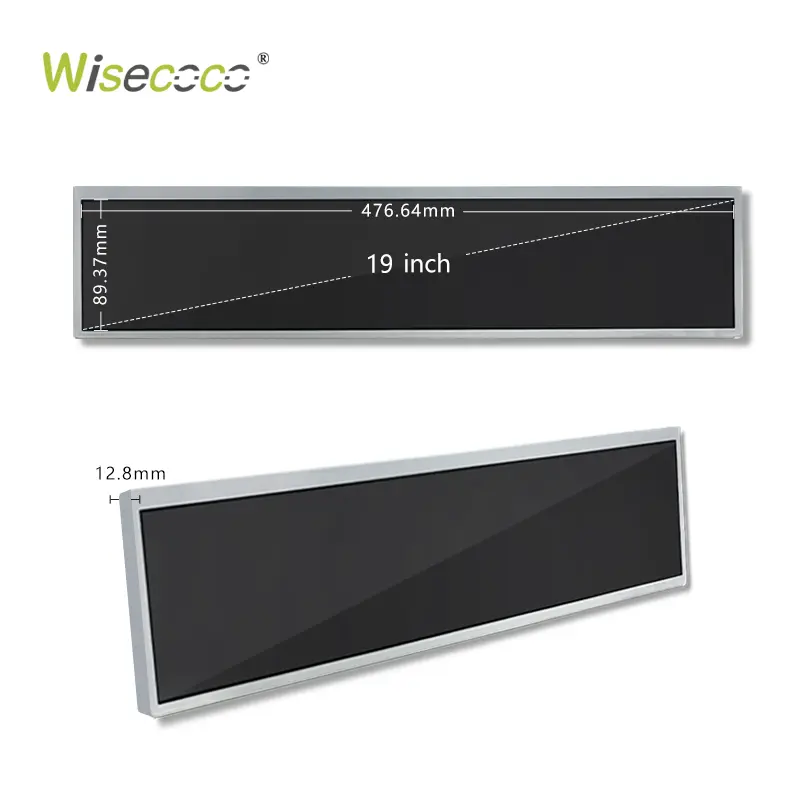

- Active Area:476.64(W)×89.37(H) mm

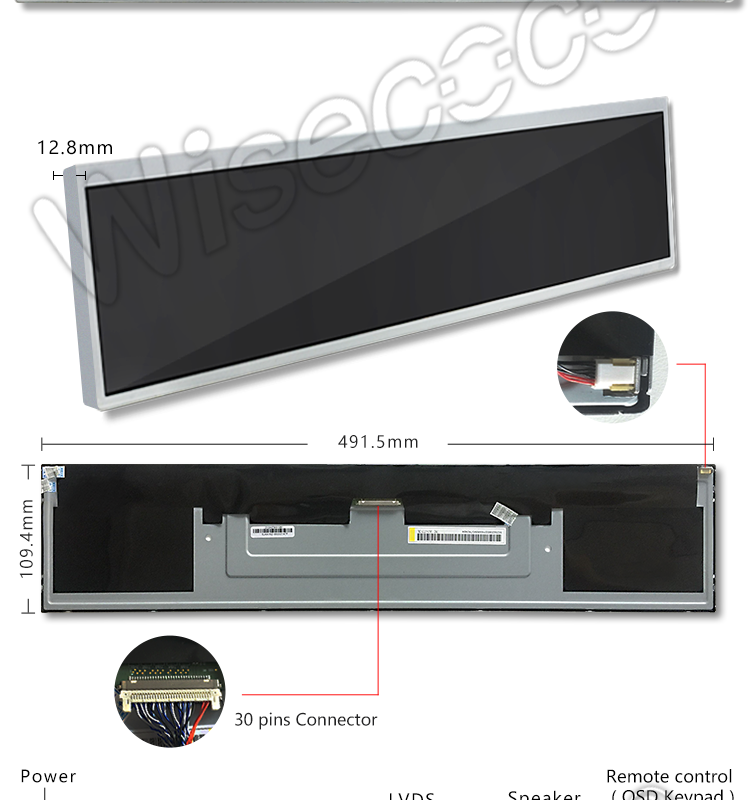

- Outline Dimension:491.5(W)×109.4(H) ×12.8(D) mm
- Viewing Angle :89/89/89/89 (Typ.)(CR≥10)
- Brightness :300 cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C
-17%

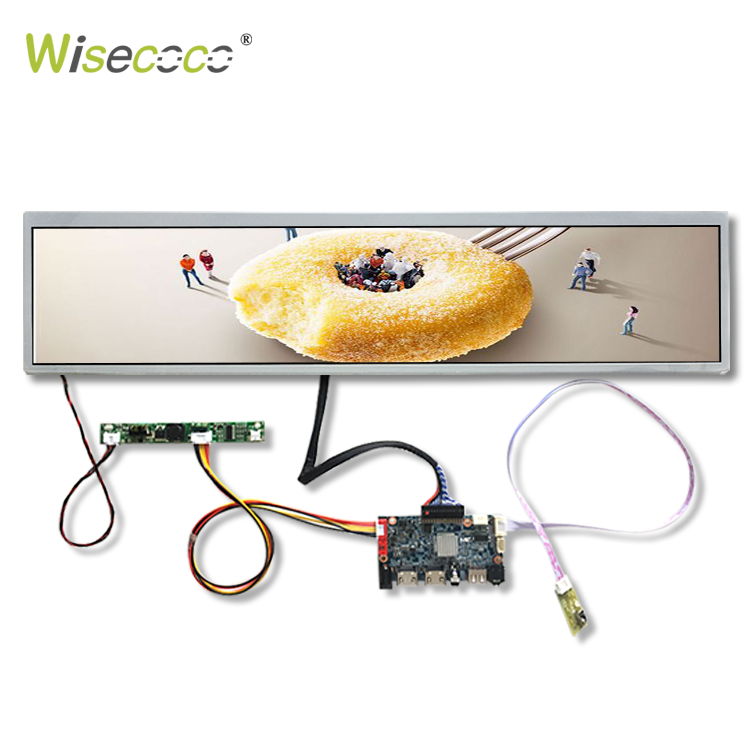

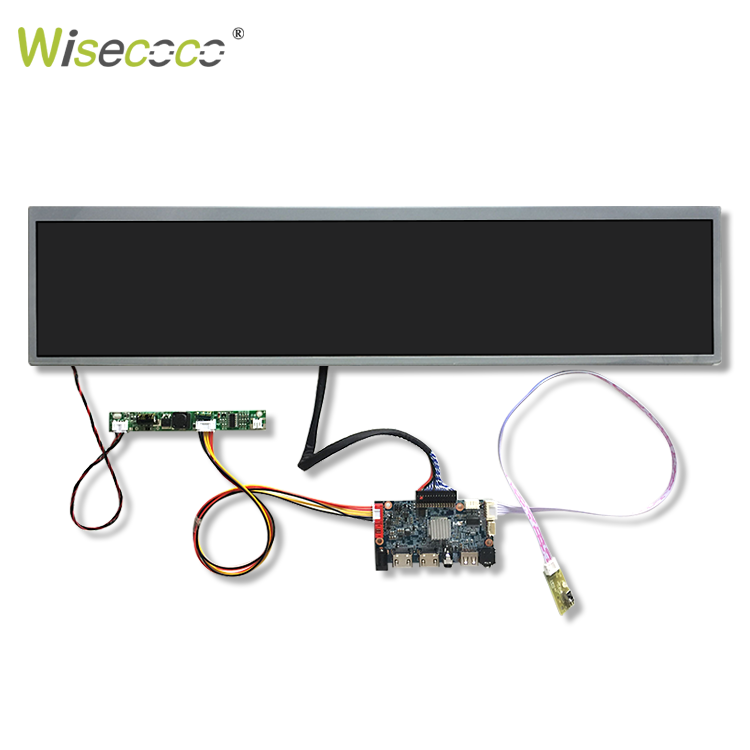

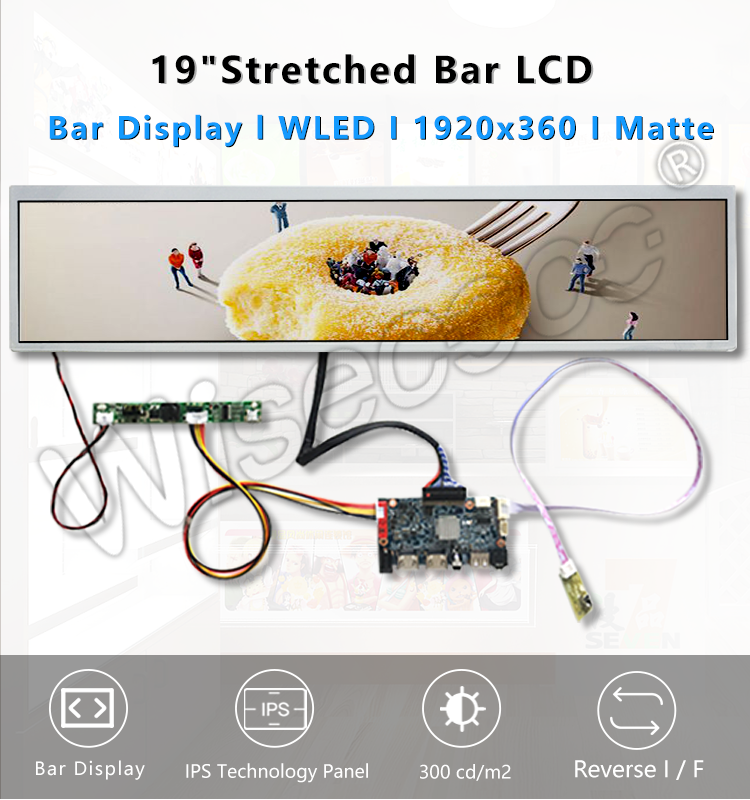

19 Inch 1920*360 IPS Panel LCD Display Arcade Cabinet 19″ Ultra-wide Aspect Ratio Digital Signage Advertising Display Screen
Original price was: $235.00.$195.00Current price is: $195.00.

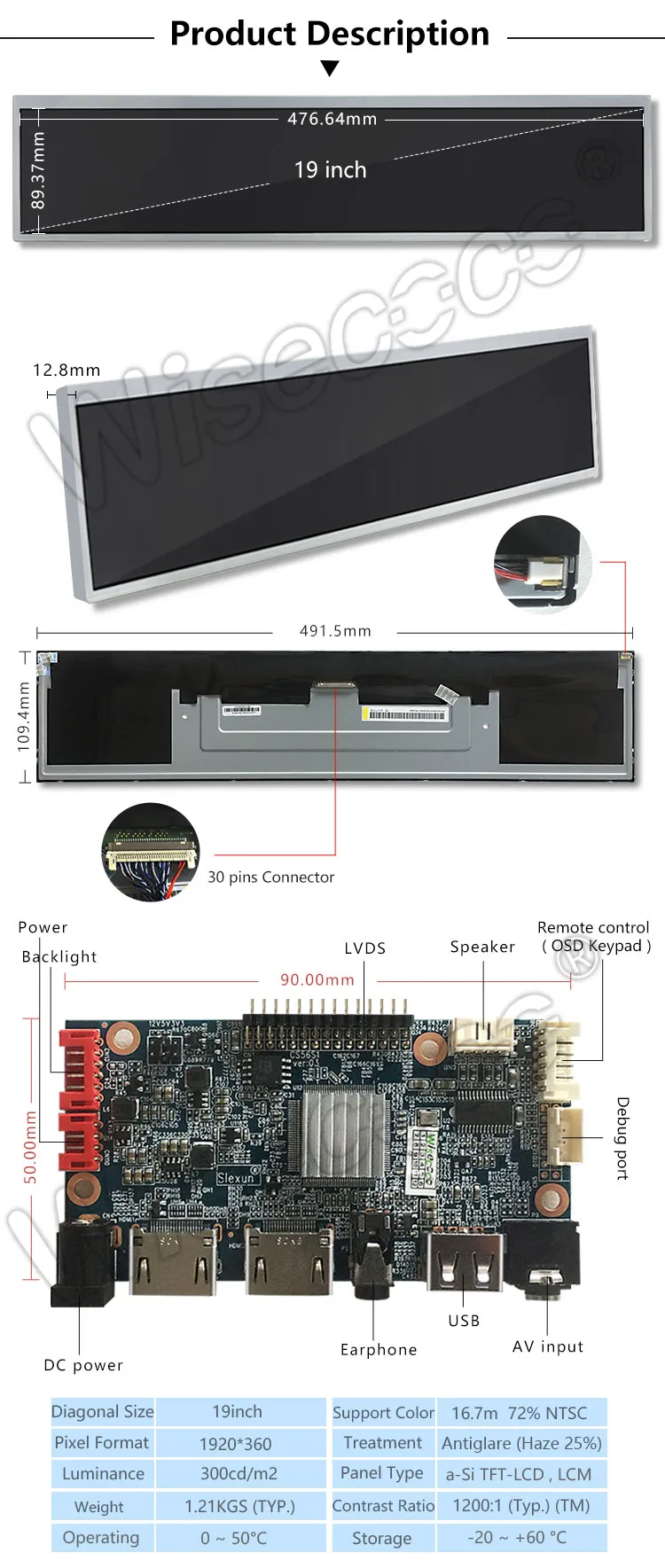

Product Specification
|
Diagonal Size
|
19 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Format
|
1920(RGB)×360
|
Configuration
|
RGB Vertical Stripe
|
|

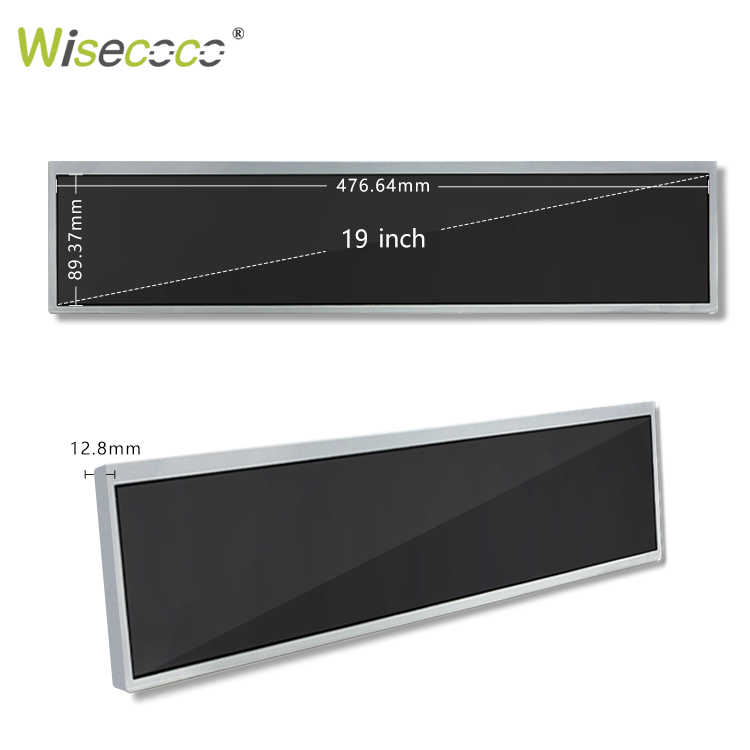

Active Area
|
476.64(W)×89.37(H) mm
|

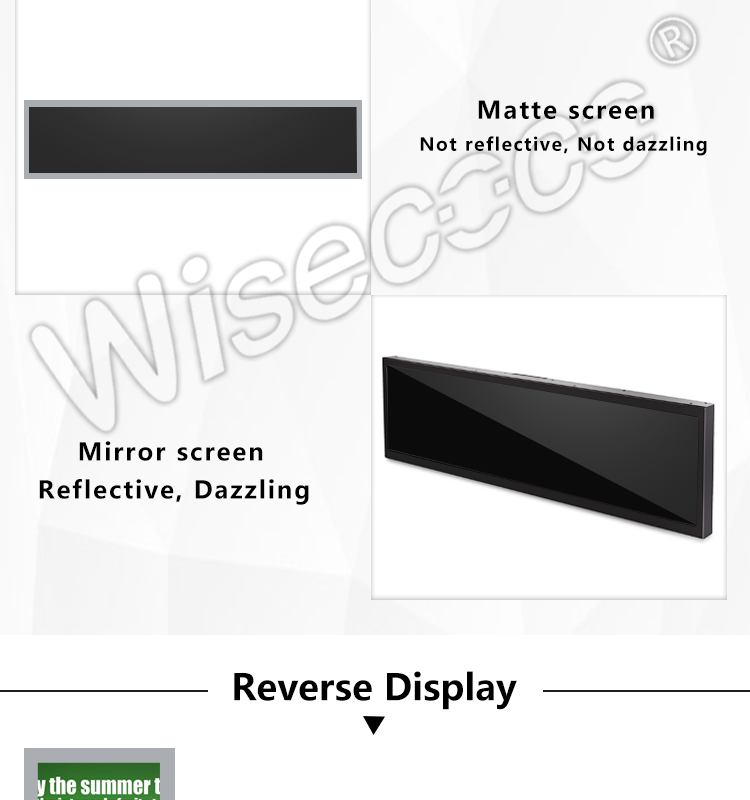

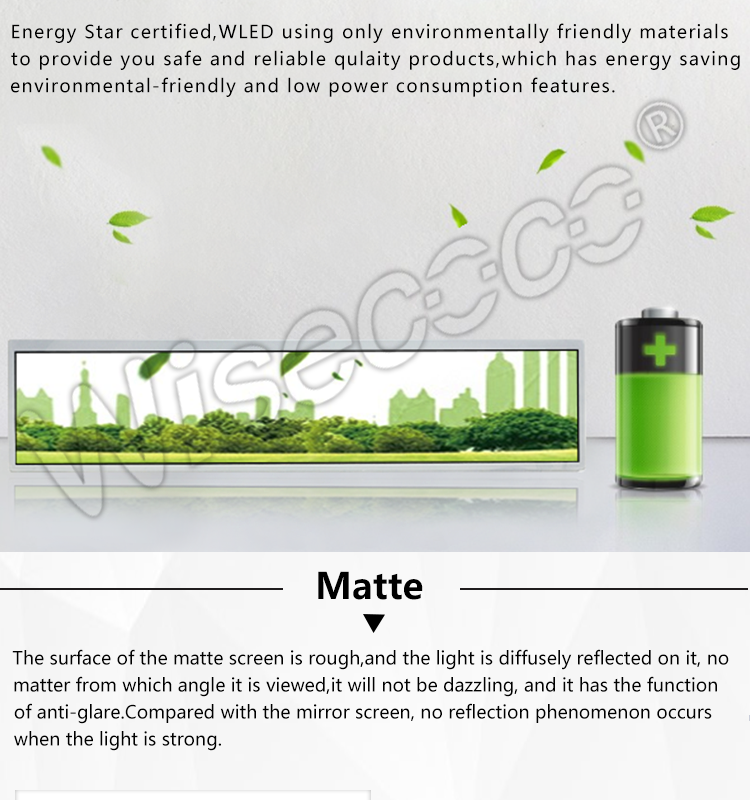

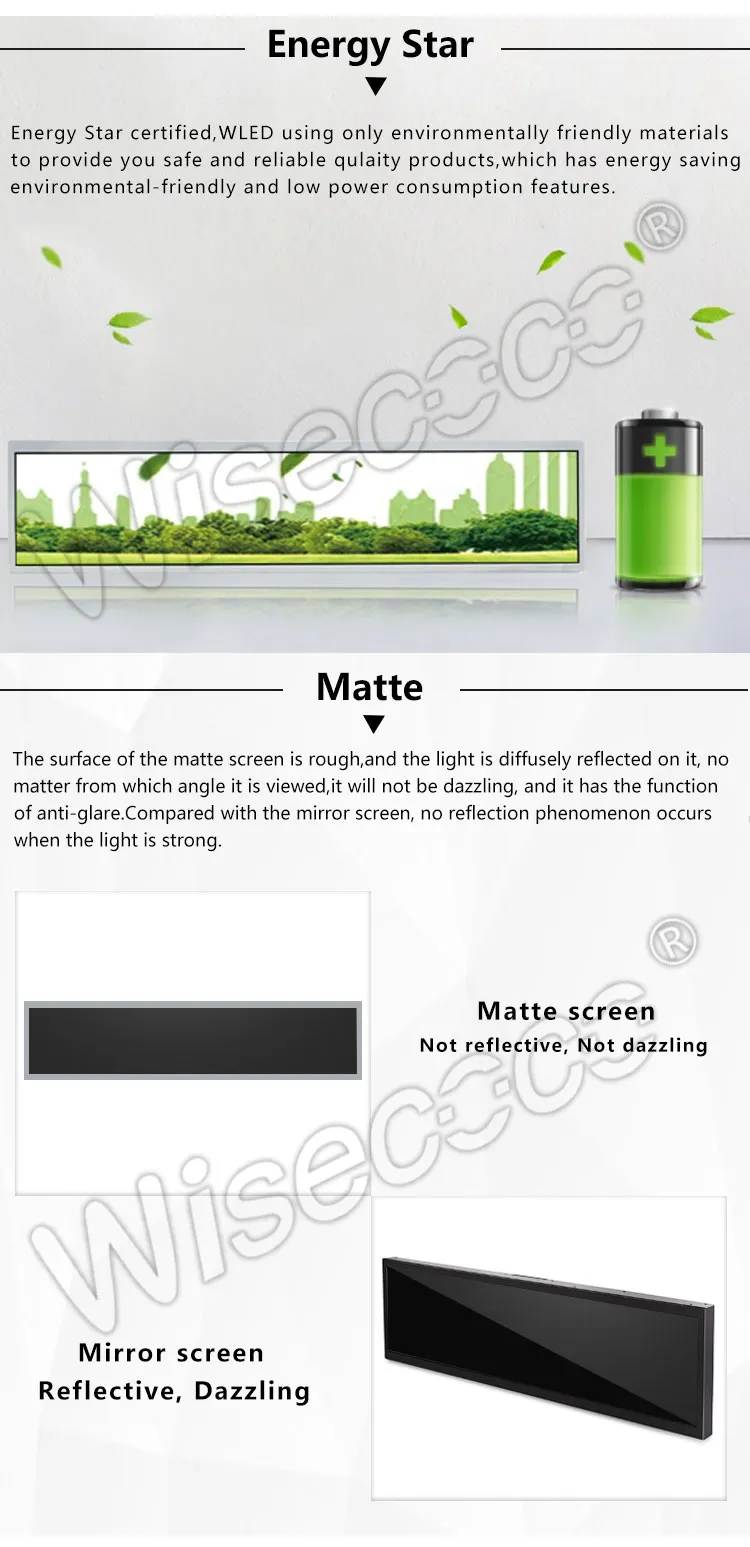

Surface
|
Antiglare (Haze 25%)
|
|

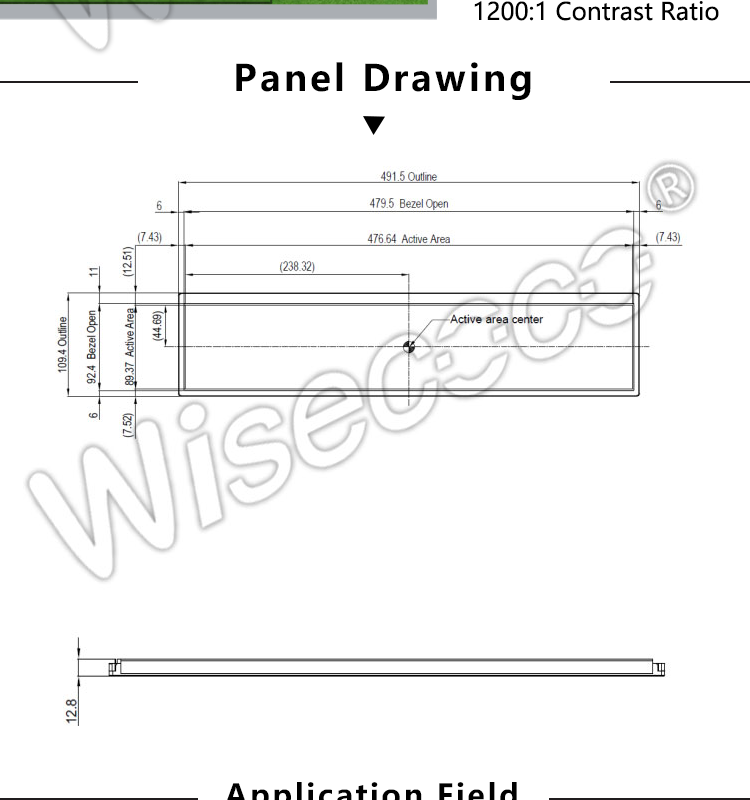

Outline Size
|
491.5(W)×109.4(H) ×12.8(D) mm
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
Luminance
|
300 cd/m² (Typ.)
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
View Direction
|
Symmetry
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Light Source
|
WLED , 30K hours , W/O Driver
|
|
Support Color
|
16.7M 72% NTSC
|
Designed For
|
Automotive display, Advertising display. Digital signage.stretch bar LCD.
|
|
Weight
|
780g (Typ.)
|
||
|

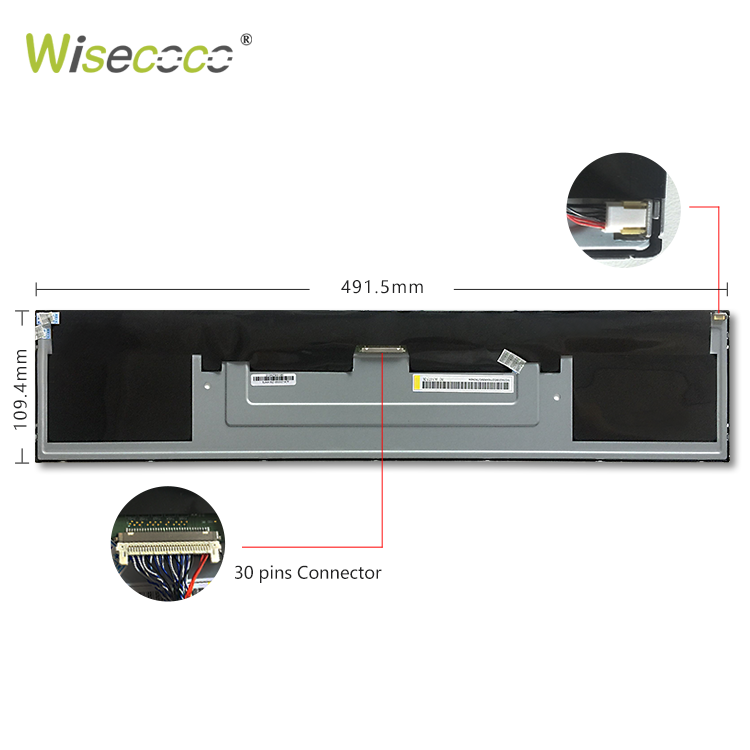

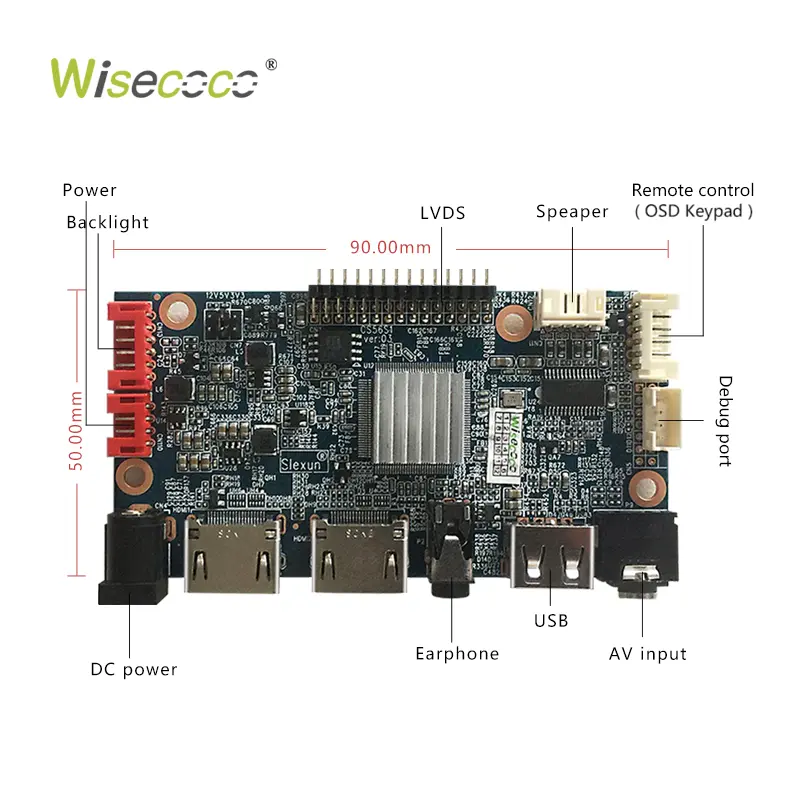

Interface Type
|

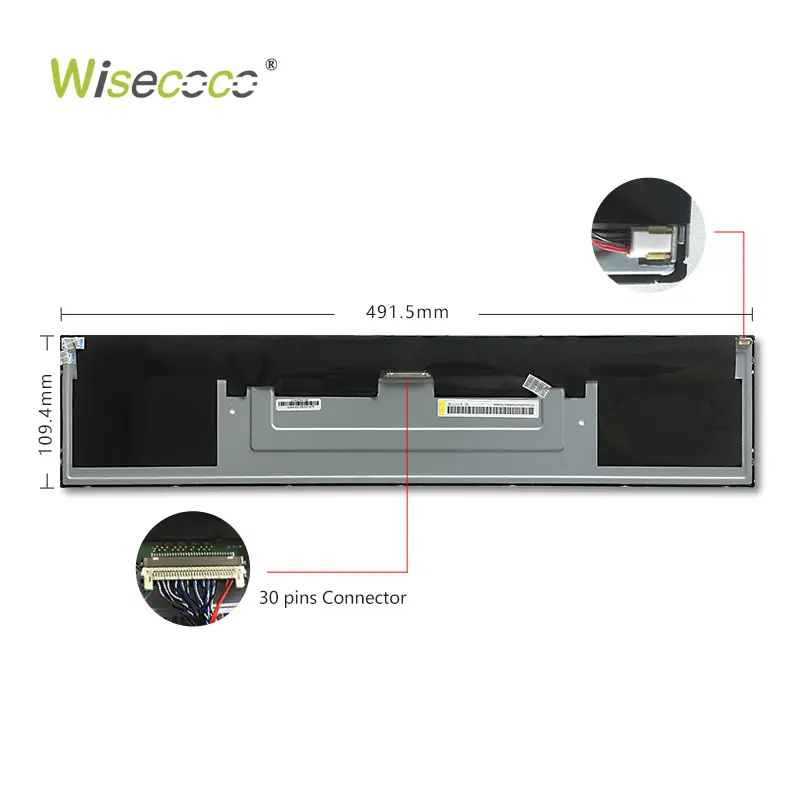

LVDS (2 ch, 8-bit) , 30 pins Connector
|
||
|
Voltage Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||

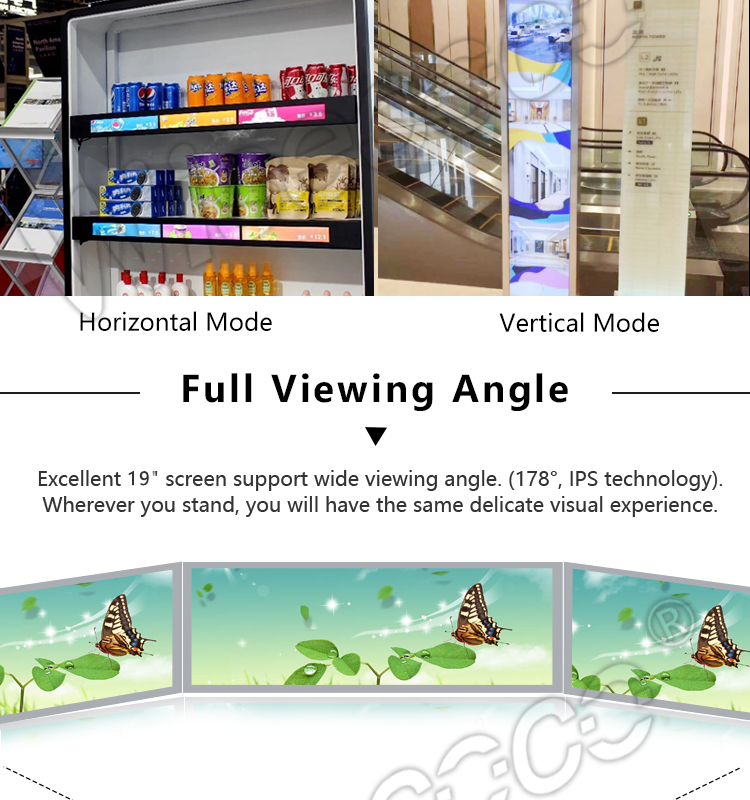

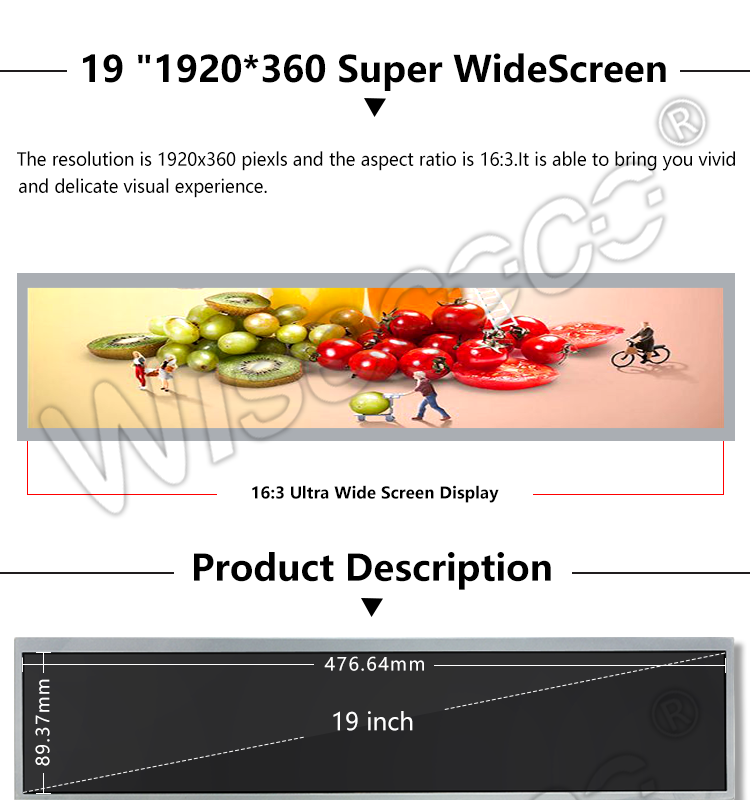

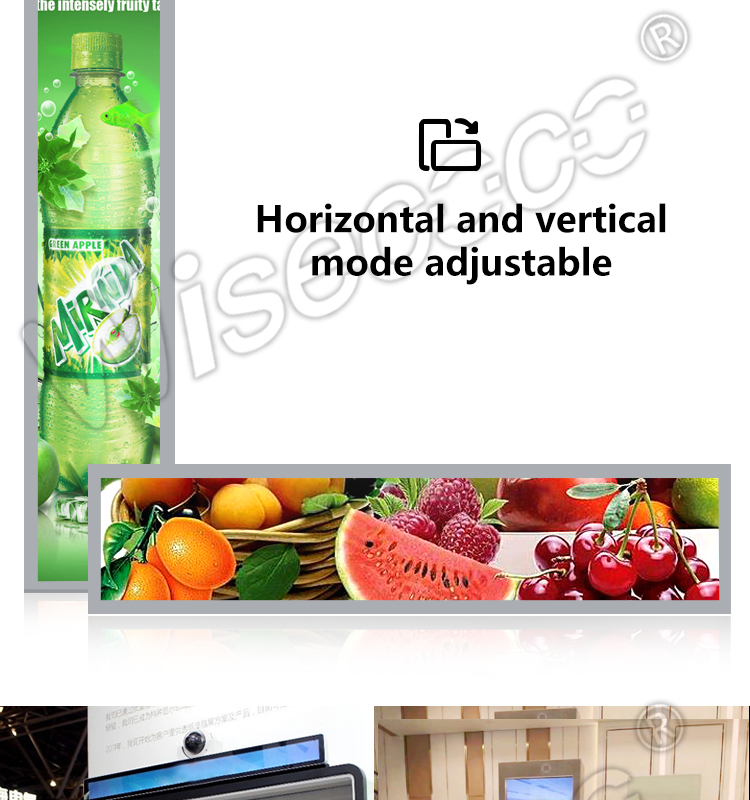

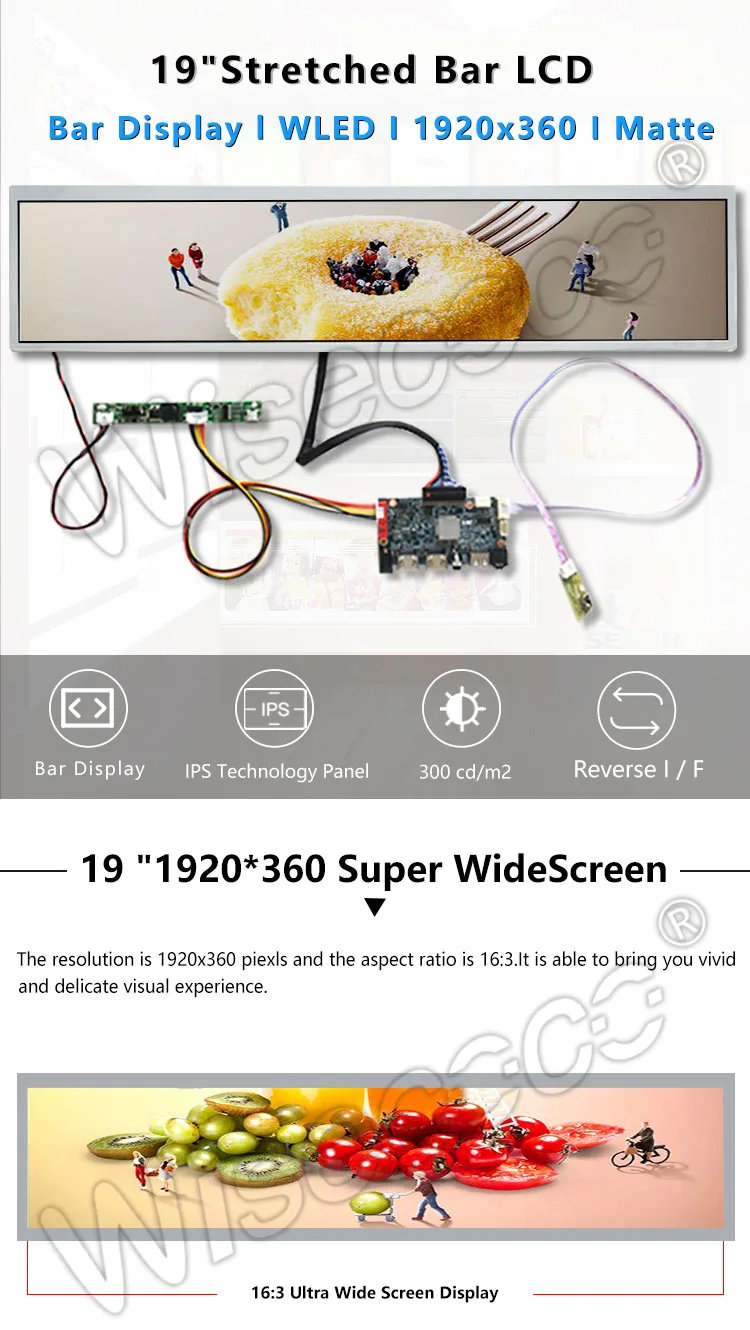

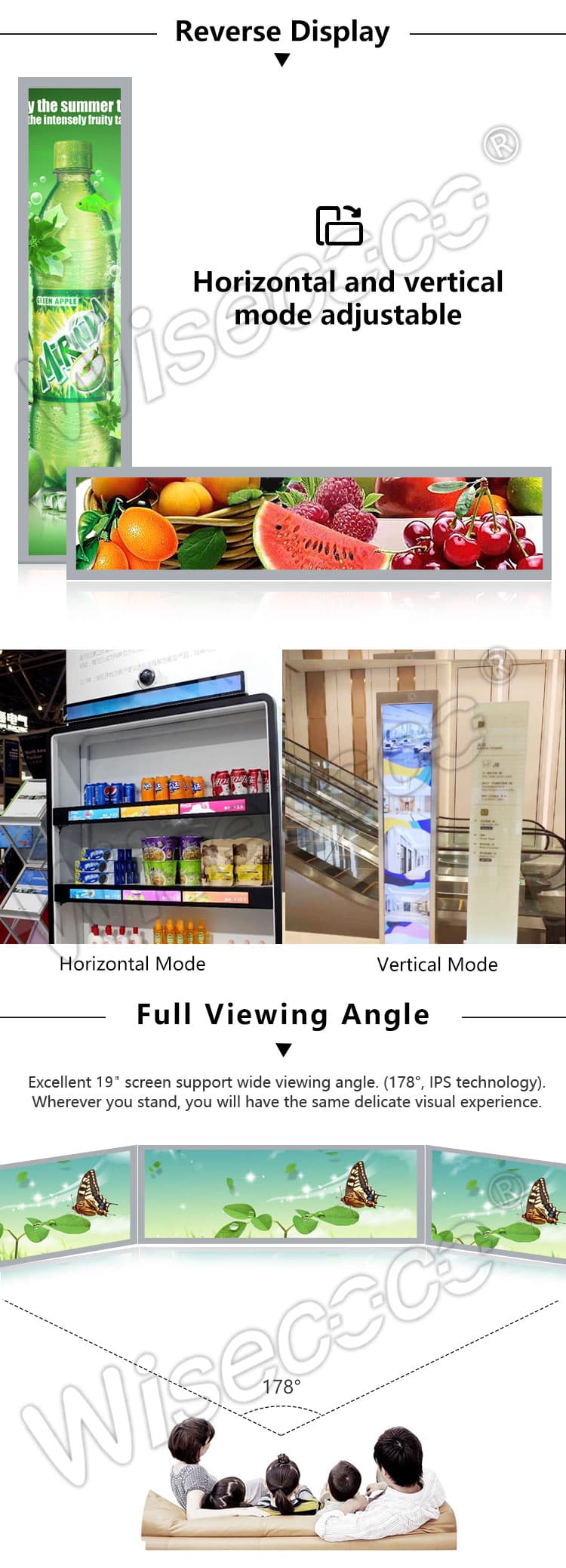

NOTE: This 19” LCD come with high resolution 1920 x 360 and ultra-wide aspect ratio 16:3. It can be adjusted between horizontal mode and vertical mode. LED backlight. It provides LCD panel with specific aspect ratios for digital signage, public transportation, exhibition hall, department store, arcade cabinet and vending machine.

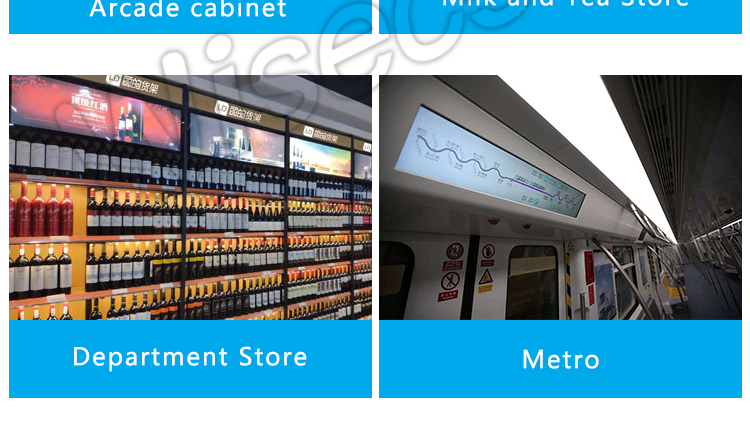

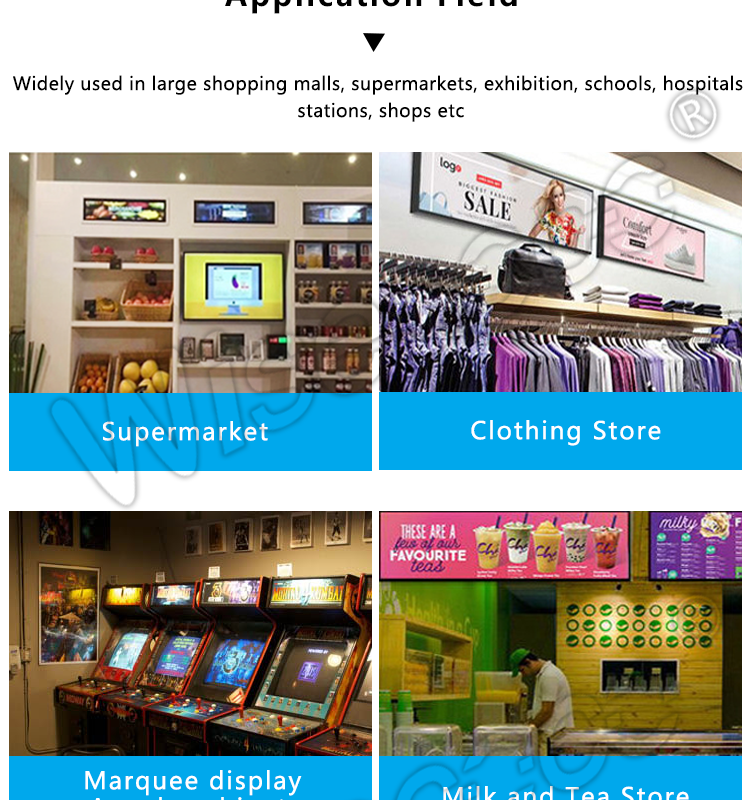

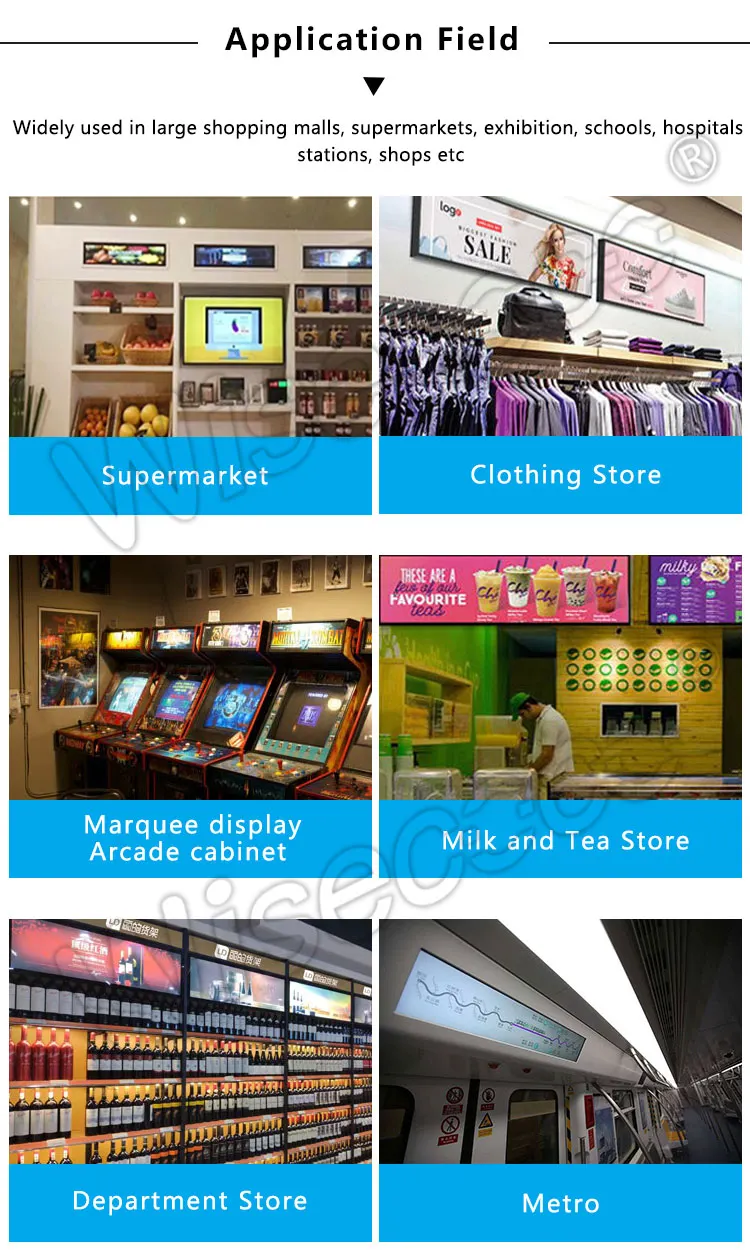

Application fields:
1. Public transportation field:
* Road map display in bus, subway, Metro, Train station;
* Queuing screen in Hospital and bank;
2.Comercial Advertising display field:
* Horizontal mode or vertical mode advertising display screen in shopping mall, supermarket, Cosmetic store, clothing
store,pharmacy, jewelry store, restaurant, train station and metro etc.
* Elevator advertising display.
3. Smart home field:Air sterile products,display status information.
4. Industrial field:Instrumentation, Automotive instrument display.
6. Entertainment field:Marquee display, arcade cabinet.
Wisecoco offers One-step customized lcd display solutions.
