- Size:10.1 inch
- Resolution:3840×2160
- Panel Interface:eDP (4 Lanes)
- Active Area:222.912×125.388mm
- Outline Dimension:231.6×140.9mm
- Viewing Angle:80/80/80/80 (Typ.)
- Brightness:450cd/m²(Typ.)
- Operation / Storage Temp:0~40°C / -20~60°C

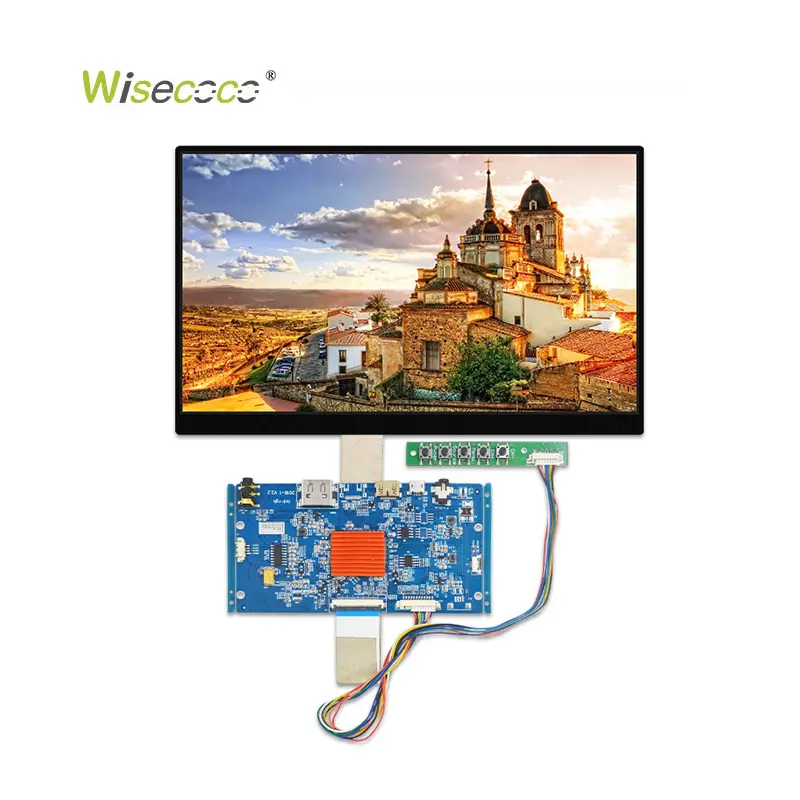

10.1 Inch 4k UHD LCD 3840×2160 Edp 40 Pin 10.1″ Ips TFT LCD Display Module Panel
$160.00
|
General Features |
|||
|
Diagonal Size |
10.1 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Format |
3840(RGB)×2160 [UHD] |
Configuration |
RGB Vertical Stripe |
|
Active Area |
222.912(H)×125.388(V) mm |
Outline Dim. |
231.6(H)×140.9(V) mm |
|
Bezel Area |
– |
Treatment |
– |
|
Luminance |
450 cd/m² (Typ.) |
Contrast Ratio |
1500:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
30 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Support Color |
16.7M 100% NTSC |
Light Source |
WLED [8S6P] , 15K hours , W/O Driver |
|
Weight |
TBD |
Designed For |
Pad&Tablet |
|
Frame Rate |
60Hz |
Touch Panel |
Optional |
|
Interface Type |
eDP (4 Lanes) , Connector , 40 pins |
||
|
Power Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C |
||
