- Size:10.1 inch
- Resolution:1024×600
- Panel Interface:40 pins LVDS
- Active Area:222.72 × 125.28 (H×V) mm
- Outline Dimension:235 × 143 × 5.4 (H×V×D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:1000 cd/m2
- Operation / Storage Temp:-20~70°C / -30~80°C

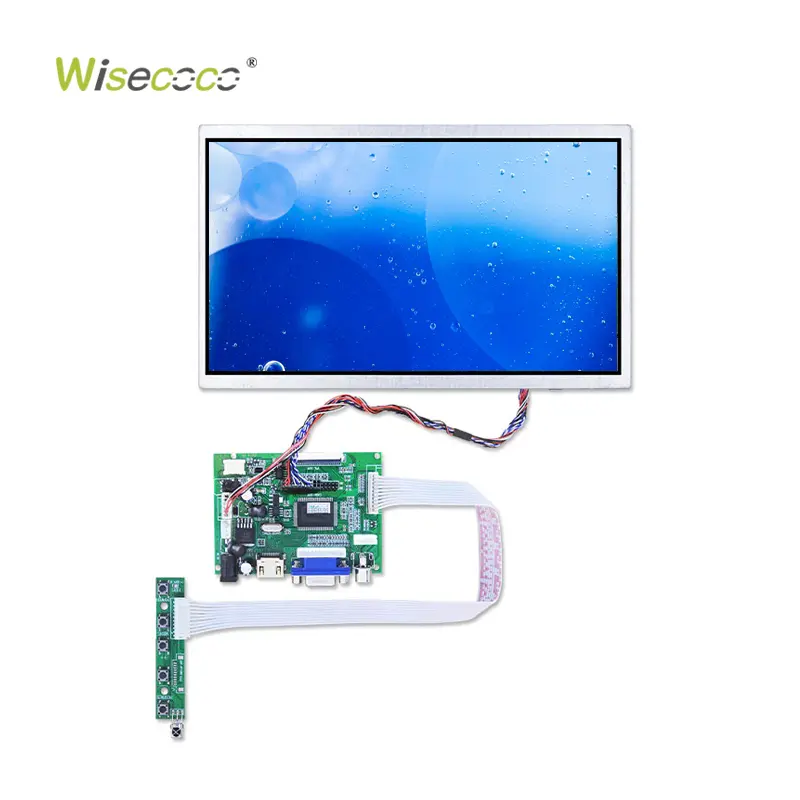

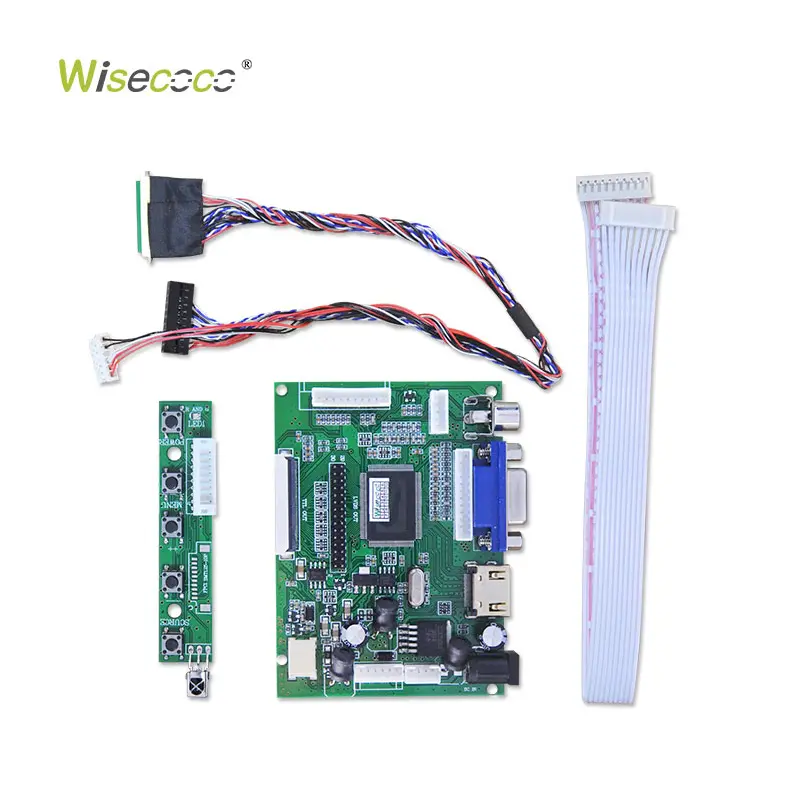

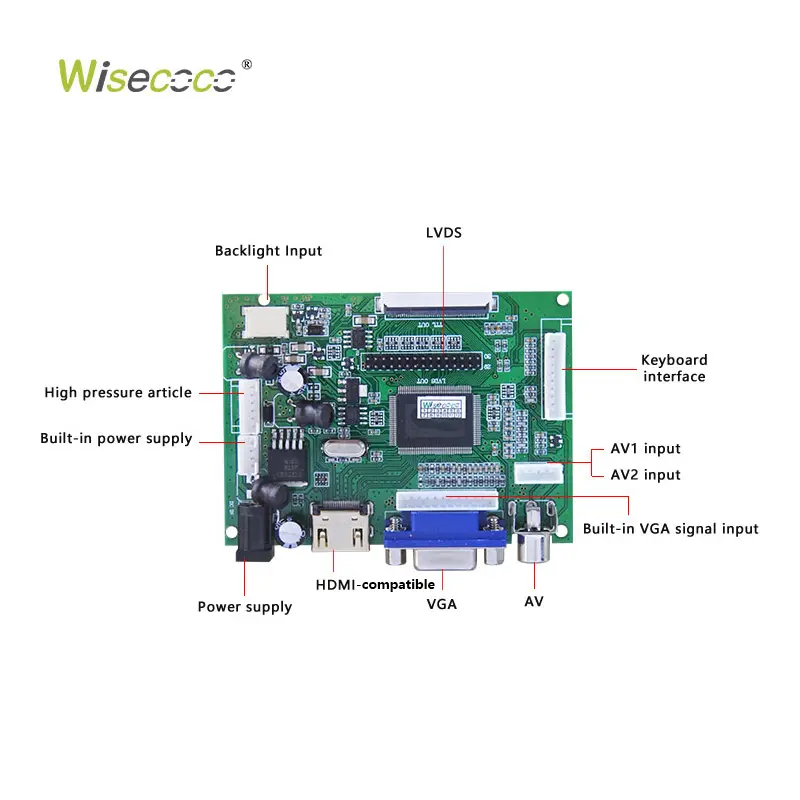

High Brightness 10.1″ IPS TFT LCD Display 1024×600 Sunlight Readable 1000cd/m² TFT LCD Module With Driver Board
$99.00

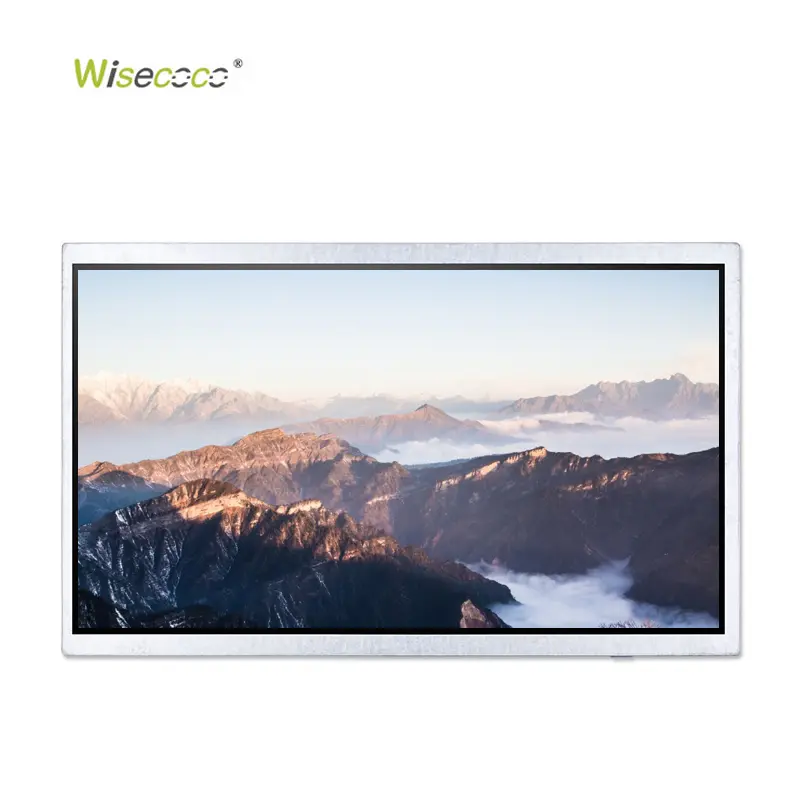

10.1″ IPS LCD Display — 1024×600 | 1000 cd/m² | Antiglare
10.1″ IPS LCD Display is a high-brightness panel featuring 1024×600 resolution, 1000 cd/m² brightness, and full 85/85/85/85 viewing angle. The display connects via a 40-pin LVDS interface with an antiglare, hard-coated (3H) surface, designed for industrial, tablet, outdoor advertising, and automotive display applications.
|
Diagonal Size
|
10.1 inch
|
Type
|
a-Si TFT-LCD , CELL
|
|
Pixel Format
|
1024(RGB)×600 (WSVGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
222.72 × 125.28 (H×V) mm
|

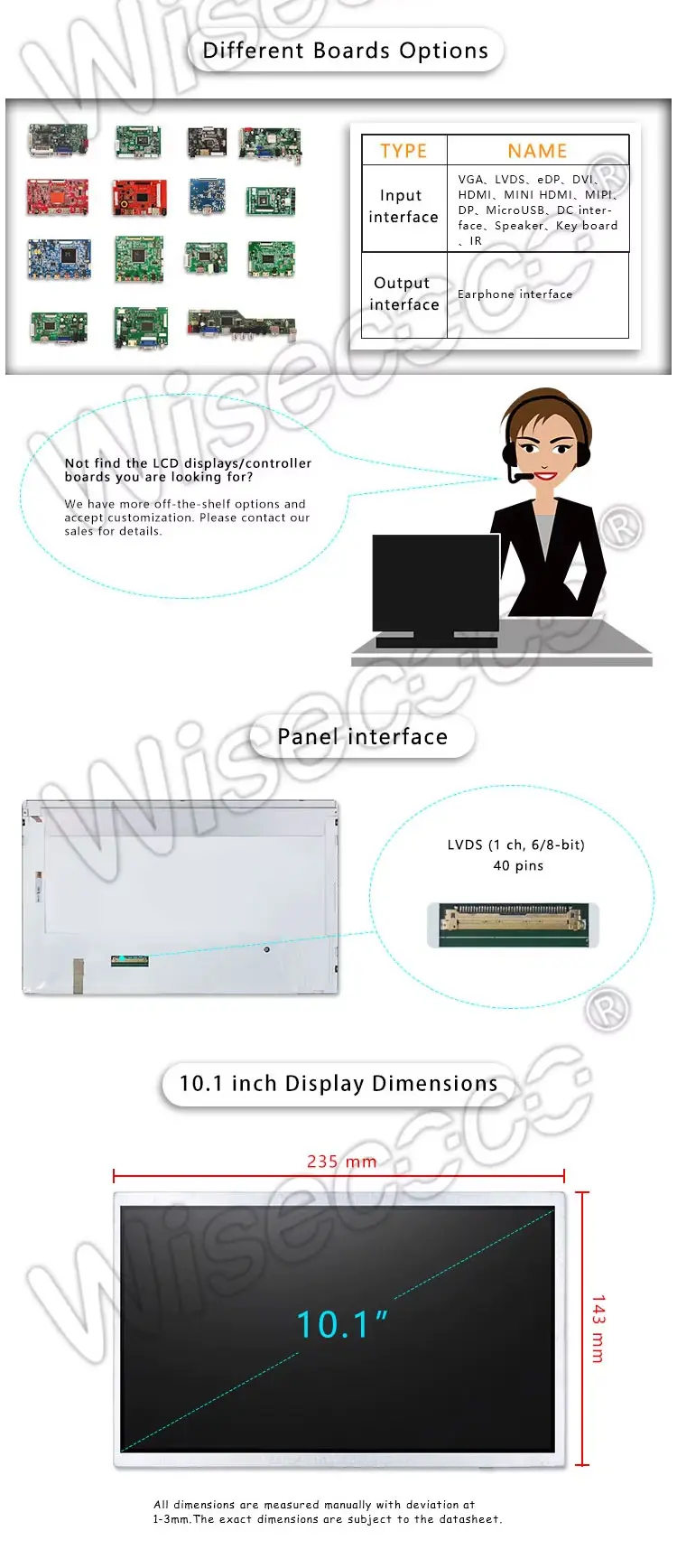

Outline Dim.
|
235 × 143 × 5.4 (H×V×D) mm
|
|
Bezel Area
|
225.52 × 128.10 (H×V) mm
|
Treatment
|
Antiglare, Hard coating (3H)
|
|
Luminance
|
1000 cd/m2
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
12 o’clock
|
Response Time
|
7/9 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
262K/16.7M 47% NTSC
|
Light Source
|
WLED , 30K hours , With LED Driver
|
|
Weight
|
–
|
Designed For
|
Industrial, Pad&Tablet, Outdoor Advertising, Automotive display
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|
Interface Type
|

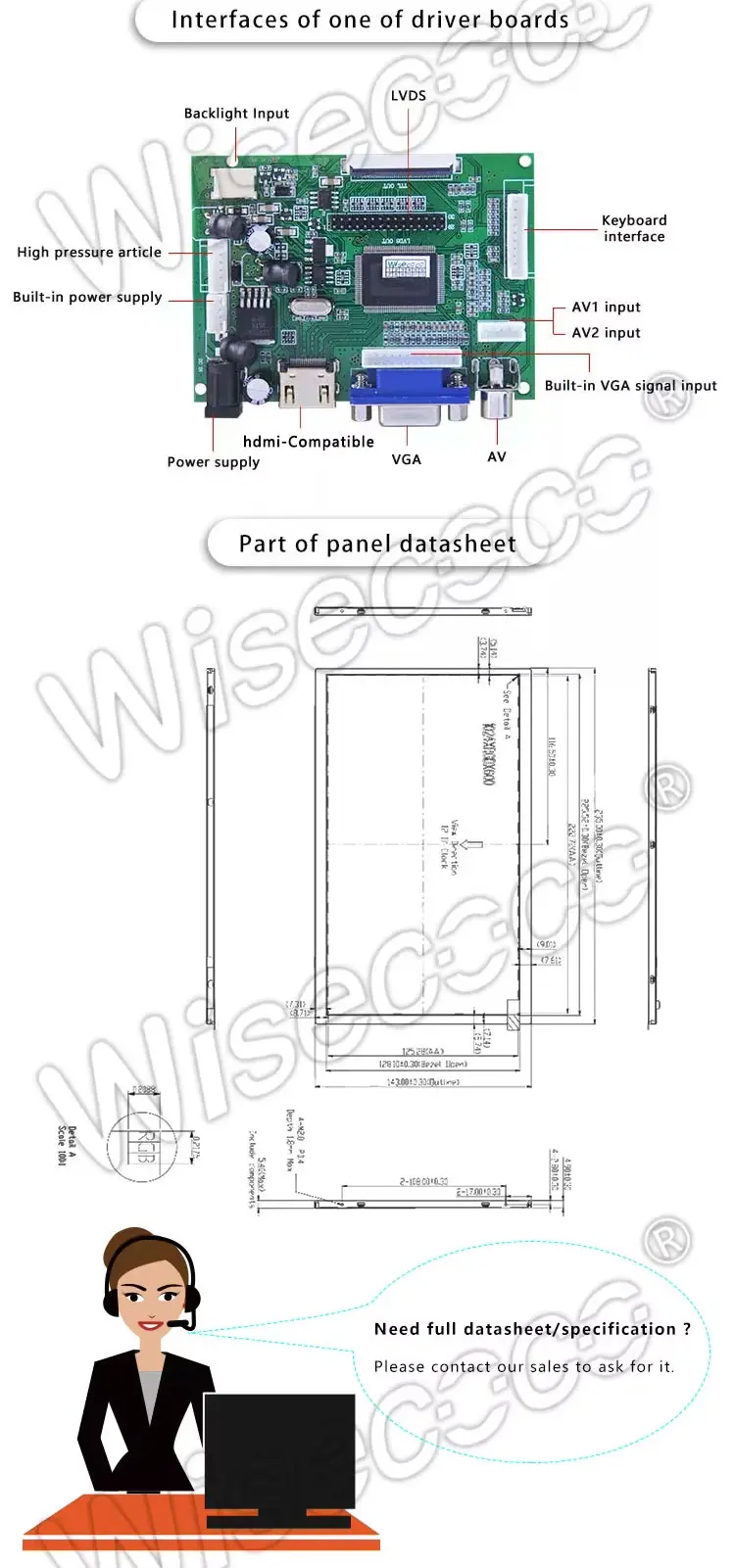

40 pins LVDS (1 ch, 6/8-bit) , Connector
|
||
|
Max. Ratings
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
|
||
Features:
- 1024×600 WSVGA IPS Panel — Delivers clear, detailed visuals with full viewing angle color consistency.
- 1000 cd/m² High Brightness — Sunlight-readable performance suited to outdoor and high-ambient-light environments.
- 800:1 Contrast Ratio — Solid dynamic range for defined imagery.
- Antiglare, Hard-Coated (3H) Surface — Improved readability and scratch resistance.
- Wide Operating Temperature (-20~70°C) — Reliable performance across varied environments.
Ideal for: Industrial control panels · Outdoor advertising displays · Automotive displays · Tablets & PAD devices
Contact Wisecoco for high-brightness industrial display solutions
