- Size:8 inch
- Resolution:1024×768
- Panel Interface:LVDS (1 ch, 6/8-bit)
- Active Area:162.048(W)x121.536(H) mm

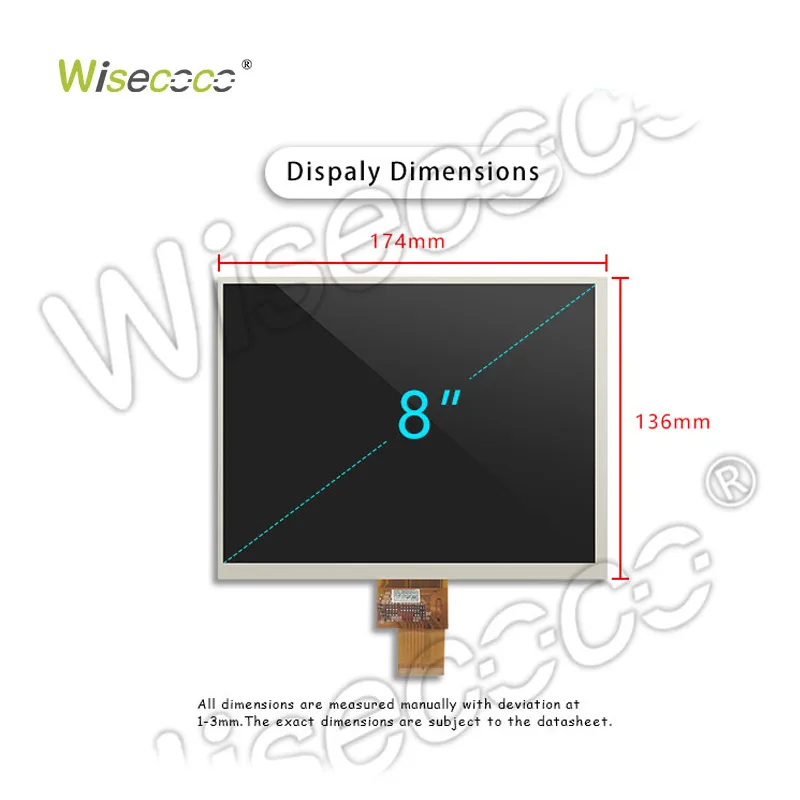

- Outline Dimension:174(W)x136(H)x2.75(D) mm
- Viewing Angle :85/85/85/85 (Typ.)(CR>10)
- Brightness:350 cd/m²

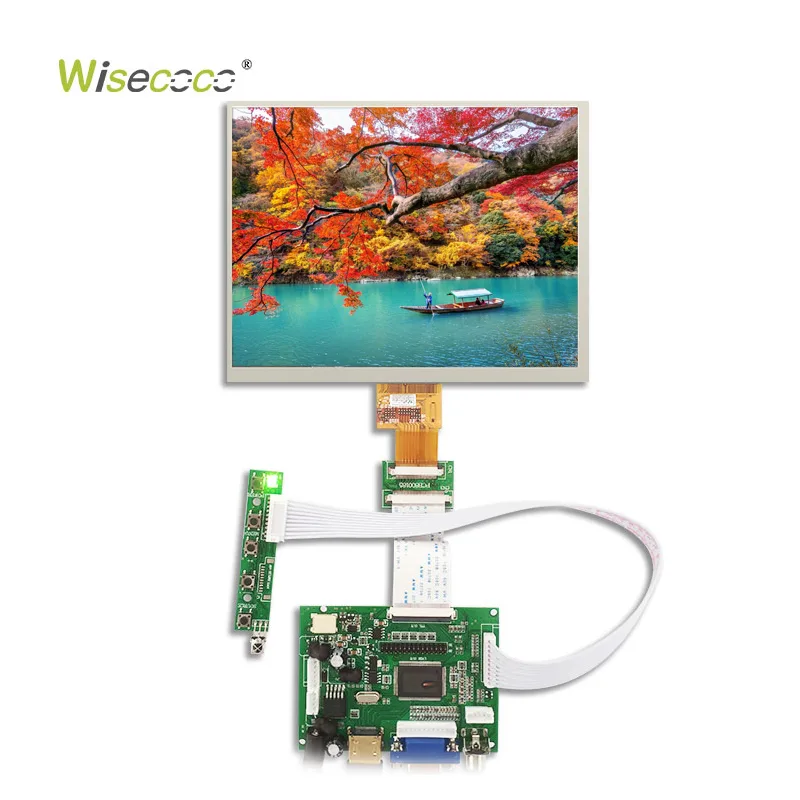

8 Inch TFT LCD Display 1024*768 HMI Smart LVDS 16.7M Colors Landscape Type IPS LCD Screen
$50.00
|
Diagonal Size
|
8 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
1024(RGB)*768 , XGA
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
162.048(W)*121.536(H) mm
|
Outline Dim.
|
174(W)*136(H)*2.75(D) mm
|
|
Bezel Area
|
Treatment
|
Hard coating
|
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
25 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR>10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
262K/16.7M 50% (CIE1931)
|
Light Source
|
3S11P WLED , 20K hours , Without Driver
|
|
Weight
|
Designed For
|
Pad&Tablet
|
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
LVDS (1 ch, 6/8-bit) , FPC , 40 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
