- Size:7.9 inch
- Resolution:1536×2048
- Panel Interface:MIPI (2 ch, 4 data lanes)
- Active Area:119.808(H)x159.744(V) mm
- Outline Dimension:125.55(H)x171.3(V)x3.15(D) mm
- Viewing Angle :IPS
- Brightness :460cd/m2
- Operation / Storage Temp:-20~60°C / -30~70°C

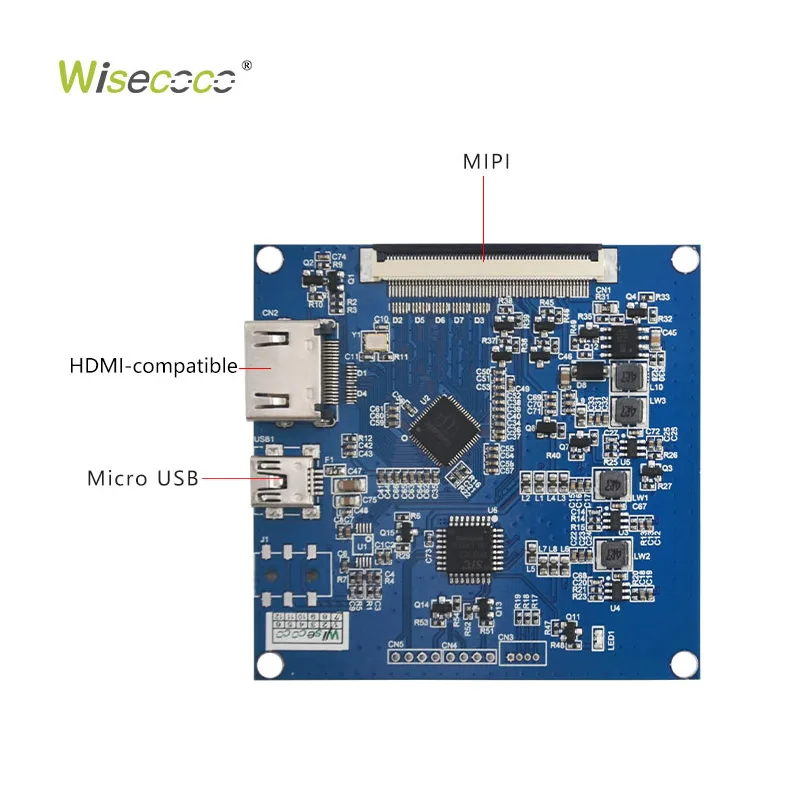

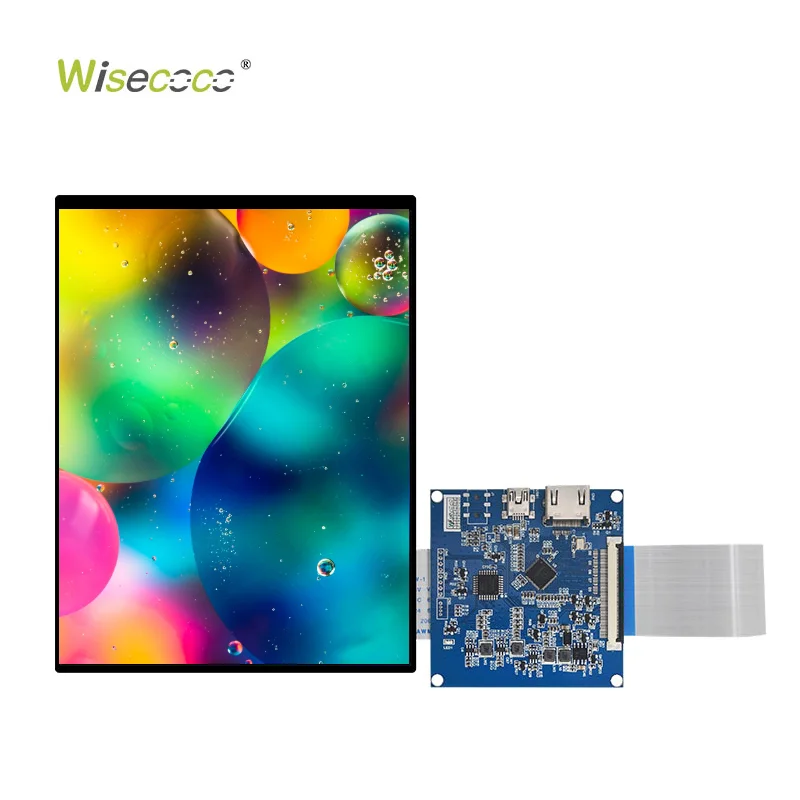

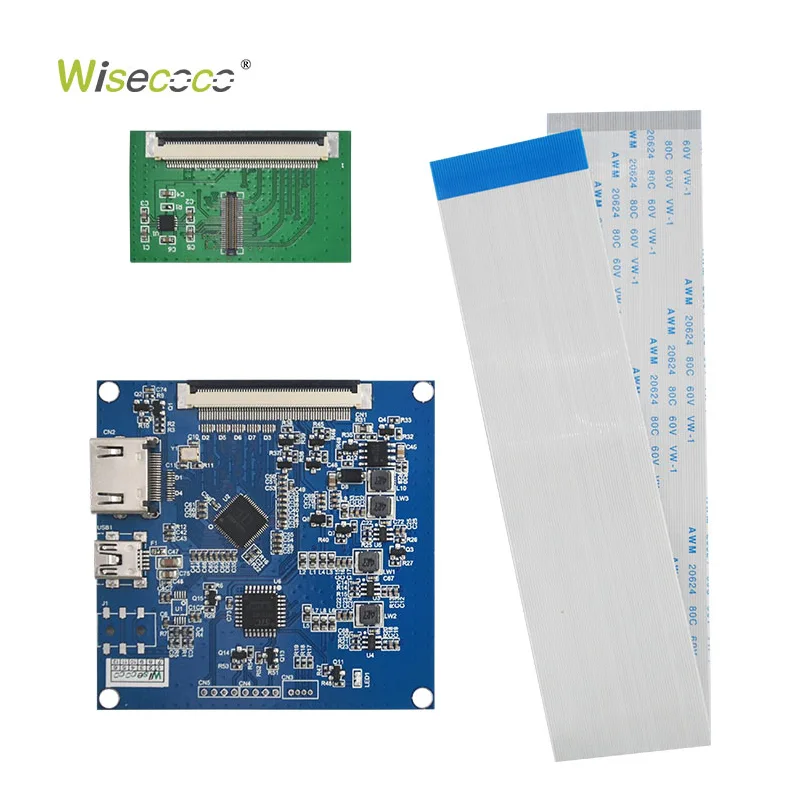

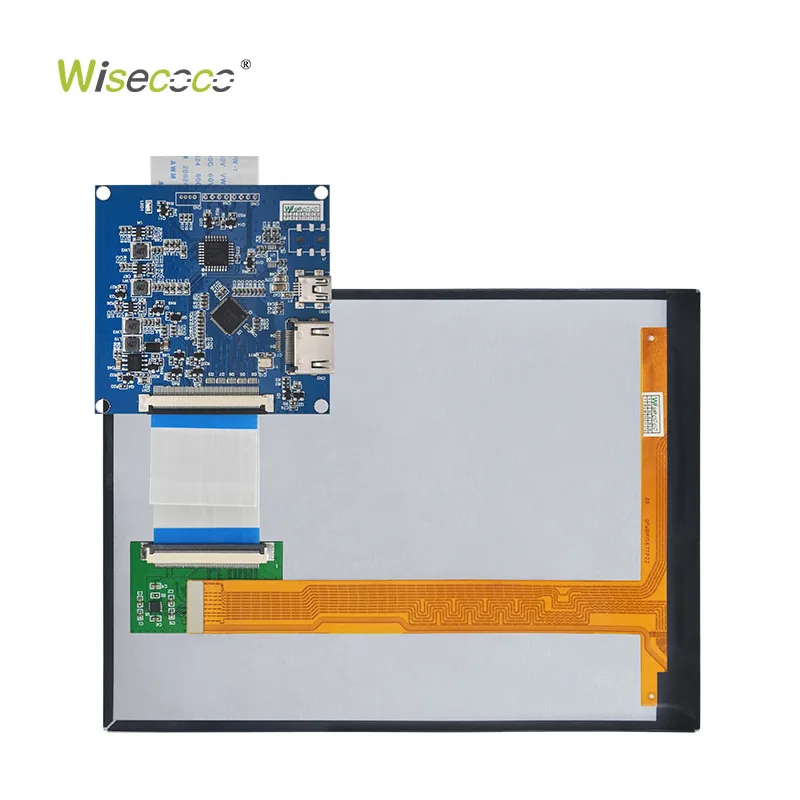

7.9 Inch TFT LCD Display 1536×2048 High Resolution MIPI Portrait Type LCD Panel With Driver Board
$75.00

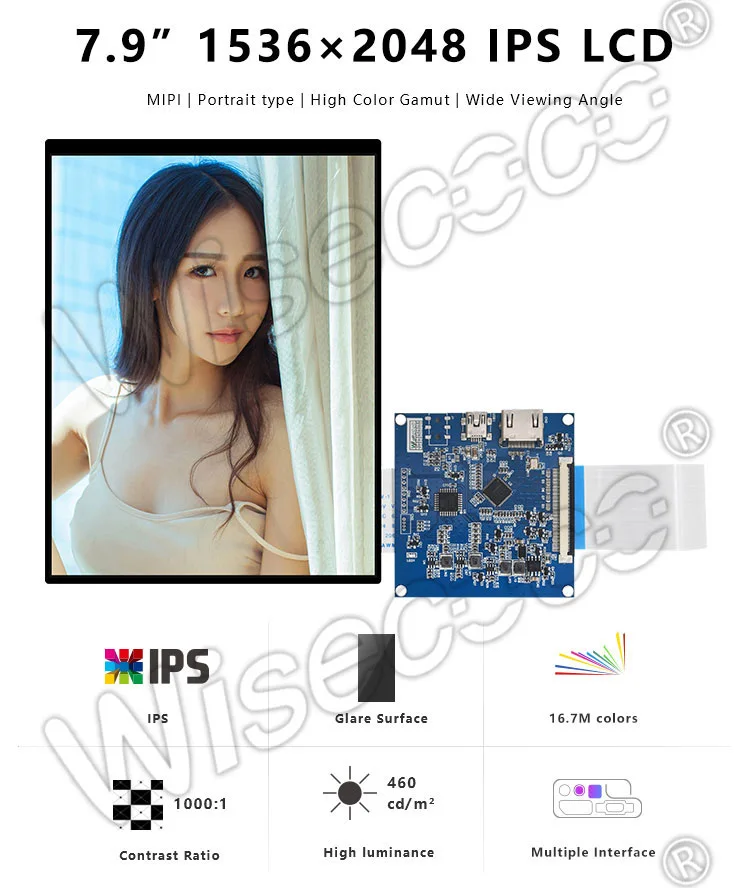

7.9″ IPS LCD Display — 1536×2048 | 460 cd/m² | Portrait type

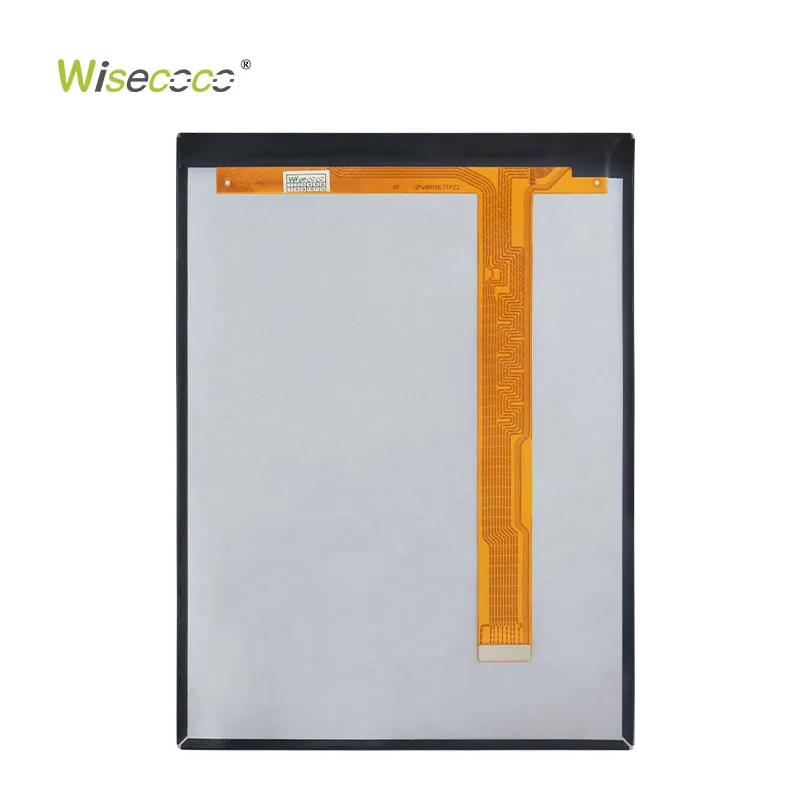

7.9 Inch IPS LCD Display is a TFT panel featuring 1536×2048 resolution at 325 PPI, 460 cd/m² brightness, and full 85/85/85/85 viewing angle. The display uses a 2-channel, 4-data-lane MIPI interface with a 50-pin connector and supports touch, designed for Pad and Tablet applications.
|
Diagonal Size
|
7.9 inch
|
Type
|
Oxide TFT-LCD, LCM
|
|
Pixel Format
|
1536(RGB)*2048 [QXGA] 325PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
119.808(H)*159.744(V) mm
|
Outline Dim.
|
125.55(H)*171.3(V)*3.15(D) mm
|
|
Luminance
|
460 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
35 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70% NTSC
|
Light Source
|
WLED [6S4P] , W/O Driver
|
|
Weight
|
–
|
Designed For
|
Pad & Tablet
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Available
|
|
Interface Type
|

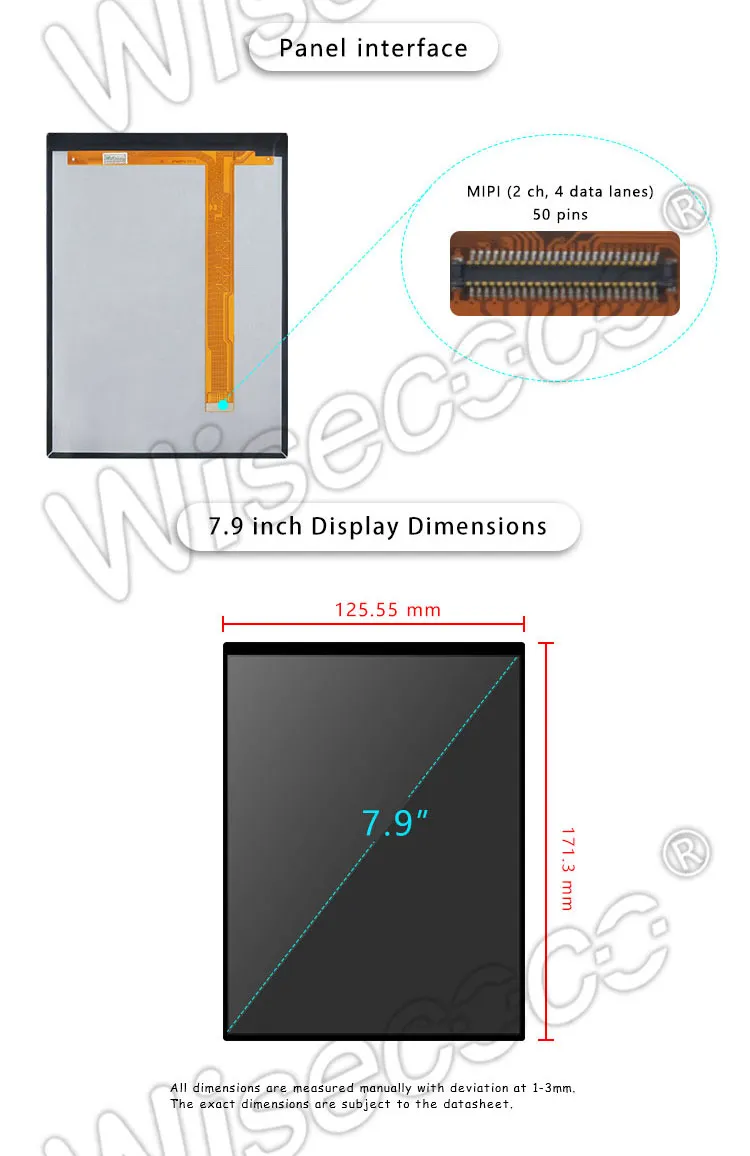

MIPI (2 ch, 4 data lanes) , 50 pins Connector
|
||
|
Power Supply
|
1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)
|
||
|
Environment
|
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||
Features:
- 1536×2048 QXGA Resolution — Delivers exceptionally sharp visuals at 325 PPI pixel density.
- 1000:1 Contrast Ratio — Strong dynamic range for crisp, well-defined imagery.
- 460 cd/m² Brightness — Bright, clear performance for handheld tablet use.
- Touch Panel Available — Configurable for touch or non-touch integration.
- Wide Operating Temperature (-20~60°C) — Reliable performance across varied environments.
Ideal for: Tablets & PAD devices · High-resolution portrait displays · Portable embedded systems
Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
