- Size:8.9 inch
- Resolution:2560×1600
- Panel Interface:MIPI

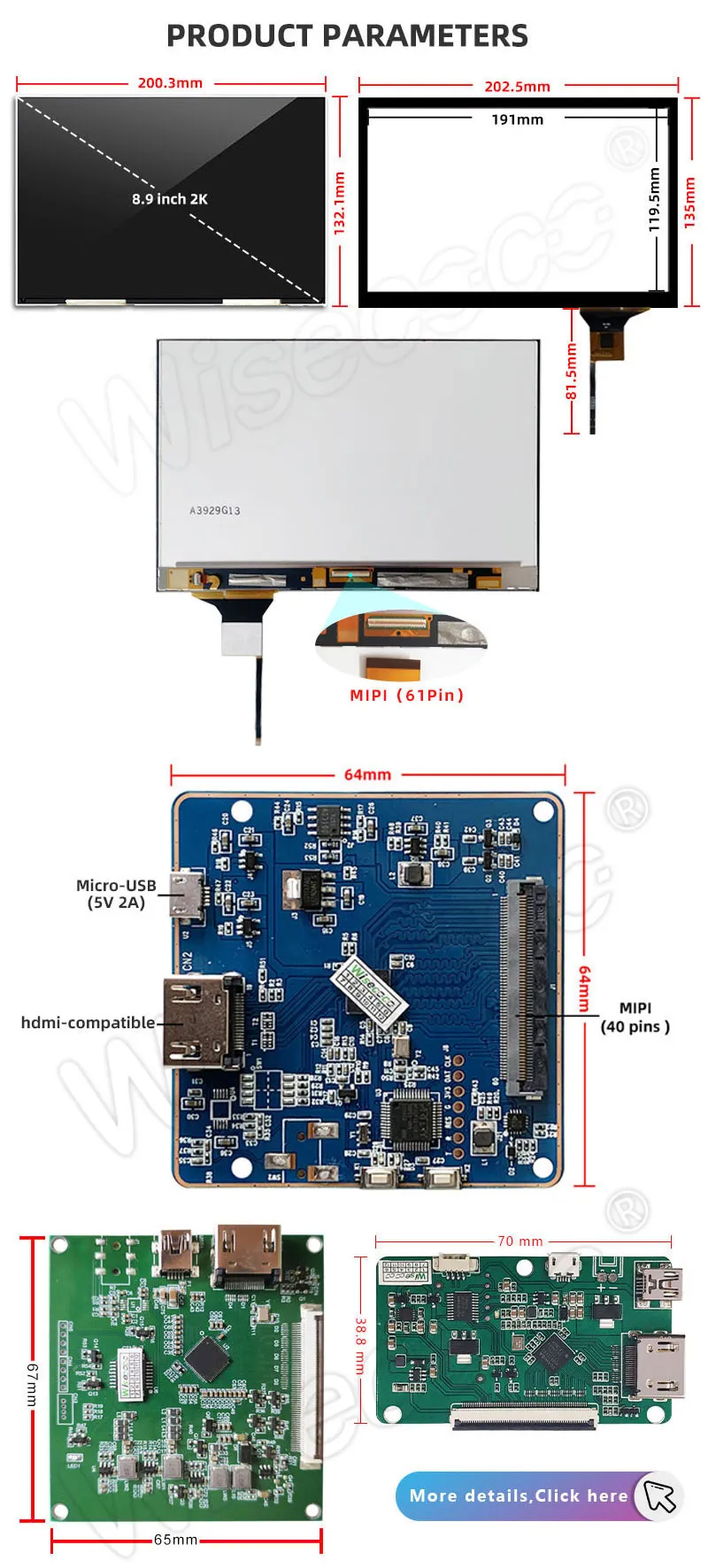

- Active Area:191×119.5mm
- Outline Dimension:202.5x135mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness:500(cd/m2)
- Operation Temp:-20~60°C
- Touch:10-point capacitive touch

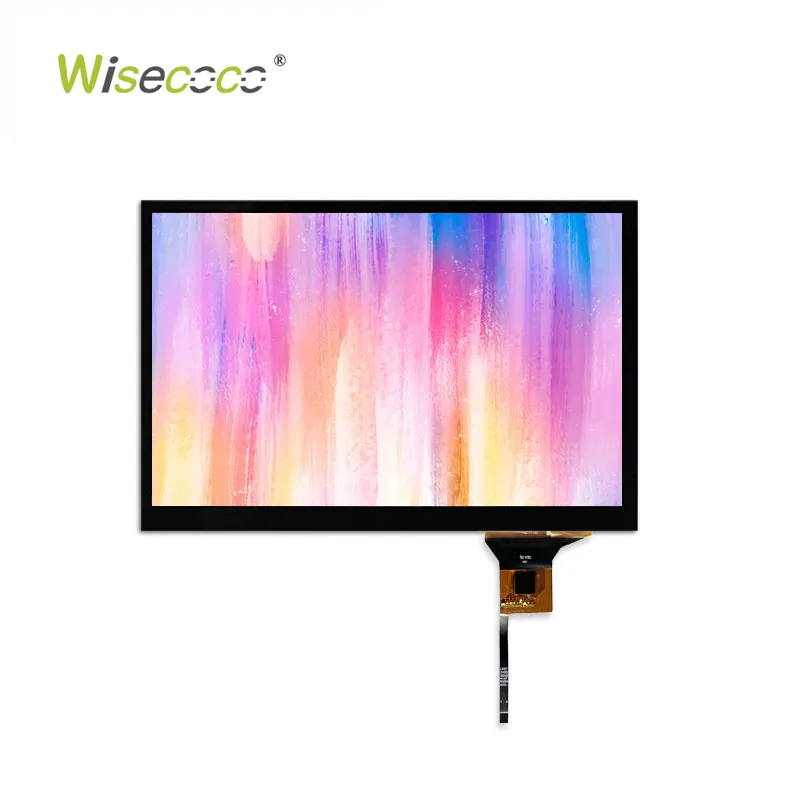

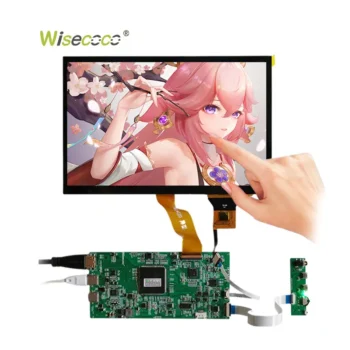

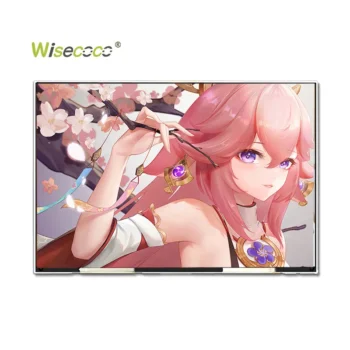

8.9 Inch Touch Screen Lcd Display 2560×1600 2K MIPI 61Pin TFT LCD Module Display
$119.00
8.9″ IPS LCD Touch Screen— 2560×1600 | 10-Point Touch | Multiple Interface

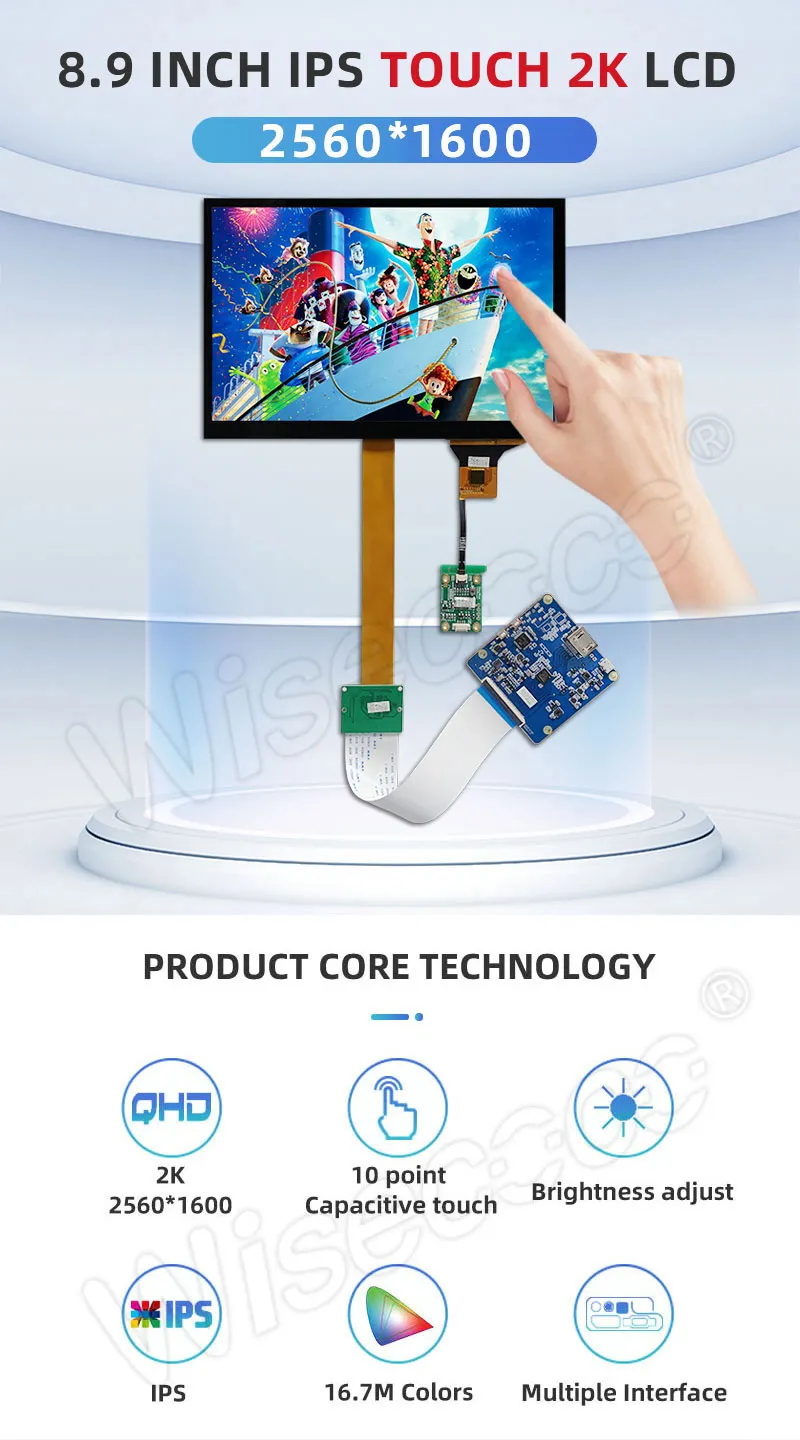

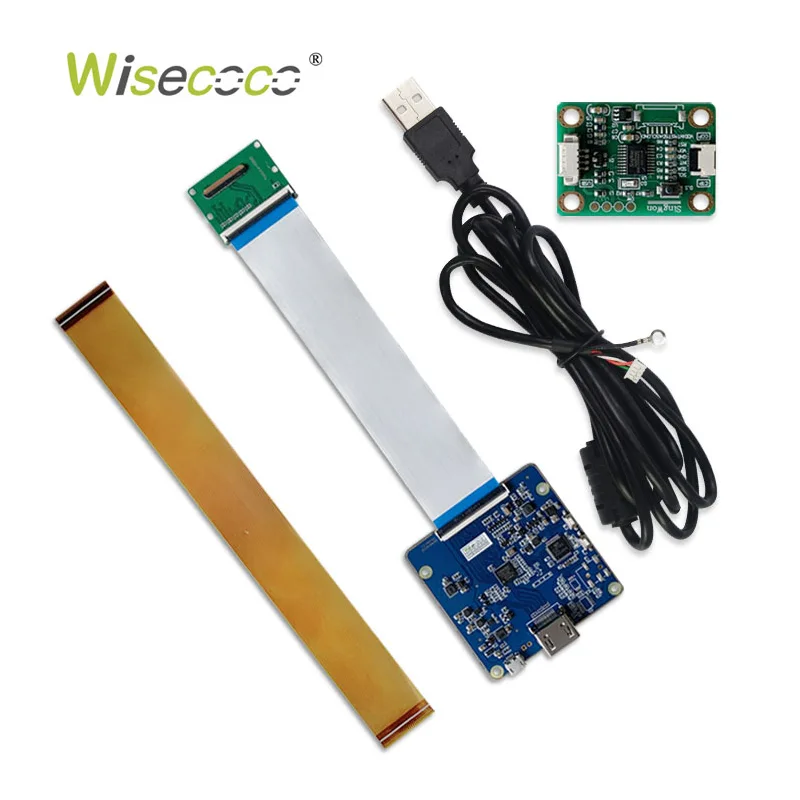

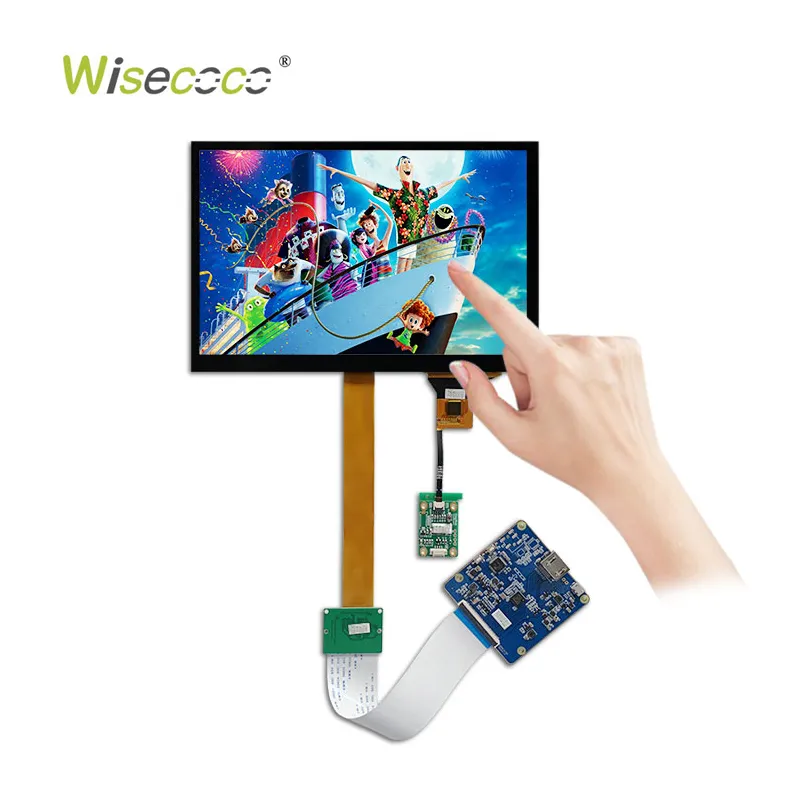

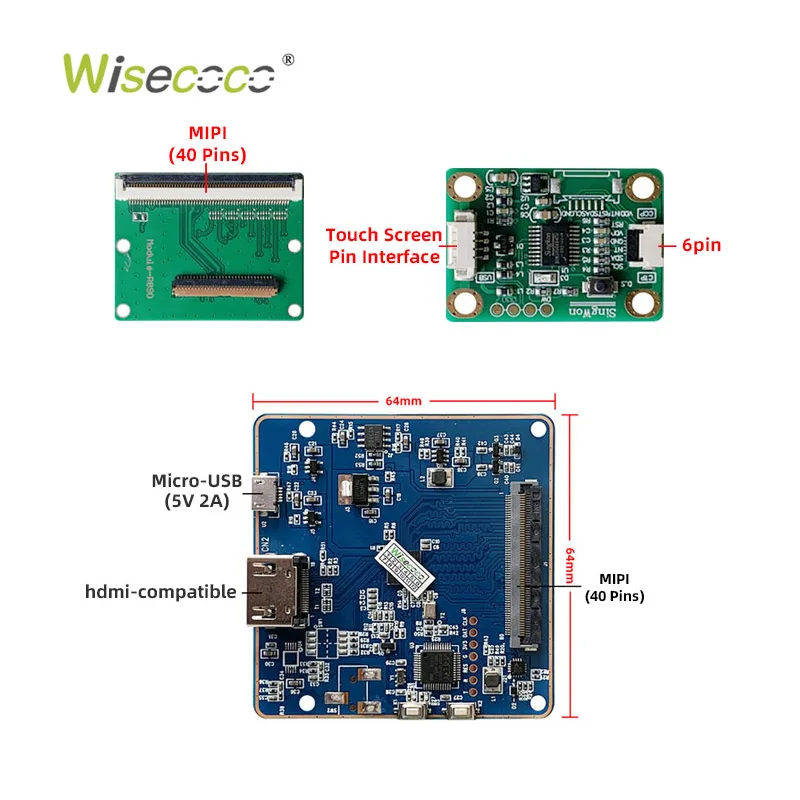

8.9 Inch IPS Touch Screen is a QHD panel featuring 2560×1600 resolution, 10-point capacitive touch, and 16.7M colors. The display pairs with a multi-interface driver board and supports adjustable brightness, making it suited for compact high-resolution touch applications.
|
Screen Size
|
8.9 inch
|
Screen Type
|
TFT-LCD
|
|
Resolution
|
2560*1600
|
Brightness
|
500 cd/m²
|
|
Contract Ratio
|
1200:1
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
|

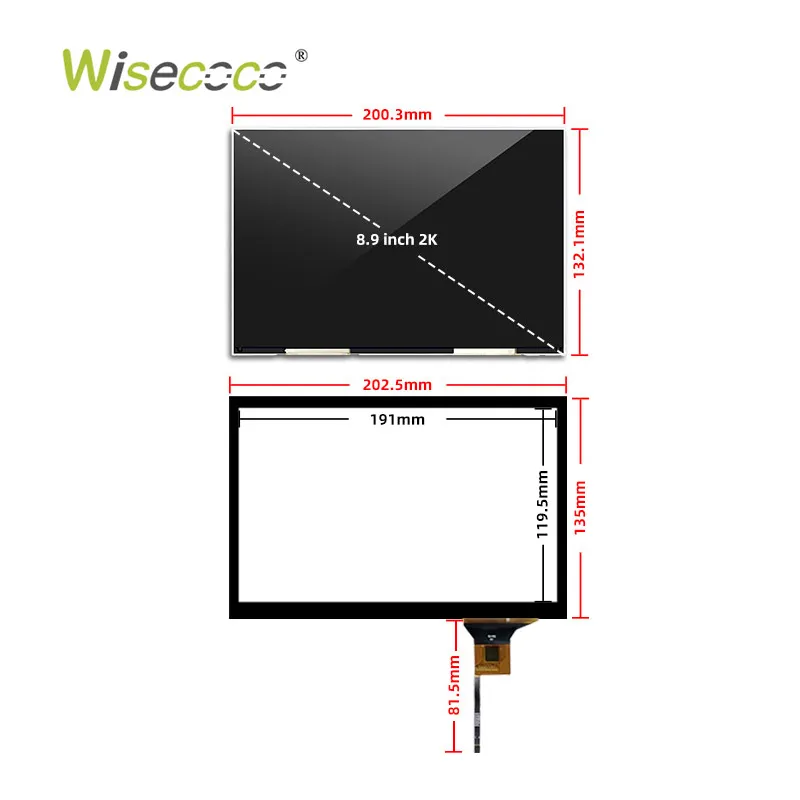

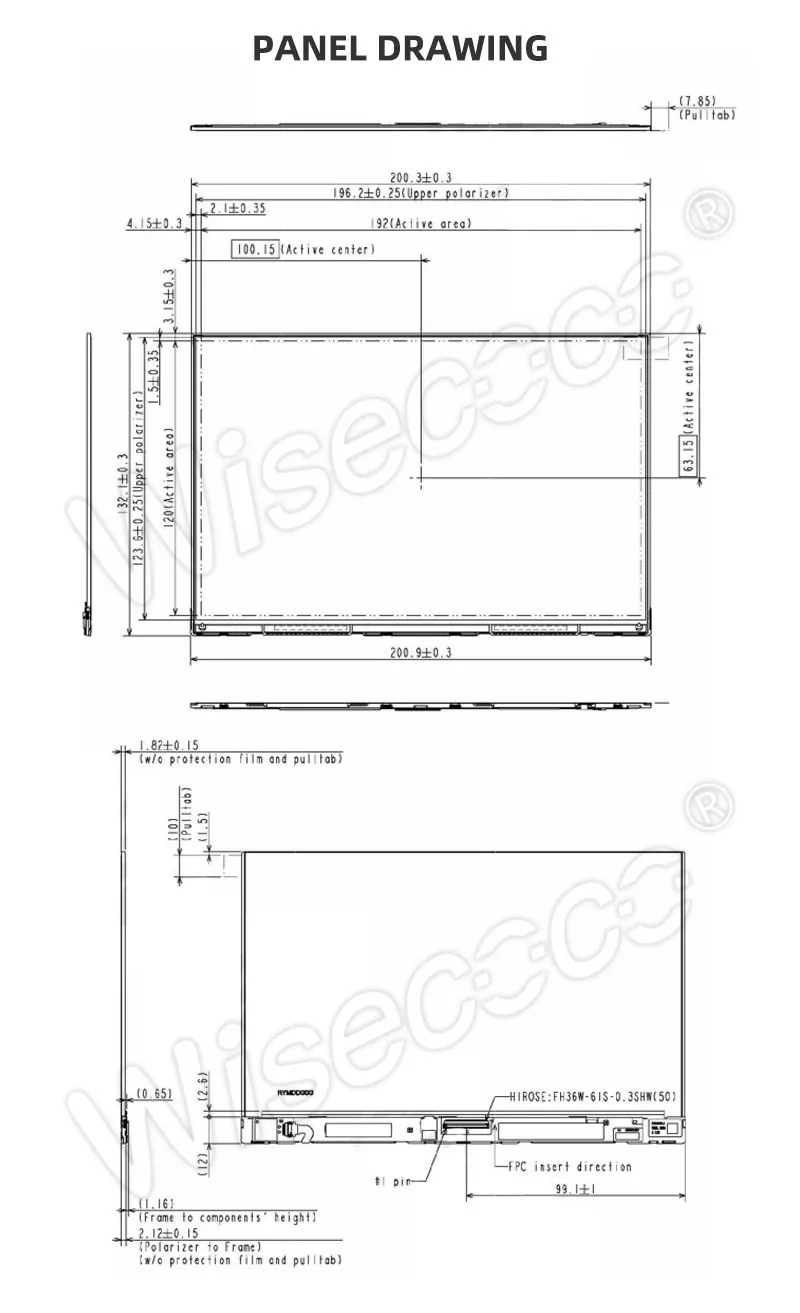

Display Outline Size(mm)
|
202.5*135(W*H)mm
|
Display Area(mm)
|
191.0*119.5(H*W)
|
|
Fresh Rate
|
60 Hz
|
Support Color
|
16.7M
|
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Display Mode
|
Landscape
|
Light Source
|
WLED
|
|
Interface Type
|

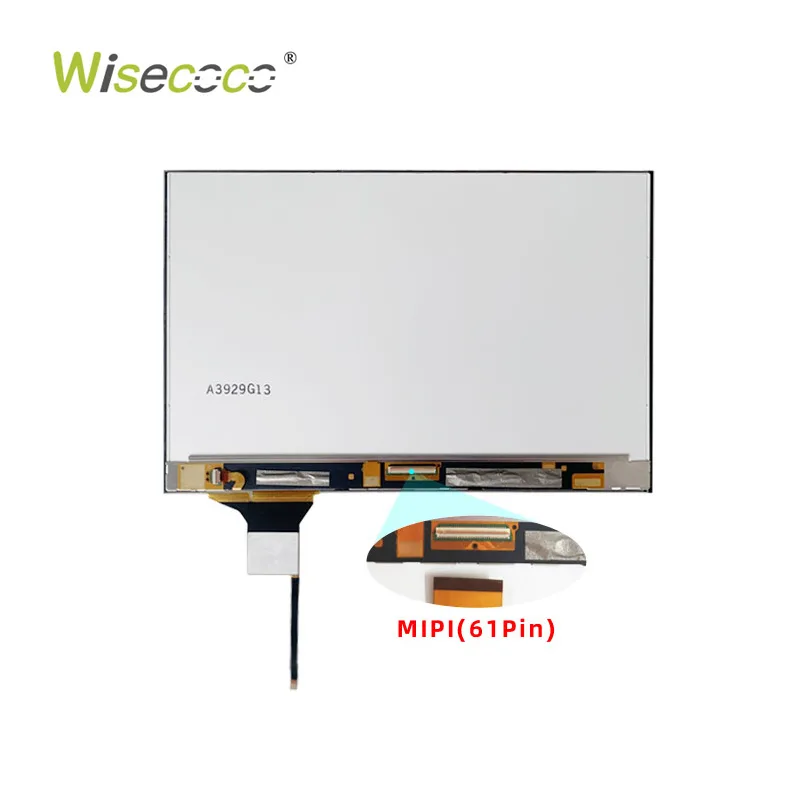

61 pins MIPI
|
Voltage Supply
|
1.8/3.3V (Typ.)(VDDIO/VBAT)
|
|
Operating Temperature
|
-20 ~ 60 °C
|
Designed For
|
Laptop Screen
|
Features:
- 2560×1600 2K/QHD IPS Panel — Delivers exceptionally sharp, detailed visuals in a compact 8.9″ size.
- 10-Point Capacitive Touch — Supports multi-touch gestures for responsive interaction.
- 16.7M Colors — Rich, accurate color reproduction.
- Adjustable Brightness — Onboard control for tuning display output to the application environment.
Ideal for: Portable touch monitors · Interactive kiosks · Compact high-resolution HMI panels · Consumer electronics accessories
Contact Wisecoco for custom touch display solutions
