- Size:13.3 inch
- Resolution:3840(RGB)×2160
- Panel Interface:eDP (4 Lanes)
- Active Area:293.76 × 165.24 (H×V) mm
- Outline Dimension:299.46 × 186.67 × 2.2 (H×V×D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:340 (cd/m²)(Typ.)
- Operation / Storage Temp:0 ~ 50 °C / -20 ~ 60 °C

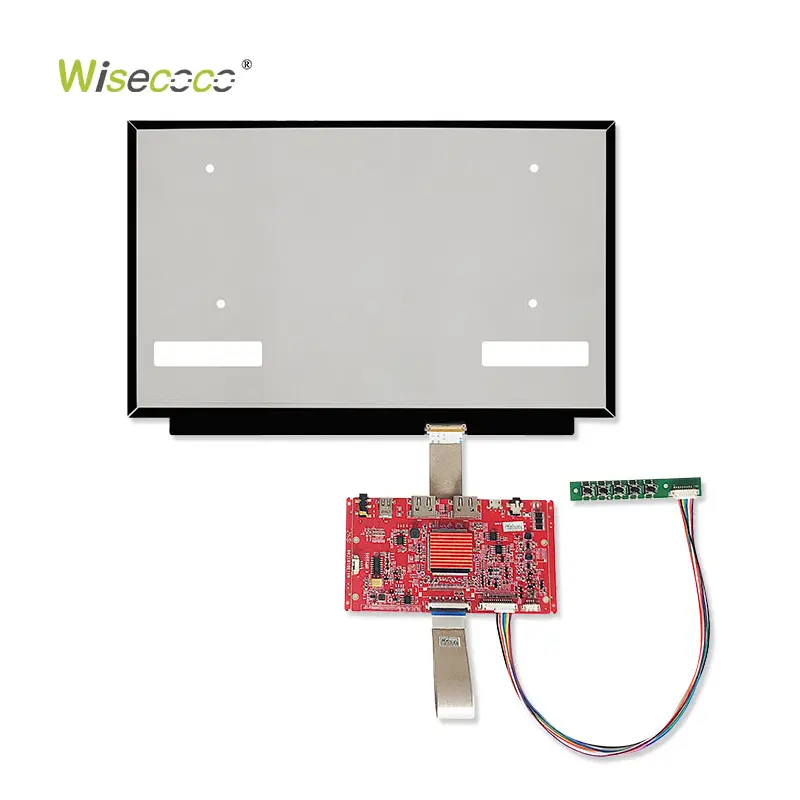

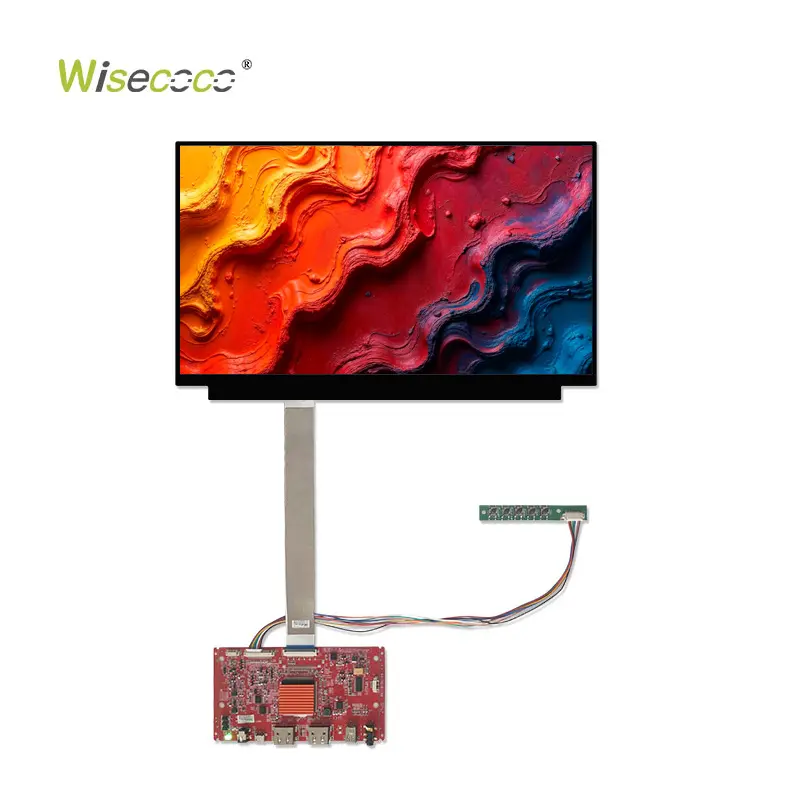

13.3 Inch 4K UHD Hard Coating LCD Display 3840×2160 EDP Interface IPS TFT LCD Module Screen
$115.00
13.3″ IPS 4K UHD LCD Display— 3840×2160 | High Color Gamut | eDP
13.3-inch IPS panel delivering true 4K UHD resolution with a wide color gamut and WLED backlight. A premium display module for portable 4K monitors, professional laptop builds, and high-resolution embedded systems that require maximum pixel density in a standard laptop-sized form factor.
|
General Features
|
|||
|
Panel Size
|
13.3 inch
|
Panel Type
|
LCM , IGZO TFT-LCD
|
|
Resolution
|
3840(RGB)×2160 (UHD)
|
Arrangement
|
RGB Vertical Stripe
|
|
Active Area
|
293.76 × 165.24 (H×V)
|
Outline(mm)
|
299.46 × 186.67 × 2.2 (H×V×D)
|
|
Bezel Area(mm)
|
296.56 × 168.16 (H×V)
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
340 (Typ.)(cd/m²)
|
Contrast Ratio
|
1400 : 1 (Typ.) (TM)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Work Mode
|
IPS, Normally Black, Transmissive
|
|
Best View on
|
Symmetry
|
Response Time
|
35 (Typ.)(Tr+Td) ms
|
|
Color Depth
|
16.7M 72% (CIE1931)
|
Backlight
|
WLED , 15K hours , With LED Driver
|
|
Refresh Rate
|
60 Hz
|
Touch Screen
|
–
|
|
Voltage Supply
|
3.3V(Typ.)
|
Application
|
Notebook Computers etc.
|
|
Shape Style
|

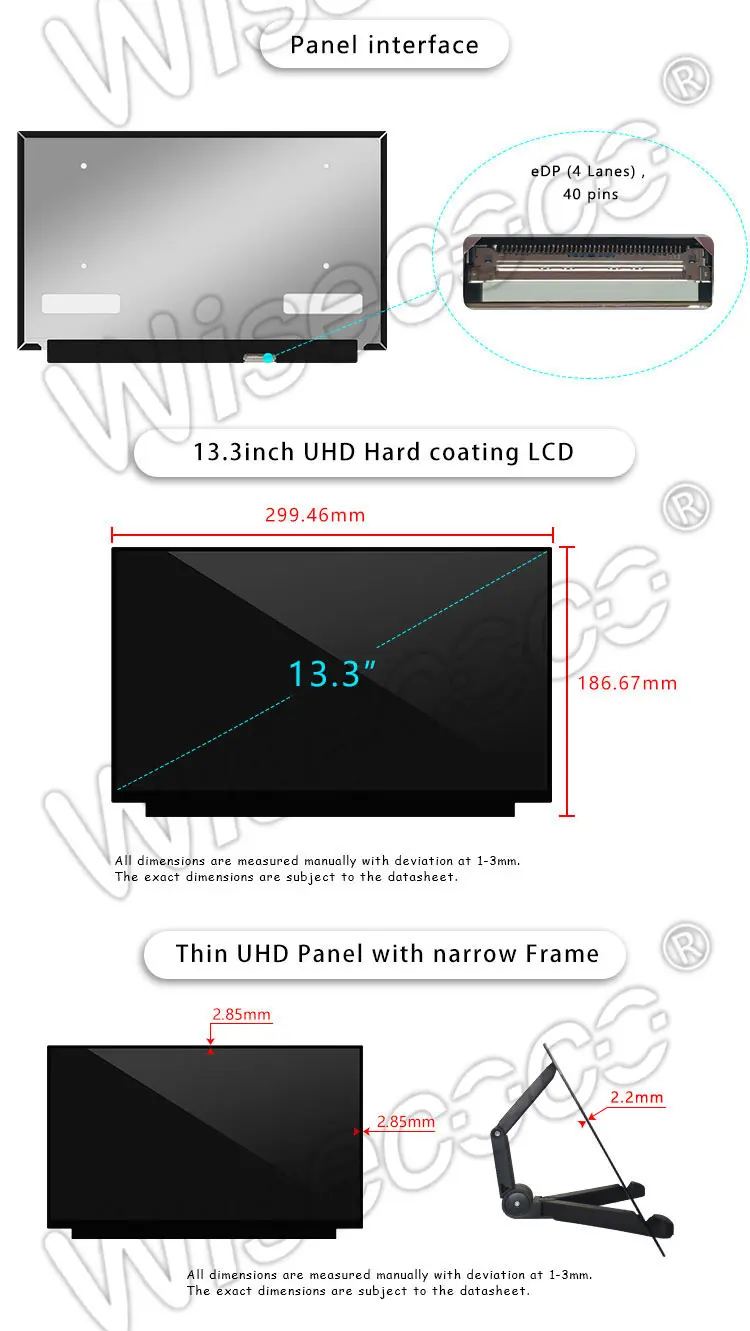

eDP (4 Lanes) , Connector , 40 pins
|
||
|
Max. Ratings
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
||
Features:
- 4K UHD Resolution (3840×2160) — Maximum pixel density in a 13.3-inch panel. Renders text, images, and UI elements with exceptional sharpness. Ideal for content creation and high-resolution visual work.
- IPS High Color Gamut — Wide RGB color coverage with IPS accuracy. Ensures faithful, vibrant color reproduction. Suited for photography, design, and color-critical applications.
- 340 cd/m² Brightness — Consistent luminance for comfortable indoor use. Suitable for office, studio, and professional monitor builds.
- WLED Backlight — Energy-efficient and long-lasting. Provides uniform illumination across the full panel. Reduces maintenance needs in always-on applications.
Ideal for: Portable 4K monitor builds · Professional laptop screen · High-resolution embedded monitors · Creative workstation secondary displays · Photography & design review panels
