- Size:15.6 inch
- Resolution:3840×2160
- Panel Interface:eDP (4 Lanes)
- Active Area:345.6*194.4 (H*V)mm
- Outline Dimension:351.9*217.2*3.2 (H*V*D)mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:300 cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

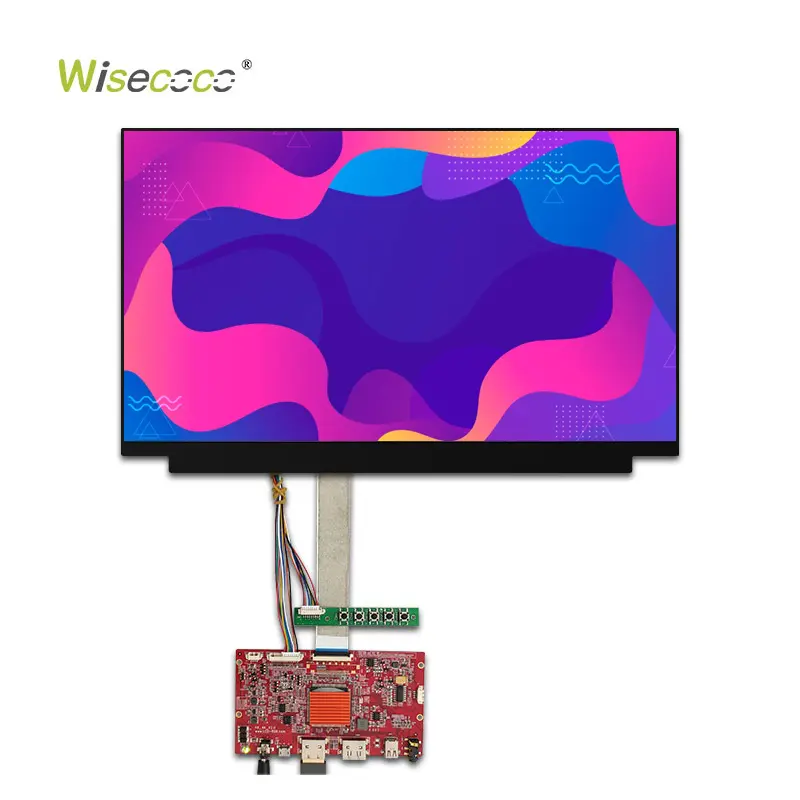

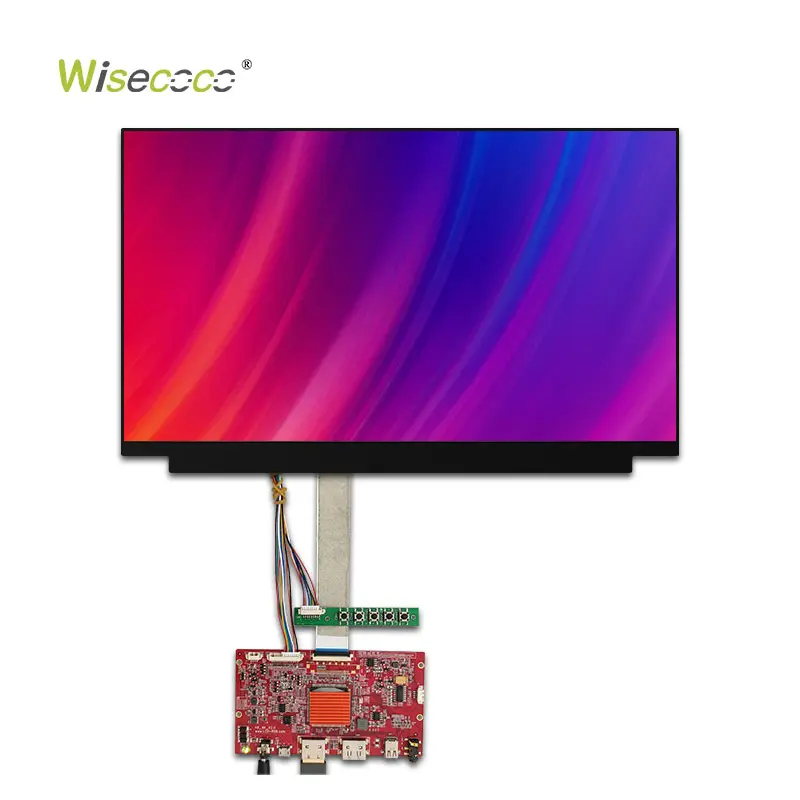

15.6 Inch IPS 4K LCD Display 3840×2160 UHD eDP Interface Wide Viewing Angle LCD Module
$160.00
15.6″ IPS 4K LCD Display — 3840×2160 UHD | eDP | High Color Gamut | White LED Backlight
15.6-inch IPS 4K LCD display delivering ultra-sharp 3840(RGB)×2160 UHD resolution with a-Si TFT-LCD technology and symmetrical wide viewing angle (85/85/85/85). Featuring a 1300:1 contrast ratio, 72% NTSC color gamut, and slim eDP interface, this laptop-grade panel is built for high-resolution portable computing applications.
|
General Features |
|||
|
Screen Size |
15.6 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
3840(RGB)*2160 (UHD) |
Configuration |
RGB Vertical Stripe |
|
Active Area(mm) |
345.6*194.4 (H*V)mm |
Outline(mm) |

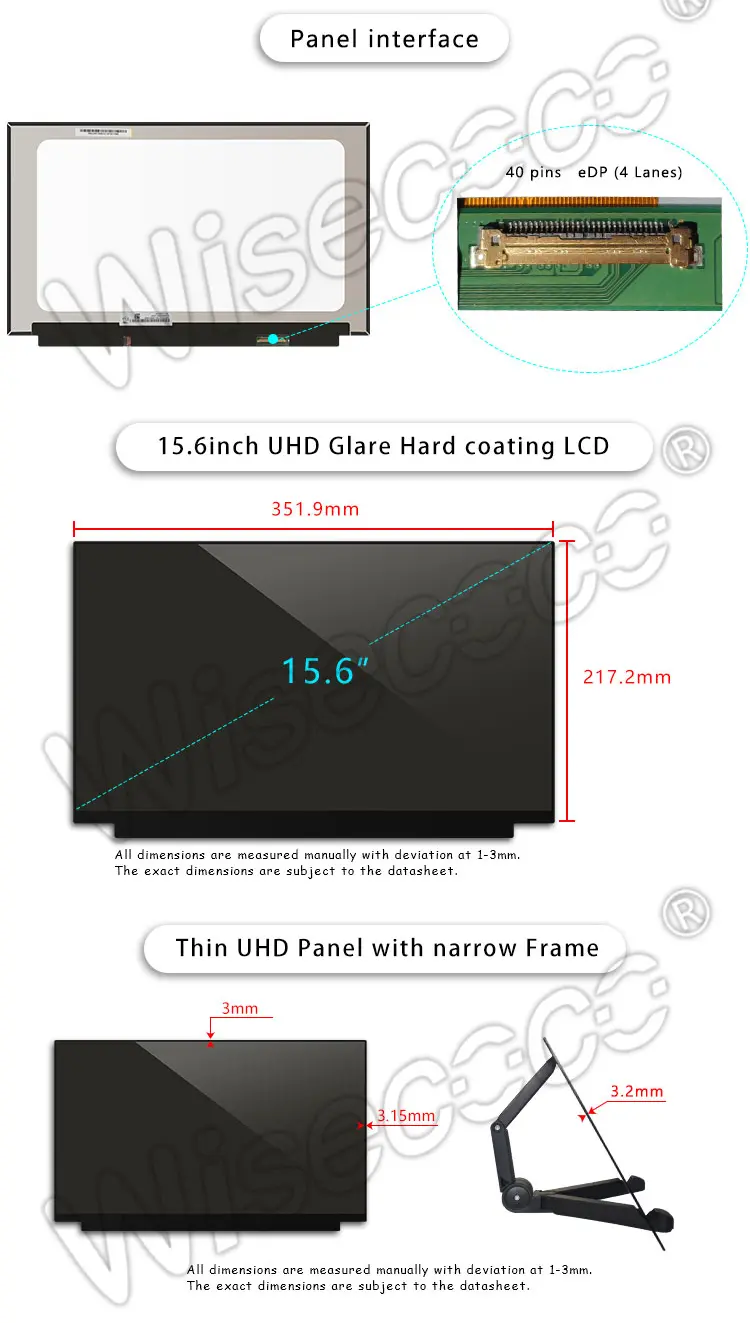

351.9*217.2*3.2 (H*V*D)mm |
|
Bezel Area(mm) |
– |
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
300 Cd/m2 (Typ.) |
Contrast Ratio |
1300 : 1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
30 (Typ.)(Tr+Td) ms |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Support Color |
16.7M 72% (CIE1931) |
Light Source |
WLED , 15K hours , With LED Driver |
|
Outline Shape |
Slim (PCBA Flat, Depth 3.2mm) |
Used for |
Laptop |
|
Refresh Rate |
60Hz |
Touchscreen |
Optional |
|
Voltage Supply |
3.3V (Typ.) |
Signal Type |
eDP (4 Lanes) , Connector , 40 pins |
|
Environment |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
||
Featuers:
- 3840×2160 4K UHD Resolution — Ultra-sharp IPS panel delivers exceptional pixel density and razor-fine detail for photos, video, and desktop use.
- Wide Viewing Angle (85/85/85/85, CR≥10) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- 1300:1 Contrast Ratio — Enhanced dynamic range for clear, well-defined imagery.
- 16.7M Colors, 72% NTSC (CIE1931) — Rich, accurate color reproduction for vivid, true-to-life visuals.
- Glare-Free, Hard Coating (3H) Surface — Anti-glare treatment with scratch-resistant coating for extended durability and clear visibility.
Ideal for: Laptop displays · High-resolution portable computing · Creative & design workstations · Premium notebook upgrades · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
