- Size:11.6 inch
- Resolution:1366×768
- Panel Interface:eDP (1 Lane)
- Active Area:256.125 × 144 (H×V) mm

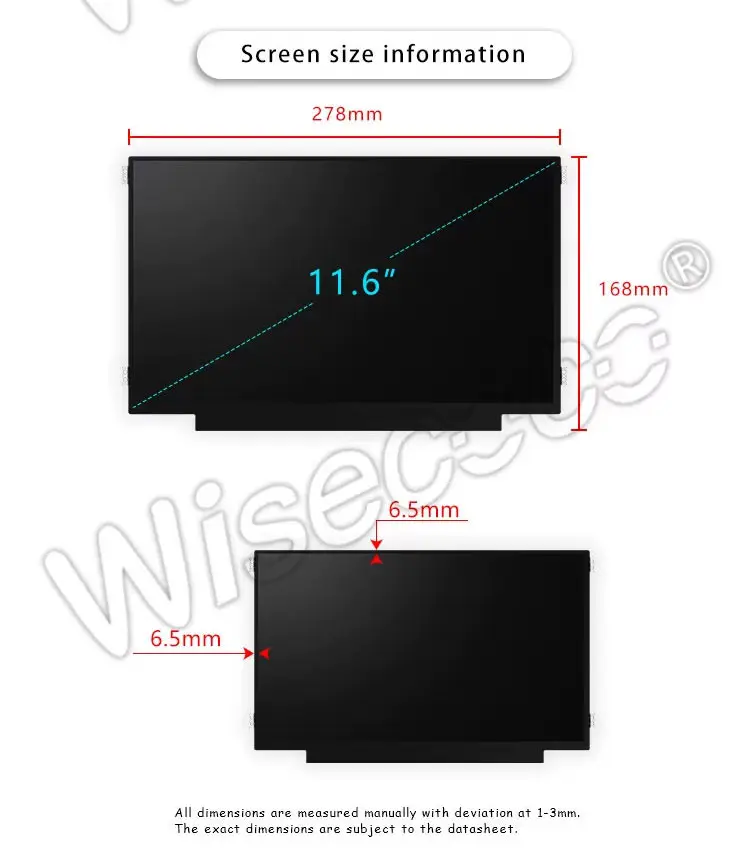

- Outline Dimension:278 × 168 × 3 (H×V×D) mm
- Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
- Brightness:250 cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

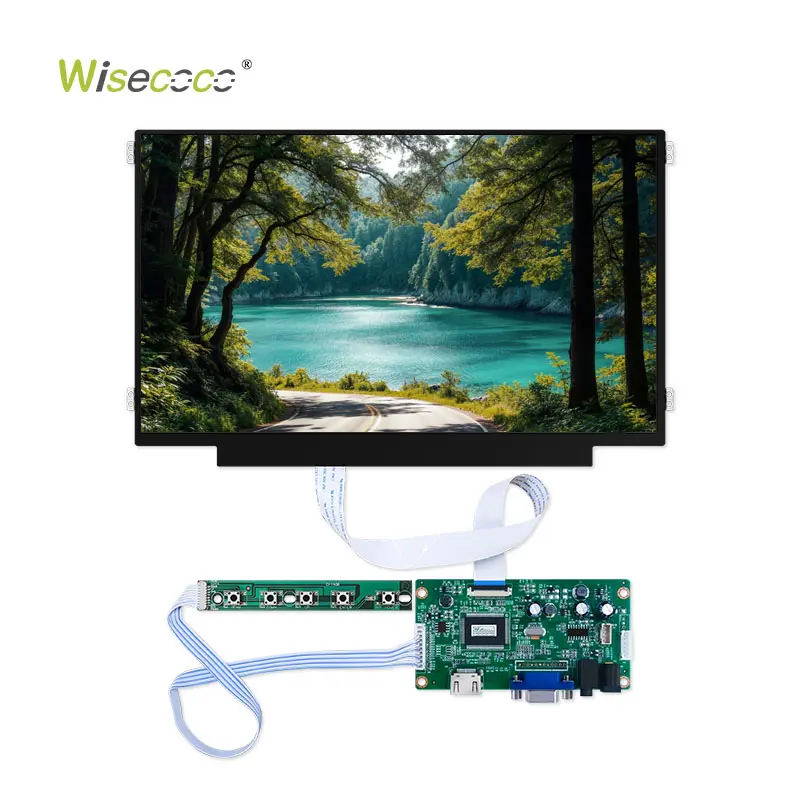

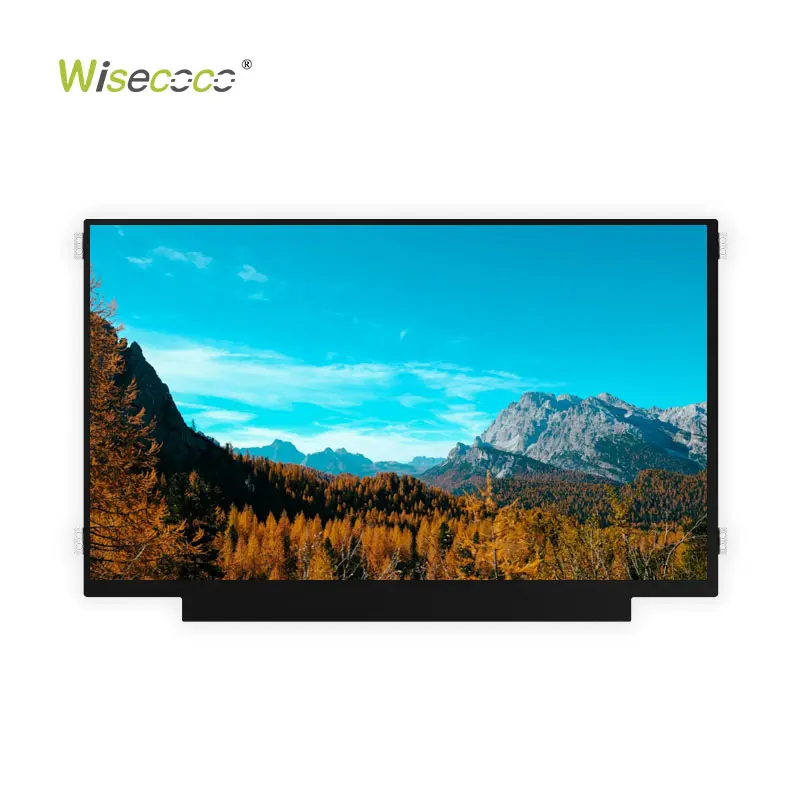

11.6 Inch TFT LCD Display 1366×768 EDP WLED Backlight IPS LCD Panel for Industrial Panels
$105.00

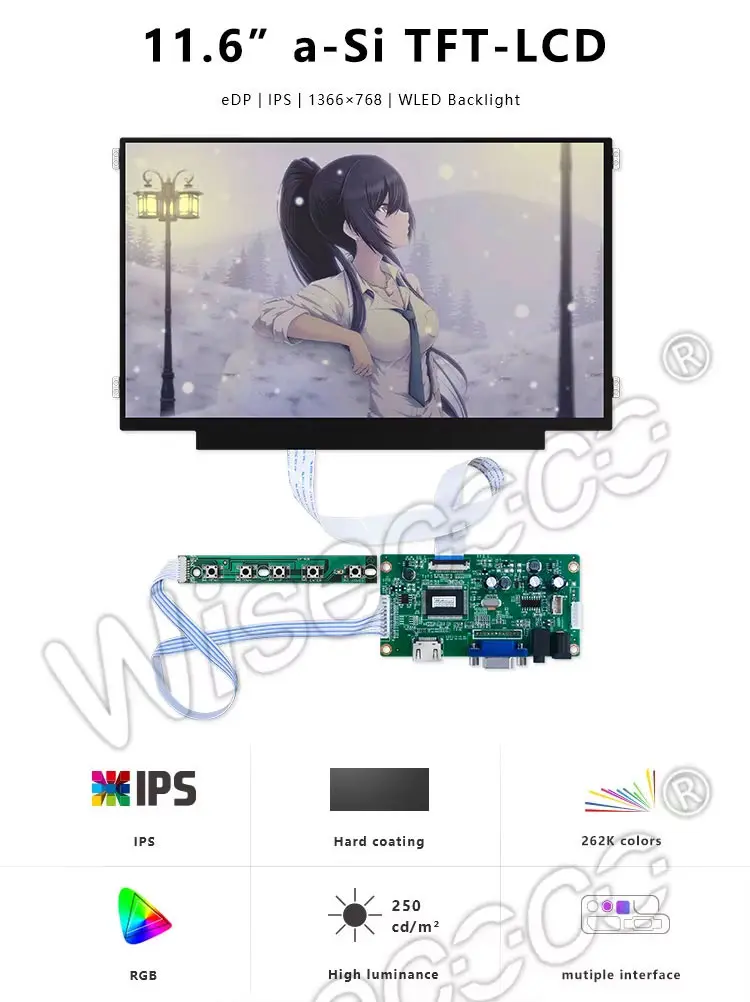

11.6″ IPS TFT-LCD — 1366×768 | Hard Coating | eDP | WLED Backlight
11.6-inch IPS TFT-LCD panel with hard coating surface protection, energy-efficient WLED backlight, and eDP interface. Ideal for industrial panels, laptop , and embedded builds.
|
Diagonal Size
|
11.6 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Format
|
1366(RGB)×768 (WQXGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
256.125 × 144 (H×V)
|
Outline Dim.
|
278 × 168 × 3 (H×V×D)
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
–
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Operating Mode
|
AAS, Normally Black, Transmissive
|
|
Support Color
|
262K 45% NTSC
|
Light Source
|
WLED , 15K hours , With LED Driver
|
|
Outline Shape
|
Slim (PCBA Flat, T≤3.2mm)
|
Designed For
|
Laptop; Netbook PC; Industrial Panels
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|
Interface Type
|
eDP (1 Lane) , Connector , 30 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
||
Featuers:
- IPS Wide Viewing Angle — True IPS technology ensures accurate, shift-free color reproduction across wide horizontal and vertical angles, suitable for multi-user and off-axis viewing scenarios in industrial and kiosk environments
- Hard Coating Surface — Scratch-resistant treatment protects the panel from daily contact, abrasion, and surface wear — extending service life in industrial and high-traffic applications
- eDP Interface — Standard embedded DisplayPort connection for direct, low-complexity integration with laptops, mini-PCs, Raspberry Pi CM boards, and modern embedded computing platforms
- WLED Backlight — Energy-efficient LED backlighting delivers uniform illumination with a longer operational lifespan than traditional CCFL, reducing maintenance overhead
Ideal for: Industrial control panels · Laptop screen replacement · Embedded HMI displays · Kiosk and POS terminals · DIY PC and SBC monitor builds
