- Size:13.3 inch
- Resolution:1920×1080
- Panel Interface:30 pins eDP (2 Lanes)
- Active Area:293.76 × 165.24 (H×V)mm

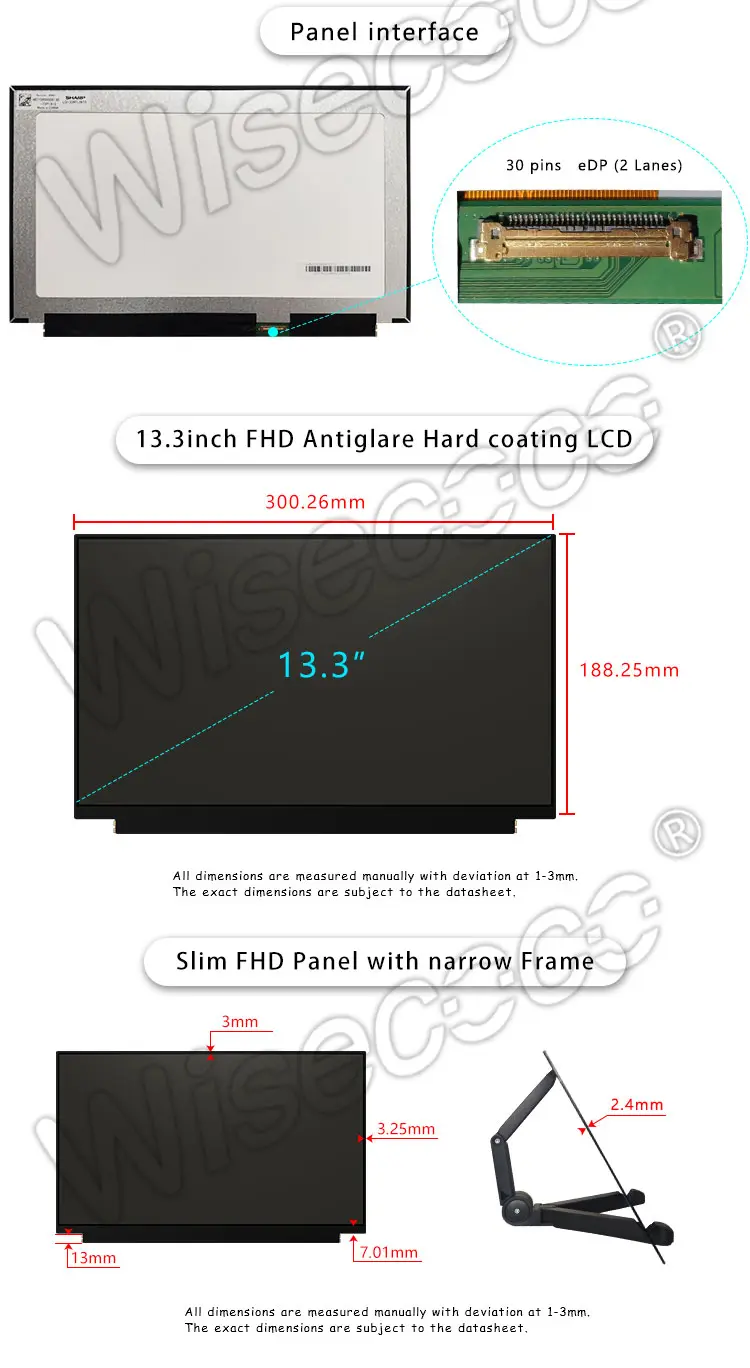

- Outline Dimension:300.26(H)×188.25(V) ×2.4(D) mm
- Viewing Angle:88/88/88/88 (Typ.)(CR≥10)
- Brightness:300 Cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

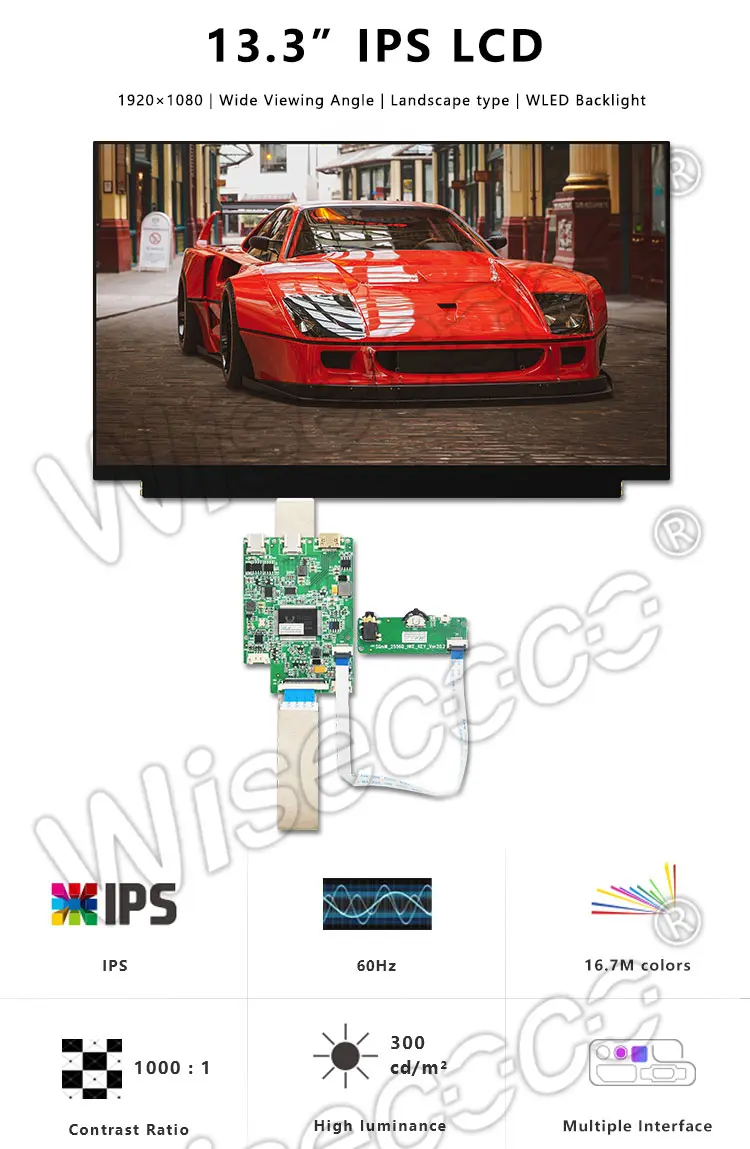

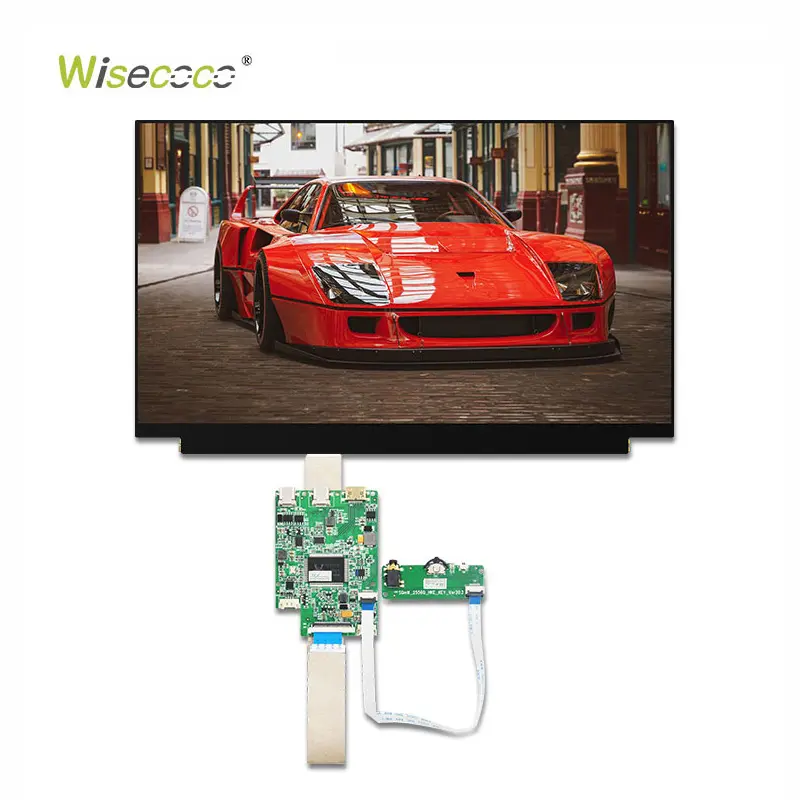

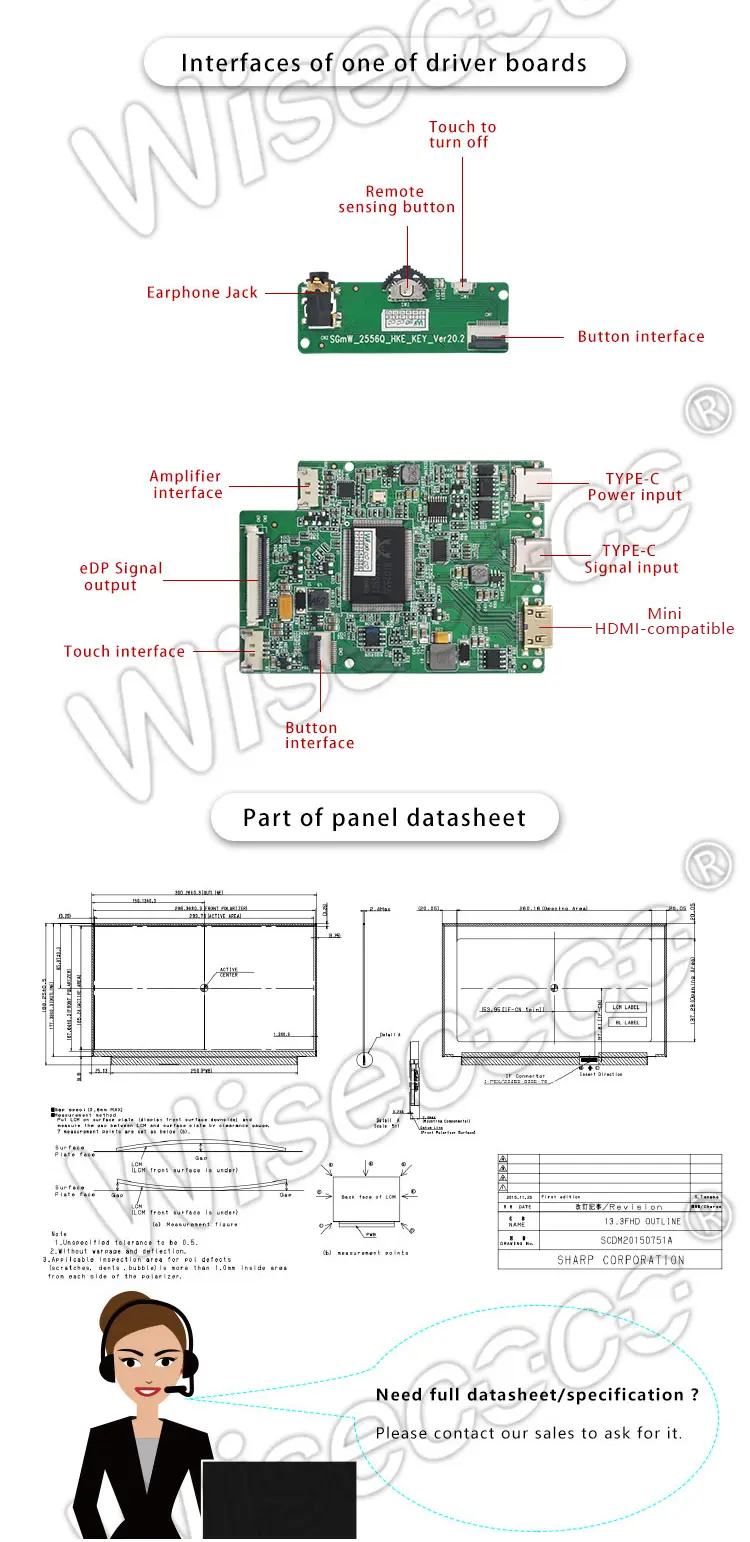

13.3 Inch 1920×1080 eDp Controller Board 60Hz Full HD IPS TFT LCD Screen Module Display
$99.00
13.3″ IPS FHD LCD — 1920×1080 | 300 cd/m² | 1000:1

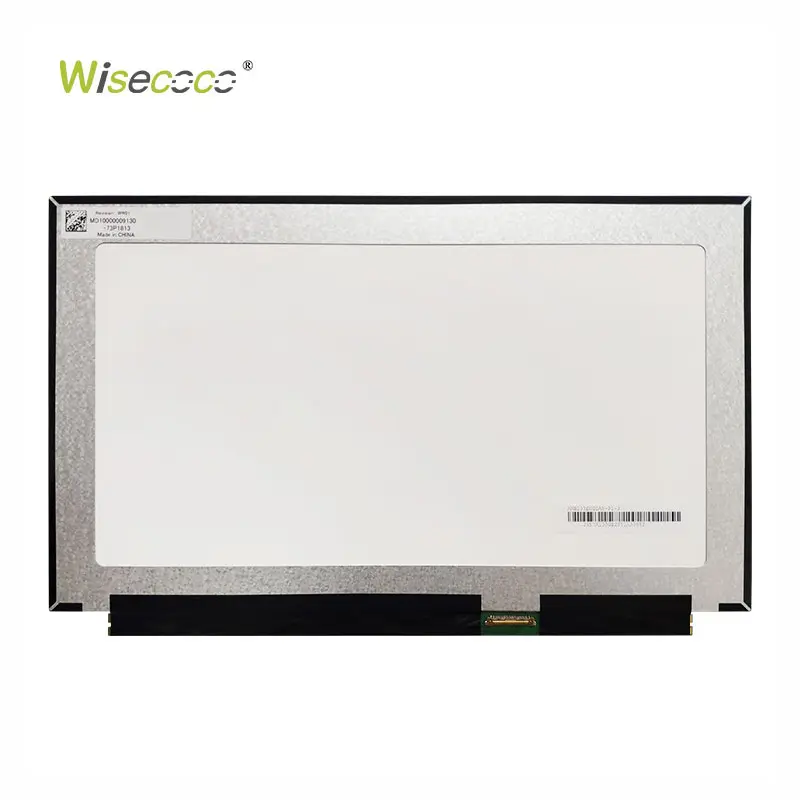

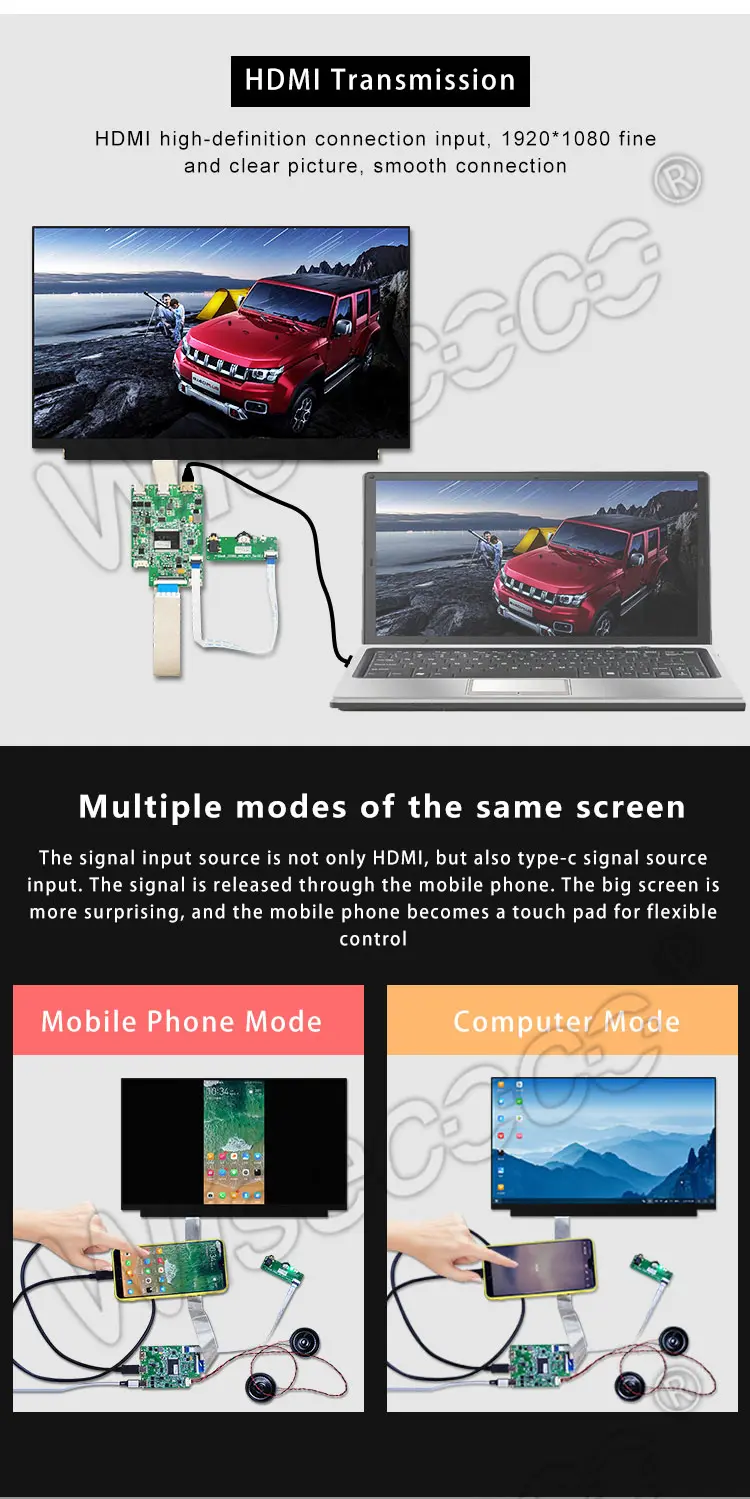

13.3-inch Full HD IPS TFT-LCD panel with antiglare hard coating (3H) and WLED backlight. A versatile, integration-ready display module for laptop replacements, portable monitors, embedded systems, and industrial builds requiring a standard FHD IPS panel with maximum signal source flexibility.
|
General Features
|
|||
|
Diagonal Size
|
13.3 inch
|
Type
|
LCM, IGZO TFT-LCD
|
|
Pixel Format
|
1920(RGB)×1080 [FHD]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
293.76 × 165.24 (H×V)
|
Outline Dim.
|
300.26(H)×188.25(V) ×2.4(D) mm
|
|
Bezel Area
|
–
|
Treatment
|
Antiglare, Hard coating (3H)
|
|
Luminance
|
300 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
25 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
88/88/88/88 (Typ.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 100% sRGB
|
Light Source
|
WLED , 10K hours , With LED Driver
|
|
Outline Shape
|
Slim (PCBA Flat, T≤3.2mm)
|
Designed For
|
Laptop
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|
Interface Type
|
30 pins eDP (2 Lanes) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
Features:
- 1920×1080 Full HD IPS — Standard FHD resolution at 60Hz. Sharp, detailed imagery for productivity, media, and general use. IPS Normally Black mode delivers deep blacks and accurate color.
- Antiglare Hard Coating (3H) — Dual-function surface treatment. Matte antiglare finish reduces reflections in bright environments. 3H hardness rating protects against scratches and daily contact wear.

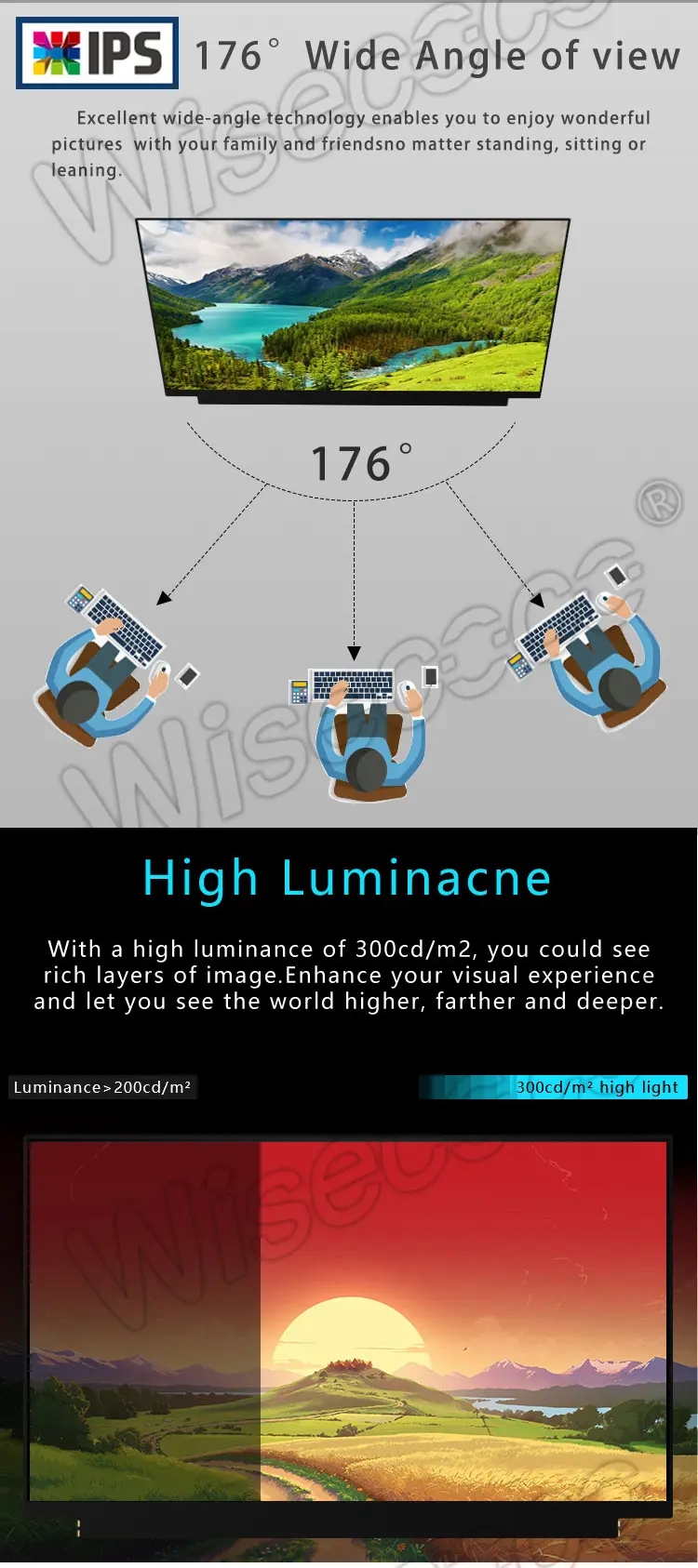

- IPS Wide Viewing Angle — Accurate color reproduction across wide horizontal and vertical angles. No shift or washout at off-axis positions. Suitable for shared-viewing and portable use scenarios.
- 1000:1 Contrast Ratio — Clear distinction between light and dark content. Sharp text and graphic rendering. Good depth for media and image display.
- 300 cd/m² Brightness — Comfortable luminance for standard indoor environments. Suitable for office, studio, and embedded display applications.
- WLED Backlight — Energy-efficient and long-lasting. Uniform illumination across the full panel. Reduces operational costs in always-on builds.

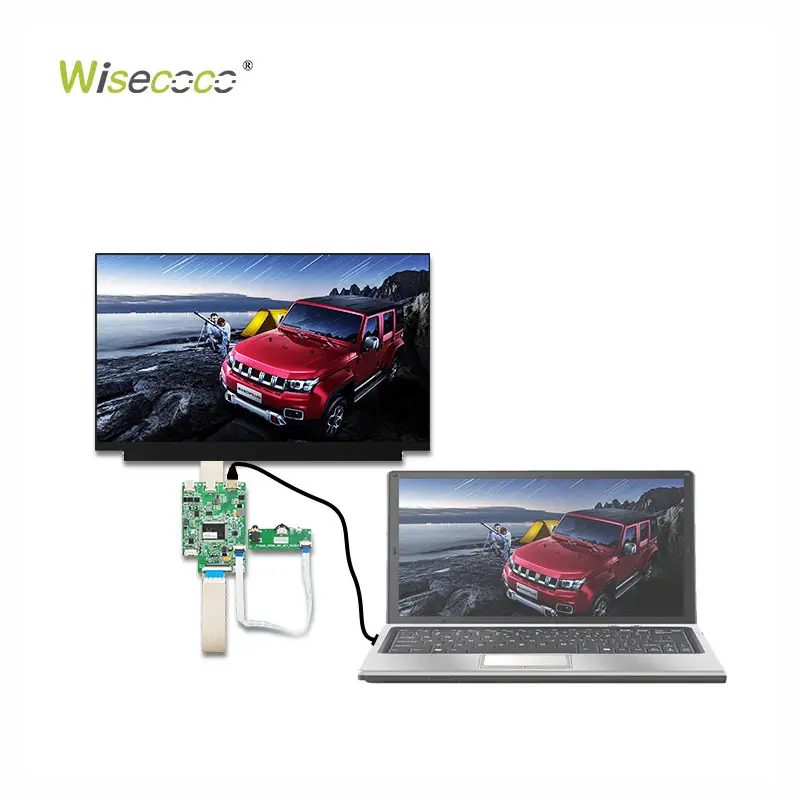

Ideal for: Laptop screen replacement · Portable monitor builds · Embedded industrial monitors · Kiosk and POS terminals · DIY desktop
Wisecoco offers One-step customized LCD display solutions.
