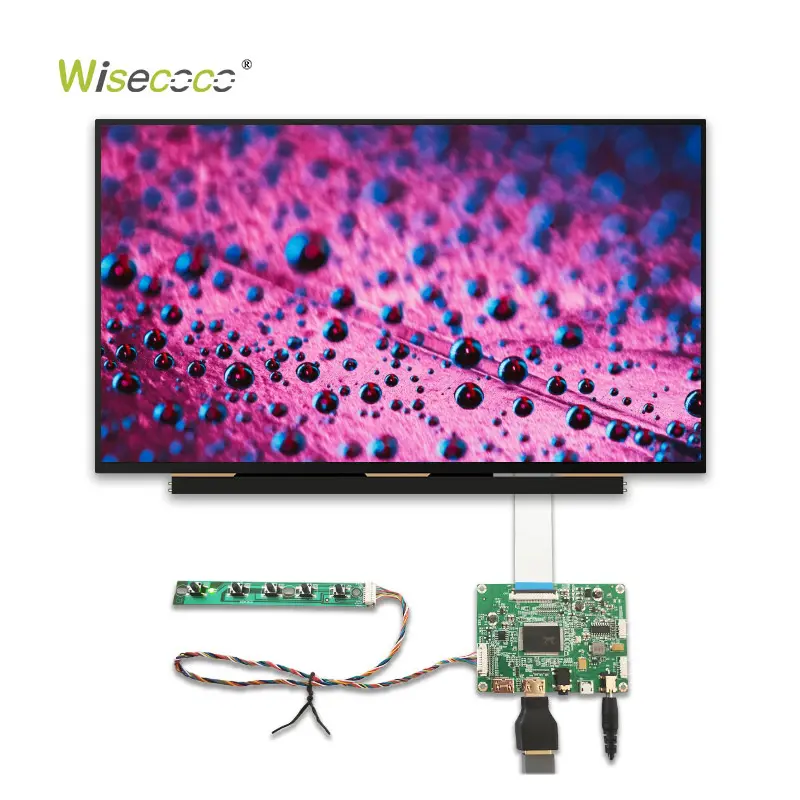

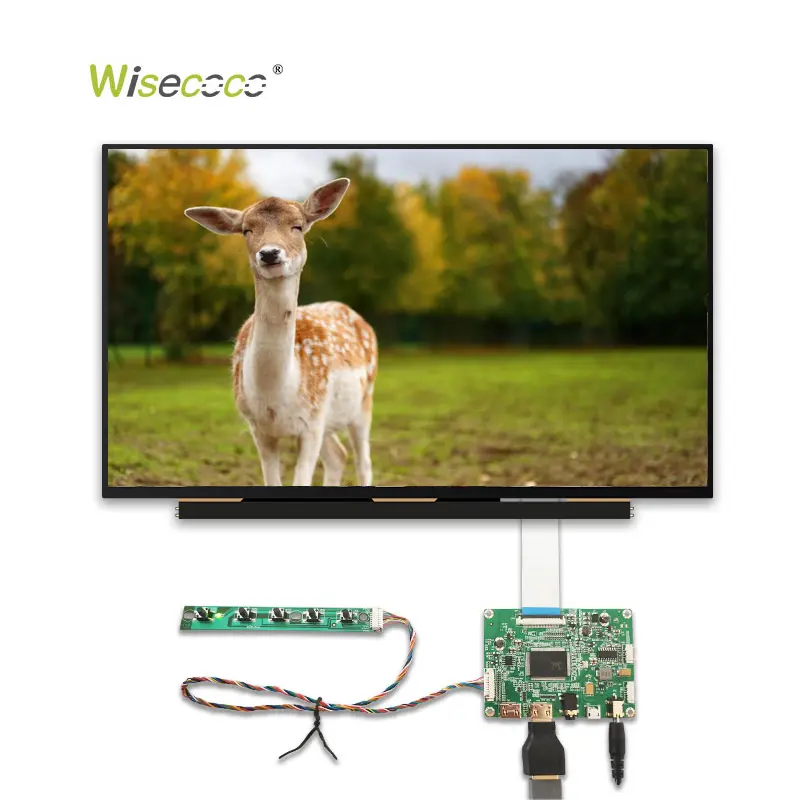

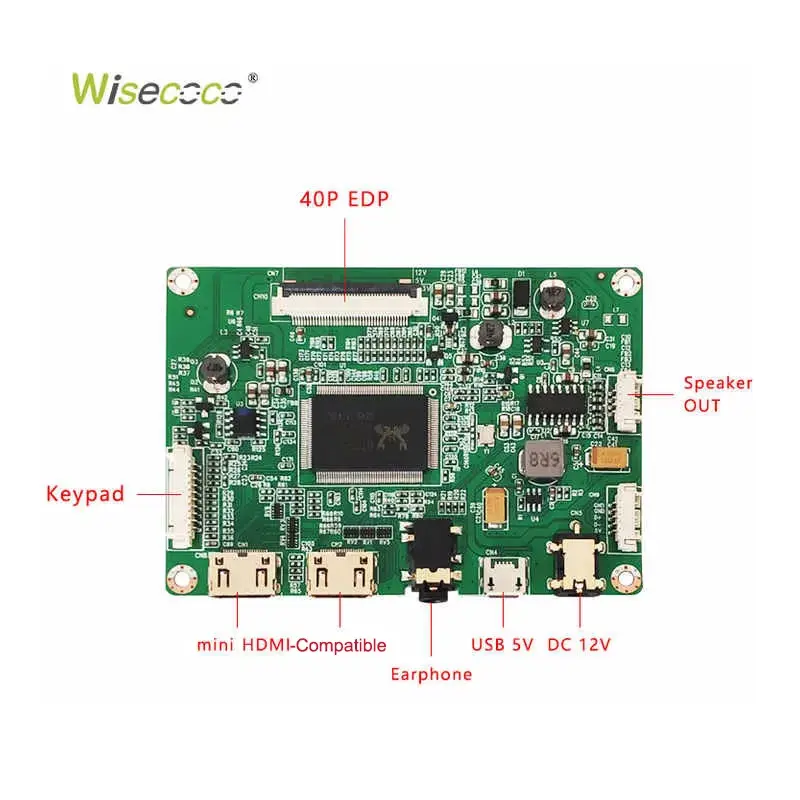

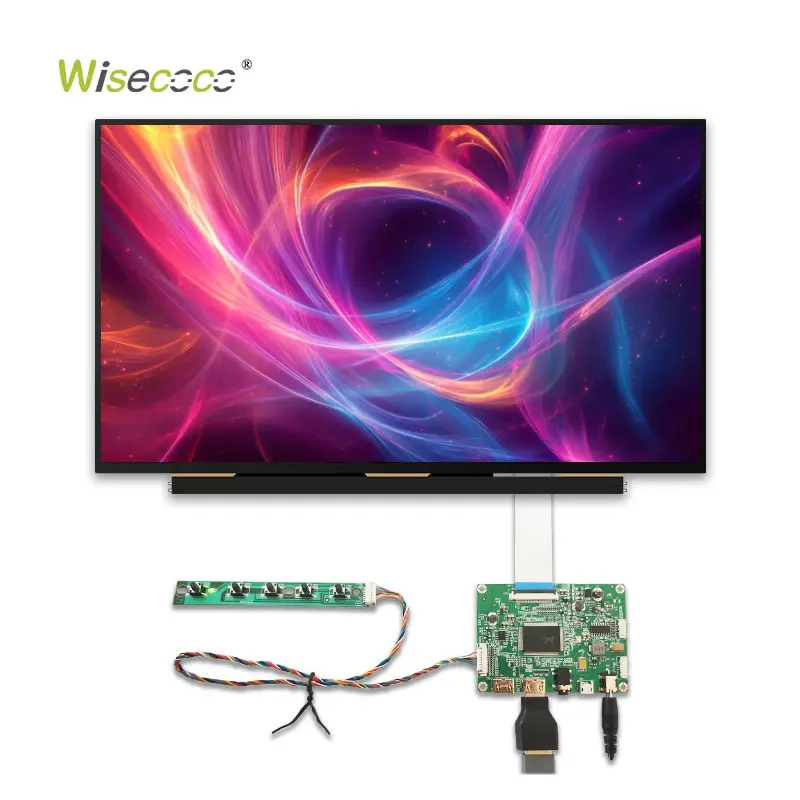

13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display Edp 40 Pin 4 Lane Full HD LCD Screen with Controller Driver Board
13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display LCD Screen with Controller Driver Board
13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display LCD Screen with Controller Driver Board
13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display LCD Screen with Controller Driver Board
13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display LCD Screen with Controller Driver Board
13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display LCD Screen with Controller Driver Board

13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display Edp 40 Pin 4 Lane Full HD LCD Screen with Controller Driver Board

$110.00

  • Size:13.3 inch
  • Resolution:2560×1440

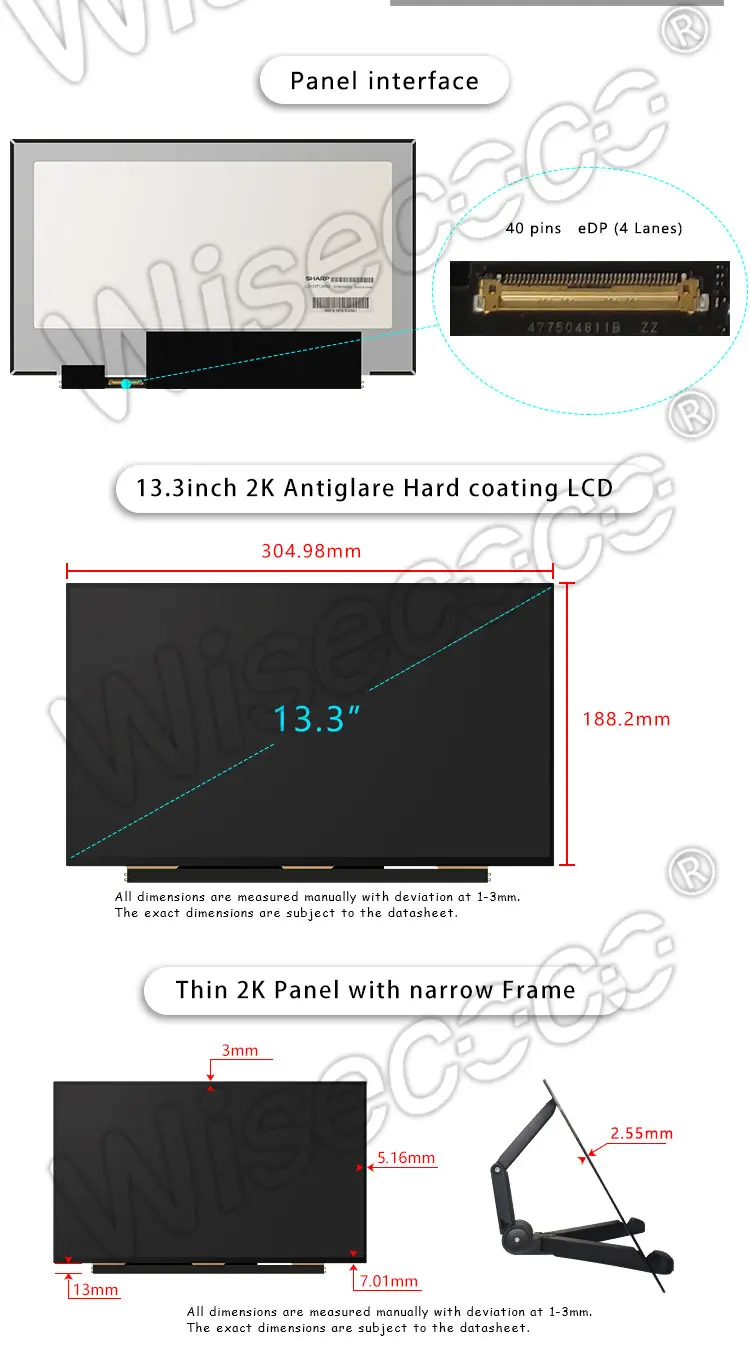

  • Panel Interface:40 pins eDP (4 Lanes)
  • Active Area:293.76(H)*165.24(V) mm
  • Outline Dimension:304.98(H)*188.2(V)*2.55(D) mm
  • Viewing Angle:80/80/80/80 (Min.)(CR≥10)
  • Brightness:350 Cd/m² (Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C

>Get a Quote

13.3″ 2K IPS LCD Display— 2560×1440 | 350 cd/m² | eDP1.2

13.3-inch Quad-HD TFT-LCD panel with 2560×1440 resolution. IGZO technology enables higher pixel density with lower power consumption than standard a-Si panels — the ideal choice for premium laptop replacements and high-resolution portable displays where sharpness, efficiency, and slim form factor all matter.

General Features

Screen Size

13.3 inch

Type

IGZO TFT-LCD, LCM

Pixel Number

2560(RGB)*1440 [Quad-HD]

Configuration

RGB Vertical Stripe

Active Area(mm)

293.76(H)*165.24(V) mm

Outline(mm)

304.98(H)*188.2(V)*2.55(D) mm

Bezel Area(mm)

–

Treatment

Antiglare (Haze 42%)

Luminance

350 Cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

25 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Operating Mode

VA, Normally Black, Transmissive

Support Color

16.7M   72% (CIE1931)

Light Source

WLED , 10K hours , With LED Driver

Form Style

Slim (PCBA Flat, Depth≤3.2mm)

Used for

laptop

Refresh Rate

60Hz

Touch screen

optional

Voltage Supply

 3.3V (Typ.)

Signal Type

 40 pins   eDP (4 Lanes) ,Connector

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Features:

  • 2560×1440 Quad-HD Resolution — Significantly sharper than standard FHD panels. Text, icons, and images are noticeably crisper. Ideal for productivity, design work, and high-resolution content.
  • IPS Wide Viewing Angle — Accurate color reproduction across wide horizontal and vertical angles. No shift or washout at off-axis positions. Suitable for shared-viewing and portable use scenarios.
  • 1000:1 Contrast Ratio — Clear distinction between light and dark content. Sharp text and graphic rendering. Good depth for media and image display.

  • 350 cd/m² Brightness — Above-average luminance for a laptop-grade panel. Comfortable in bright office and studio environments. Higher than typical 300 cd/m² FHD replacements.

  • WLED Backlight — Energy-efficient and long-lasting. Uniform illumination across the full panel. Reduces operational costs in always-on builds.

Ideal for: Premium QHD laptop screen replacement · High-resolution portable monitor builds · Creative workstation portable displays · Embedded high-resolution HMI panels

Wisecoco offers One-step customized LCD display solutions.

13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display 13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display 13.3 Inch 2560*1440 2K Slim IPS LCD Panel Display
