- Size:10.1 inch
- Resolution:1280×800
- Panel Interface:LVDS (1 ch, 6-bit)
- Active Area:216.96×135.6 (HxV)mm
- Outline Dimension:227.42×147.69×4.85 (HxVxD)mm
- Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
- Brightness:350cd/m²(Typ.)
- Operation / Storage Temp:-10~60°C / -20~70°C

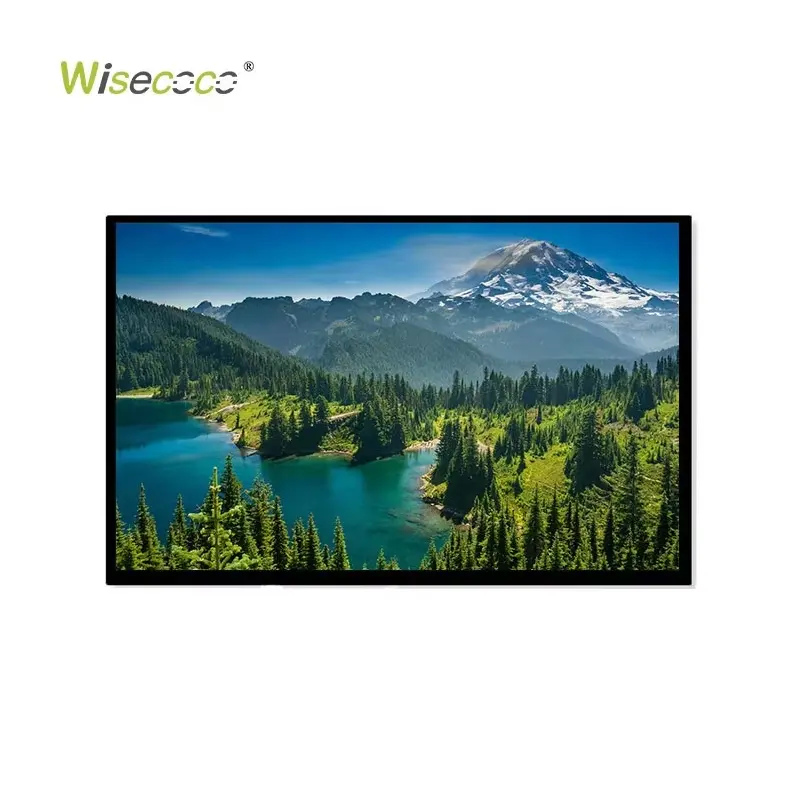

10.1 Inch 1280×800 Tft LCD Module Display Lvds Interface Wide Viewing Angle LCD Panel for Raspberry Pi
$99.00
|
Screen Size
|
10.1 inch
|
Screen Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Number
|
1280(RGB)*800 (WXGA)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
216.96*135.6 (H*V)mm
|

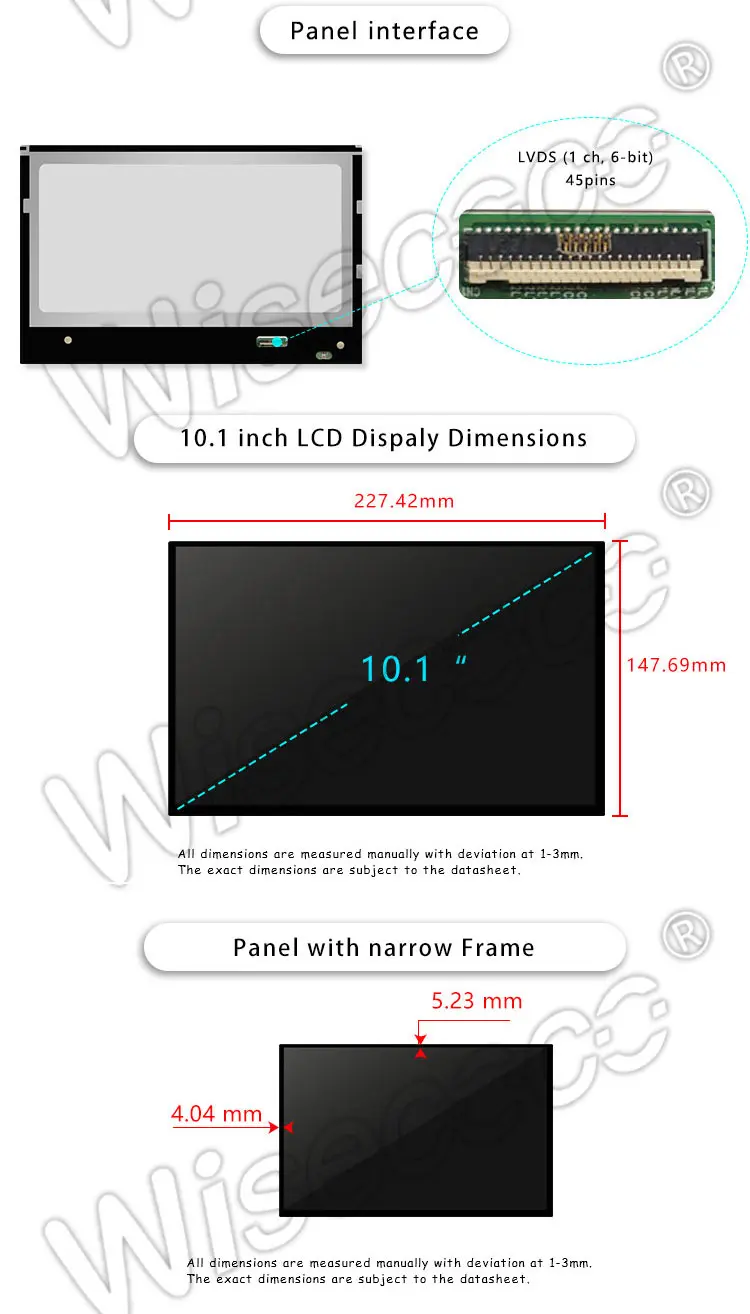

Outline Dim.
|
227.42*147.69*4.85 (H*V*D)mm
|
|
Bezel Area
|
219.66*138.6 (H*V)mm
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
Luminance
|
350 cd/m² (Typ.)
|
Response Time
|
14/11 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Work Mode
|
AAS, Normally Black, Transmissive
|
|
Good View at
|
Symmetry
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Color Depth
|
262K 50% NTSC
|
Backlight
|
3 strings WLED , 12K hours , With LED Driver
|
|
Weight
|
120/135g (Typ./Max.)
|
Used for
|
pad tablet POS machine etc.
|
|
Frame Rate
|
60Hz
|
Touch Screen
|
Optional
|
|
Interface Type
|
LVDS (1 ch, 6-bit) , Connector , 40 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
|
||
