- Size:14 inch
- Resolution:1920×1080
- Panel Interface:30 pins eDP (2 Lanes)
- Active Area:309.14(W)x173.89(H) mm
- Outline Dimension:320.4(W)x205.1(H)x3(D) mm
- Viewing Angle:45/45/20/40 (Typ.)(CR≥10
- Brightness:300 Cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

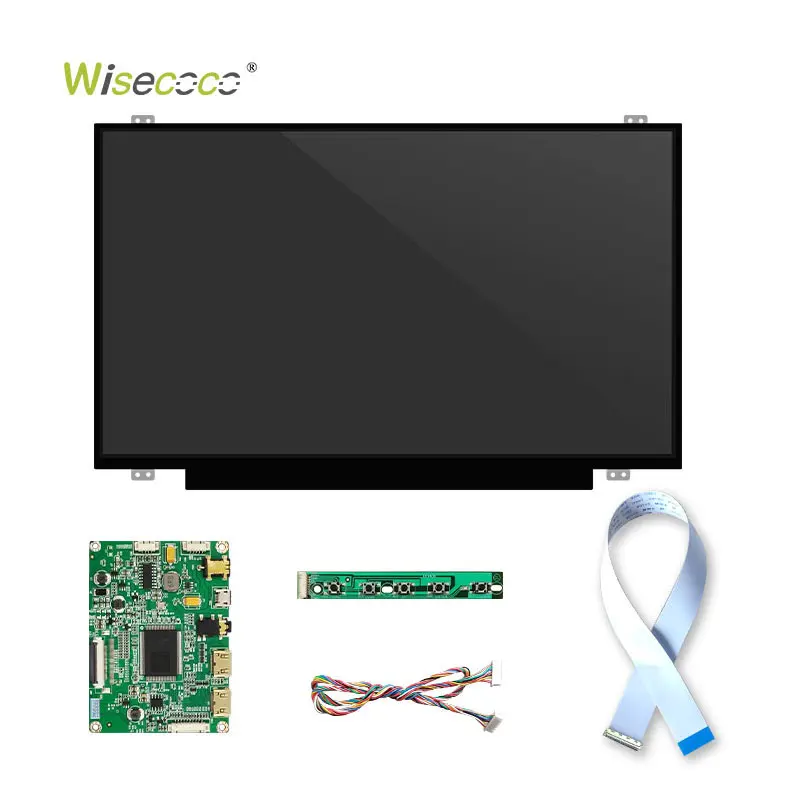

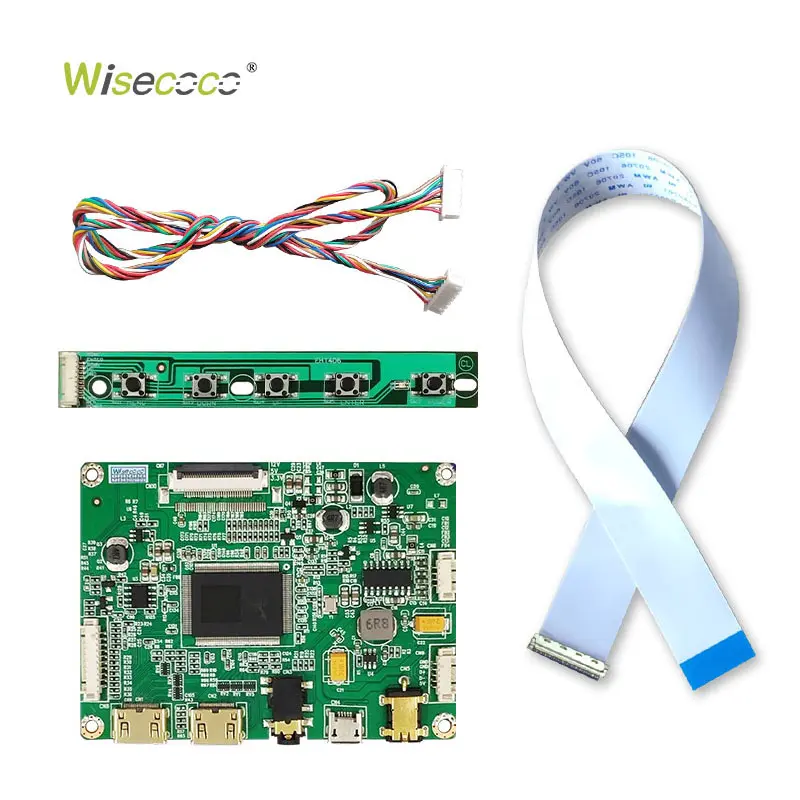

14″ Full HD LCD Screen Kit 1920×1080 Resolution 30 Pins EDP Interdace Slim LCD Module
$135.00

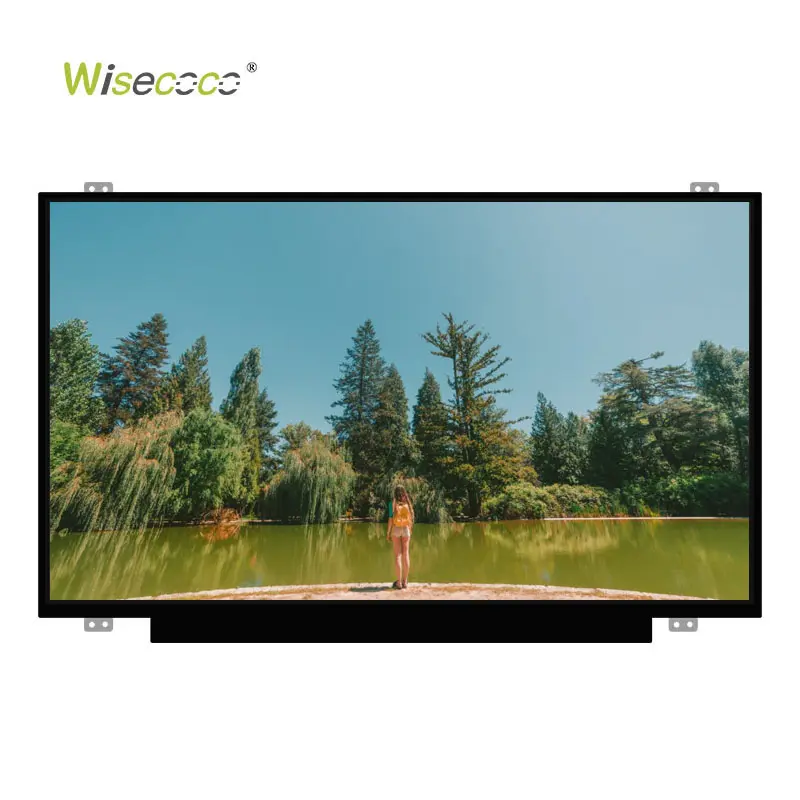

14″ Full HD 1920×1080 Resolution LCD Screen with EDP Interdace
|
Diagonal Size
|
14 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1920(RGB)*1080 , FHD
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
309.14(W)*173.89(H) mm
|
Outline Dim.
|
320.4(W)*205.1(H)*3(D) mm
|
|
Bezel Area
|
–
|
Treatment
|
Antiglare (Haze 24%), Hard coating (3H)
|
|
Luminance
|
300 Cd/m² (Typ.)
|
Contrast Ratio
|
500:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
3/7 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
45/45/20/40 (Typ.)(CR≥10
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
262K 60% (CIE1931)
|
Light Source
|
WLED , 15K hours , With LED Driver
|
|
Form Style
|
Slim (PCBA Flat, T≤3.2mm)
|
Designed For
|
Laptop
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|
Interface Type
|
30 pins eDP (2 Lanes) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
||
14-inch Full HD a-Si TFT-LCD panel with hard coating surface treatment, WLED backlight, and broad controller board compatibility. A cost-effective, versatile display module suited for laptop replacement screens, embedded monitors, and industrial builds requiring a standard FHD panel with maximum interface flexibility.
Features:
- 1920×1080 Full HD — Standard FHD resolution delivers crisp, clear imagery for productivity, media, and UI-heavy applications
- Hard Coating Surface — Scratch-resistant treatment protects the display surface from daily wear, extending the panel’s service life in devices subject to frequent handling or contact
- WLED Backlight — Energy-efficient white LED backlighting provides uniform brightness with longer operational lifespan compared to traditional CCFL solutions
- eDP Interface — Standard embedded DisplayPort interface for direct integration with laptops, mini-PCs, and modern embedded computing platforms
Ideal for: Laptop screen replacement · Embedded industrial monitors · DIY desktop builds · Kiosk and HMI panels requiring broad signal compatibility
Wisecoco offers One-step customized LCD display module solutions.
