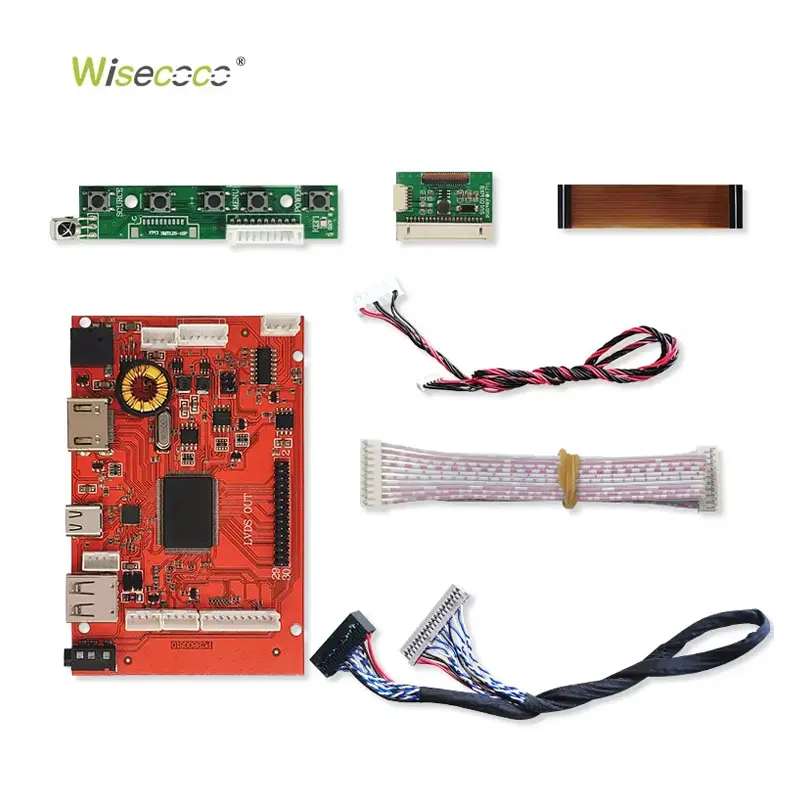

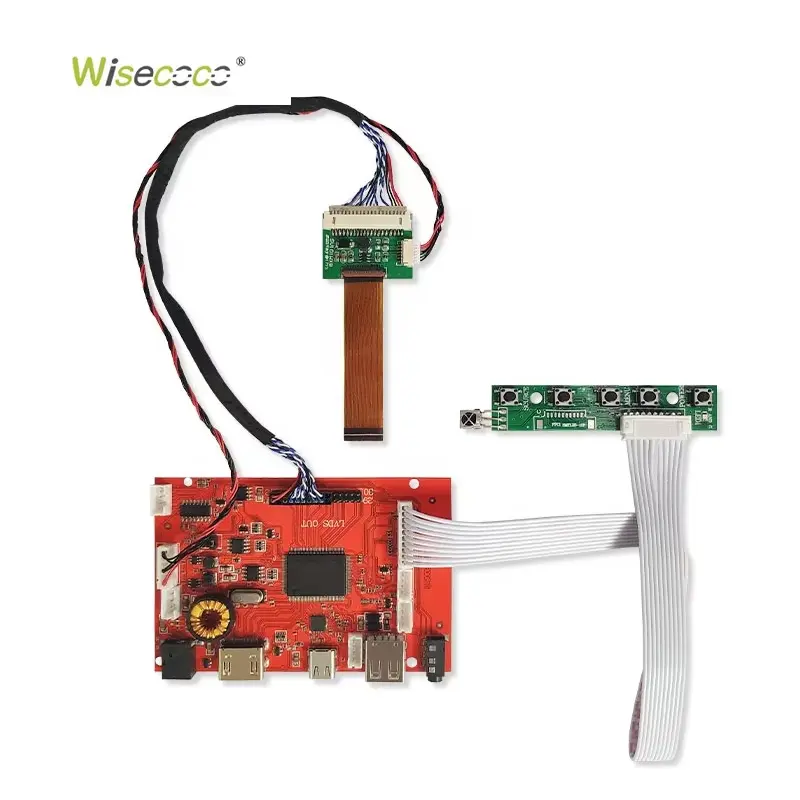

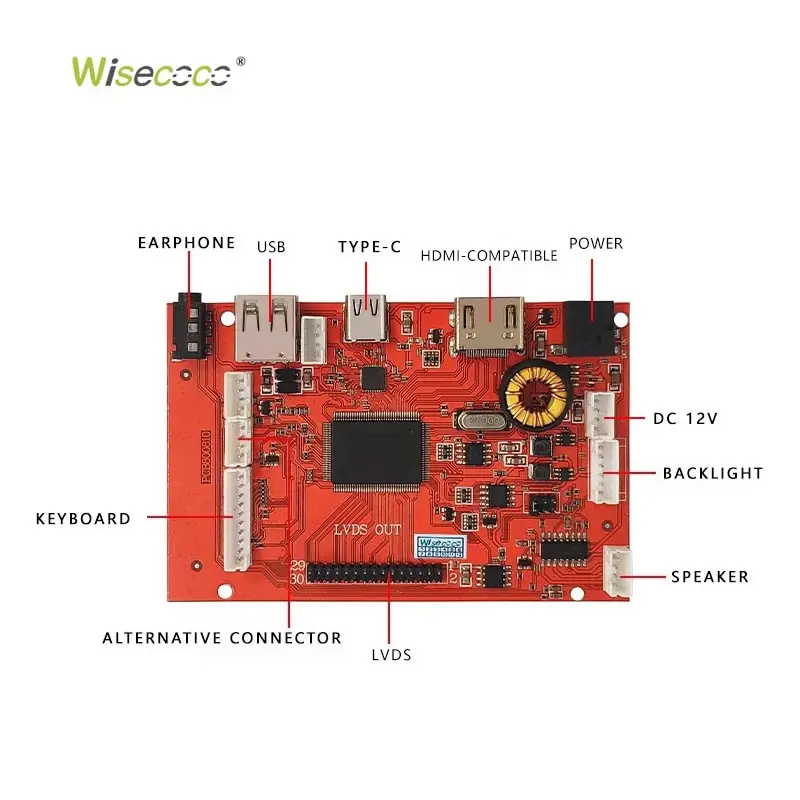

10.1 inch 1280x800 ips lcd screen module lvds driver board
10.1 inch 1280x800 ips lcd screen module lvds driver board
10.1 inch 1280x800 ips lcd screen module lvds driver board

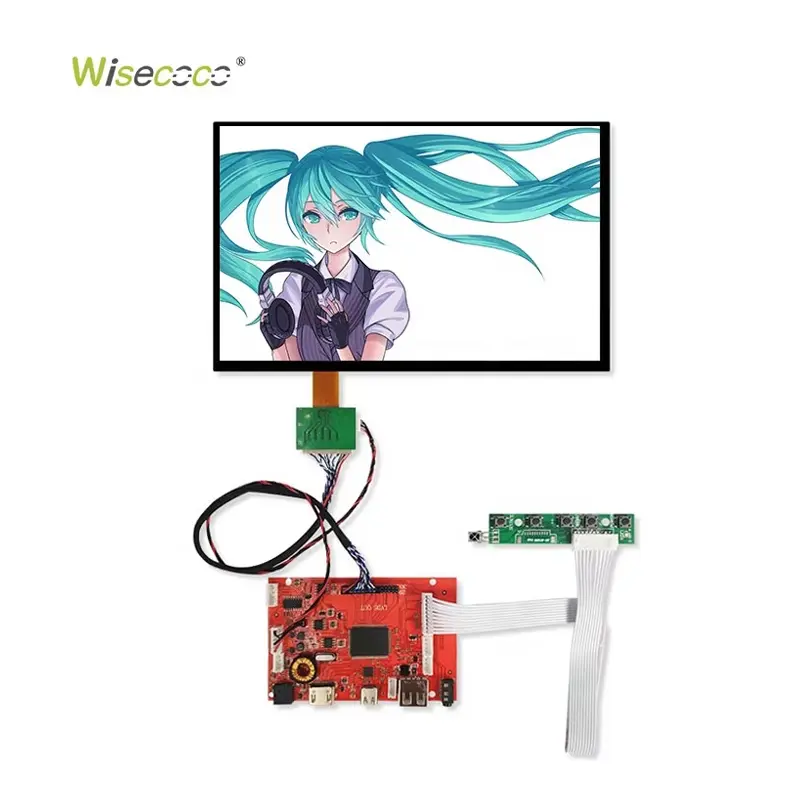

10.1 Inch IPS LCD Display 1280*800 Resolution LVDS Interface LCD Screen Module for Laptop Tablet Advertising

$99.00

  • Size:10.1 inch
  • Resolution:1280×800
  • Panel Interface:LVDS (1 ch, 6-bit)

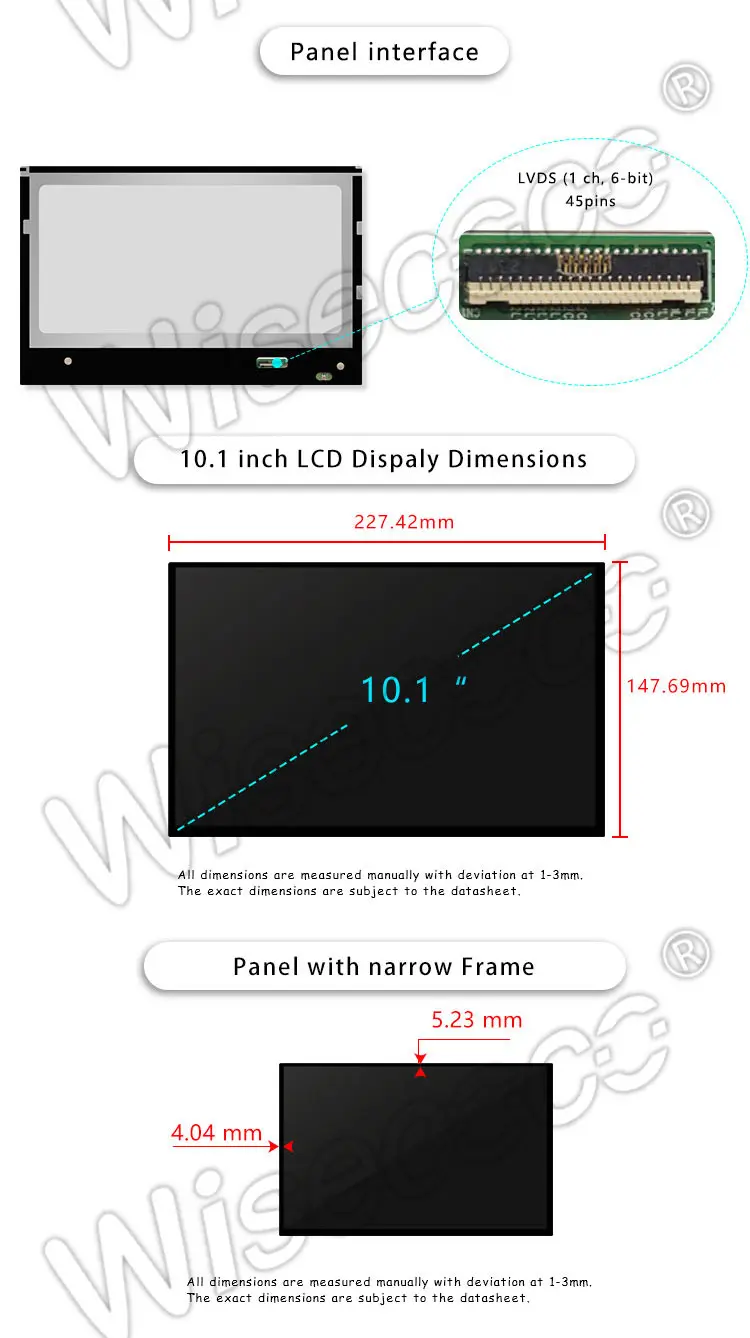

  • Active Area:216.96×135.6 (HxV)mm
  • Outline Dimension:227.42×147.69×4.85 (HxVxD)mm
  • Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
  • Brightness:350cd/m²(Typ.)
  • Operation / Storage Temp:-10~60°C / -20~70°C

>Get a Quote

10.1″ IPS LCD Display — 1280×800 | 350 cd/m² | 60Hz | LVDS

10.1-inch a-Si Ips TFT-LCD Display delivers 1280×800 WXGA resolution with a 350 cd/m² typical luminance and a wide 89/89/89/89 viewing angle. With a 60Hz frame rate, glare treatment with 3H hard coating, and an LVDS interface, it provides a practical display solution for tablets, POS machines, and other embedded devices.

Screen Size
10.1 inch
Screen Type
a-Si TFT-LCD , LCM
Pixel Number
1280(RGB)*800 (WXGA)
Configuration
RGB Vertical Stripe
Active Area
216.96*135.6 (H*V)mm
Outline Dim.
227.42*147.69*4.85 (H*V*D)mm
Bezel Area
219.66*138.6 (H*V)mm
Contrast Ratio
800:1 (Typ.) (TM)
Luminance
350 cd/m² (Typ.)
Response Time
14/11 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Work Mode
AAS, Normally Black, Transmissive
Good View at
Symmetry
Treatment
Glare (Haze 0%), Hard coating (3H)
Color Depth
262K 50% NTSC
Backlight
3 strings WLED , 12K hours , With LED Driver
Weight
120/135g (Typ./Max.)
Used for
pad tablet POS machine etc.
Frame Rate
60Hz
Touch Screen
Optional
Interface Type
LVDS (1 ch, 6-bit) , Connector , 40 pins
Power Supply
3.3V (Typ.)
Environment
Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C

Features:

  • 1280×800 WXGA Resolution — Provides detailed visual content for user interfaces, applications, and graphical information.
  • 89/89/89/89 Wide Viewing Angle — Supports clear viewing from different directions with a symmetrical viewing design.
  • Glare Treatment with 3H Hard Coating — Helps manage screen surface reflections while providing a hard-coated display surface.
  • 350 cd/m² Typical Luminance — Provides suitable brightness for a range of indoor and embedded display applications.
  • 60Hz Frame Rate — Supports smooth display performance for interface and graphical content.
Ideal for: Tablets · POS Machines · Embedded Devices · Industrial HMI · Portable Equipment
* 10 ways we can help you with customization:
(about the sizes, resolutions, materials, shapes, interfaces,brightness etc.)
>>Welcome to contact us and get our best service!

10.1 inch 1280x800 lcd display10.1 inch 1280x800 lcd display10.1 inch 1280x800 lcd display10.1 inch 1280x800 lcd display
