- Size:14.5 inch
- Resolution:2560×720
- Panel Interface:LVDS
- Active Area:354.816(H)×99.792(V)mm

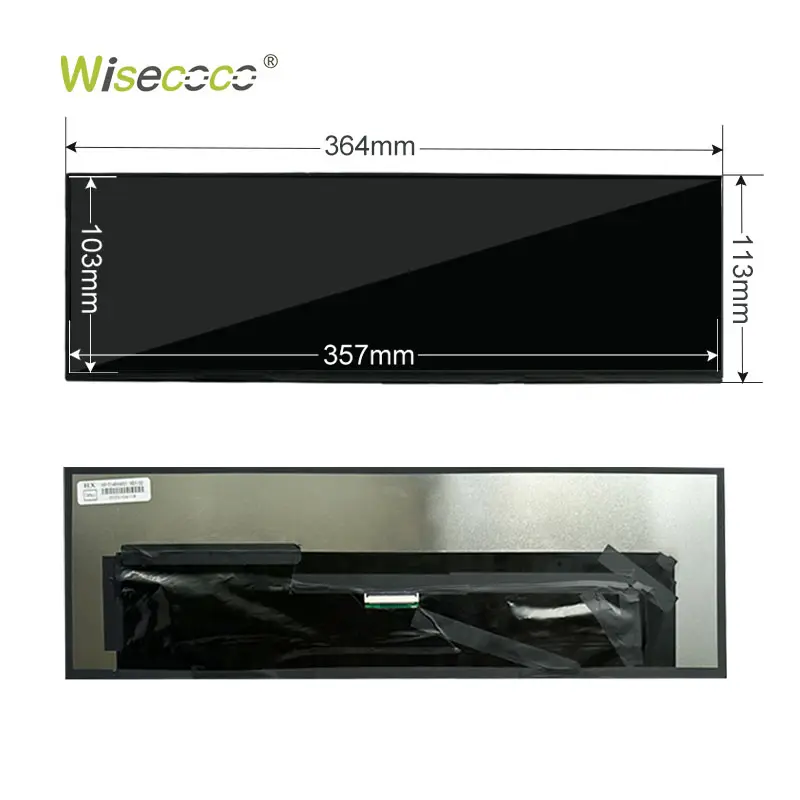

- Outline Dimension:364(H)×113(V)×3.0(T) mm
- Viewing Angle:89/89/89/89
- Brightness:350 Cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85°C / -40 ~ 95 °C

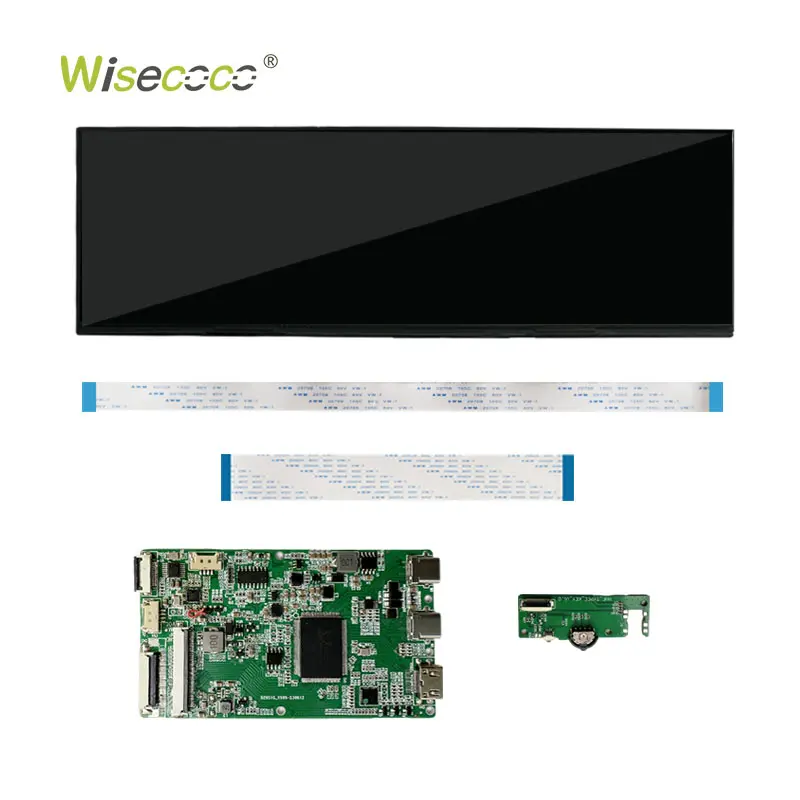

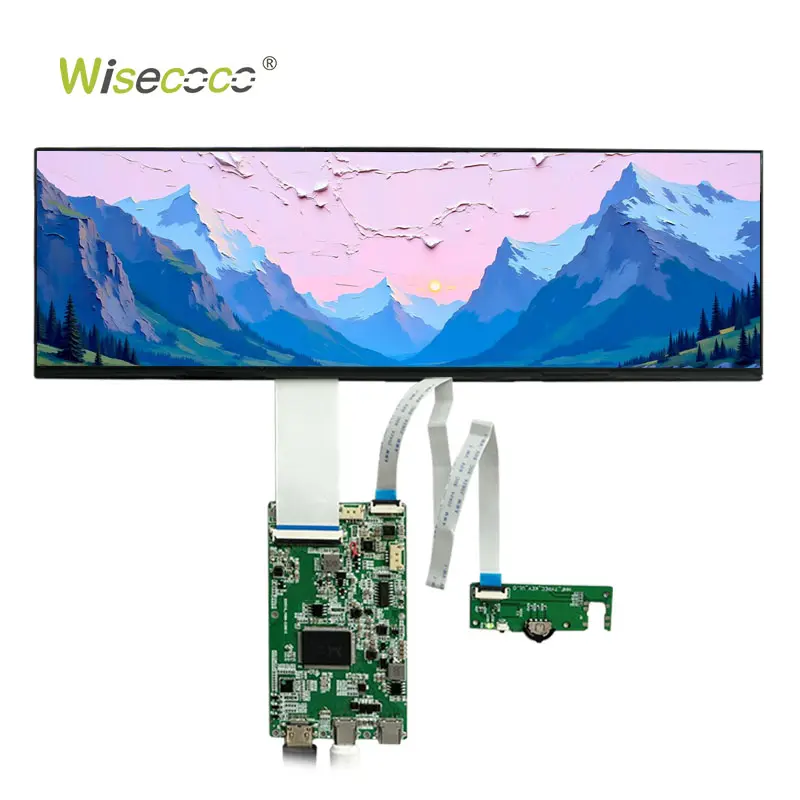

14.5-Inch 2560×720 IPS TFT LCD Module LED Backlight LVDS Interface 14.5″ 2k Stretched Bar Touchscreen for Secondary Screen
$150.00
14.5″ 2K IPS Stretched Bar Touchscreen — 2560×720 | 100% sRGB | In-Cell Touch | 1500:1
14.5-inch 2K stretched bar touchscreen with integrated in-cell capacitive touch, 100% sRGB color coverage, and the high contrast ratio 1500:1. Supports Mini HDMI and dual USB-C inputs with on-screen menu control for language, brightness, color, and volume — a fully featured, user-configurable bar touch display ready for premium automotive, commercial, and desktop applications.
|
Diagonal Size
|
14.5 inch
|
|
Pixel Format
|
2560RGB(H)×720(V)
|
|
Active Area
|
354.816(H)×99.792(V)mm
|
|
Outline Dimension
|

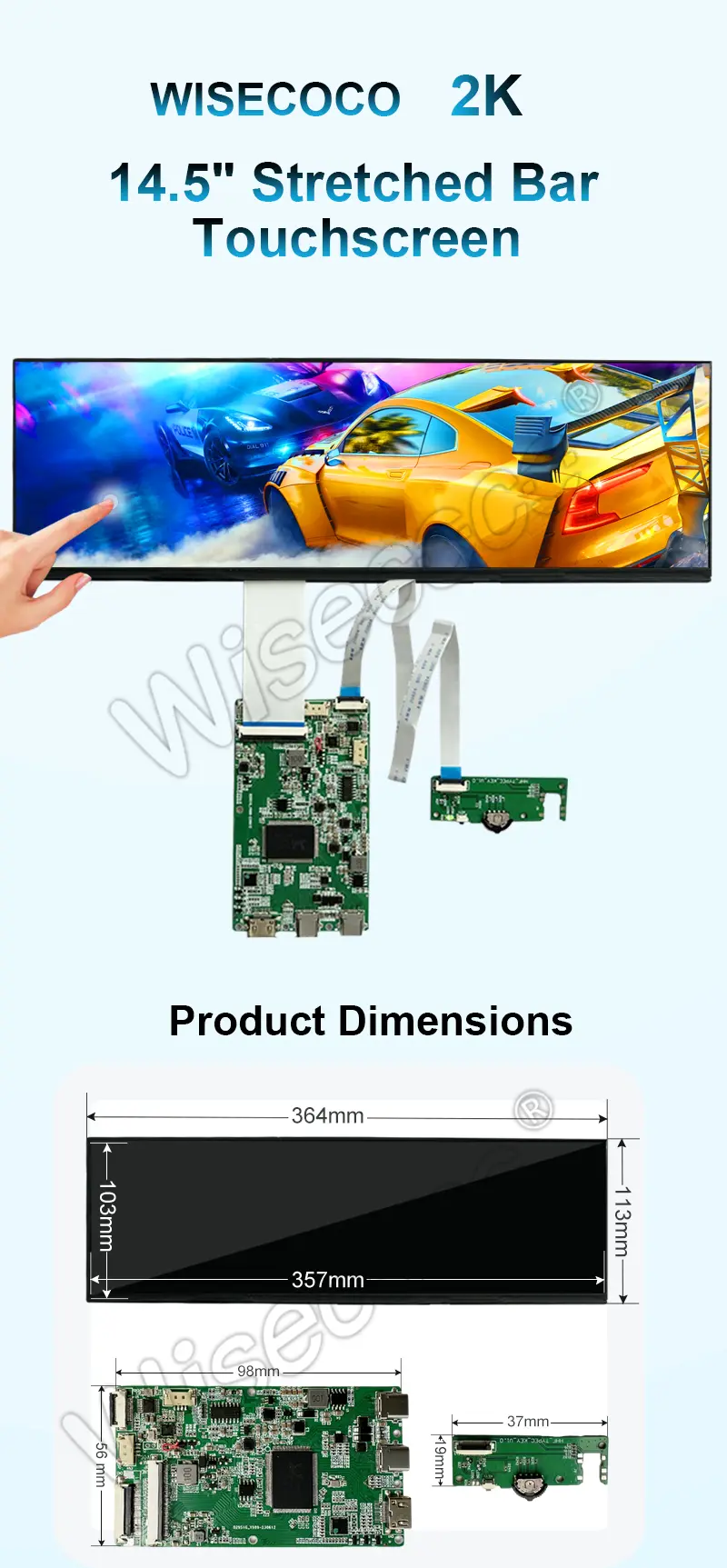

364(H)×113(V)×3.0(T)
|
|
Dot Pitch
|
0.0462RGB(H)x0.1386(V)mm
|
|
Luminance
|
350 Cd/m² (Typ.)
|
|
Contrast Ratio
|
1500:1 (Typ.) (TM)
|
|
Display Mode
|
Normally Black (AHVA)
|
|
Viewing Angle
|
89/89/89/89
|
|
Report rate
|
60HZ
|
|
Support Color
|
sRGB 100% coverage
|
|
Interface Type
|
LVDS
|
|
Touch type
|
In-cell touch
|
|
Response Time
|
40ms(Typ)/50ms(Max)
|
|
Designed For
|
Outdoor instruments,Raspberry pi ,Laptop
|
|
Environment
|
Operating Temperature: -25 ~ 80 °C Working Temperature:-20~ 70 °C
|
Features:
- 2K Resolution (2560×720) — Finer text and image detail across the full ultra-wide canvas. A clear visual upgrade for premium installations.
- 100% sRGB Color Coverage — Complete sRGB gamut coverage. Accurate, vibrant color reproduction for advertising, media, and design-preview content. The widest color accuracy available in a bar touchscreen.

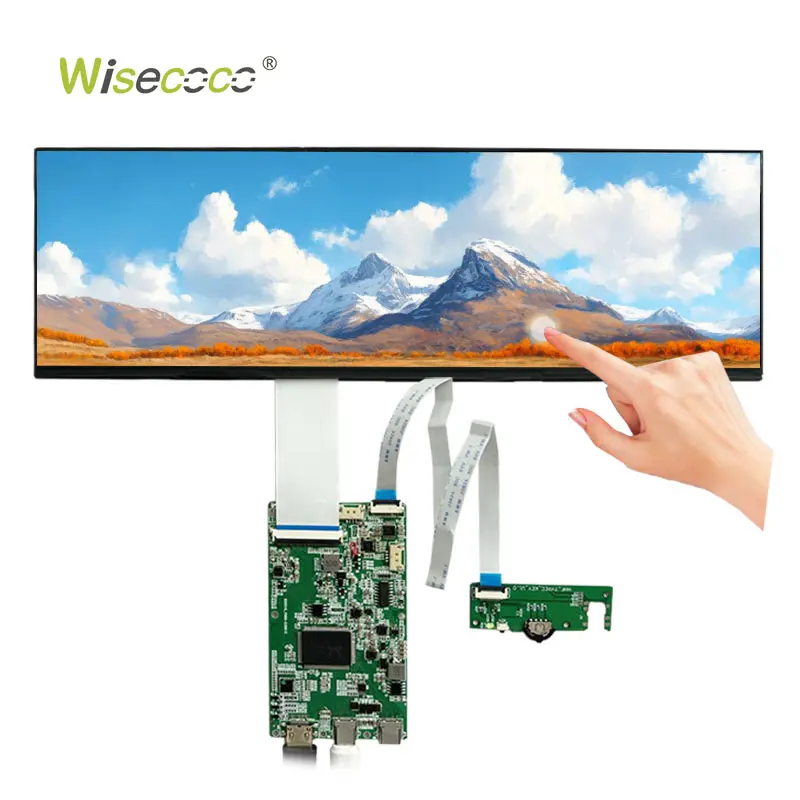

- In-Cell Capacitive Touch — Touch layer embedded directly within the panel. No separate touch glass overlay. Results in a thinner, optically cleaner, and more responsive touch surface.
- IPS Full Viewing Angle (89/89/89/89°) — Near-perfect viewing angle coverage in all four directions. Consistent image quality from any viewer position. Suitable for multi-occupant automotive and commercial environments.
- 350 cd/m² Brightness — Clean, comfortable luminance for indoor and in-vehicle use. Suitable for dashboard, kiosk, and desktop secondary display applications.

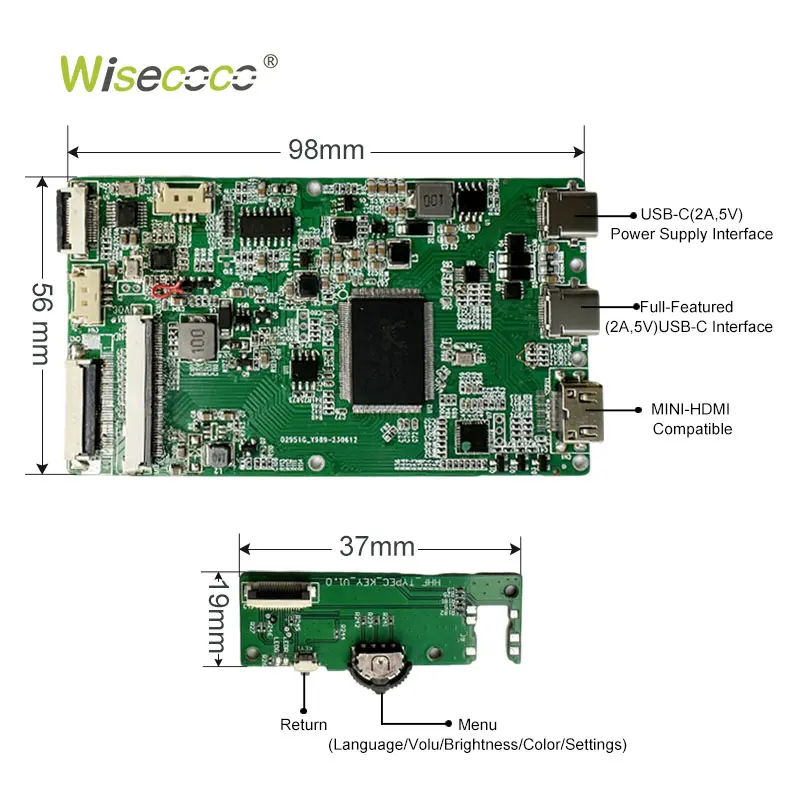

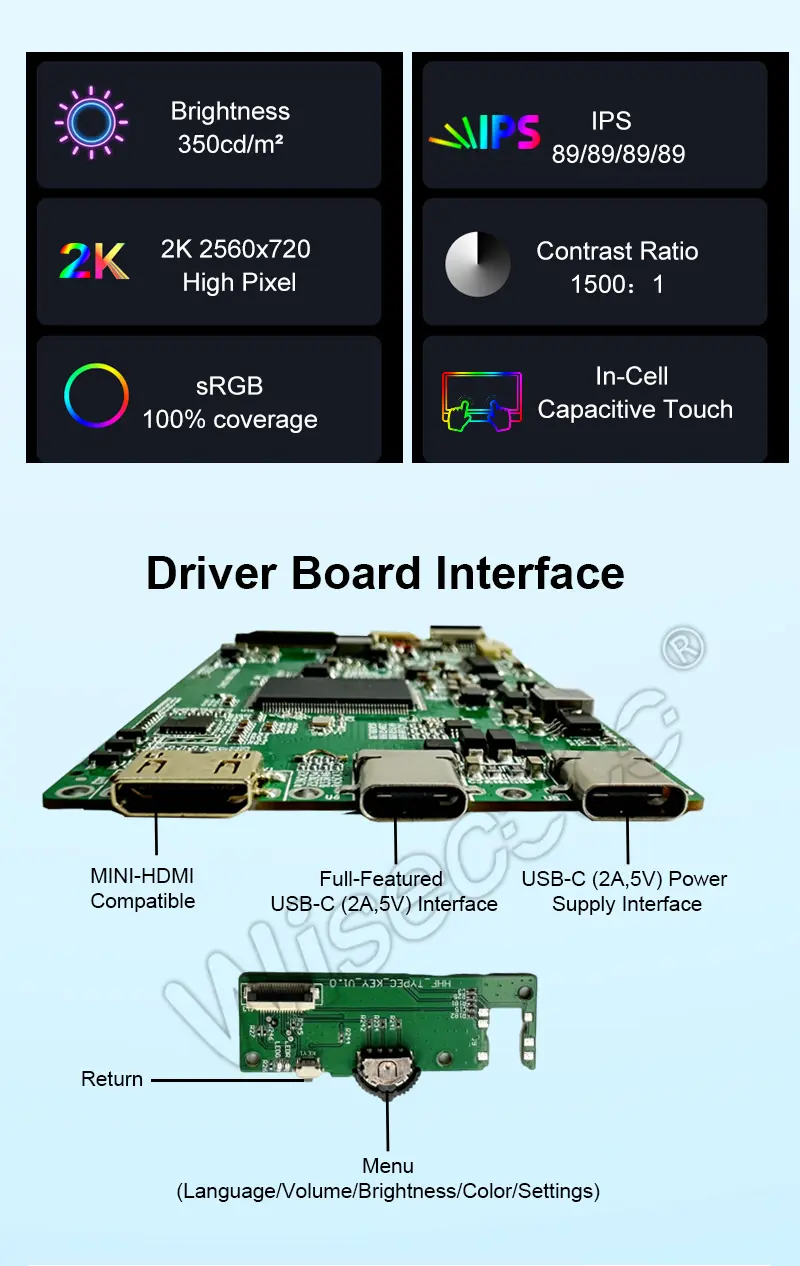

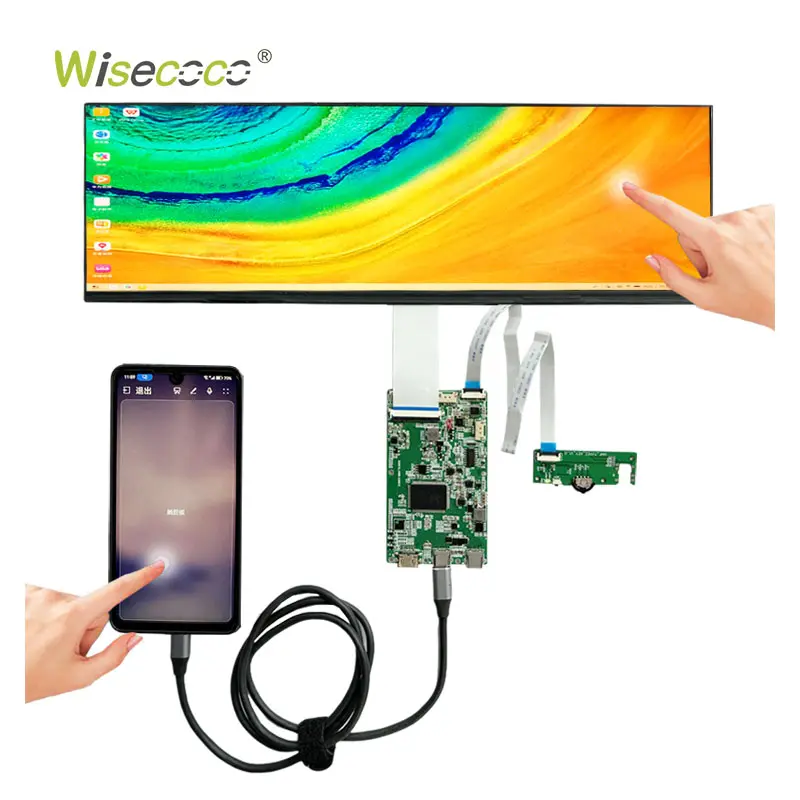

- Dual USB-C Interface — Full-featured USB-C (2A, 5V) carries signal and power in one cable. Separate USB-C power supply port also available. Flexible connection for laptops, phones, and media players.

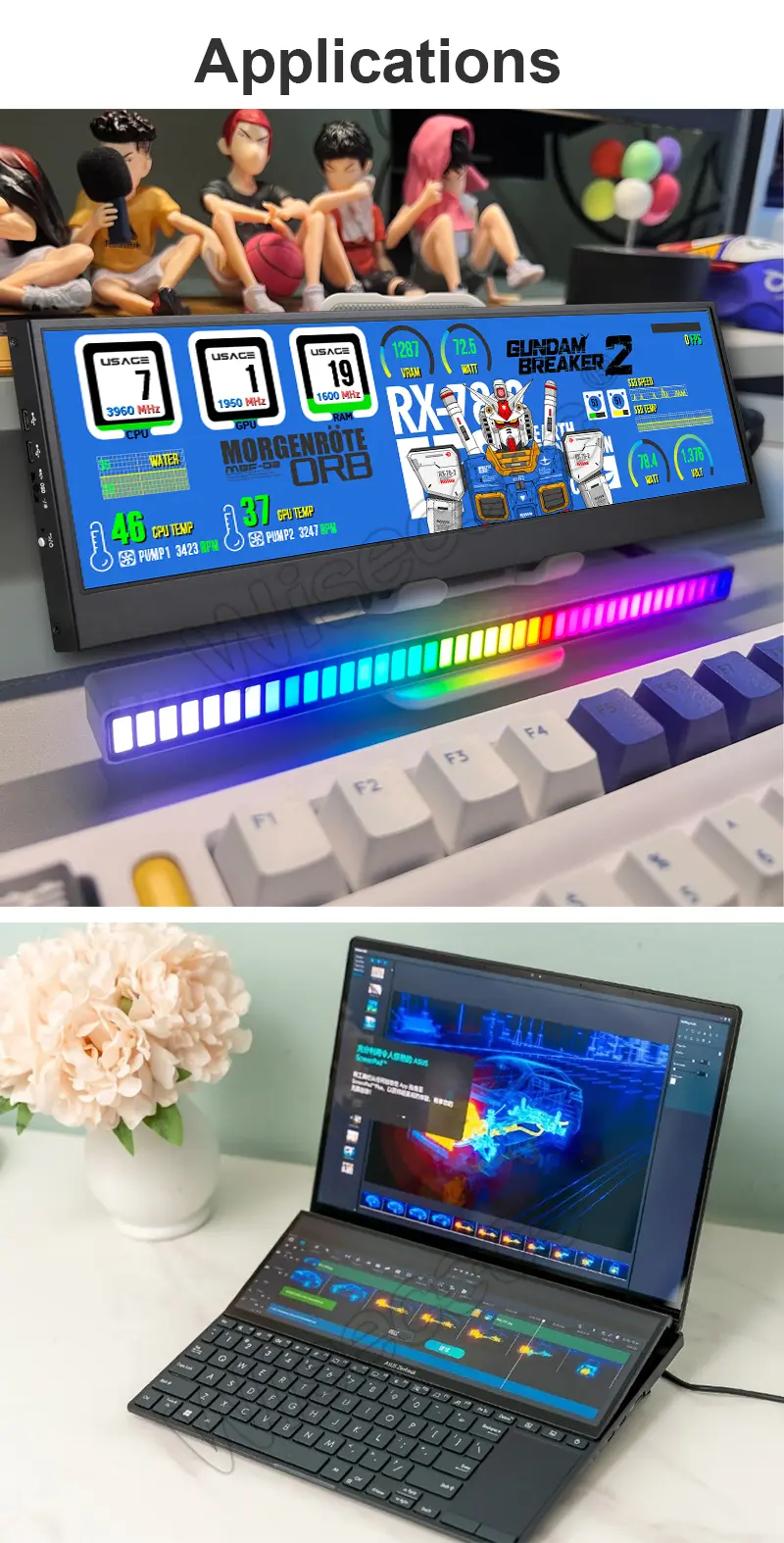

Ideal for: Premium automotive center console touch displays · Interactive commercial bar signage · Desktop 2K ultra-wide secondary touch monitor · Retail interactive shelf-edge displays · High-contrast stretched dashboard installations
Wisecoco offers One-step customized LCD display solutions.
