- Size:14 inch
- Resolution:3840(RGB)*1100
- Panel Interface:eDP (2 Lanes)
- Active Area:344.218(W)*98.604(H) mm

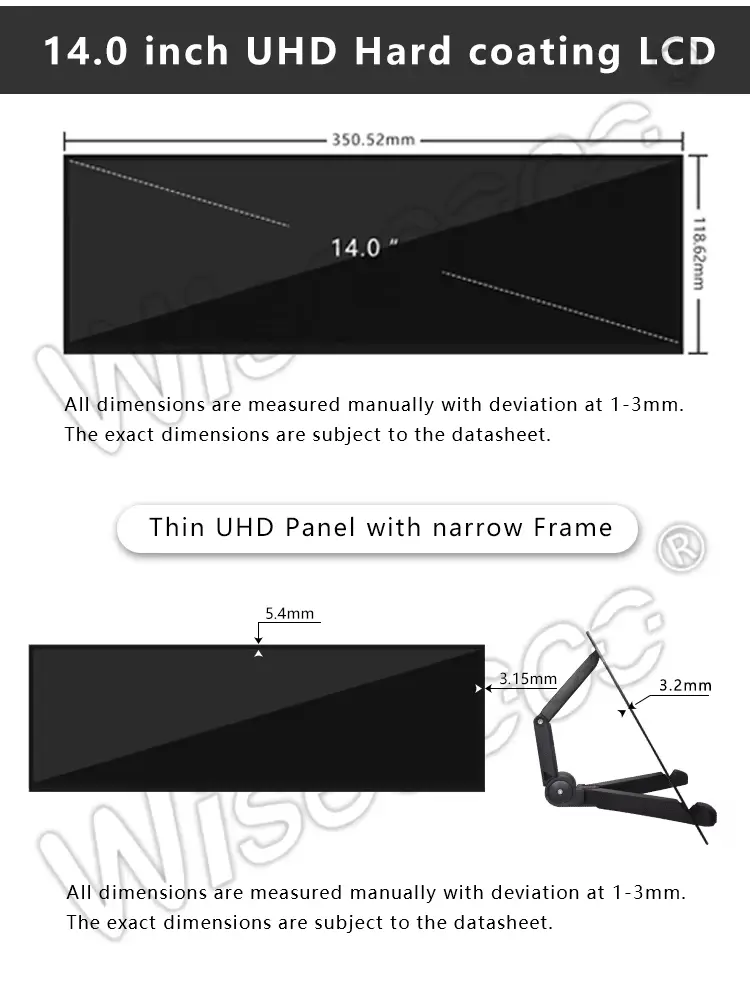

- Outline Dimension:350.52(W)*118.65(H) *2.5(D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:300 Cd/m² (Typ.)
- Operation / Storage Temp:0 ~ 60 °C / -20 ~ 65 °C
14 Inch 3840×1100 4K High Resolution Stretched Bar Type LCD Display Panel for Premium Retail Advertising Strips
$179.00

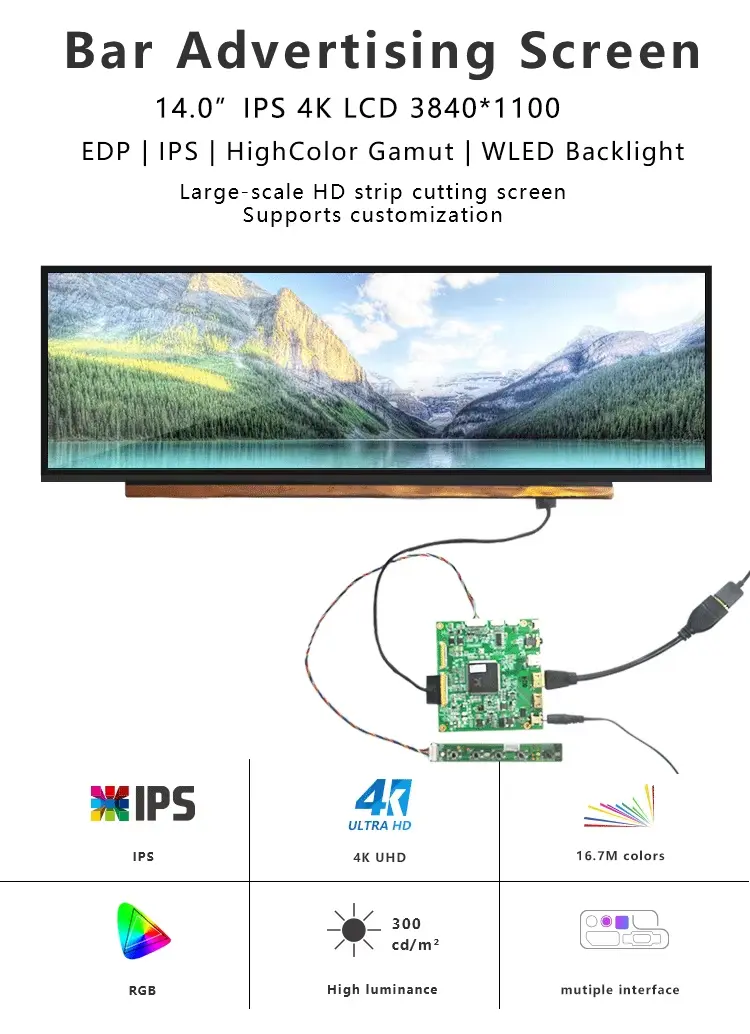

14″ 4K IPS Bar Advertising LCD — 3840×1100 | High Color Gamut | eDP
14-inch ultra-wide 4K bar IPS LCD display purpose-built for premium advertising and digital signage applications. Derived from large-scale HD strip cutting technology, it delivers 3840×1100 4K horizontal resolution across an elongated bar format — the highest pixel density available in the bar display category. Custom sizing and configurations supported for OEM and large-scale commercial deployments.
|
General Features
|
|||
|
Diagonal Size
|
14.0 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Resolution
|
3840(RGB)*1100, 283PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
344.218(W)*98.604(H) mm
|
Outline Dim.
|
350.52(W)*118.65(H) *2.5(D) mm
|
|
Brightness
|
300 Cd/m² (Typ.)
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Display Mode
|
ADS, Normally Black, Transmissive
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Display Colors
|
16.7M 72% NTSC
|
Lamp Type
|
10S6P WLED , 15K hours , With LED Driver
|
|
Shape Style
|
Slim (PCBA Flat, T≤3.2mm)
|
Designed For
|
computer monitor, advertising display
|
|
Frequency
|
60Hz
|
Touch Panel
|
Available, capacitive touchscreen
|
|
Signal Interface
|
eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 30 pins Connector
|
||
|
Input Voltage
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C
|
||
Features:

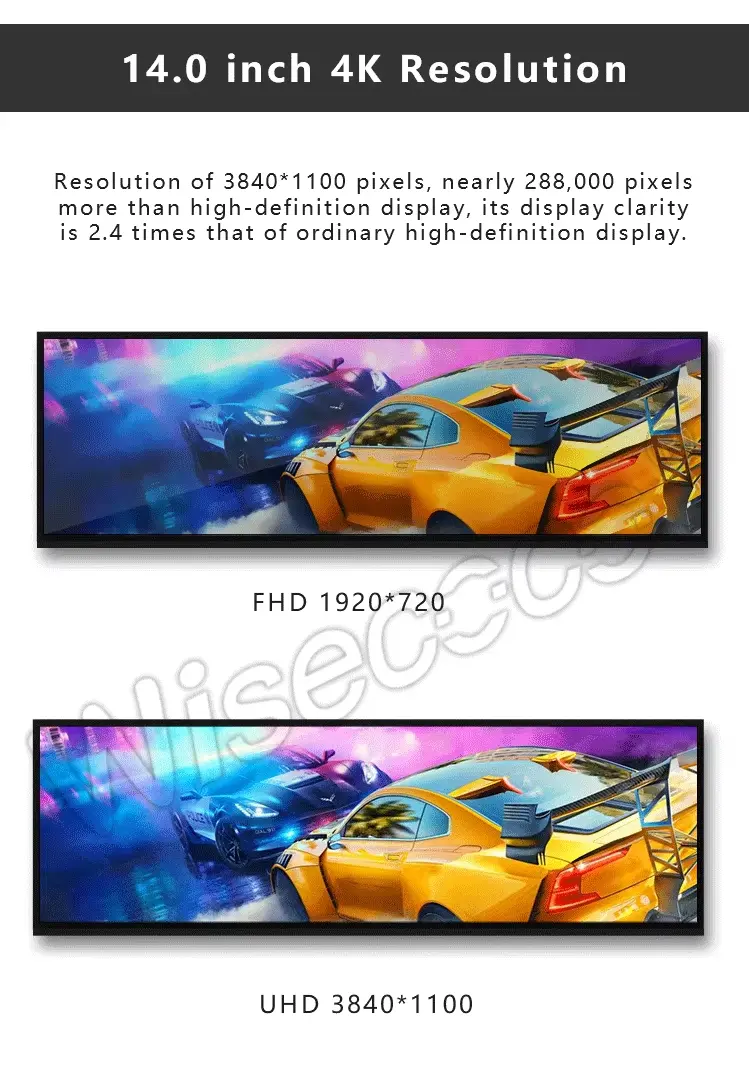

- 4K UHD Resolution (3840×1100) — Maximum pixel density in a bar format. Sharp, detailed advertising imagery at full 4K horizontal resolution. Text, product photos, and graphics rendered with exceptional clarity.
- Large-Scale HD Strip Cutting Technology — Panel cut from high-grade large-format display substrate. Ensures premium panel quality and consistency. Supports custom dimensions for bespoke signage installations.
- IPS High Color Gamut — Wide RGB color coverage with IPS accuracy. Vivid, brand-accurate color reproduction. Suitable for retail advertising, product showcases, and premium commercial displays.
- 16.7M Colors — Full color depth for smooth gradients. Rich, natural rendering of photography and video content. No banding or color accuracy compromises.
- 300 cd/m² Brightness — Clean, comfortable luminance for indoor commercial environments. Suitable for retail stores, showrooms, and shopping mall installations.
- WLED Backlight — Energy-efficient and long-lasting. Uniform illumination across the full bar width. Reliable for always-on advertising display operation.

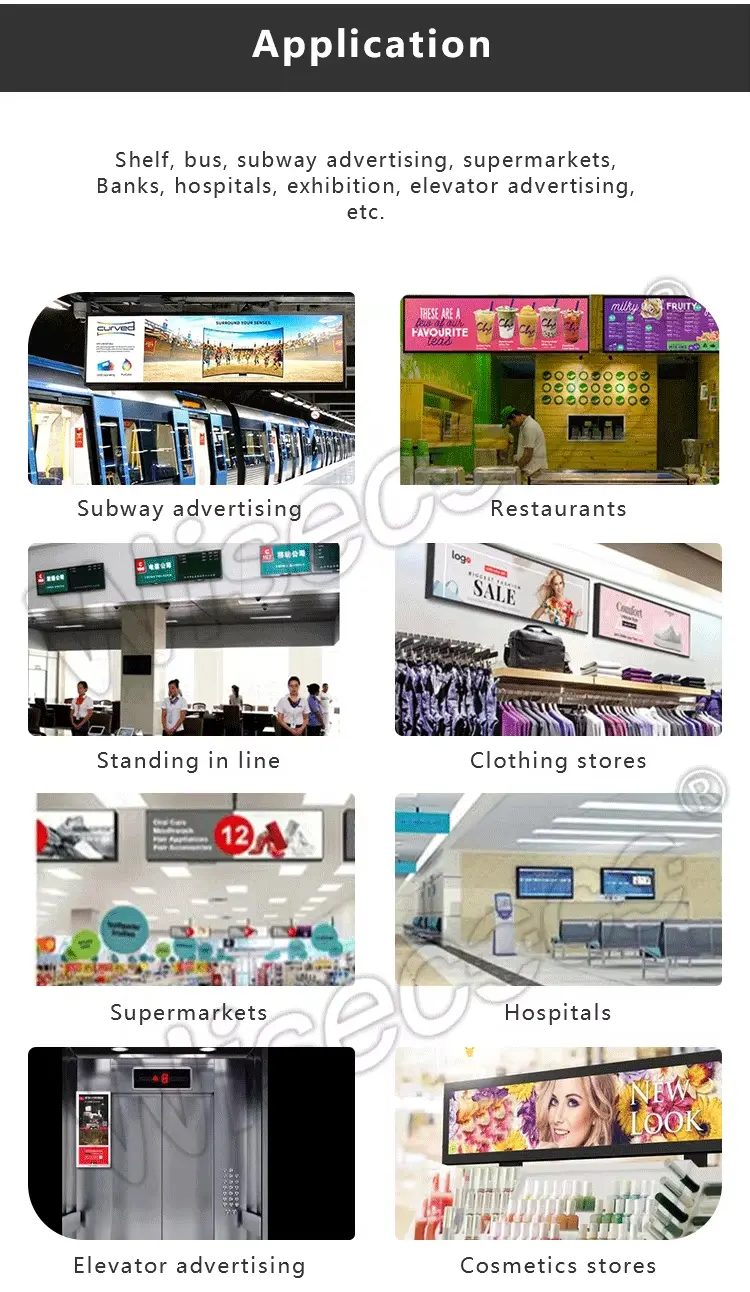

Ideal for: Premium retail advertising strips · Shopping mall digital signage · Product showcase display bars · Luxury brand in-store displays · Custom OEM commercial signage · 4K bar display builds requiring maximum resolution
Wisecoco offers One-step customized LCD display solutions.
