- Size:7 inch
- Resolution:1920×1080
- Panel Interface:MIPI

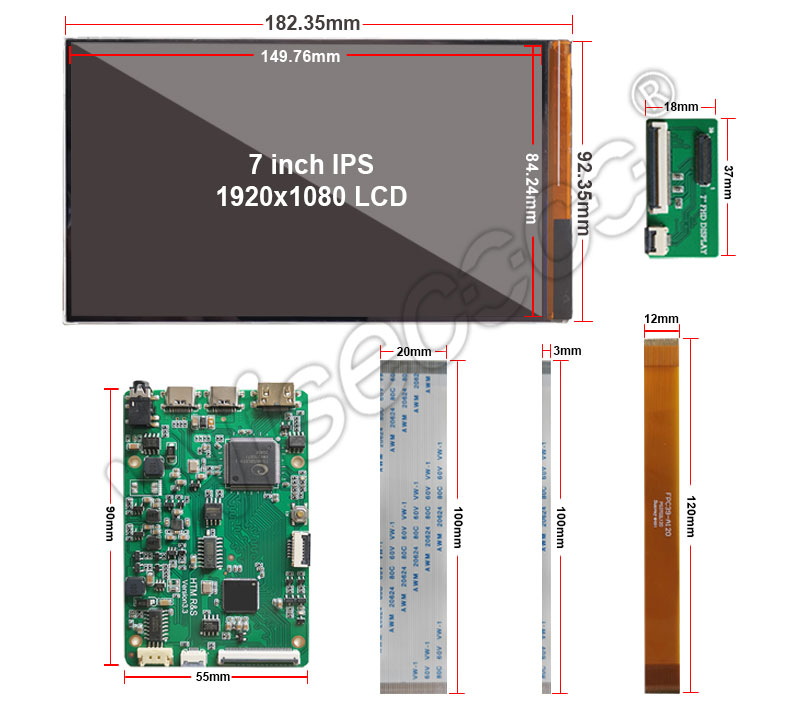

- Active Area:84.24 * 149.76mm
- Outline Dimension:92.35*182.35*2.7 mm
- Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
- Brightness:350cd/m²(Typ.)
- Touch Panel:Capacitive touch screen

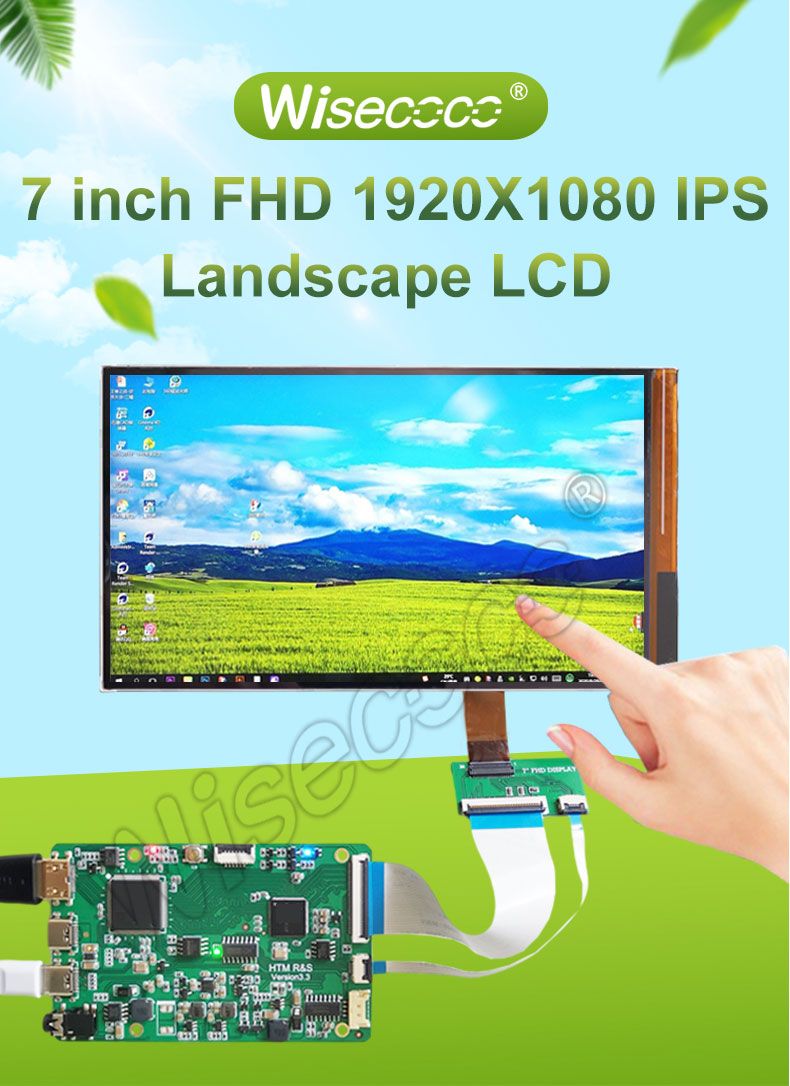

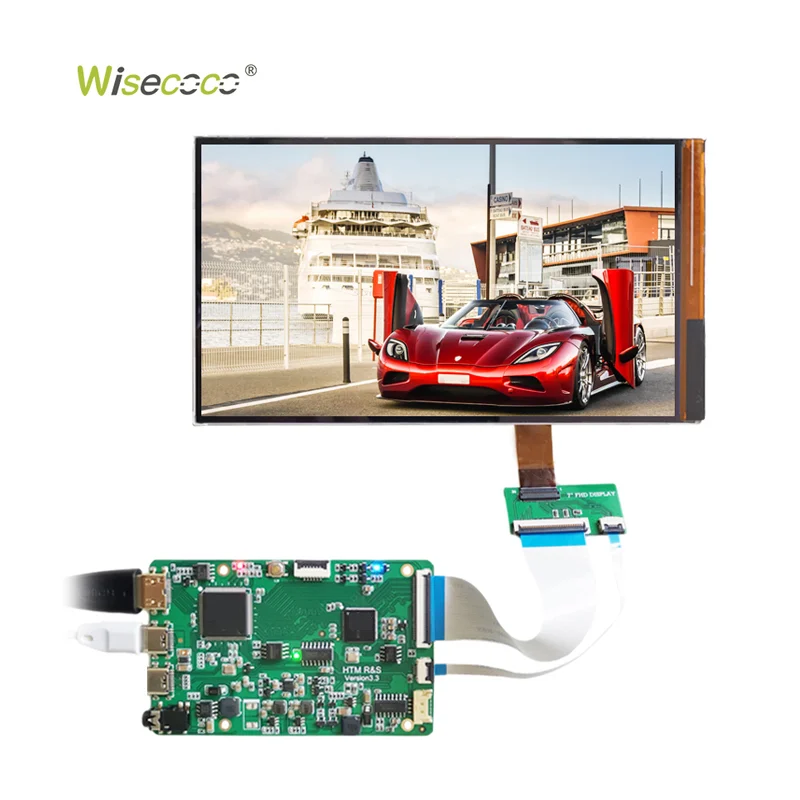

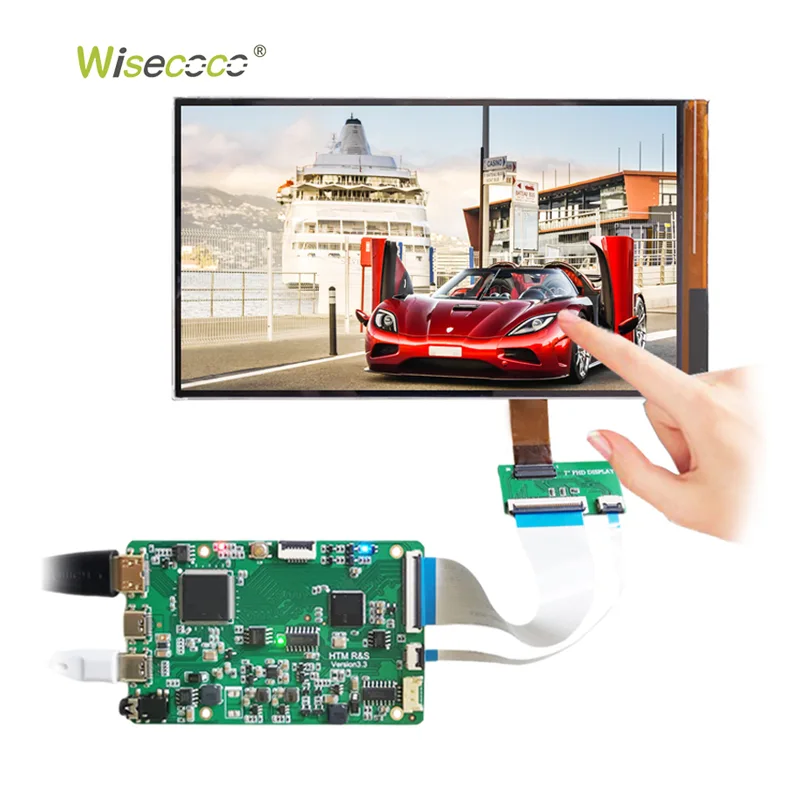

7 Inch TFT LCD Display 1920×1080 In-cell Capacitive Touch Screen Touchscreen Ips LCD Module
$95.00
|
Screen Size
|
7 inch
|
Screen Type
|
TFT-LCD
|
|
Resolution
|
1080 x R.G.B. x 1920
|
Brightness
|
350 cd/m²
|
|
Contract Ratio
|
1000:1
|
Viewing Angle
|
85/85/85/85 (Typ.)
|
|

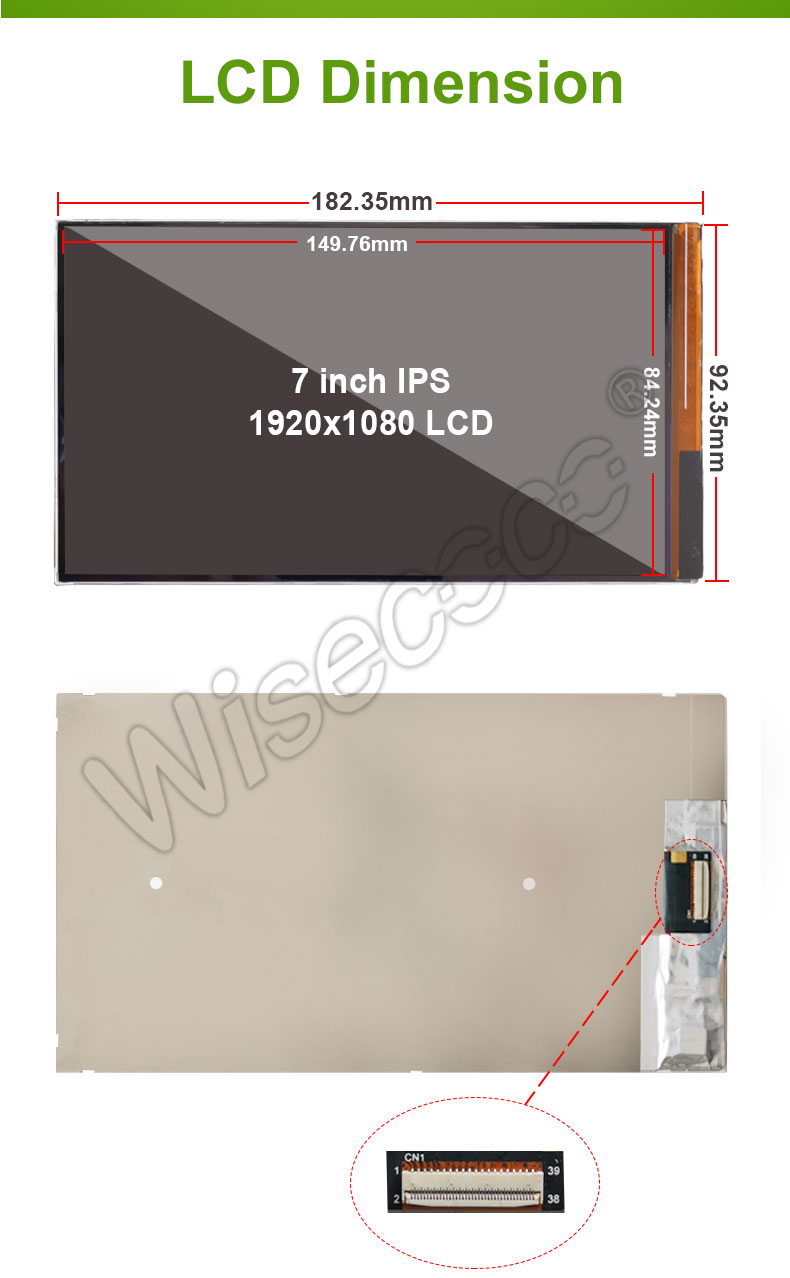

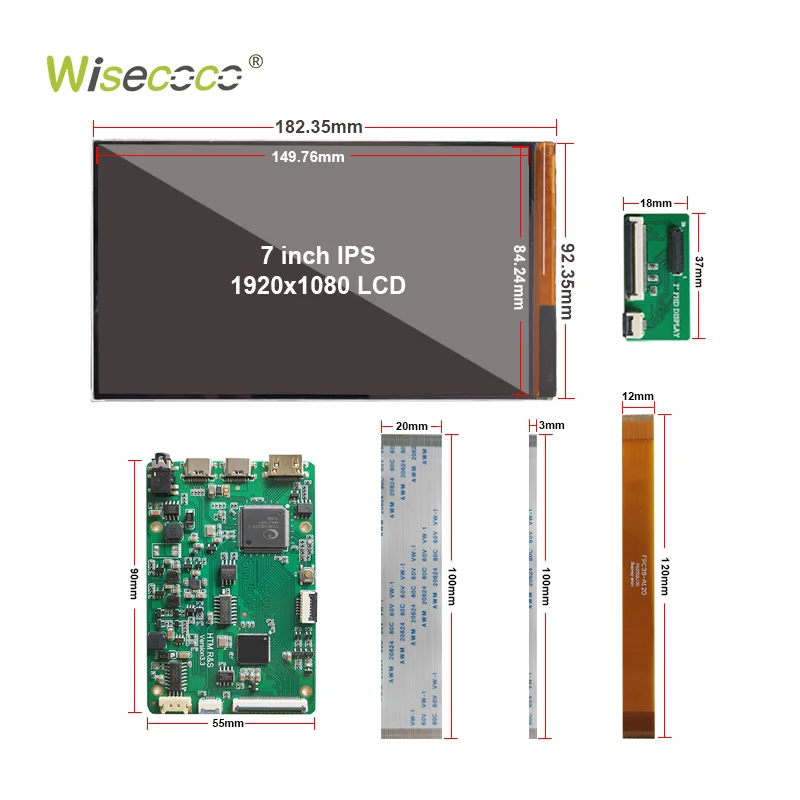

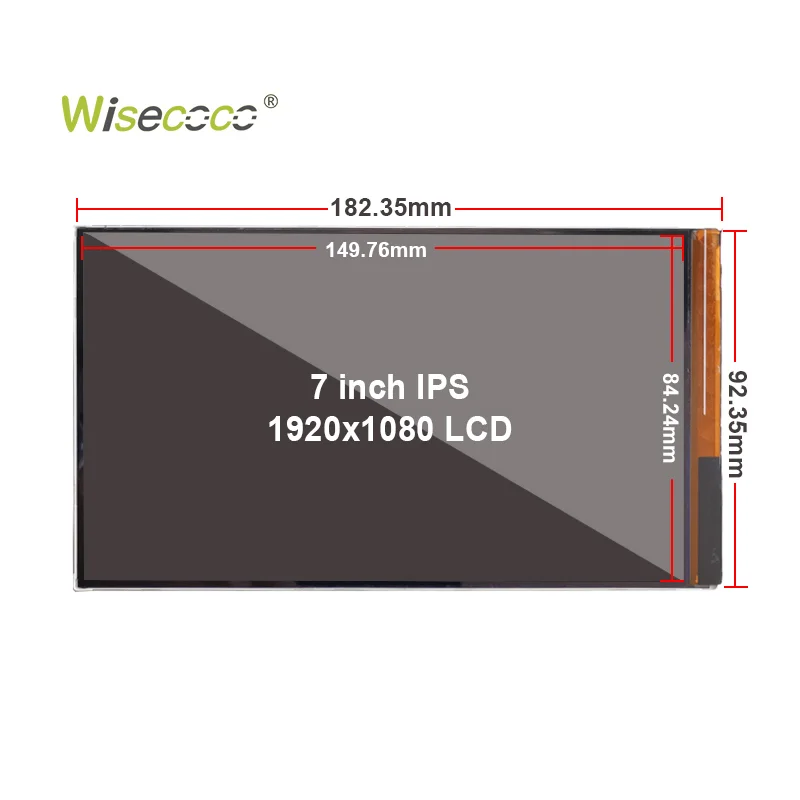

Display Outline Size(mm)
|
92.35*182.35*2.7 (typ.)
|
Active Area(mm)
|
84.24 * 149.76
|
|
Fresh Rate
|
60 Hz
|
Support Color
|
16.7M (8bit color depth)
|
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|

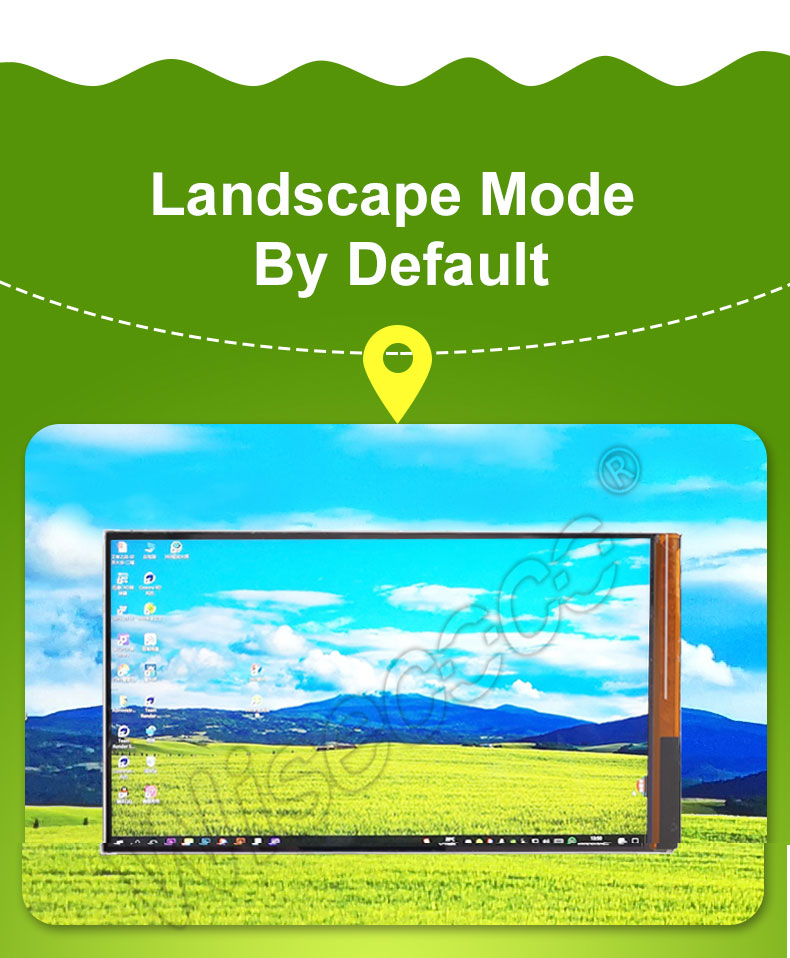

Display Mode
|
Landscape
|
Light Source
|
WLED
|
|

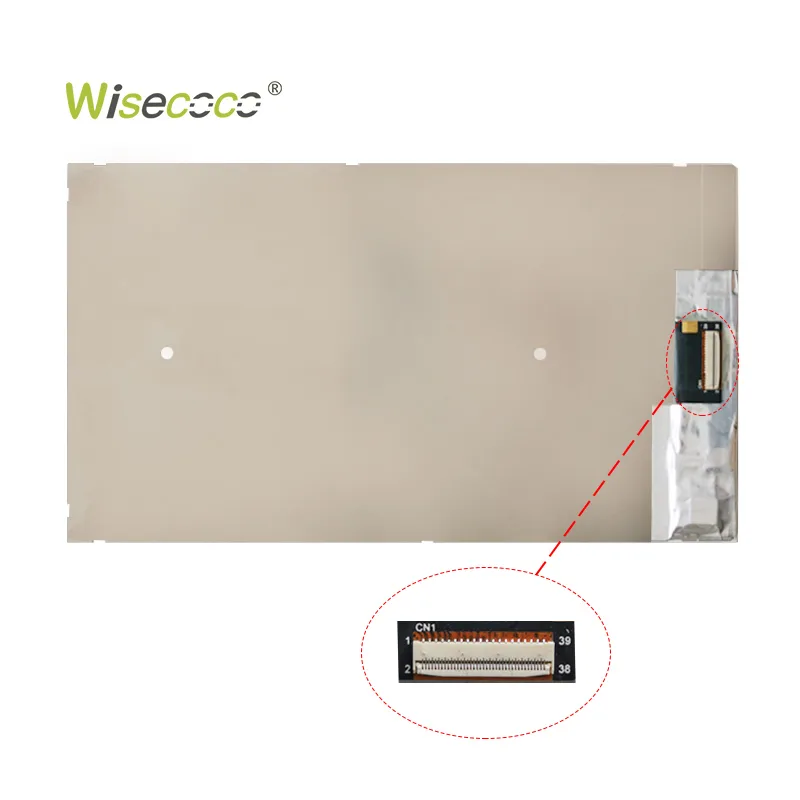

Interface
|
MIPI
|
Voltage Supply
|
1.8 (Typ.)
|
|
Operating Temperature
|
0 ~ 50 °C
|
Designed For
|
Smart Phone Screen
|
Add a review
Be the first to review “7 Inch TFT LCD Display 1920×1080 In-cell Capacitive Touch Screen Touchscreen Ips LCD Module”
Related products
-

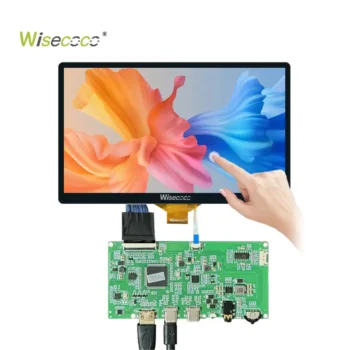

Wisecoco 7 Inch 120HZ IPS Display 1920×1080 Touch Screen For Raspberry Pi 5 Portable Handheld Gaming Console Cell Phone 500nits
